LiftMaster Light-Duty Commercial Residential Door Operator | LIF-ATSW

LiftMasterSKU: LIF-ATSW

From Price:
Sale price$161.70

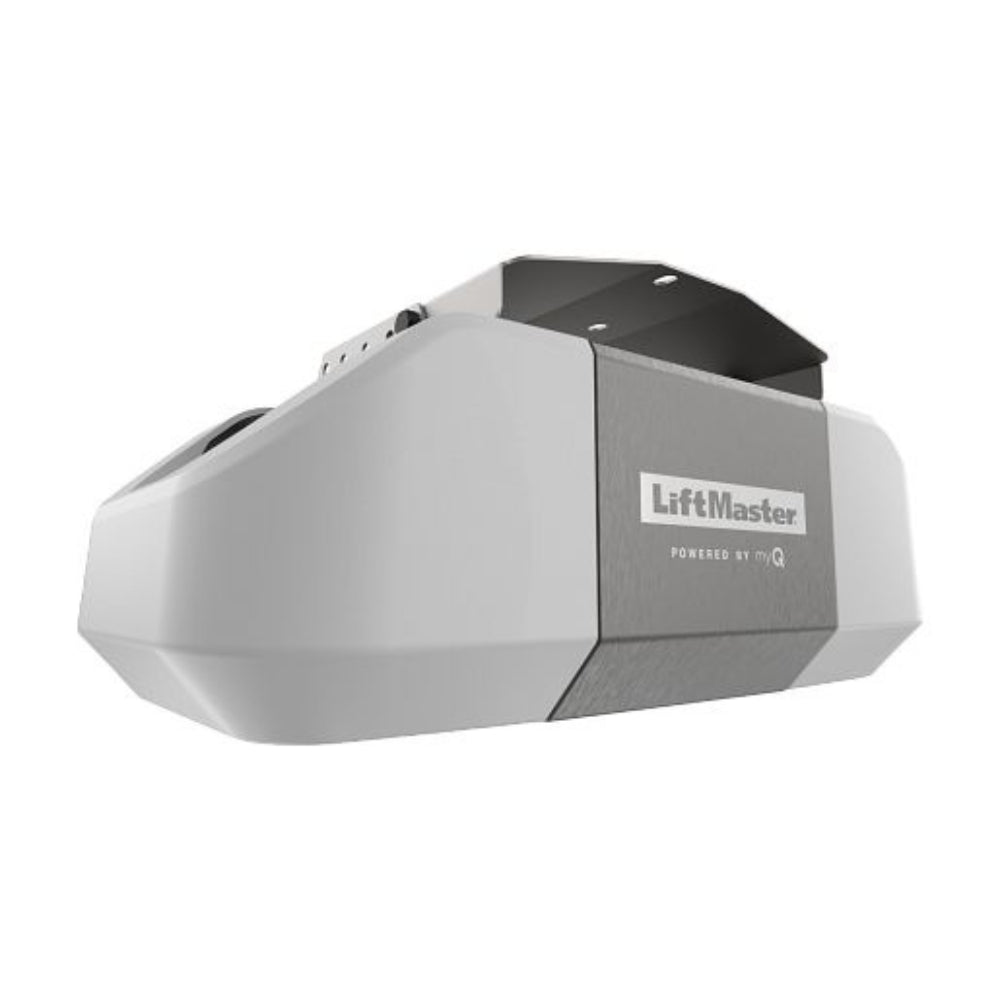

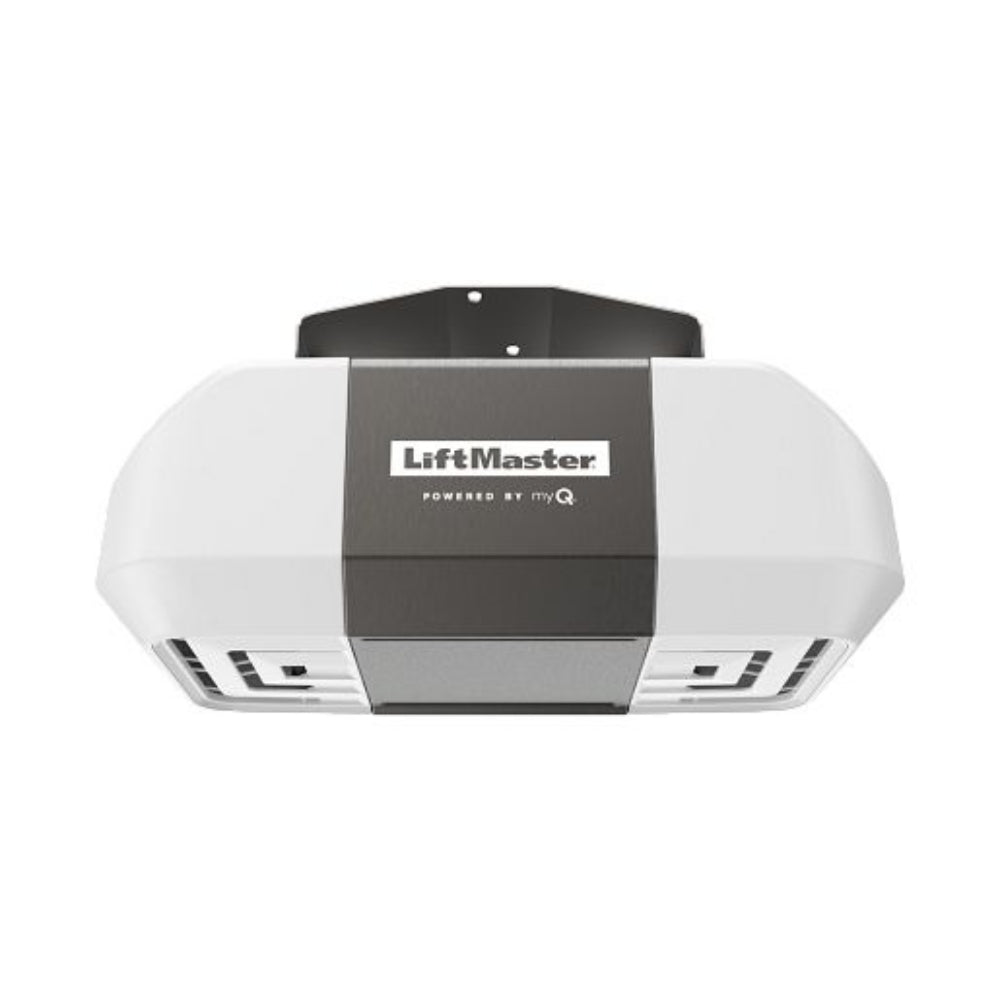

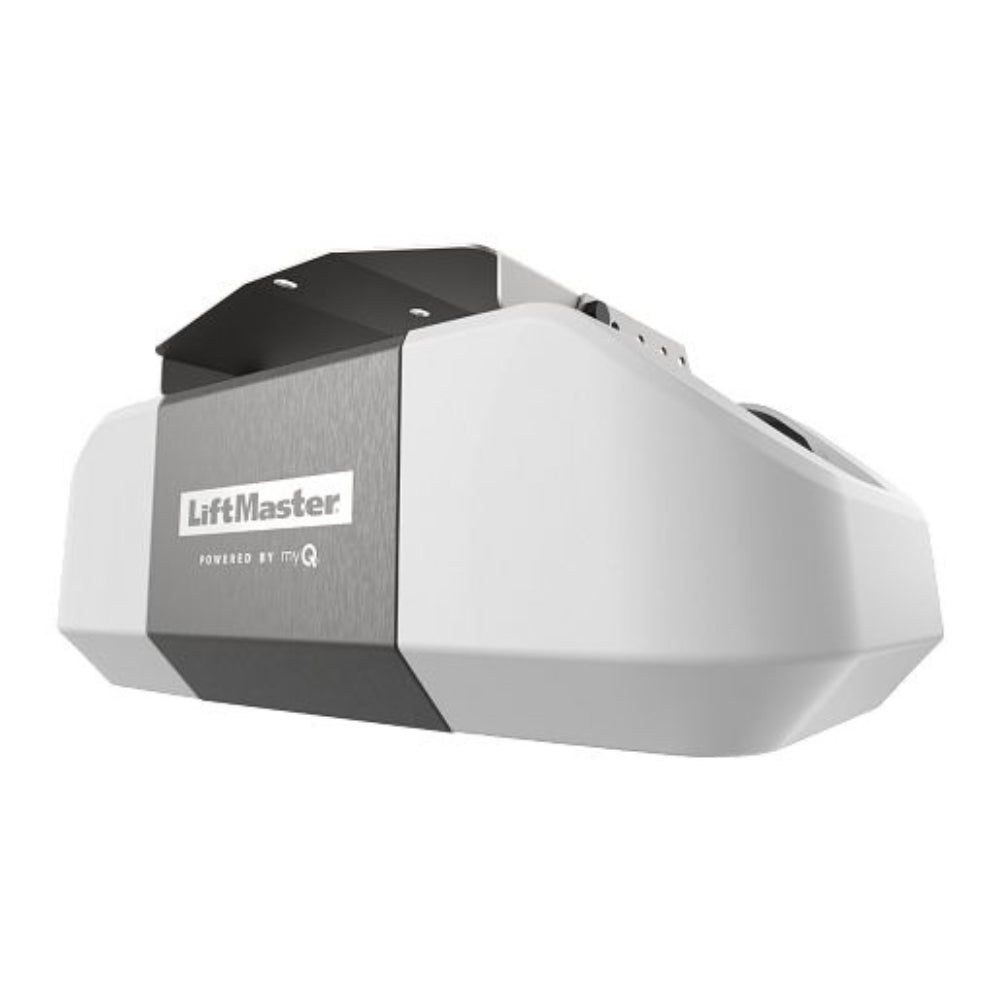

LiftMaster Light-Duty Commercial Residential Door Operator | LIF-ATSW

The LiftMaster ATSW operator is recommended for residential or light-duty commercial standard-lift sectional overhead doors in light-duty-cycle applications. Light-Duty cycles up to 8 cycles/hour.

Business Connectivity
  • Monitor and Control: myQ technology enables monitoring and control of the operators through a mobile app.
  • Facility's Network: Easily connect the operator to the facility's network with built-in Wi-Fi.
  • Real-time alerts: Indicate the status of doors via email.
LiftMaster Business Connectivity Monitor and Control
Features
  • Operator Speed: 8-9 Inches per second
  • Limit Settings: Electronic
  • Internal Door Lock Sensor: Emergency release rope with handle
  • Emergency Disconnect for Manual Operation: Floor-level emergency release sash chain
  • Emergency Disconnect with Auto-reconnect: Automatically reconnects the next time the operator is activated
  • Programming: Tactile buttons
  • Circuit Board: Solid-state circuit board
  • Clutch: Not required due to automatic safety reverse
  • Mid-stop: Programmable
  • Motor Reverse Action Protection: Delay-on-reverse circuit
  • Motor Operator Wall Control: Single-button control station
  • Trolley Track: Heavy-duty steel “I-beam”

Installation Features

  • Maximum Door Height: 14 feet
  • Maximum Door Width: 18 feet
  • Maximum Allowable Square Footage: 252 square feet
  • Internet Connectivity: The myQ® technology enables remote monitoring and control of the commercial door via a smartphone, tablet, or computer (operator directly connects via built-in wi-fi, myQ app required.)
Commercial Door Operator Lifestyle Facility

SMART

  • myQ Technology: Enables monitoring and control of the property operators through a mobile app.
  • Built-In Wi-Fi: For simple operator internet connection.
  • Real-Time Alerts: Indicate the status of doors via email or push notifications.

QUIET AND SECURE

  • Motor Vibration Isolation System (MVIS): For smoother and quieter operation.
  • Security+ 2.0: Safeguards property access; tri-band rolling code technology, operating for programmed devices only.
  • The Protector System: Auto-reverses the door if an entrapment protection device detects an obstruction.

RELIABLE

  • High-Starting Torque Motor: With overload protection.
  • Rated Load: 600 inch-pounds per second to satisfy a wide range of light-duty cycle applications.
  • Warranty: 1 year
Also known as
  • LiftMaster ATS2113X-CX
Product Literature
