UNV IPC6432LR-X16-VG1 2MP 16X LightHunter Network PTZ Dome Camera

Name: UNV IPC6432LR-X16-VG1 2MP 16X LightHunter Network PTZ Dome Camera
Brand: UNV
SKU: UNV-IPC6432LR-X16-VG1
Price: 889.0 USD
Availability: OutOfStock

Write a review

Free US Shipping

UNVSKU: UNV-IPC6432LR-X16-VG1

Price:

$889.00

Quantity:

Required fence width (Linear feet):

Share this product

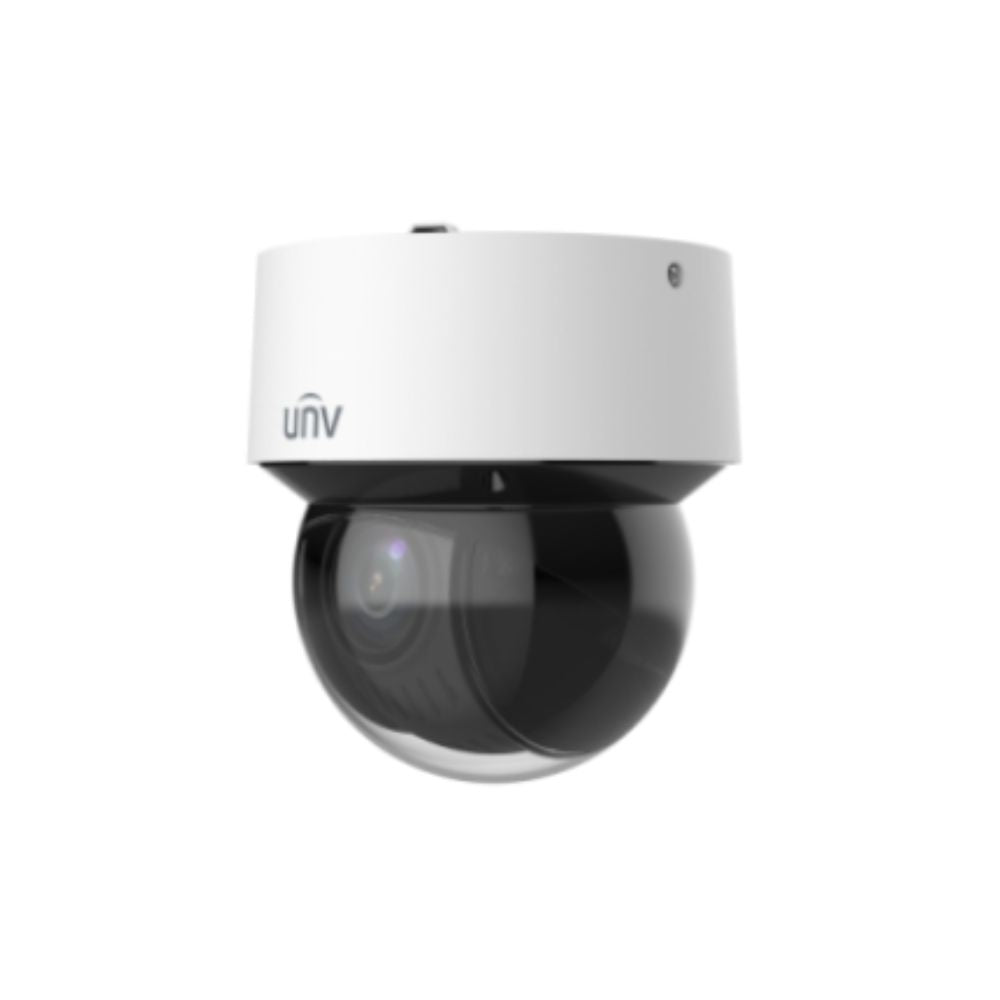

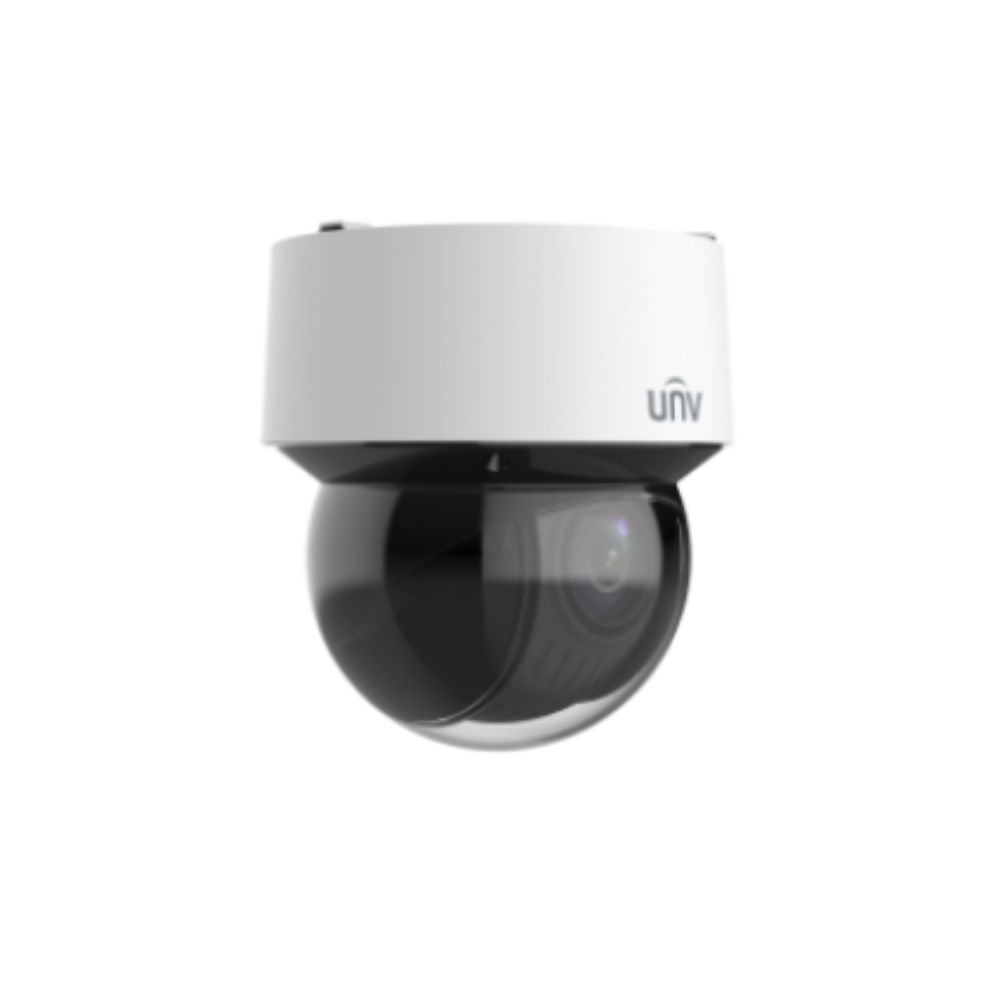

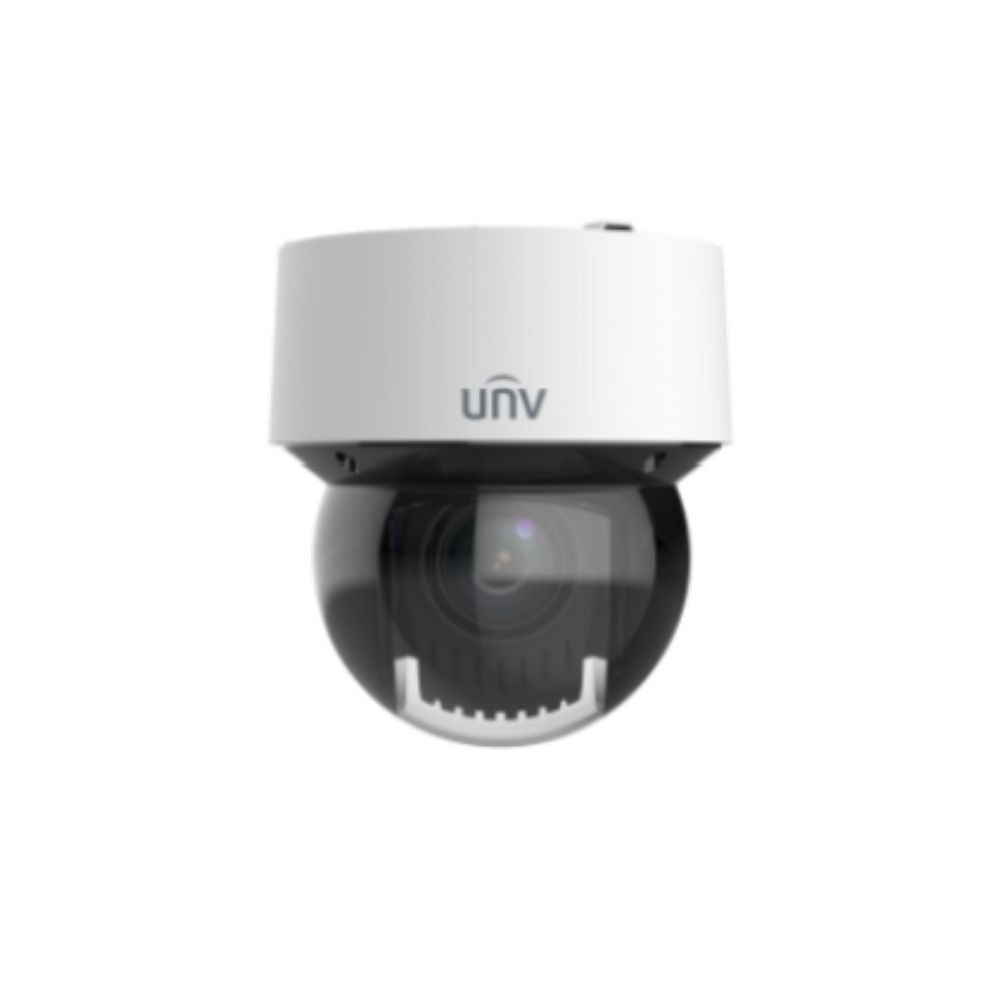

UNV IPC6432LR-X16-VG1 2MP 16X LightHunter Network PTZ Dome Camera

The UNV 2MP 16X LightHunter Network PTZ Dome Camera is considered a an enhancer of comprehensive technical documentation. A high-performance surveillance solution with 16x optical zoom and excellent low-light capabilities, it is ideal for outdoor applications demanding precise monitoring and detailed footage.

Resolution: 2MP
Sensor: 1/2.8''CMOS
Min. Illumination: Color: 0.003 Lux (F1.78, AGC ON), 0 Lux with IR
Day/Night: IR‑cut filter with auto switch (ICR)
Shutter: Auto/Manual, 1 ~ 1/100000s
WDR: 120dB
S/N: >52dB
LensDescription: Lens type5.5~88mmOptical Zoom16XIrisF1.78‑F3.73Field of View (H)52.46°~3.67°Field of View (V)30.98°~2.07°Field of View (D)64.53°~4.33°
DORIDescription: DORI Distance（Detect）88.0m~1412.7m(288.7ft~4634.8ft)DORI Distance（Observe）35.2m~565.1m(115.5ft~1853.9ft)DORI Distance（Recognize）17.6m~282.5m(57.7ft~927.0ft)DORI Distance（Identify）8.8m~141.3m(28.9ft~463.5ft)
IlluminatorDescription: Illumination Distance(IR)Up to 100m (328 ft) IR rangeWavelength850nmIR On/Off ControlAuto/Manual
VideoDescription: Video CompressionUltra 265; H.265; H.264; MJPEGVideo streamDual streamsFrame RateMain Stream: 2MP(19201080),Max 60fps
Sub Stream: 720P(1280720), Max 60fpsVideo Bit Rate128 Kbps~16 MbpsU-codeSupportROISupportOSDUp to 4 OSDsPrivacy Mask24 areas, up to 4 areas per scene
ImageDescription: White BalanceAuto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2Digital noise reduction2D/3D DNRSmart IRSupportFlipNormal; Flip Vertical; Flip Horizontal; 180°HLCSupportBLCSupportDefogDigital Defog
IntelligentDescription: Smart intrusion preventionSupport false alarm filtering: Cross line detection, Intrusion detectionAuto-TrackingSupport, target filtering: vehicle, humanbody
EventsDescription: Basic DetectionMotion detection; Tampering alarm; Audio detection
General Function: Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; Alarm input
AudioDescription: Audio CompressionG.711U; G.711AAudio Bitrate128 KbpsTwo-way AudioSupportSuppressionSupportSampling Rate16KHZ
StorageDescription: Edge StorageMicro SD，up to 256 GBNetwork StorageANR; NAS(NFS)
NetworkDescription: ProtocolsIPv4; IPv6; IGMP; RTP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLSCompatible IntegrationONVIF (Profile S, Profile G, Profile T); API; SDKUser/HostUp to 32 users. 3 user levels: administrator, common user and operator
Security: Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client: EZStation; EZLive; EZViewWeb BrowserPlug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan/TiltDescription: Pan Range360°(endless)Pan Speed0.1°/s~240°/sTilt Range–5°~90°(auto flip)Tilt Speed0.1°/s~120°/sNumber of Presets1024Preset Patrol16 patrols, up to 64 presets for each patrolRoute Patrol16 patrols, up to 32 actions for each patrolRecorded Patrol16 patrols, up to 128 actions for each patrolPatrol Stay Time15s~1800sHome PositionSupport
InterfaceDescription: Audio I/O1/1Alarm I/O2/1Serial Port1RS485Network1RJ45 10M/100M Base‑TX Ethernet
CertificationDescription: EMCCE‑EMC (EN 55032: 2015+A11:2020+A1：2020,EN IEC 61000‑3‑2: 2019+A1: 2021,EN 61000‑3‑3: 2013+A1: 2019+A2:2021,EN 50130‑4: 2011+A1:2014)
FCC (FCC CFR 47 part15 B, ANSI C63.4‑2014)
Safety: CE LVD (EN 62368‑1:2014+A11:2017)
UL (UL 62368‑1, 2nd Ed., Issue Date: 2014‑12‑01)
Environment: CE‑RoHS (2011/65/EU;(EU)2015/863)
Protection: IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General Description: PowerDC12V(±10%,3A), PoE+(IEEE 802.3at)Power ConsumptionMax 23WPower InterfaceØ 5.5mm coaxial power plugDimensionsØ 167 x 181mm(Ø 6.6” x 7.1”)Weight2.3Kg(5.07lb)Working Environment‑40℃~65℃ (‑40°F~149°F), Humidity: ≤95% RH (non‑condensing)Storage Environment‑40℃~70℃ (‑40°F~158°F), Humidity: ≤95% RH (non‑condensing)Surge protection6KVReset buttonSupport
