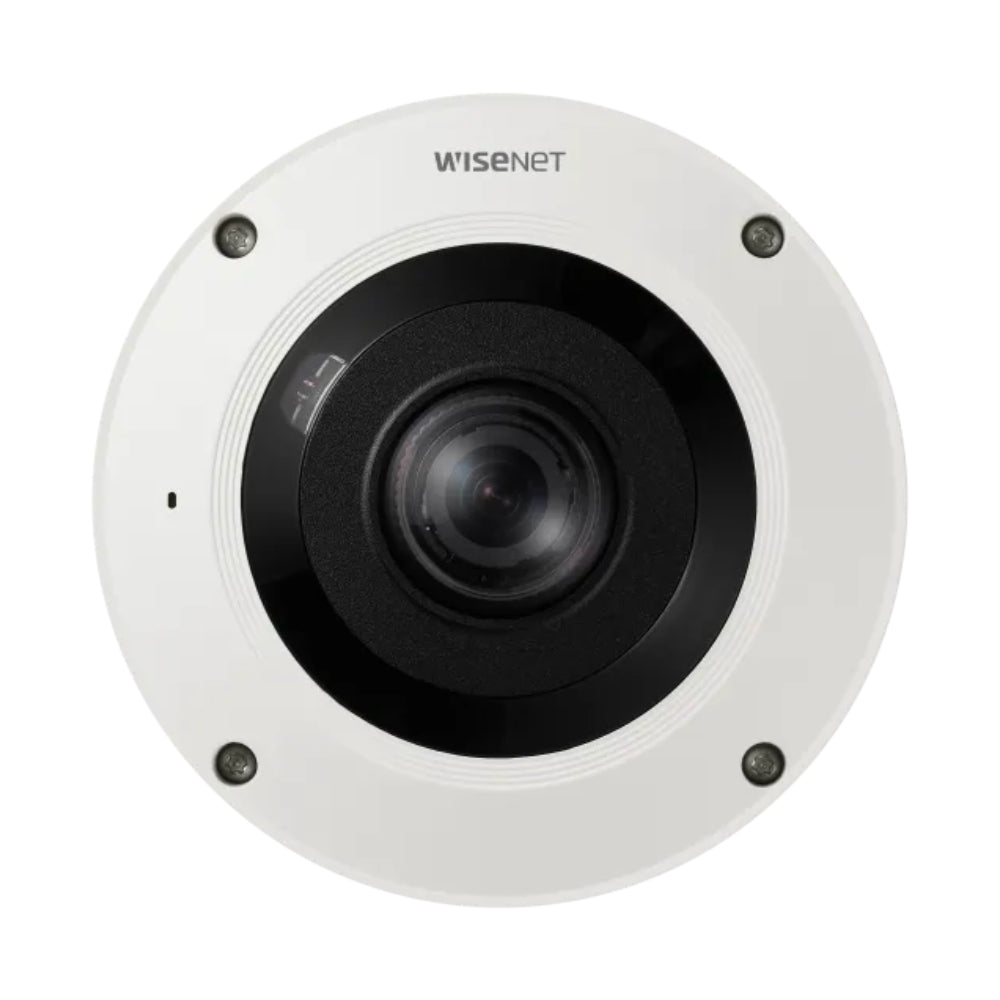

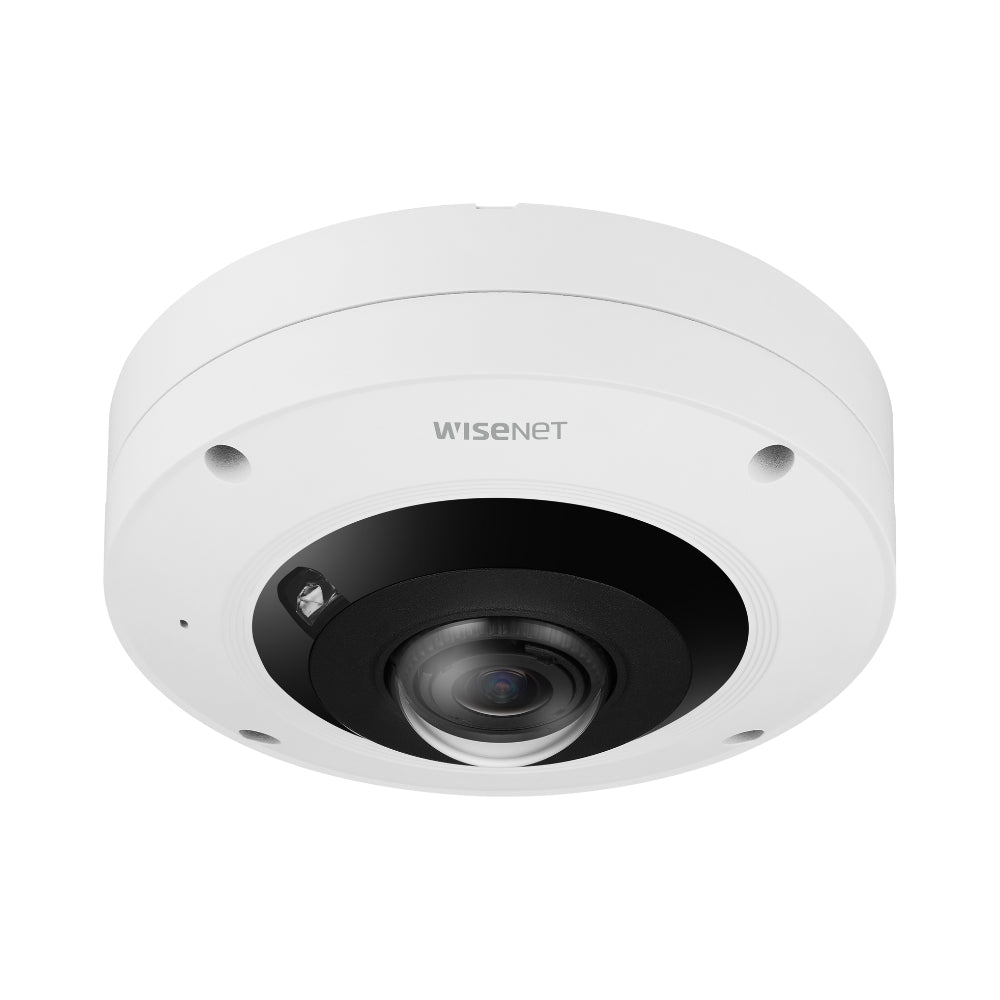

Hanwha Vision 12 MP Sensor 360° Outdoor Fisheye Camera (Mobile) | HAN-XNF-9010RVM

Hanwha Vision 12 MP Sensor 360° Outdoor Fisheye Camera (Mobile) | HAN-XNF-9010RVM

Wisenet X powered by Wisenet 7 network outdoor vandal fisheye, 12 MP CMOS sensor, 3008x3008 @ 30fps with extreme WDR (120dB), 1.08mm fixed lens (192°), H.265/H.264/MJPEG, WiseStream II compression technology, USB port for easy installation, advanced video/audio and business analytics, simple focus, dual SD card slots, HLC, Defog detection, DIS, 12VDC/PoE, Mobile certified with M12 connector.

Features

• 3008 x 3008 resolution, 30fps
• 1.08mm Stereographic type lens, enhanced resolution for the peripheral regions (187?X187?) W/ simple focus
• Built-in IR for coverage up to 10m with Wise IR multi-zone IR management
• Triple Codec: H.265, H.264, and MJPEG multiple streaming
• On board dewarping, Digital PTZ
• Fisheye, Single panorama, Double panorama, Quad view
• Multiple virtual channels for easy dewarping views
• WiseStream II compression technology
• extreme WDR 120dB @30fps
• Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
• Sound classification, heatmap, people counting, and queue line management
• Dual SD cards
• Power: PoE or 12VDC
• IP66/IK10/NEMA4X
• Includes M12 Mobile connector, EN50155 class T3 mobile certified camera
• USB & analog video output for easy installation
• Hard-coated dome cover for durability
• Motion detection, Handover, IP66/IK10/NEMA4X
• Mobile use available, supports M12

Technical Specifications

• Video

• Imaging Device: 1/2.3" 12MP CMOS
• Resolution:
• Original view(1:1): 3008x3008~480x480,
• Double panorama(2:1): 3584x1792~640x320,
• Single panorama(4:1): 3584x896~640x160,
• Quad view: 3584x2688~640x480,
• Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
• Maximum Framerate: H.265/H.264:
• Original view-Max.30fps/25fps@3008x3008,
• Double panorama-Max.30fps/25fps@3584x1792
• Single panorama-Max.30fps/25fps@3584x896
• MJPEG: Max.30fps/25fps@1080x1080
• Minimum Illumination: Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
• Video Out: CVBS: 1.0 Vp-p / 75Ω composite, 720x480, for Installation
• USB: Micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 1.08mm fixed focal
• Maximum Aperture: Ratio F2.2
• Angular Field of View: H: 187° / V: 187° / D: 187°
• Minimum Object Distance: 0.5m(1.64ft)
• Focus Control: Simple focus
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: extremeWDR (120dB)
• Digital Noise Reduction: SSNRⅤ
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, polygonal zones
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Business Intelligence: People counting, Queue management, Heatmap
• Alarm I/O: 2 configurable I/O
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• PTZ Preset
• Handover
• Audio playback
• Audio In: Selectable(microphone in/line in/built-in microphone)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Maximum output level: 1Vrms
• IR Viewable Length: 10m(32.8ft), Wise IR
• Network

• Ethernet: Metal shielded M12, female, D-coded, Mode A (with included RJ45 to M12 cable)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface:
• ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2 slots 1TB maximum capacity (512GBx2)
• Memory: 4096MB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
• Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
• Certification: IP66, IK10, NEMA4X, EN50155 class T3
• Input Voltage: PoE(IEEE802.3af, Class 3) Mode A, 12VDC
• Power Consumption: PoE: Maximum 12.95W, typical 11W
• 12VDC: Maximum 11W, typical 9.1W
• Mechanical

• Color / Material: White / Aluminum, Hard-coated dome
• RAL Code: RAL9003
• Product dimensions / weight: Ø160x72mm(6.299x2.835"), 1100g(2.43lb)
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): 34.9m(114.49ft)
• Observe (63PPM/ 19PPF): 13.9m(45.60ft)
• Recognize (125PPM/ 38PPF): 7.0m(22.96ft)
• Identify (250PPM/ 76PPF): 3.5m(11.48ft)
