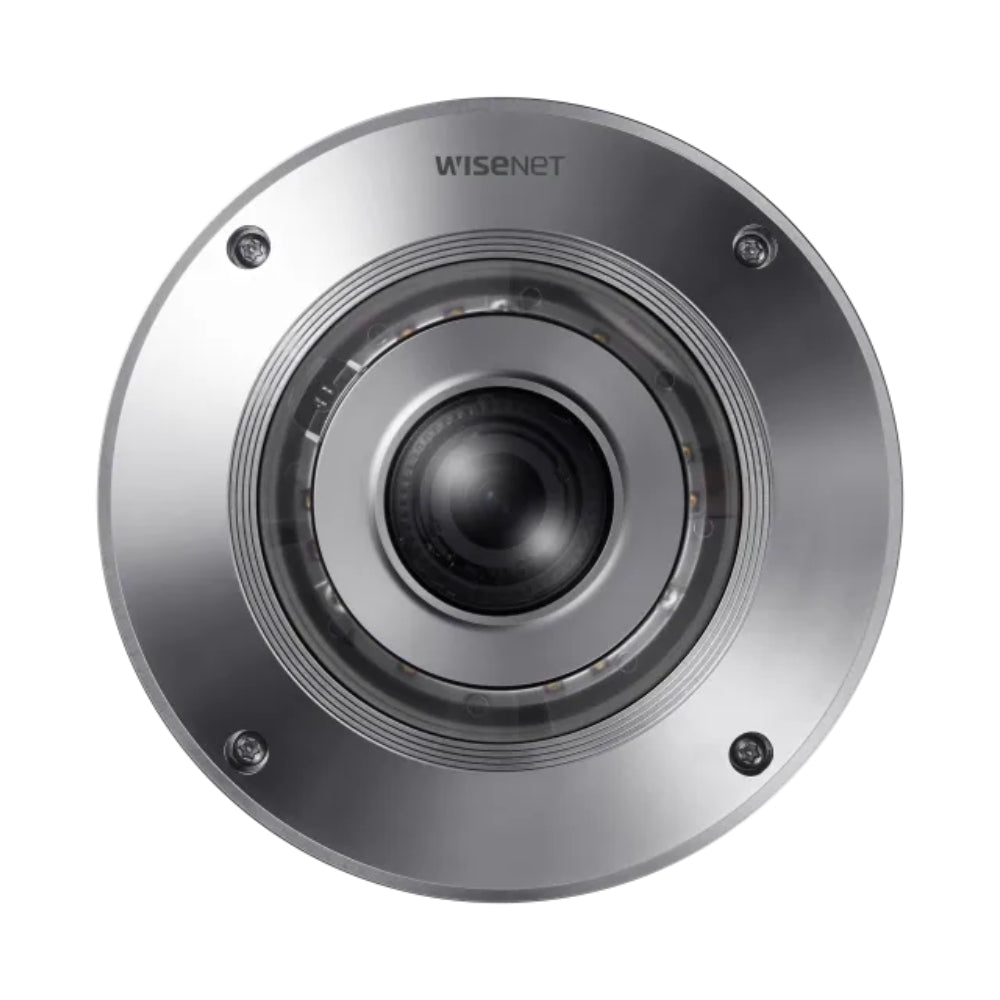

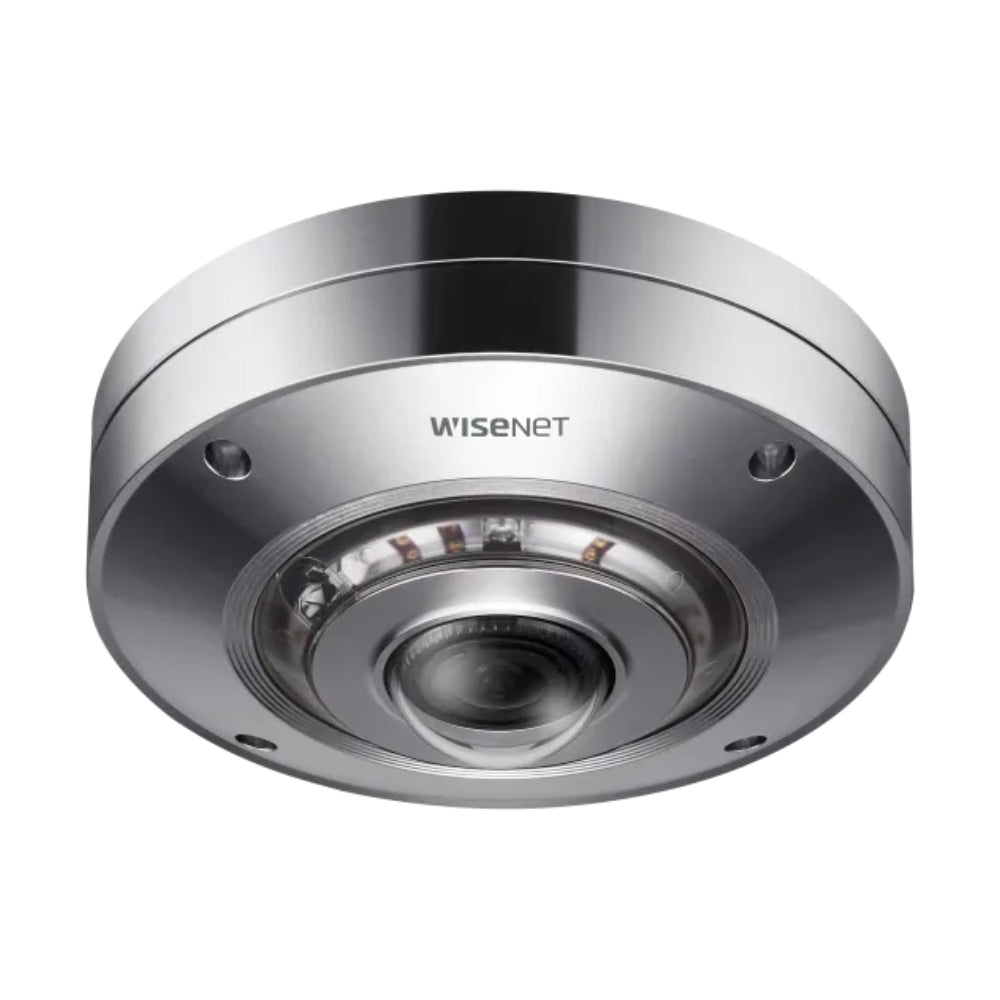

Hanwha Vision 12MP Stainless Steel IR Fisheye Camera | HAN-XNF-9010RS

Hanwha Vision 12MP Stainless Steel IR Fisheye Camera | HAN-XNF-9010RS

1/2.3" 12MP CMOS 3008x3008 resolution @ 30FPS 1.08mm fixed focal lens Stereographic type lens for enhanced resolution for the peripheral regions and offers fisheye, single panorama, double panorama, quad view, and other modes. It uses H.265, H.264, and MJPEG codecs and allows multi-streaming, Onboard dewarping, Digital PTZ extreme WDR (120dB) WiseStream support Wise IR, IR viewable length 26.2' (8m) Virtual channel support selectable I/O port Video Analytics (Heatmap, People counting, Queue management) PTZ Handover P66/IP67/IP6K9K/IK10+/NEMA4X PoE, 12VDC NSF/ANSI Standard 169 Special Purpose Food Equipment and Devices.

Features

• 1/2.3" 12MP CMOS
• 1.08mm fixed focal lens
• Stereographic type lens - enhanced resolution for the peripheral regions
• H.265, H.264, MJPEG codec supported
• Fisheye, Single panorama, Double panorama, Quad view
• On board dewarping, Digital PTZ
• extreme WDR (120dB), WiseStreamⅡ support
• Wise IR - IR viewable length 8m (26.25ft)
• Virtual channel support
• Plugin support, selectable I/O port
• Video Analytics, Heatmap, People counting
• Queue management
• Stainless Steel
• Motion detection, Handover
• IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+ (it can resist impacts of 40 joules), NSF/ANSI
• Standard 169 – Special Purpose Food Equipment and Devices

Technical Specifications

• Video

• Imaging Device: 1/2.3" 12MP CMOS
• Resolution:
• Original view(1:1): 3008x3008~480x480,
• Double panorama(2:1): 3584x1792~640x320,
• Single panorama(4:1): 3584x896~640x160,
• Quad view: 3584x2688~640x480,
• Q1/Q2/Q3/Q4(4:3): 1792x1344~640x480
• Max. Framerate:
• H.265/H.264:
• Original view-Max.30fps/25fps@3008x3008(60Hz/50Hz),
• Double panorama-Max.30fps/25fps@3584x1792(60Hz/50Hz)
• Single panorama-Max.30fps/25fps@3584x896(60Hz/50Hz)
• MJPEG: Max.30fps/25fps@1080x1080(60Hz/50Hz)
• Min. Illumination: Color: 0.39 Lux (F2.2, 1/30sec), BW : 0Lux(IR LED on)
• Video Out: CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for Installation
• USB: Micro USB Type B, 1280x720 for installation
• Lens

• Focal Length (Zoom Ratio): 1.08mm fixed focal
• Max. Aperture Ratio: F2.2
• Angular Field of View: H: 187° / V: 187° / D: 187°
• Min. Object Distance: 0.5m(1.64ft)
• Focus Control: Simple focus
• Operational

• Camera Title: Displayed up to 85 characters
• Day & Night: Auto(ICR)
• Backlight Compensation: BLC, HLC, WDR, SSDR
• Wide Dynamic Range: extremeWDR (120dB)
• Digital Noise Reduction: SSNRⅤ
• Motion Detection: 8ea, 8point polygonal zones
• Privacy Masking: 32ea, polygonal zones
• - Color: Grey/Green/Red/Blue/Black/White
• - Mosaic
• Gain Control: Low / Middle / High
• White Balance: ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
• Electronic Shutter Speed: Minimum / Maximum / Anti-flicker (1/5~1/12,000sec)
• Video Rotation: Flip, Mirror
• Analytics: Defocus detection, Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification
• Business Intelligence: People counting, Queue management, Heatmap
• Alarm I/O: 2 configured I/O
• Alarm Triggers: Analytics, Network disconnect, Alarm input
• Alarm Events: File upload via FTP and e-mail
• Notification via e-mail
• SD/SDHC/SDXC or NAS recording at event triggers
• Alarm output
• PTZ Preset
• Handover
• Audio playback
• Audio In: Selectable(mic in/line in)
• Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
• Audio Out: Line out, Max. output level: 1Vrms
• IR Viewable Length: 8m(26.25ft), Wise IR
• Network

• Ethernet: Metal shielded RJ-45(10/100BASE-T)
• Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
• Audio Compression: G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz
• Smart Codec: Manual(5ea area), WiseStreamⅡ
• Bitrate Control: H.264/H.265: CBR or VBR
• MJPEG: VBR
• Streaming: Unicast(20 users) / Multicast
• Multiple streaming(Up to 10 profiles)
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
• Security: HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)
• Application Programming Interface: ONVIF Profile S/G/T
• SUNAPI(HTTP API)
• Wisenet open platform
• General

• Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Edge Storage: Micro SD/SDHC/SDXC 2slot 1TB(512GBx2)
• Memory: 4096MB RAM, 512MB Flash
• Environmental & Electrical

• Operating Temperature / Humidity: -40°C ~ +50°C (-40°F ~ +122°F) / Less than 95% RH
• Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH
• Certification: IP66, IP67, IP6K9K, NEMA4X, IK10, IK10+(it can resist impacts of 40 joules), NSF/ANSI Standard 169 – Special Purpose Food Equipment and Devices.
• Input Voltage: PoE(IEEE802.3af, Class3), 12VDC
• Power Consumption: PoE: Max 12.95W, typical 11W
• 12VDC: Max 11W, typical 9.1W
• Mechanical

• Color / Material: Silver / Stainless(SUS316L), Nylon dome bubble
• RAL Code: RAL9003
• Product Dimensions / Weight: ø167.9 x 72.1mm(6.610x2.838"), 2,980g(6.57lb)
• Compatible Conduit hole / Gangbox: Single, Double, 4"Octagon, Square
• Hanging Mount (Dome:) SBB-300HMS6
• DORI (EN62676-4 standard)

• Detect (25PPM/ 8PPF): 34.9m(114.49ft)
• Observe (63PPM/ 19PPF): 13.9m(45.60ft)
• Recognize (125PPM/ 38PPF): 7.0m(22.96ft)
• Identify (250PPM/ 76PPF): 3.5m(11.48ft)
