USAutomatic Ranger 500 2 Solar Dual Swing Operator with LCR | USA-020513

The USAutomatic Ranger 500 I is a solar-powered dual swing gate opener kit equipped with radio controls, designed to operate gates up to 13 feet wide and weighing up to 400 lbs. This reliable system offers efficient and convenient automation for residential or commercial gate access.

The Ranger’s solar performance stands out in the industry, delivering up to 65 cycles daily using the standard 6-watt solar panel, complemented by a full range of solar-compatible accessories and safety photo eyes.

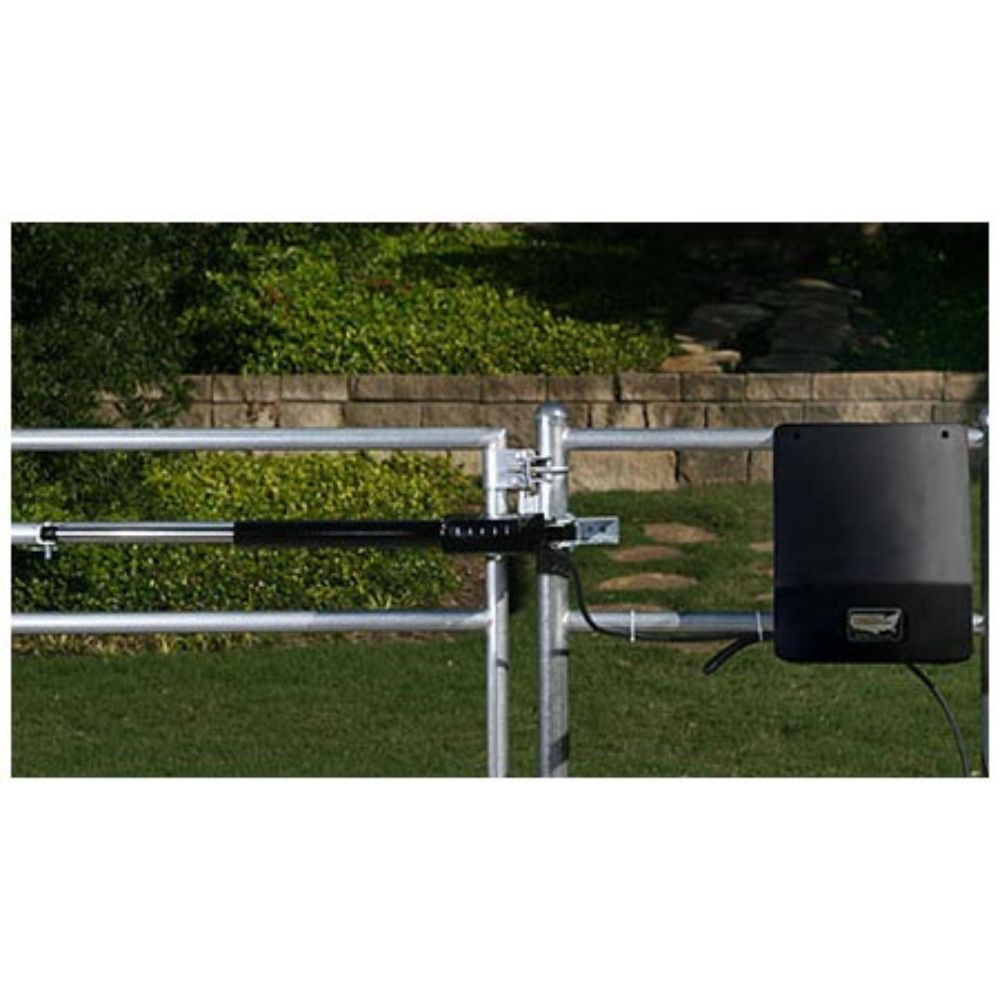

The linear actuator design enables installation in two distinct positions, allowing it to be concealed behind a gate’s cross member, thereby enhancing the gate’s overall visual appearance.

Note: Battery required for operation (Battery not included)

If you need a single gate operator system, click here.

Manufacturer's Warranty

• 3-year warranty for components and control board

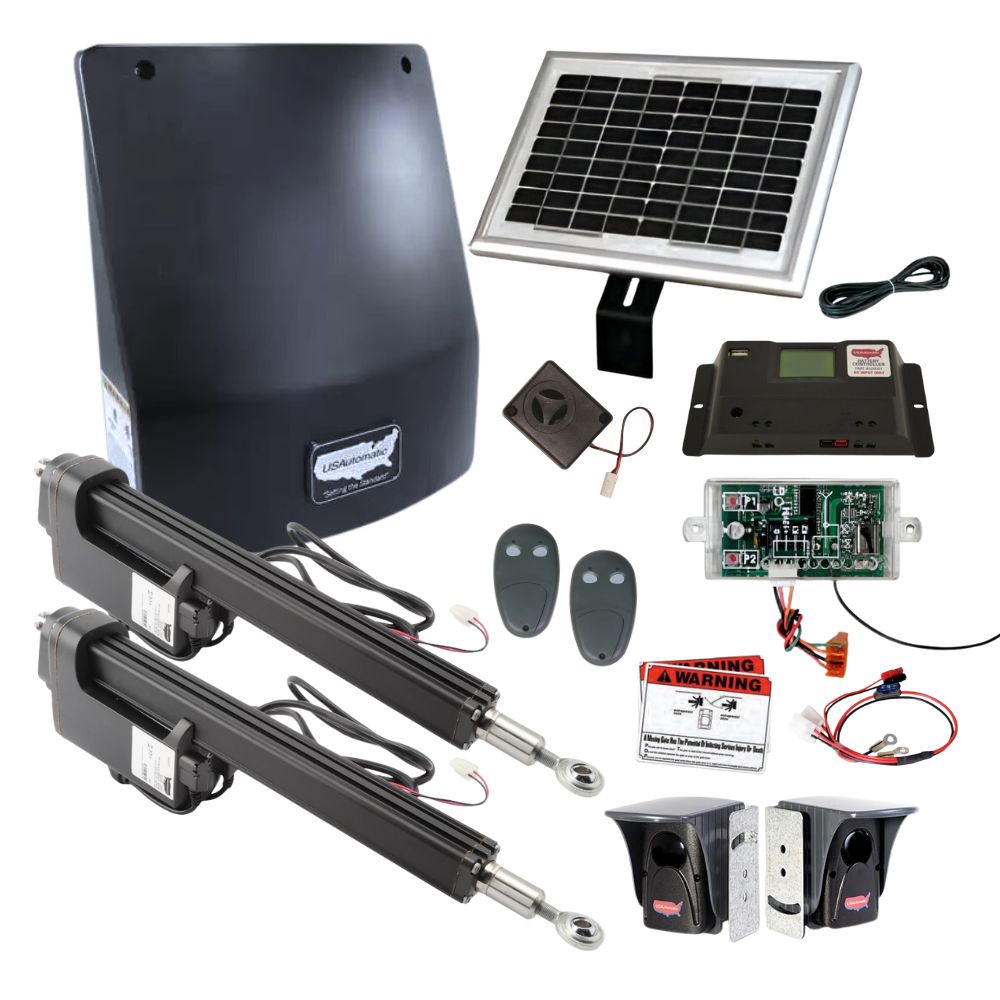

Includes

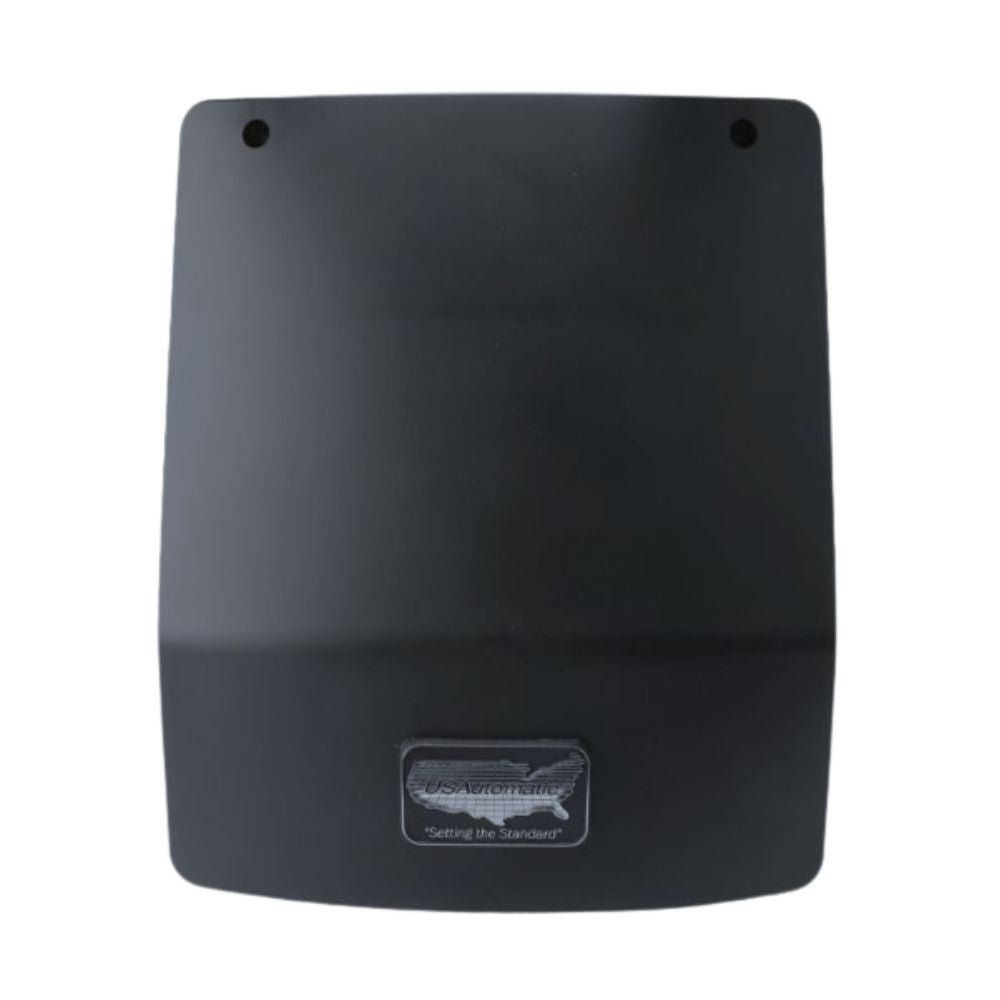

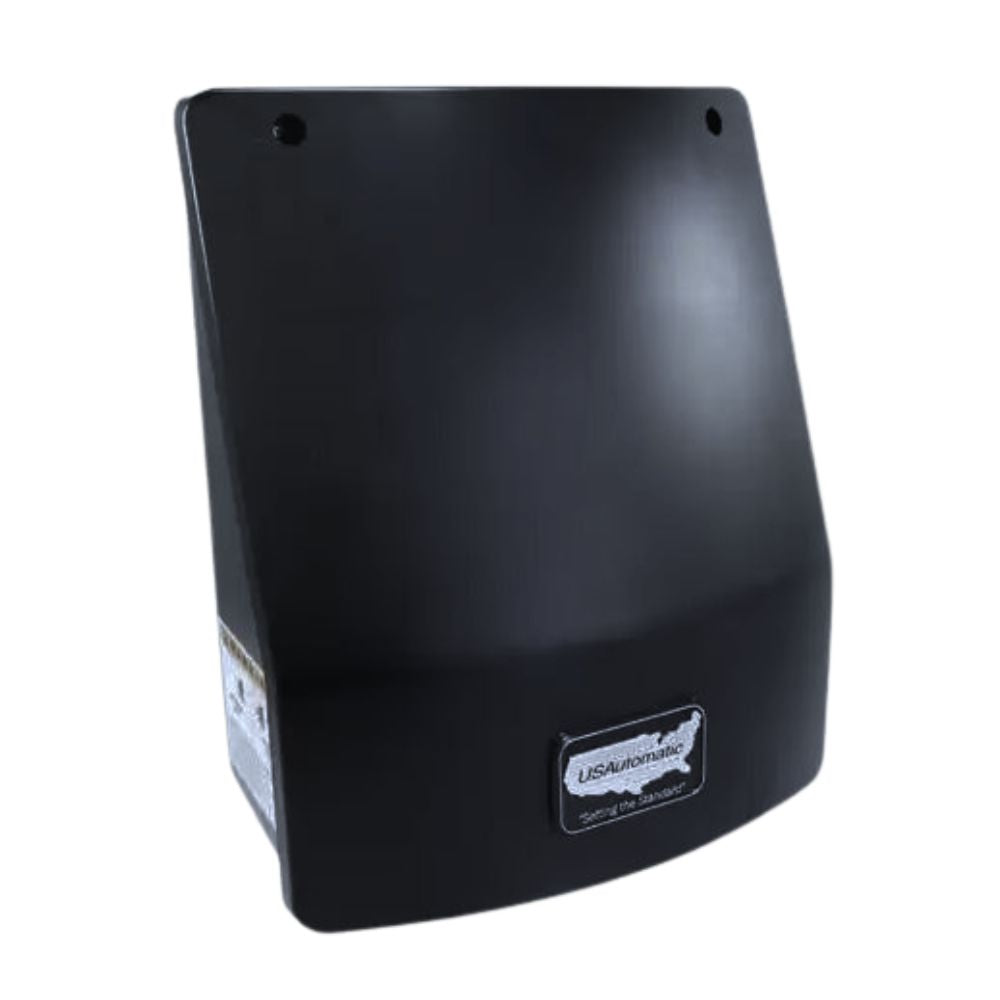

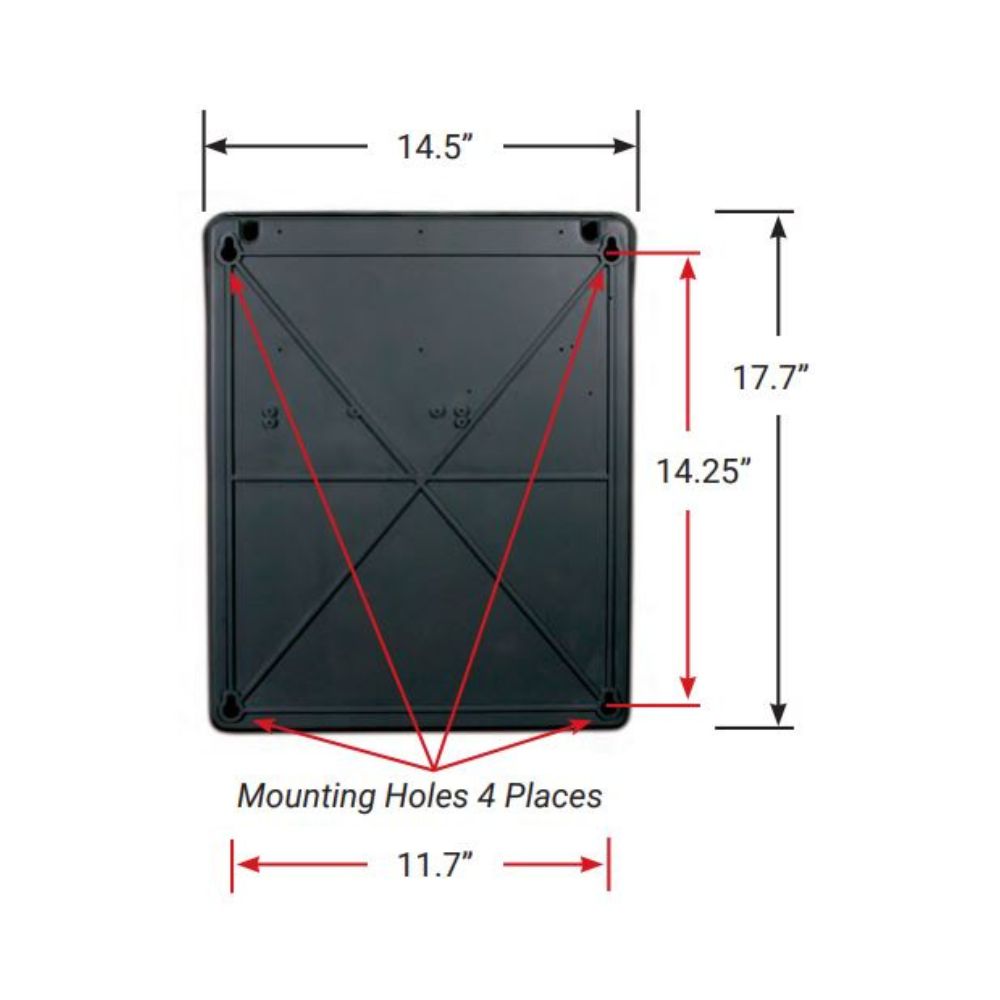

• 1 Plastic Control Box and Cover 020570
• 1 Battery Controller 520001
• 1 LCR Dual Channel Receiver 030200
• 1 Secondary Entrapment Siren 530015
• 1 Quick Connect Plug and Go Harness 630041

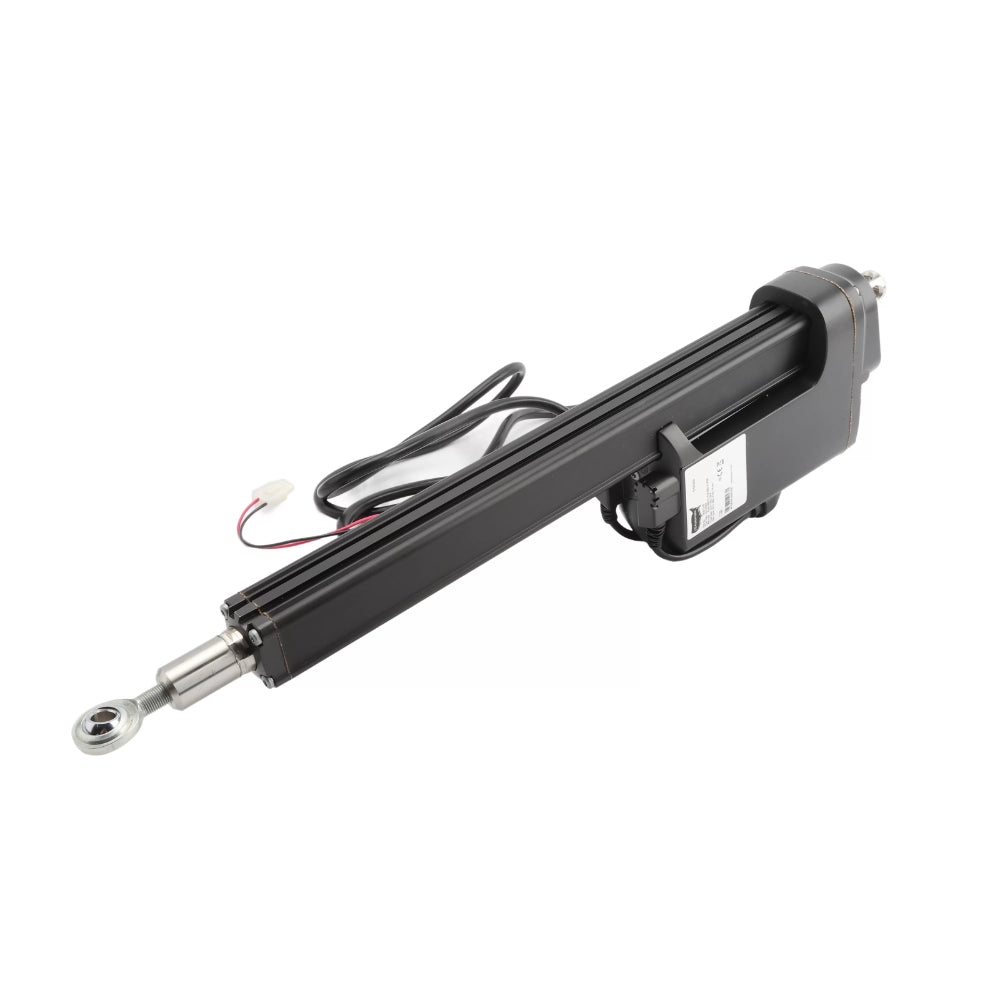

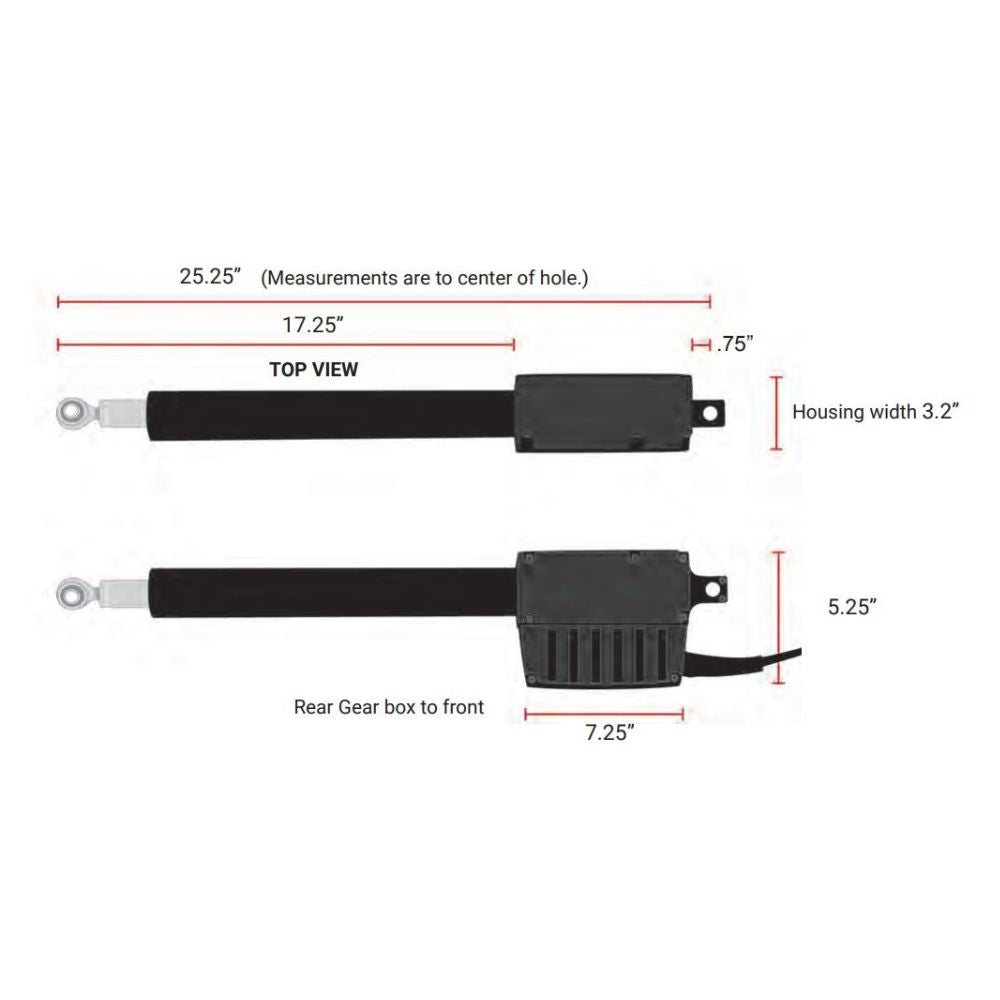

• 2 Ranger 500 Actuator 510310

• 1 Actuator 7 Conductor Wire 35’ 630036
• 2 LCR 2-Button Transmitter 030210
• 1 10-Watt Solar Panel Kit 520026
• 2 Safety Signs 601020
• 1 Set of Photo Eye Kit with Batteries 550011


Features

• Non-corrosive actuator and plastic control box
• PWM soft start and soft stop
• Battery under load monitoring
• Low battery audible notification
• USAutomatic gate app-compatible
• Gate opening speed - 18 seconds
• Able to be mounted in two different positions, making it easier to hide behind a cross member and improve aesthetic appeal
• Electronic limit control on board
• Designed to operate with a variety of common accessories
• Photo eye power management solar-friendly software
• Tested and certified to meet the current UL325 gate operator safety standards
• Qualifies for a 30% federal tax credit

Technical Specifications

• Style: Swing
• Gate Setup: Single
• Applications: Residential, farm, ranch
• Max. Swing Angle: 105°
• Max. Gate Width: 13' each leaf
• Max. Gate Weight: 400 lbs each leaf
• Power Input: 12-volt DC battery, solar-charged
• Drive: Non-corrosive 16" linear actuator
• Speed: 18-20 seconds (90° opening)
• Dynamic Thrust: 250 pound force
• Static Load Hold Rating: 500 pound force
• Radio Receiver: Pre-wired solar-friendly LCR dual channel
• Remote Control: Two 2-button remotes included
• Adjustable Soft/Start/Stop: Yes, using pulse width modulation software
• Limit Control Type: Electronic adjusted on the control board
• Independent Adjustments: Independent gate safety sensitivity adjustments
• Timer to Close: Built-in, adjustable from 2 to 120 seconds
• Safety Photo Eyes1 set included
• Control Box Enclosure: UV-resistant non-corrosive plastic with hinged cover
• Installation: Push-to-open and push-to-close brackets included

• Safety: ETL tested and certified to meet UL 325 safety regulations for Class I, II, III, and IV installations
• Country of Manufacture: United States

Recommended Battery Type

Battery 12-volt, Group U-1; sealed (maintenance-free); 30 amp-hour minimum. This type of battery is commonly known as a lawn tractor or wheelchair battery. You can easily find them at stores like Walmart, Sam's Club, etc.

Using a smaller amp-hour battery may cause damage to the charging system. The wiring harness has two 1/4” ring terminals to connect to battery posts.

If the installation is located in an area that has frequent power outages (AC-charged systems) or might experience weeks of no sunshine, then a larger amp-hour battery needs to be considered. A 70 amp-hour battery minimum would be recommended for those locations.

CAUTION!!! Do not install a wet cell battery into the control box; this type of battery usually has removable caps used for service and will vent into the control box.

Product Literature

• USAutomatic Ranger 500 Manual
• USAutomatic Ranger 500 Owner's Manual
• USAutomatic Ranger 500 Troubleshooting

• USAutomatic Ranger Solar Gate Cycles
