LiftMaster 12VDC Residential Light Commercial Slide Gate Operator | LIF-RSL12UL

LiftMasterSKU: LIF-RSL12UL

Price:
Sale price$1,593.20

LiftMaster 12VDC Residential Light Commercial Slide Gate Operator | LIF-RSL12UL

PLEASE NOTE: This is LiftMaster’s most recent version of this model which is now 2018 UL325 Compliant. To be 2018 UL325 Compliant it is mandatory for each slide gate system to have at least two functioning SAFETY DEVICES. Therefore LiftMaster’s new UL control board, improved photo eye sensor (Model LMRRUL / with protective hoods), and 5’ Resistive Safety Edge (Model S505AL) are ALL INCLUDED at no additional cost.

It is recommended you add LiftMaster Wireless Receiver & Transmitter Kit (LMWEKITU) for convenience and/or to minimize complications involving the wire from the included Safety Edge. These accessories are available in the product options below.

Unrivaled performance, safety, and accessibility. Built to deliver unsurpassed safety and performance the 2018 UL listed gate operators and monitored safety entrapment devices provide peace of mind for every gate application.

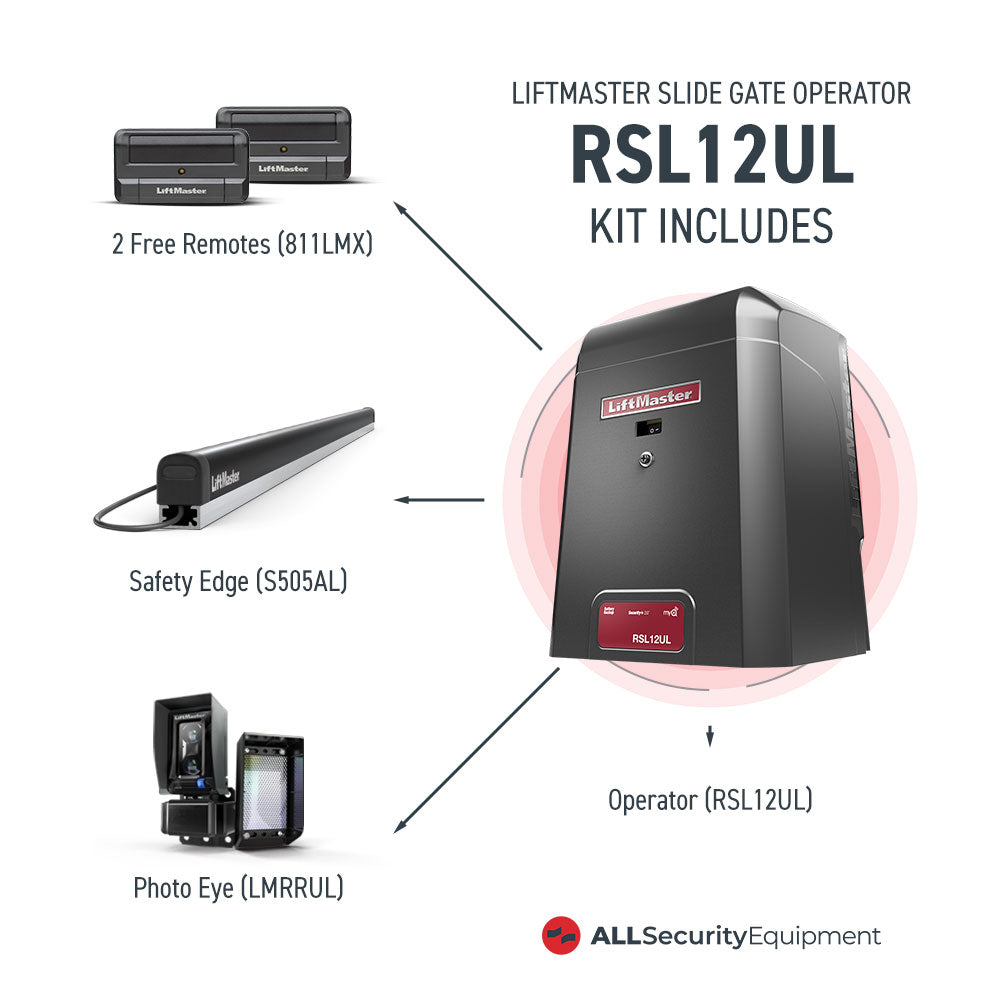

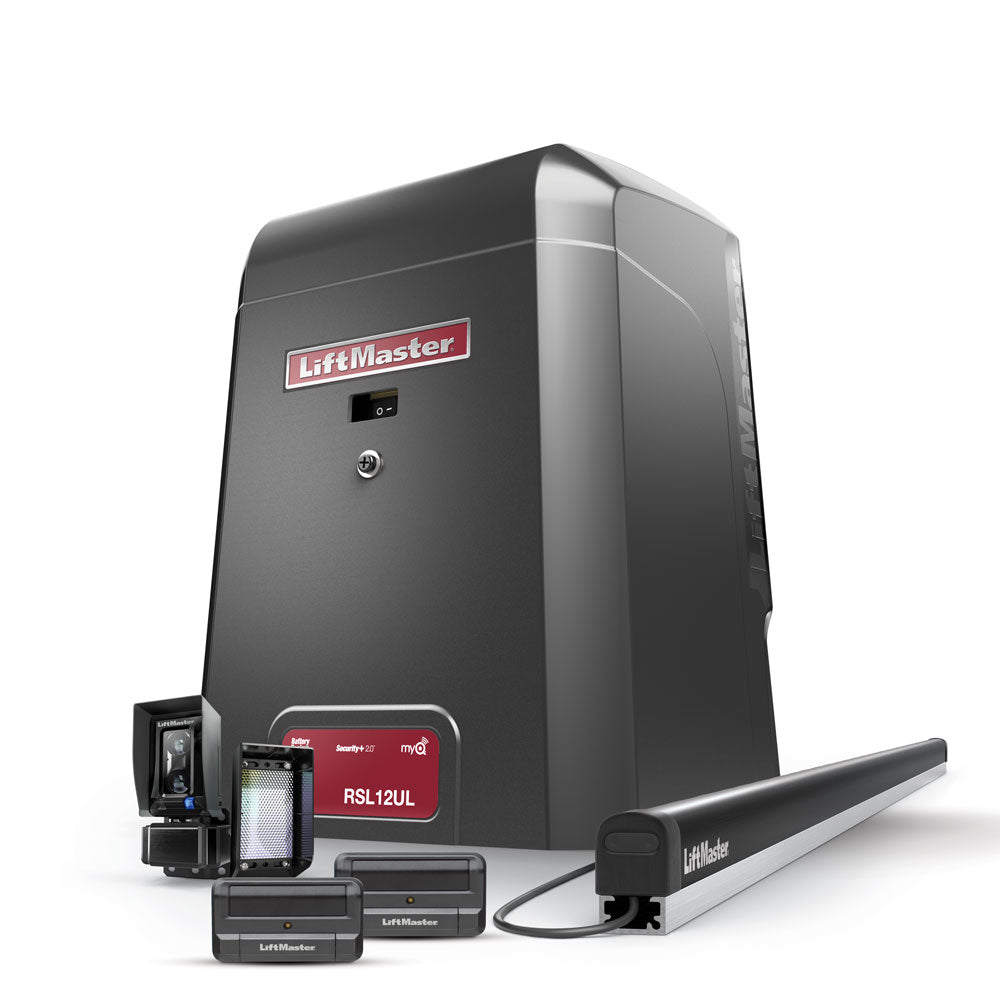

Includes
  • 5’ Resistive Safety Edge (Model S505AL)
  • Photocell Model LMRRUL with protective hoods
  • 25 ft. Chain #41 Black Oxide
  • FREE Single Button Remote with Visor Clip FAS-RM811
LiftMaster Feature Gate Remote
Features
  • LED Diagnostic Display: Simplifies installation and troubleshooting
  • Solar-ready Ultra-reliable System: Simple solar conversion delivers power when you need it most and is extremely power efficient at all other times to maximize solar performance
  • Bi-Part Delay: Monitors and adjusts speed and position of each wing to ensure the primary gate closes last.
  • Synchronized Close: Simultaneously closes gates
  • HOMELINK Compatible: Version 4 and higher
  • Security + 2.0 On-Board Radio Receiver: Up to 50 remote controls (unlimited with 811LM/813LM)
Technical Specifications
  • Power: 12VDC or Solar Powered
  • Accessory Power: 12VDC 500mA output. Switched and unswitched power.
  • Monitored Safety: 3 main board, 3 optional expansion board
  • Temperature Specifications: Without Heater: -4 degrees F (-20 degrees C) to 140 degrees F (60 degrees C); With Optional Heater (HTR): -40 degrees F (-40 degrees C) to 140 degrees F (60 degrees C)
LiftMaster Feature Access Connectivity

Construction:

  • P3 Motor: 12VDC continuous-duty motor
  • Operator Duty Rating: 120 cycles per day
  • Chassis: Constructed with 1/4" gold zinc-plated steel for rust prevention
  • Worm Gear Reduction: Commercial oil bath gearboxes with 15:1 worm gear reduction
  • Cover: 1-piece UV-resistant polyethylene cover
  • Operator Weight: 100 Lbs.
  • Recommended Capacities: Rated for gates up to 25 ft. in length or weighing up to 800 lbs.
Capacity
Product Literature
