Cartell Wireless Hands-Free Exit Sensor With Sensitivity Adjustment Model CW-SYS
Add wireless vehicle detection to existing security/home automation systems, connecting to their cameras, sounders, etc. Also, seamlessly connect to any electric gate operator for free exit, whether residential or commercial.
Our wireless dual-purpose system can act as a driveway alarm and/or free exit system. Sensor is self-contained, housing an internal transmitter and antenna. Absolutely no trenching and installs in under an hour. Install sensor beside driveway, in the driveway, or on a post adjacent to the drive.

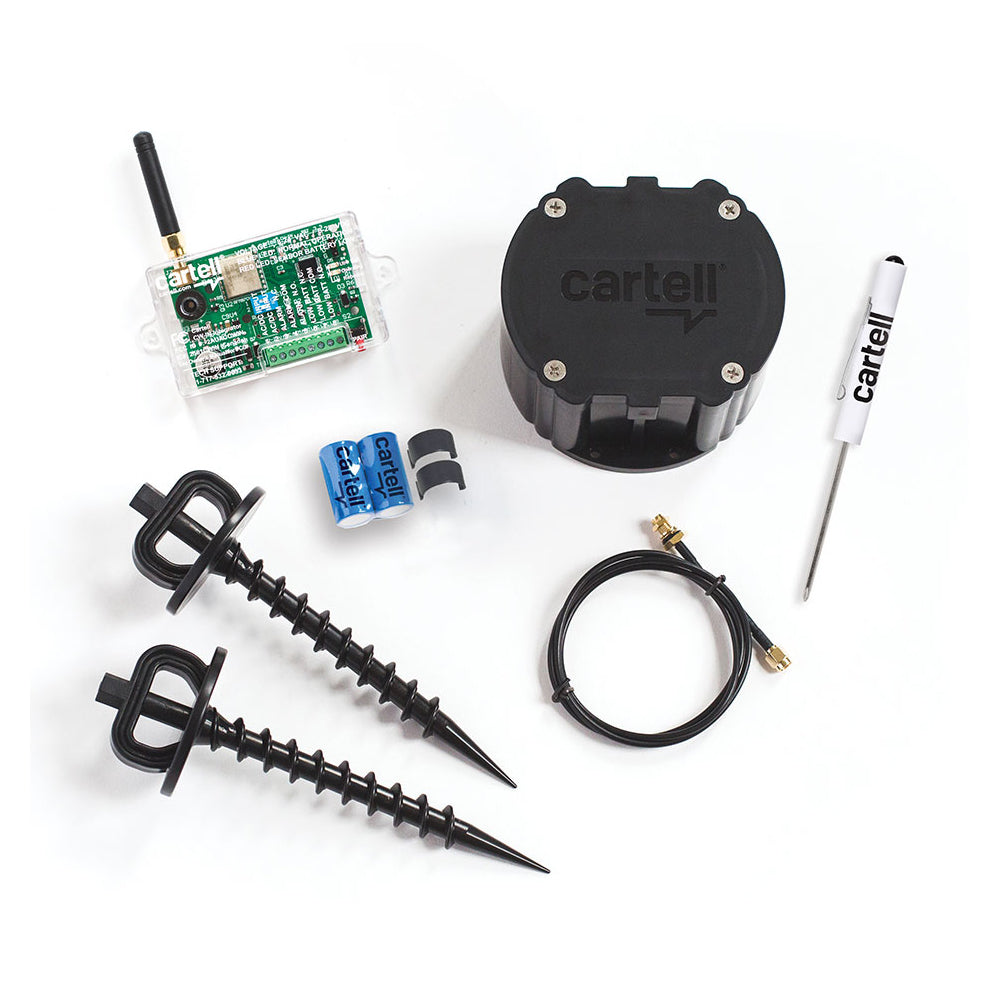

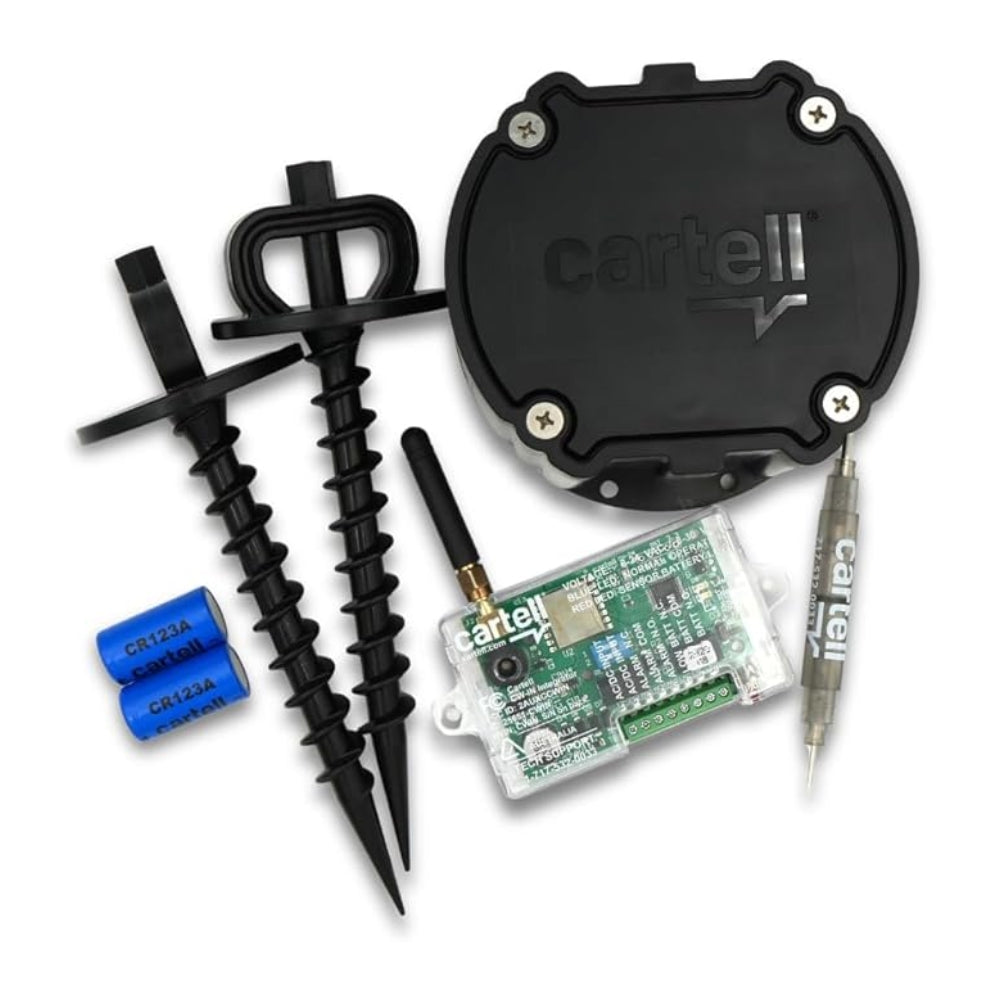

Includes

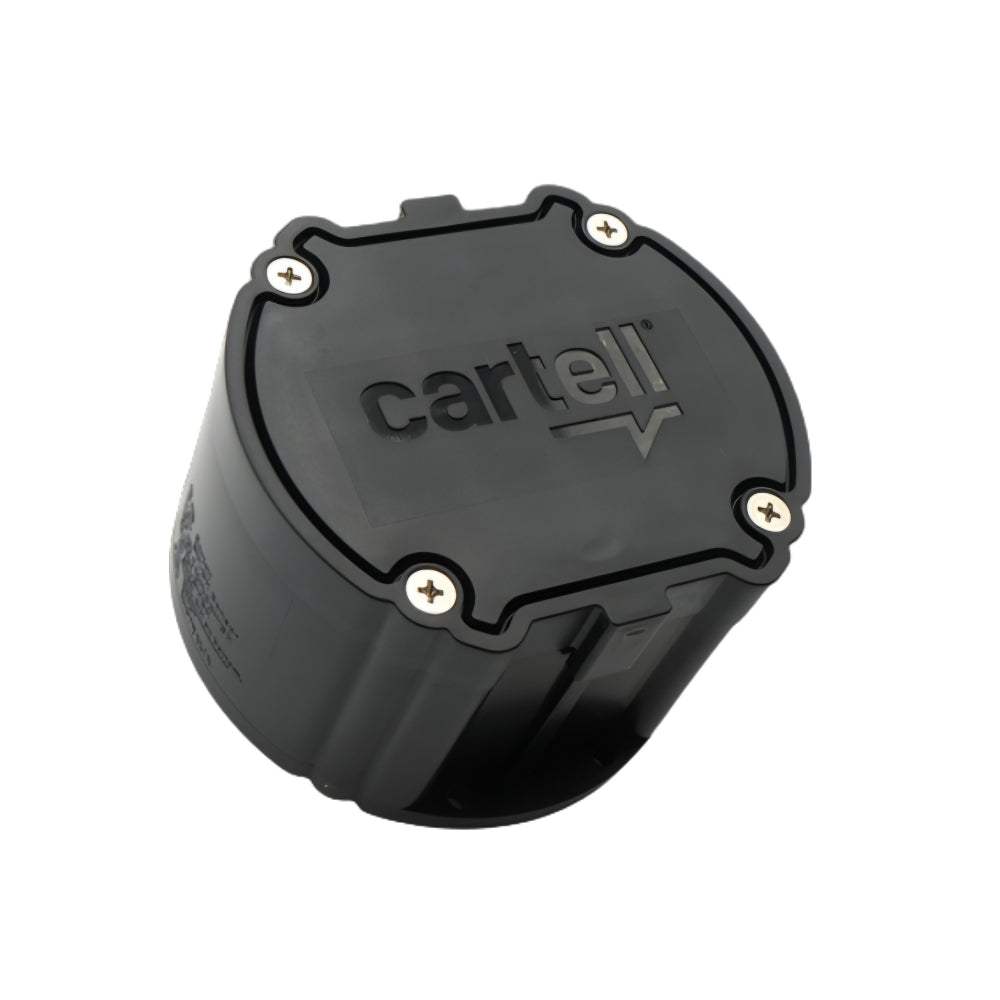

- Sensor puck

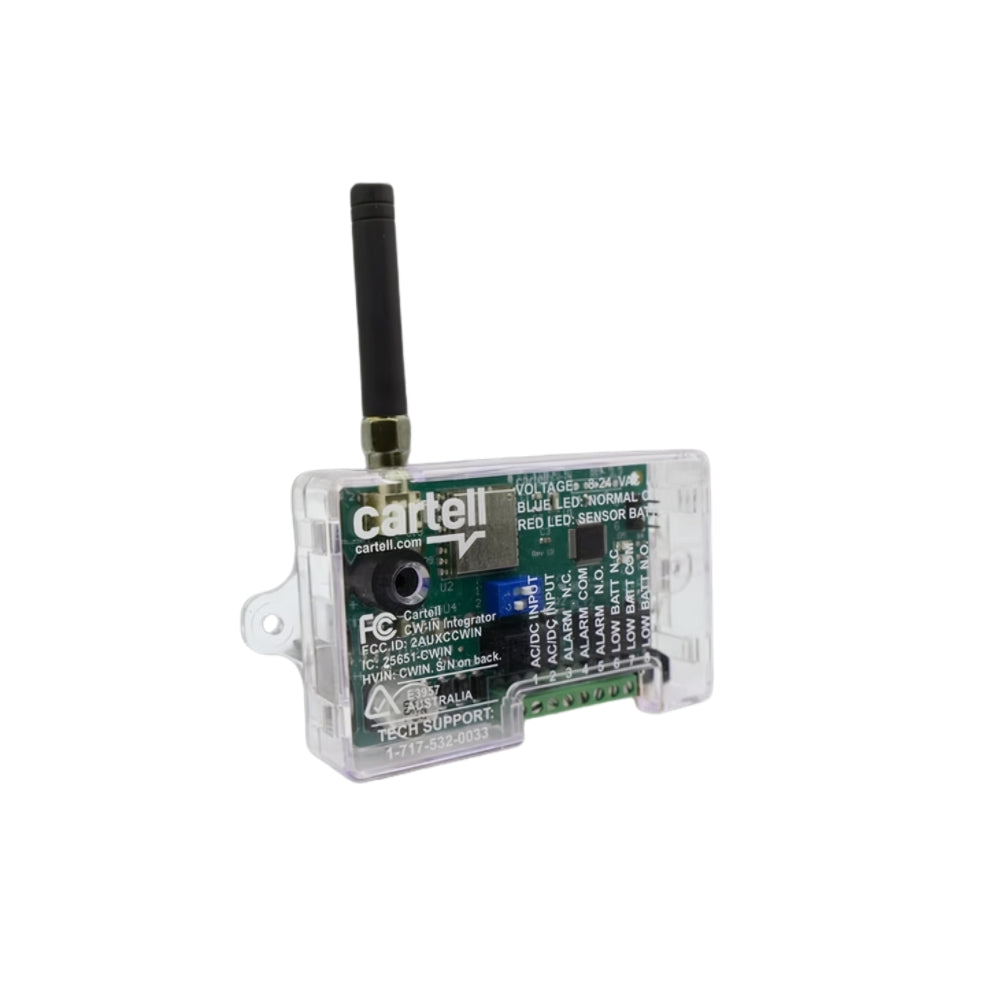

- Integrator

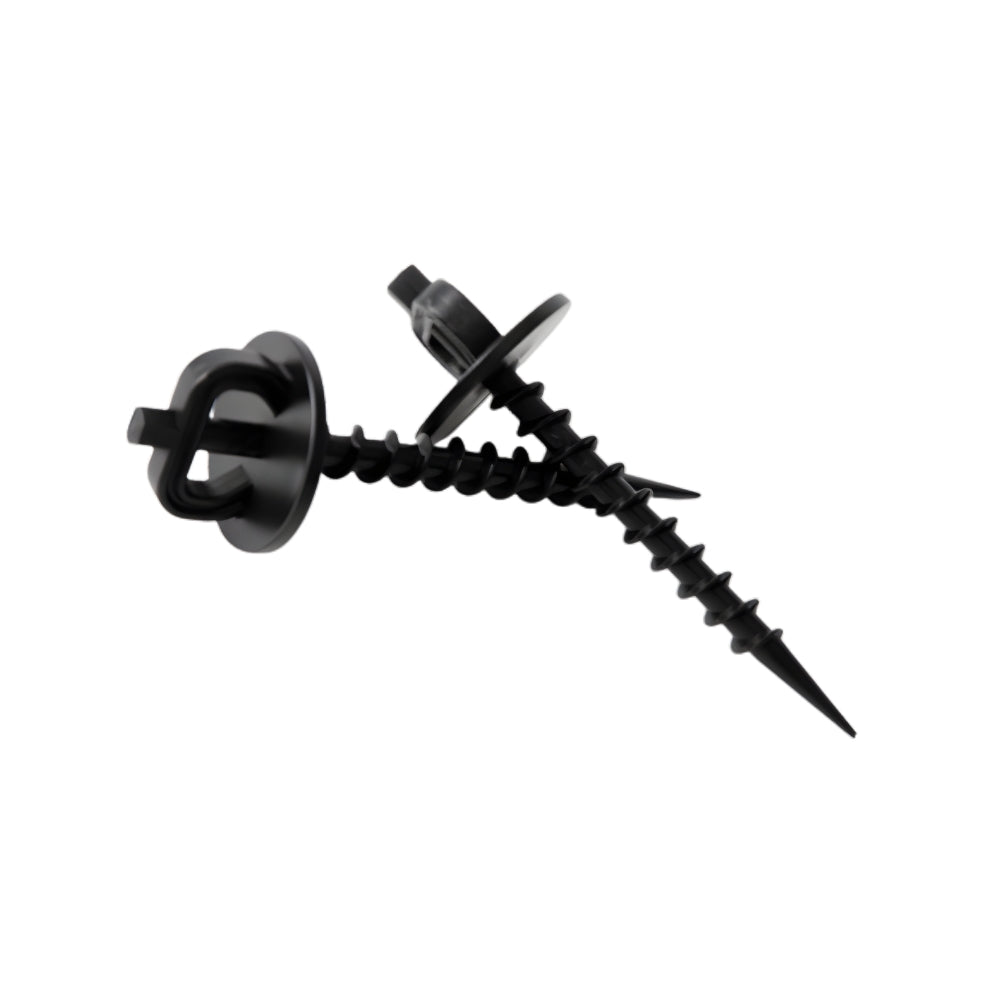

- Auger screws

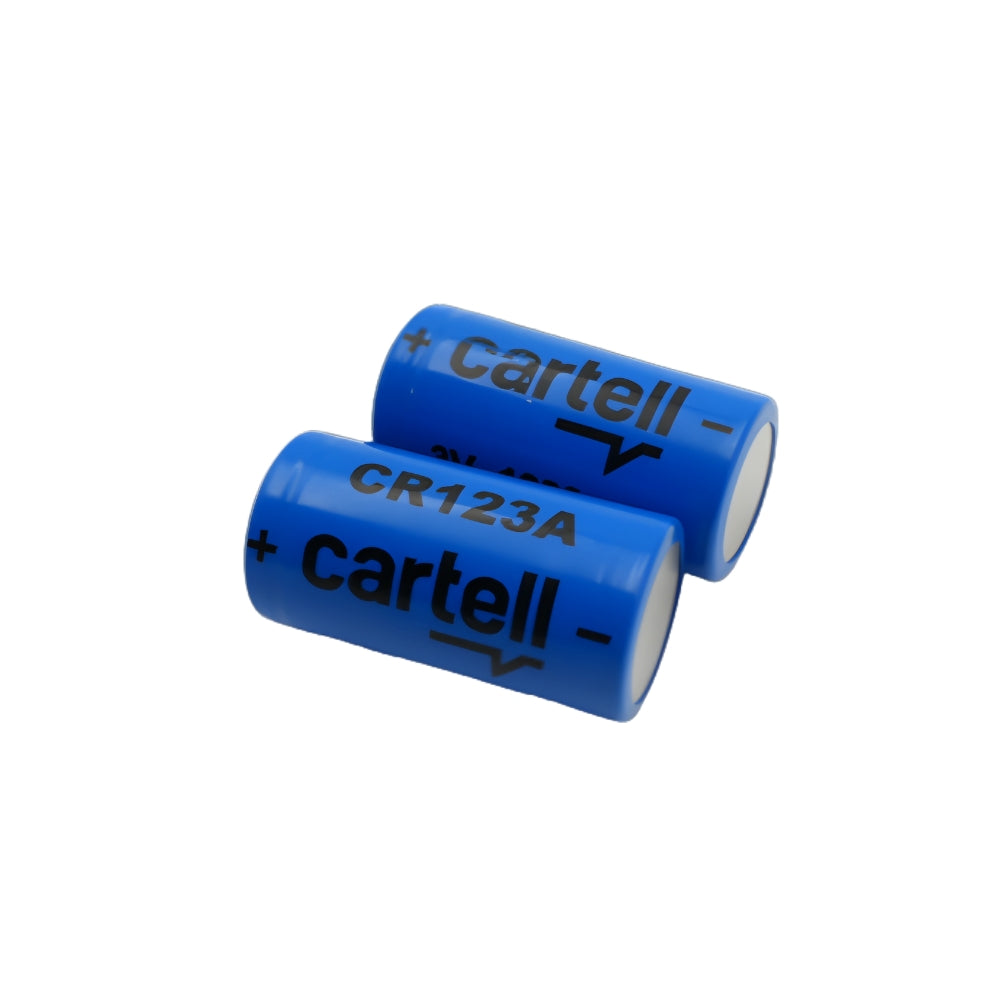

- Batteries & clips
- Coaxial cable

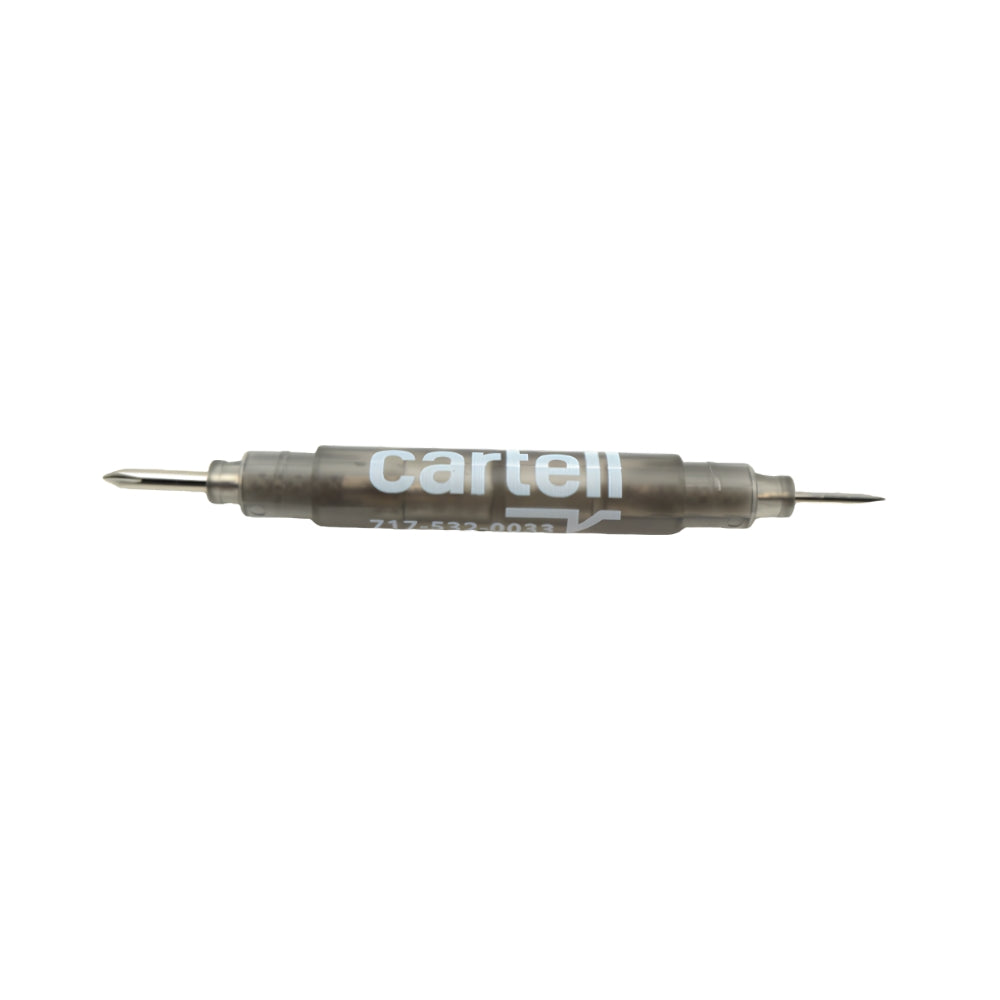

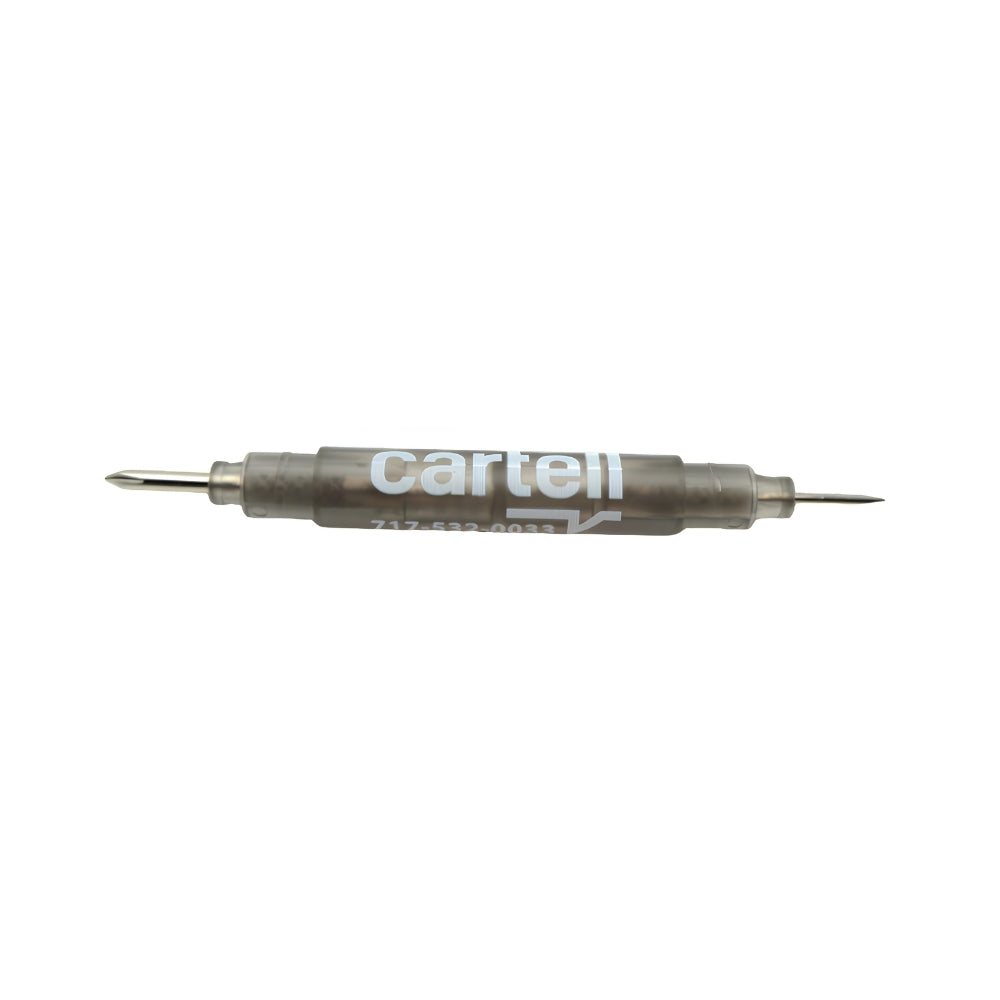

- Terminal block screwdriver
Proactive Security:
Our system integrates with any security/home automation system, creating a safety zone in the driveway. Never be surprised by drive-up visitors or drive up to a dark driveway and house.
Automatic Gate Opener:
Our dual-purpose system opens any powered gate operator for a hands-free exit.
Superior Sensing:
Our system is powered by magnetometer technology with a sensitivity adjustment. It is only tripped by moving steel—not motion, heat, or pressure. No false alarms!
Fail-Safe Radio:
Redundant two-way radio at 915MHz guarantees signal reaches the receiver.
Features
Versatile:- Activates security/home automation systems and electric gate operators
- Universal voltage AC and DC
- Installs in under 1 hour (on average) without the need for trenching
- No external transmitter/antenna
- Install sensor above ground on immovable object; in the ground; or in driveway
- Easily pair multiple sensors with multiple Integrators
- Short driveways: install in middle of the driveway and turn down sensor sensitivity
- Wide driveways: install multiple units in driveway (12 ft. apart) or on both sides
- Reliable circuitry and filtering
- IP Rating: 68
- Strength rating: 9-ton force rate (8514 kgf)
- LoRA radio protocol at 915MHz
- Range determined by installation and obstructions to radio signal transmission
- Tested above ground: line of site, no obstructions, up to 2,500 feet (762 m)
- Tested flush with ground: line of site, no obstructions, up to 1,000 feet (305 m)

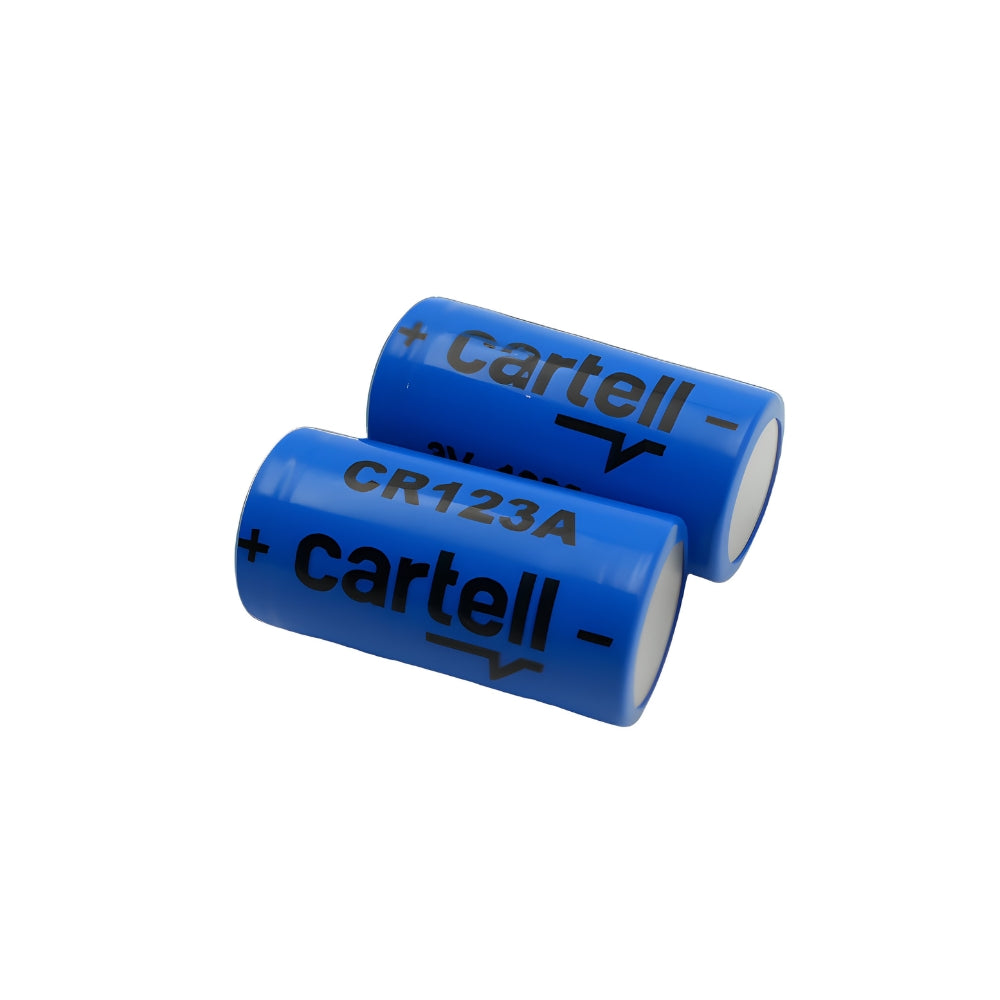

- 1-3 year battery life: CR123A (2)
- Sensor standby: 22 microamps (µA)
- Extra relay for low battery signal
Specifications
| Sensor “Puck” | Integrator | |
| Power Required: | 2 - CR123A batteries (6 V) | 8–24 VAC; 8–30 VDC |
| Standby Current: | 22 microamps (µA) | 25 milliamps (mA) |
| Alarm Current: | 130 milliamps (mA) | 40-80 milliamps (mA) |
| Relay Time: | - | 2 seconds |
| Relay Contacts: | - | SPDT, N.O. or N.C. (Form C) |
| Relay Contact Rating: | - | 2 amp/24 VDC (1 mA at 5 VDC min. load) |
| Estimated radio range: | In ground, line-of-sight, no obstructions: up to 1,000 ft. (305 meters)* | |
| Estimated Battery Life: | 1-3 years* | - |
| Enclosure Rating: | IP68 | - |
| Strength Rating: | 9.39 ton-force (8514 kgf) | - |
| Temperature Range: | -25°F - 140°F (-32°C - 60°C) | - |
| Dimensions: | 4.5 in diameter x 2.5 in H (11.43 cm x 6.35 cm) |
3.25 in L x 2 in H x 0.875 in D (8.25 cm x 5.08 cm x 2.22 cm) |
| Weight: | 2 lbs (.90 kg) | 1 lb (.45 kg) |
* Estimate only. Raido range & battery life depend on many variables. No guarantees.
Cartell CP-4 and CW-SYS Free Exit Systems Review & Programming Instructions
