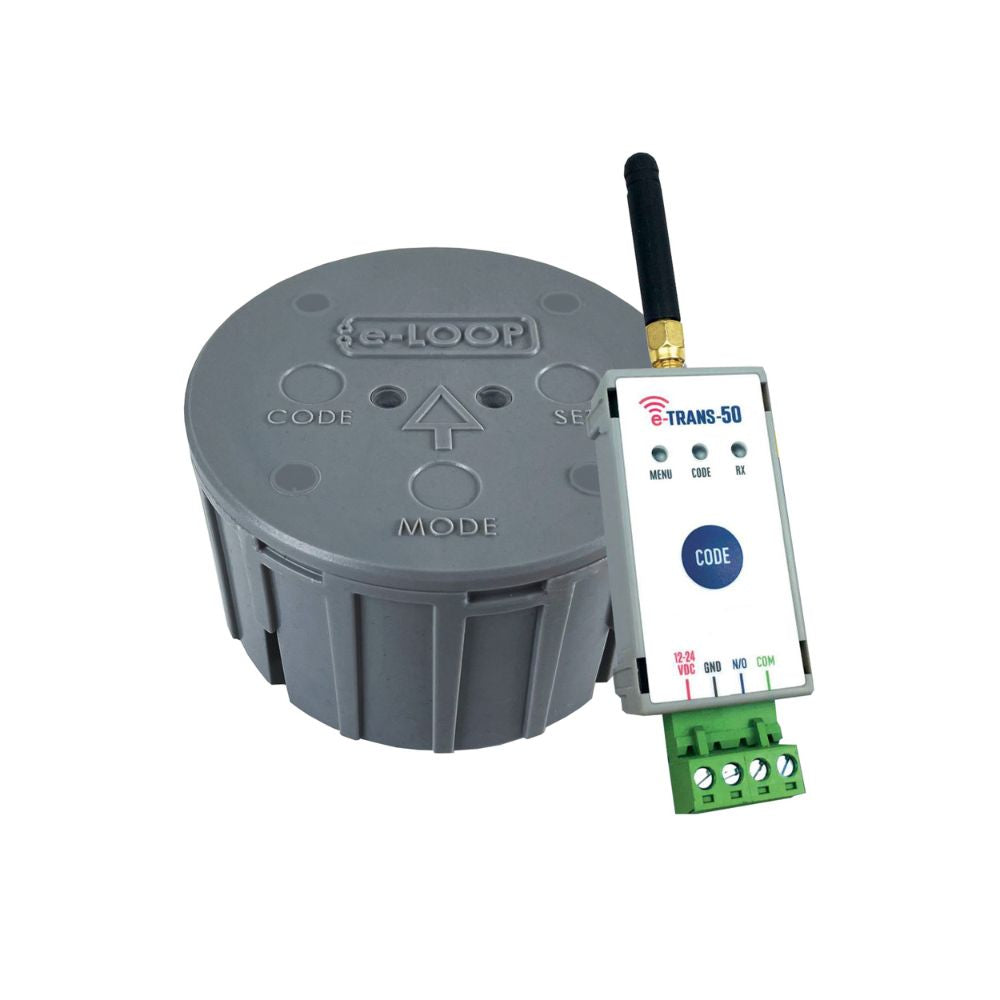

AES e-Loop Inground Commercial Loop Kit (EXIT MODE) | AES-EL00IG-K
The Inground Wireless Vehicle Detection System uses magnetometer sensors to detect the presence and movement of vehicles. These detections are transmitted to a nearby transceiver for gate activation. The sensors are installed in the ground of entry or exit passages using sikaflex, contain a replaceable Lithium battery, and can withstand
almost any vehicle.
Note: Gate or door controller must have a dedicated open input and autoclose function enabled.
Includes
- 1 x e-Loop commercial inground Exit mode wireless detection module
- 1 x single-channel transceiver (Trans-50)
- 2 x Dyna bolts
- 1 x Magnet
Features
- High-security 128-bit encryption.
- Quick and easy installation
- Magnetic Field Detection
- Recesses into the driveway – 55mm inground height x 89mm diameter (2.1” x 3.5”).
- Not affected by ground movement.
- 14500 mA battery (included) giving up to 6-10 years of battery life (depending on mode).
- Top access for changing battery.
- Up to 50 meters range
Manufacturer's Warranty Period
- 2 Years
Technical Specifications
Radio
- Frequency: 433.39 MHz
- Modulation: FSK
- Bitrate: 9.6 kbps
- Bandwidth: 250 kHz
- Antenna Type: PCB
- Nominal Output Power: 10 dBm
- Receive Sensitivity: -126.2 dBm
- Security: 128-Bit AES Encryption
- Spurious Emissions
- 30 - 1000 MHz: < -56 dBm
- 1 - 12.75 GHz: < -44 dBm
- 1.8 - 1.9 GHz: < -56 dBm
- 5.15 - 5.3 GHz: < -51 dBm
Power, Physical and Environment
- Power: 1 * 3.6 V 14500ma
- Dimensions: 88*88*55mm
- Weight: 300g
- Environment
- designed for inground (flush) mounting
- IP68 ingress Protection
- Operating Temp: -20° to 80° C (-4°F to 176°F)
- Standby Power: 14μA
- Activation Power: 50mA
Compliance
- Safety: Tested to CE Approval
- EMC: Tested to EN 301 489-1 V2.2.3 “ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements; Harmonized Standard for Electro Magnetic Compatibility” Including:
- a) Emissions to EN 55032 “Electromagnetic compatibility of multimedia equipment”
- b) Transmitter and receiver test to EN 300 220-1 V3.1.1 ‘Short Range
Devices (SRD) operating in the frequency range 25MHz. to 1000MHz; Part 1: Technical Characteristics and methods of measurement.” - c) Immunity Tests to EN 301 489-1
