Nice TITAN12L1 LA System Swing Gate Operator Kit | HYS-O-TITAN12L1
Automate your gates with the Nice O-TITAN12L1, a heavy-duty linear swing gate operator designed for residential and light commercial use. Built for strength, durability, and smooth operation, this actuator delivers the perfect balance of power, safety, and reliability for your property.
This operator package is engineered for quiet operation, smooth closing, and all-weather performance. It features adjustable current sensitivity for automatic safety reverse, a 14-16 second open/close time in each direction, and an automatic adjustable close timer.
Elegant, modular design meets quiet operation. Quiet, powerful, and field-repairable with multiple controller and power options.

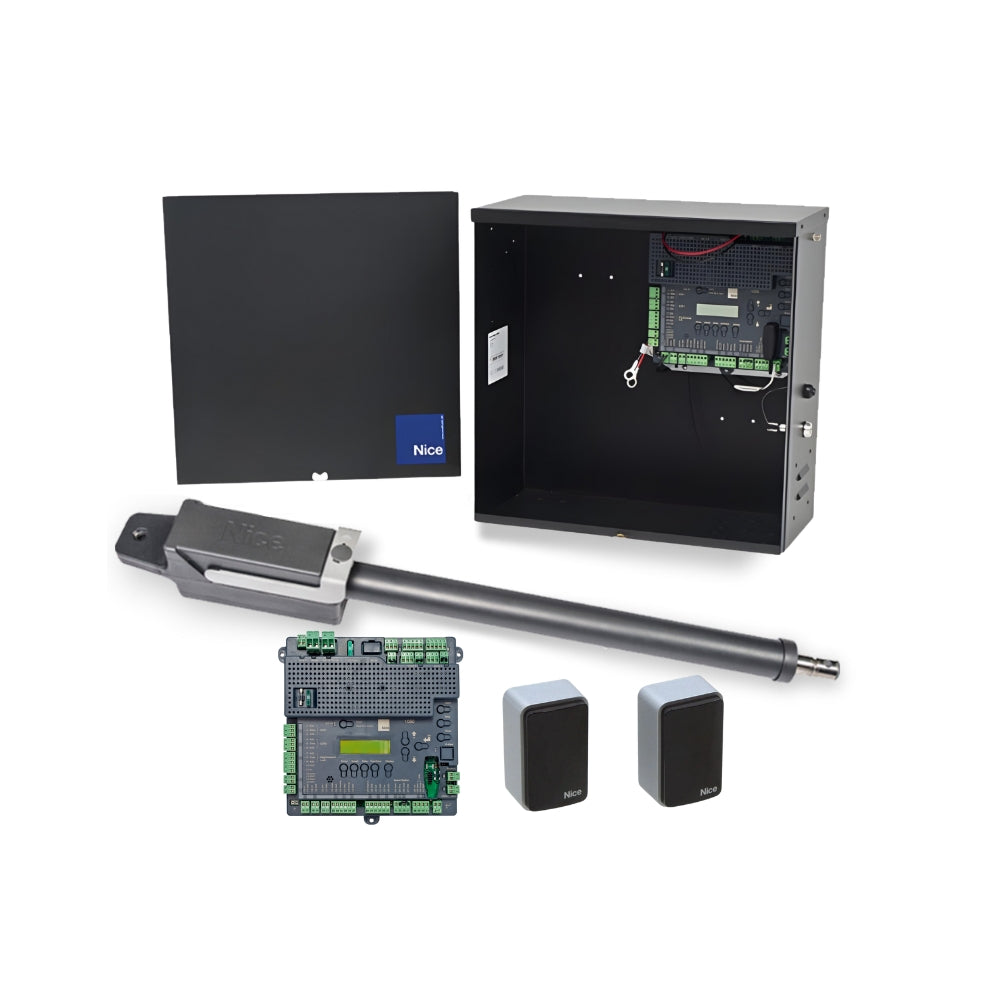

Includes

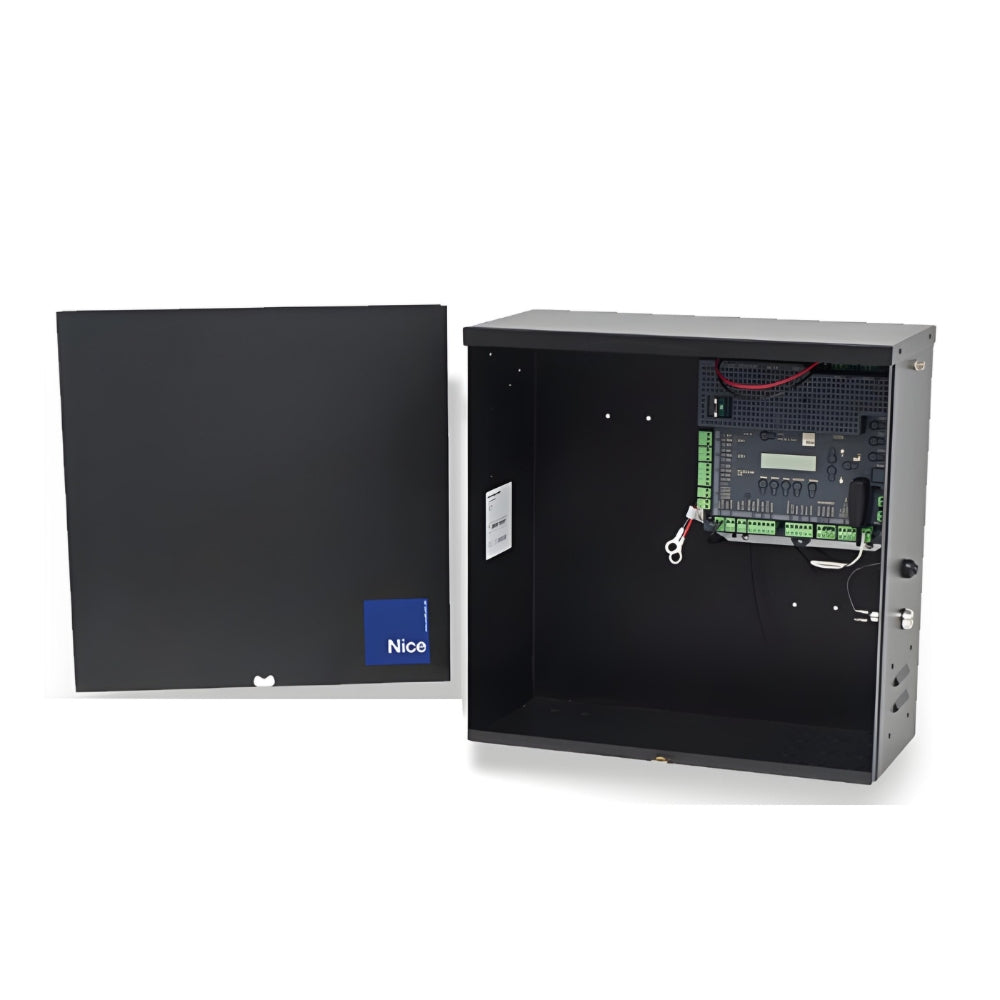

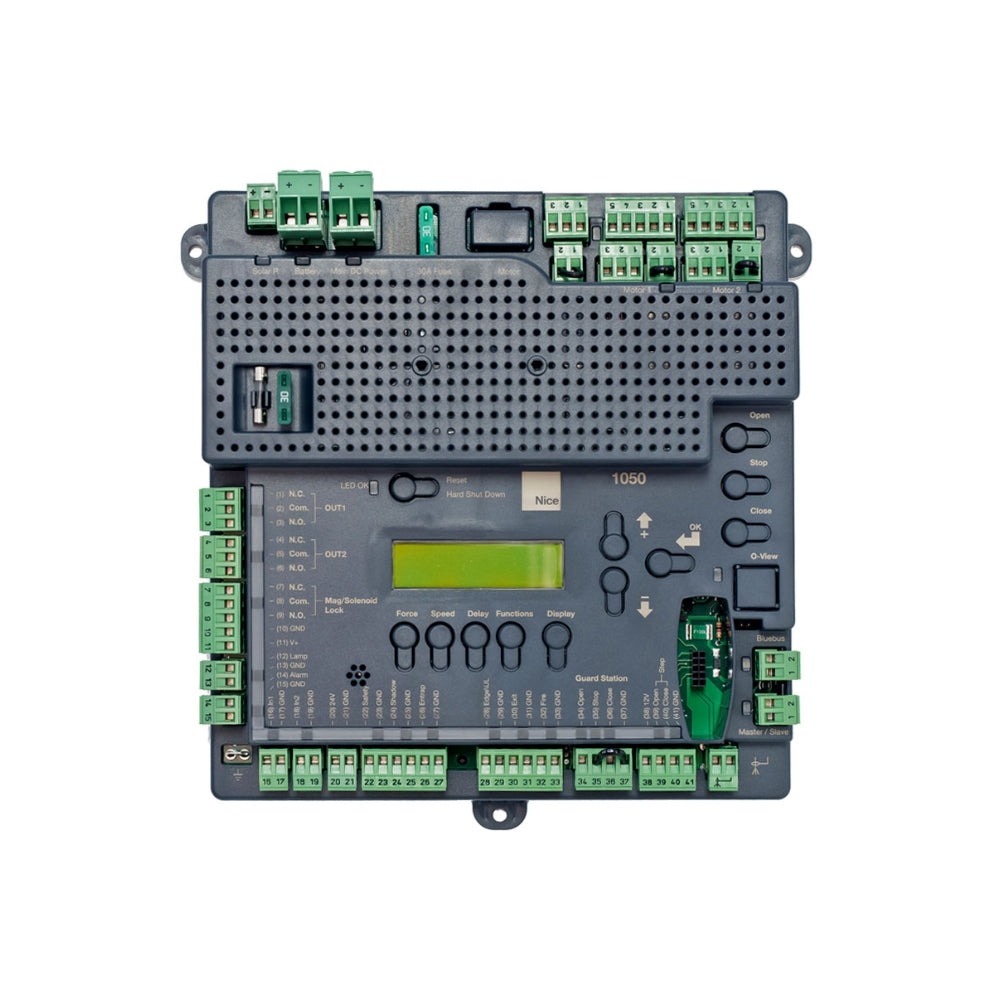

- CBOX with 1050 controller
- 912L-1 arm
- OXI receiver

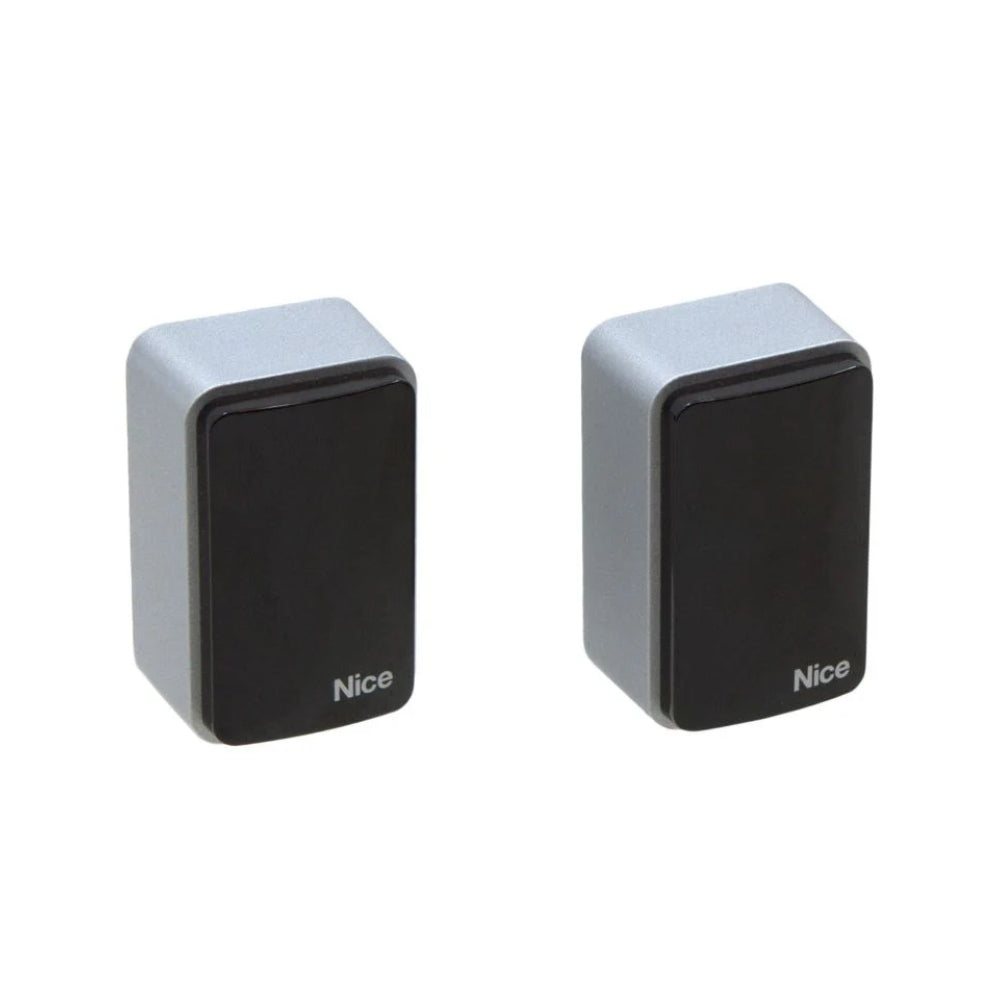

- One set of EPMOB/A BlueBUS through-beam photo eye
Features
- Simple: UL 325 compliance with no external safety devices required using 310 bundle models*.
- Powerful: Move gate leaf up to 1,000 lbs and 20 ft. Easy maintenance: Modular, field-replaceable components for easy maintenance.
- Convenience: Easy access to limit switch adjustment.
- Gate types: Single or dual gate applications.
- Technology: Nice BlueBUS 2-wire system self-identifies monitored photo eyes.
- Design: Superior arm design keeps out dust and snow.
- Noise reduction: Soft-start and soft-stop for smooth gate operation.
- Protected: Locking manual release prevents unauthorized access and allows operation during a power outage.
-
Easy Maintenance. Modular, field-replaceable components for easy maintenance
Technical Specifications
- Models: TITAN12L1
- Operator Kit: Single: CBOX1050 and 912L-1{{CR}
- Duty Cycle: Continuous for AC; Varies based on solar charging capacity*
- Drive: Electromechanical
- Open/Close Time (to 90°): Open/Close speed set independently. Adjustable 14 - 16 seconds
- Gate Length Max.: Up to 20 ft gate leaf
- Gate Weight Max.: Up to 600 lb for a 20 ft leaf (272 kg for 6 m); up to 1000 lb for an 8 ft leaf (453 kg for 2.4 m)
- Temperature Rating: -4º to 122º F (-20º to 50º C)
- Operating Voltage: 12VDC
- Input Voltage: 12VDC or 24VDC
- Idle Current: 17mA
- Accessory Power: 12VDC and 24VDC 0.3A each location
- Included Accessories: OXIBD bi-directional receiver, one set of BlueBUS through-beam photo eyes, Pivot Bolt
- Communication: BlueBUS, BUST4, OXI
- User Controls: 1050US Controller
- Relays: 3 programmable
- Arm Dimensions: Total Length: 42.5 retracted - 69.3 extended inches (108 - 176 cm) Pin-to-Pin: 40.5 retracted - 67.3 extended inches (103 - 171 cm)
- Enclosure: CBOX: 18w x 18h x 8d inch (46w x 46h x 20.3d cm)
- Finish: CBOX: Black powder-coat steel
- ETL Listed (UL 325): Usage Class I, II
- Warranty: 3-year w/ product registration
Note: The Nice O-TITAN12L1 Swing Gate Operator Kit was originally offered under the Apollo brand, known for its dependable gate automation components. Following Apollo’s acquisition by Nice, this part is now officially part of the Nice product line. It maintains the same compatibility and performance, now supported by the global resources and innovation of Nice Group.
