HySecurity SlideDriver 15-M | HYS-SlideDriver15-M

HySecurity SlideDriver 15-M | HYS-SlideDriver15-M

Note: This product has been discontinued and is no longer available.
It has been replaced by the new SlideDriver II SD15, offering improved performance and updated features.

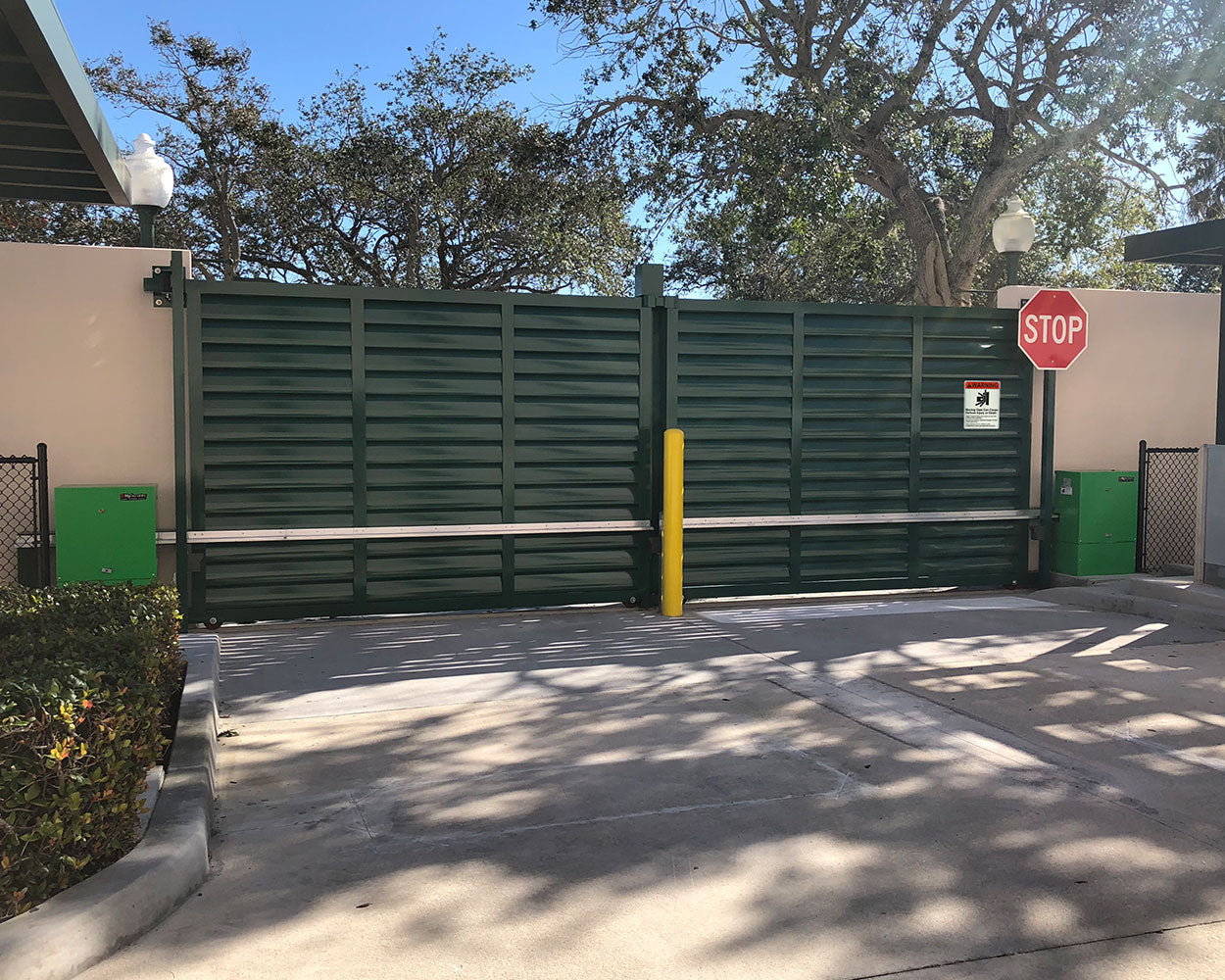

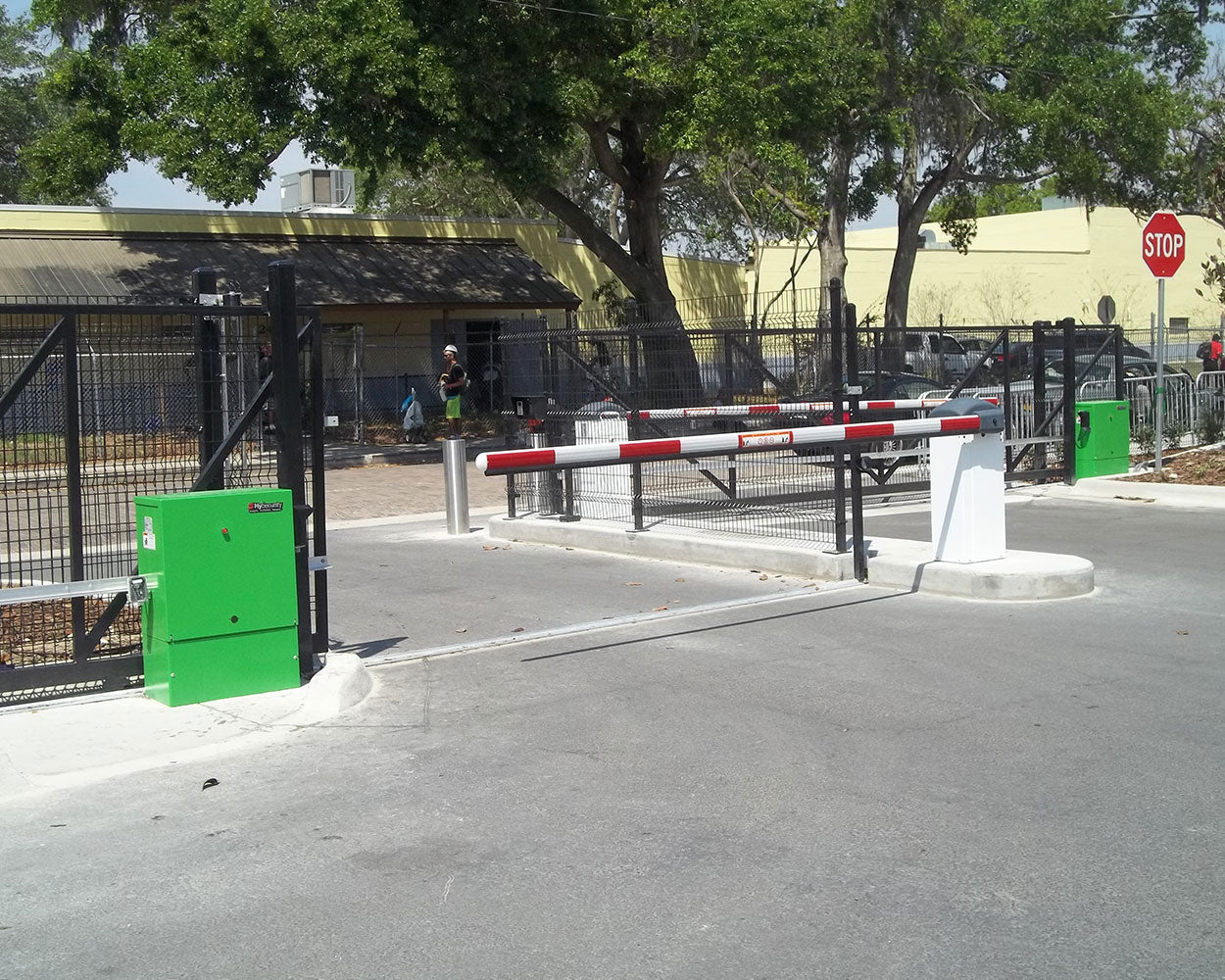

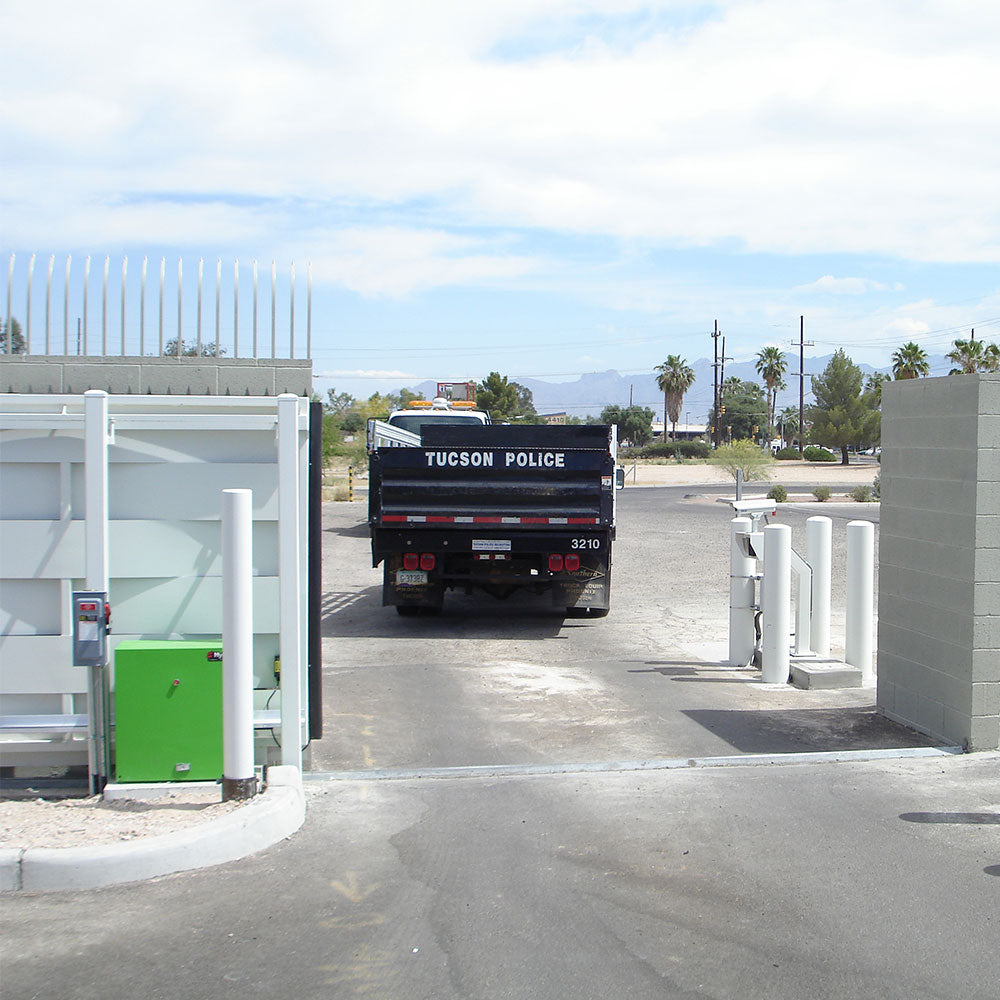

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous-duty operator is renowned for decades-long life and low maintenance.

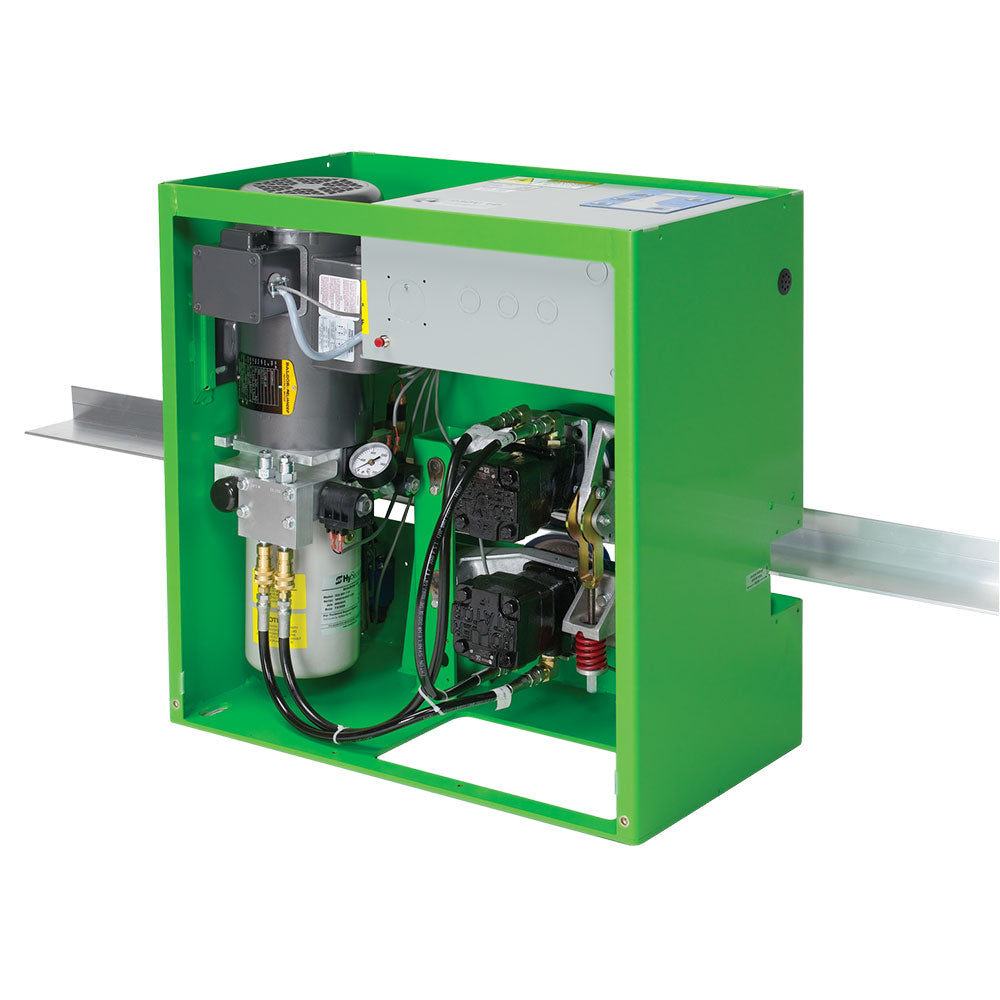

Modular operators locate motor, hydraulic pump, and electric controls in a remote enclosure to accommodate unique mounting, high security, environmental concerns, or sites requiring very quiet operation.

Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Features

• Move the longest, heaviest gates up to 20,000 lb
• Modular Model (-M): Modular models locate the motor, hydraulic pump, and electrical controls in a separate remote enclosure to accommodate unique mounting, high security, or sites requiring a very quiet operator.

Operator Components

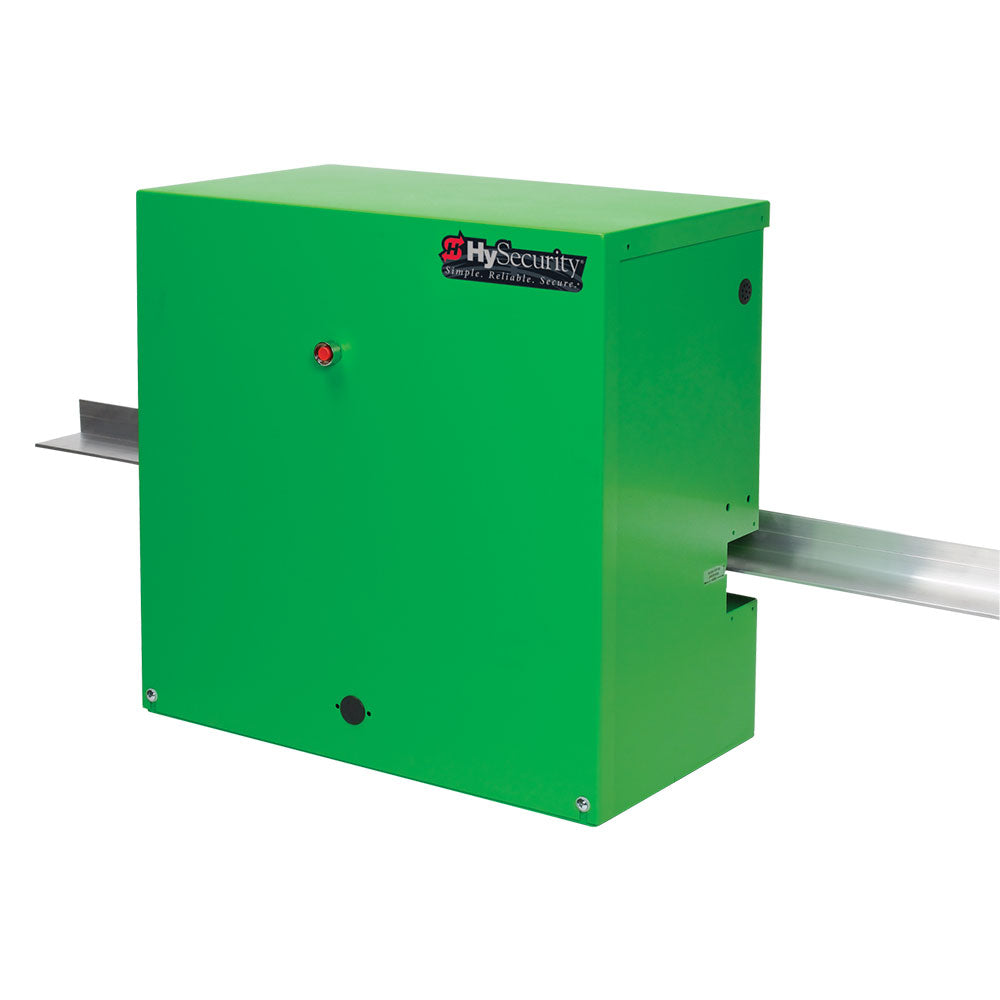

Model: SlideDriver 15-M Drive Unit

• Part Number: 333 MS
• Est. Ship Weight: 200 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Model: SlideDriver 15-M Power Unit

• Part Number: 333 MS ST
• Est. Ship Weight: 261 lb
• Shipping Dimensions: 40"w x 40"d x 50"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
• AC Power Supply with HyInverter AC Installation Reference Manual
