Description

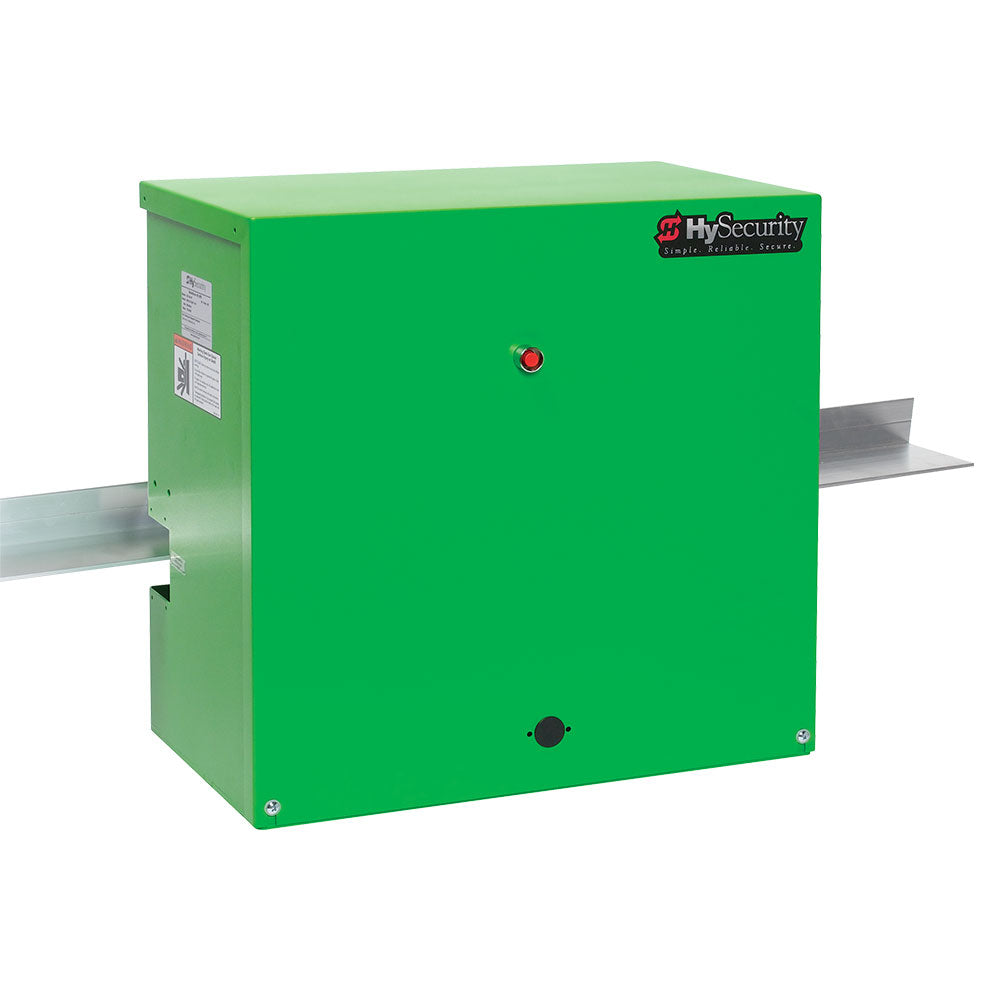

HySecurity SlideDriver 50VF2/3 | HYS-222-X3-ST
SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.
Cycle up to 5,000 lbs. gate of any length at 2.2 or 3 ft/s (2,268 kg / 70 or 91 cm/s). Move a heavy gate SMOOTHLY and FAST. These operators close gates to a precise point and are extremely easy on gate hardware. SlideDriver VF operators use a variable frequency drive, 8 inch wheels - both wheels driven, and a high flow rate pump to move gates weighing up to 5,000 lb at high speed. Field adjustable Open/Close speeds are 2.2 or 3 ft/s. Emergency Fast Operate at 3 ft/s. Listed and restricted to UL 325 usage class III, IV due to high speed.
Note: HySecurity offers an optional AC Power Supply w/HyInverter AC™ which provides UPS battery backup for 208/230VAC, single-phase AC gate operators. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).
Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.
Operator Components
Model: SlideDriver 50VF2/3
- Part Number: 222 X3 ST
- Est. Ship Weight: 244 lb
- Shipping Dimensions: 26"w x 30"d x 35"h
- Shipping Class: 70
