HySecurity SlideDriver 30F Gate Operator | HYS-222-EX1.7ST

HySecurity SlideDriver 30F | HYS-222-EX1.7ST

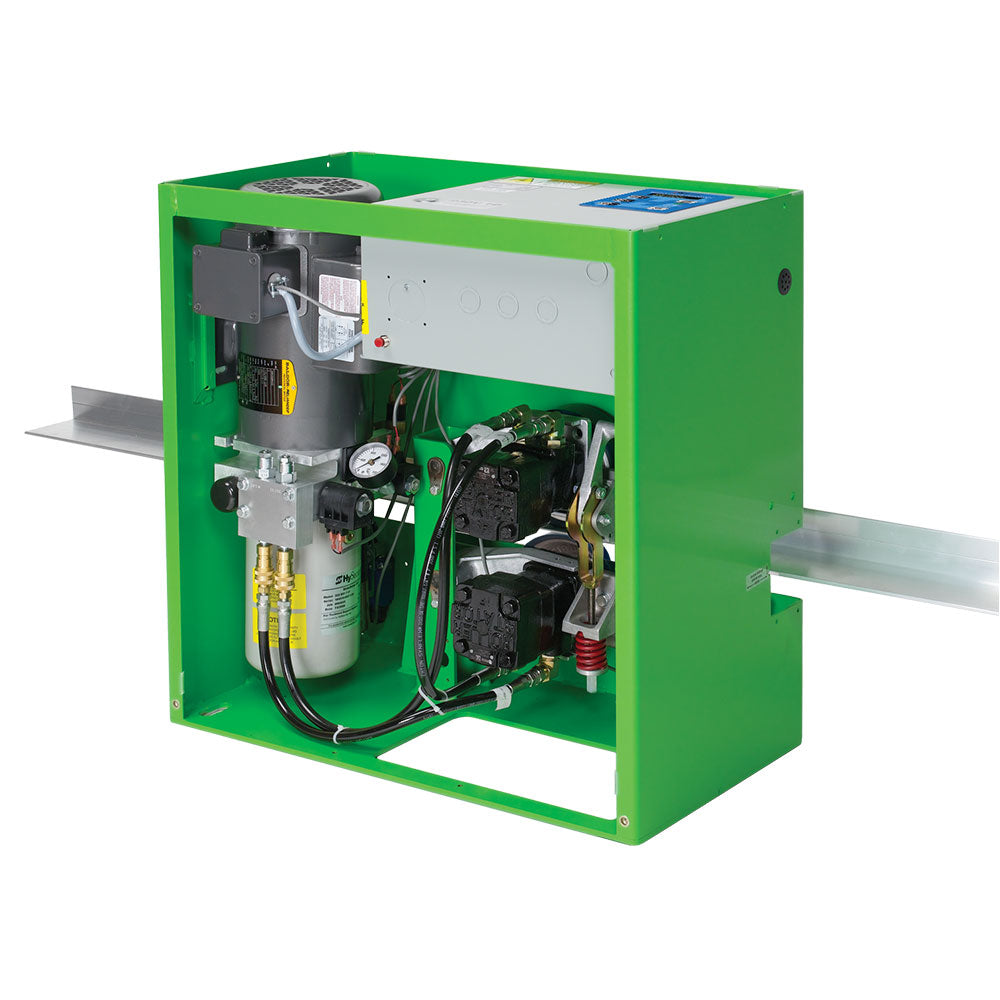

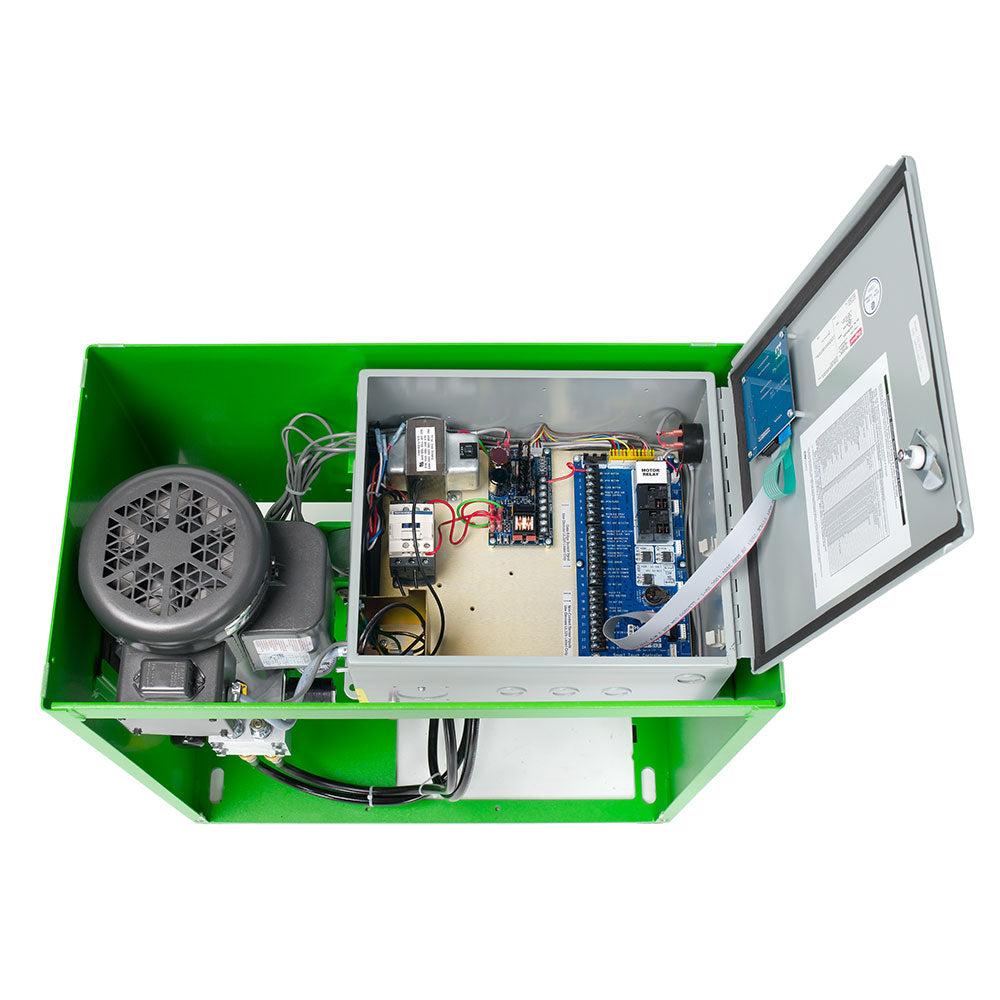

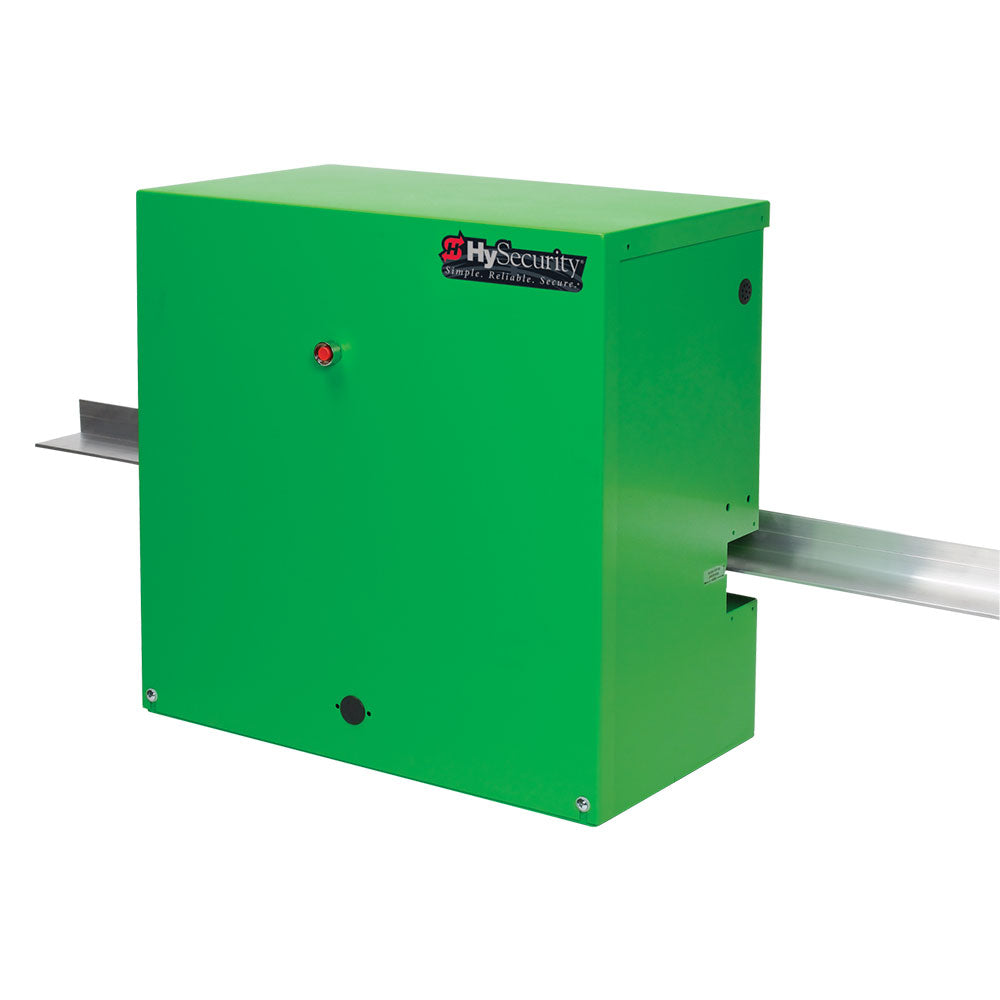

SlideDriver is a powerful, industrial hydraulic slide gate operator that secures industrial and crash sites worldwide. This rugged, continuous duty operator is renowned for decades long life and low maintenance.

SlideDriver 30F’s soft-start system (key to smoothly moving slide gates faster than 1 ft/s) combined with a high flow rate pump, cycles heavy gates quickly, at almost twice the speed of traditional slide gate operators. Brake valves, AWOG and hydraulic drive, create smooth, easy-on-gate-hardware operation. Cycle up to 3,000 lb gate at 1.7 ft/s (1,361 kg / 50 cm/s). Listed and restricted to UL 325 usage class III, IV due to high speed.

Note: Order optional XtremeDrive™ System in locations where roll resistant gates or harsh snow and ice conditions risk loss of drive wheel traction. XtremeDrive™ System increases traction with its innovative rack and pinion-like design. Includes one premium EMX IRB-MON photo eye and one 5-foot premium ASO edge sensor (and a pre-wired Hy2NC adapter).

Note: Please note that all operators come in 60 Hz. If you need an operator with 50 Hz, please call us at (800)-730-8382 for a special order.

Operator Components

Model: SlideDriver 30F

• Part Number: 222 EX 1.7 ST
• Est. Ship Weight: 283 lb
• Shipping Dimensions: 26"w x 30"d x 35"h
• Shipping Class: 70

Product Literature

• SlideDriver Product Brochure
• SlideDriver Installation Instructions (all models)
• SlideDriver Installation Instructions (Spanish)
• SlideDriver Programming & Operations Manual (all models)
