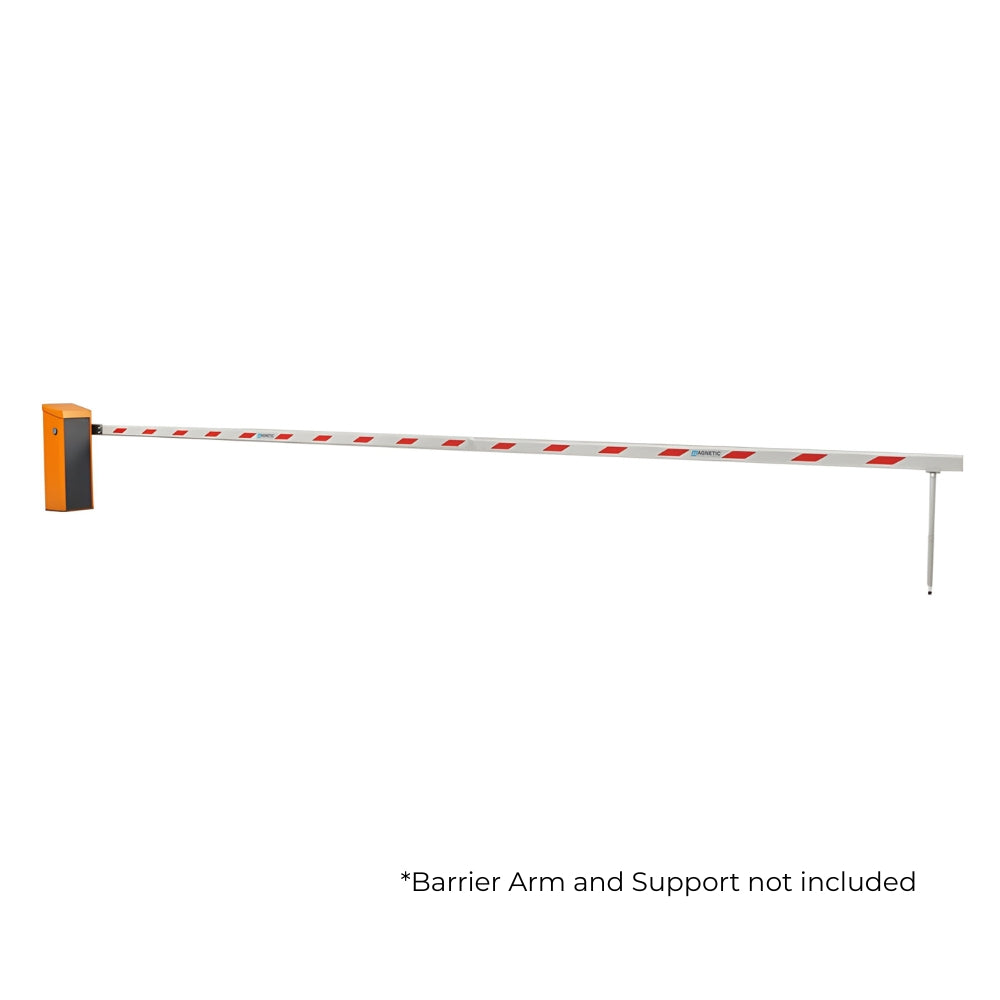

Magnetic Autocontrol Access XXL Left-Hand Barrier Gate Operator Only
With its opening width of up to 33 ft and the optional security barrier arm skirt with optional climb-over prevention, the Access XXL is the ideal solution for extra-wide or multi-lane entrances to freight forwarders, company grounds, and port facilities. The control system of the Access XXL offers a wide range of functions and numerous expansion potentials through the use of plug-in modules.
There are five slots for, e.g., an Ethernet interface, a radio module, or a counting module for determining the number of parking spaces still available. All inputs and output functions can be individually configured by the user. The opening and closing times can be selected from three levels independently of each other.
Note
Please allow an extended lead time due to manufacturing and shipping for this product. For questions or additional information, please contact customer support at (800) 730-8382.

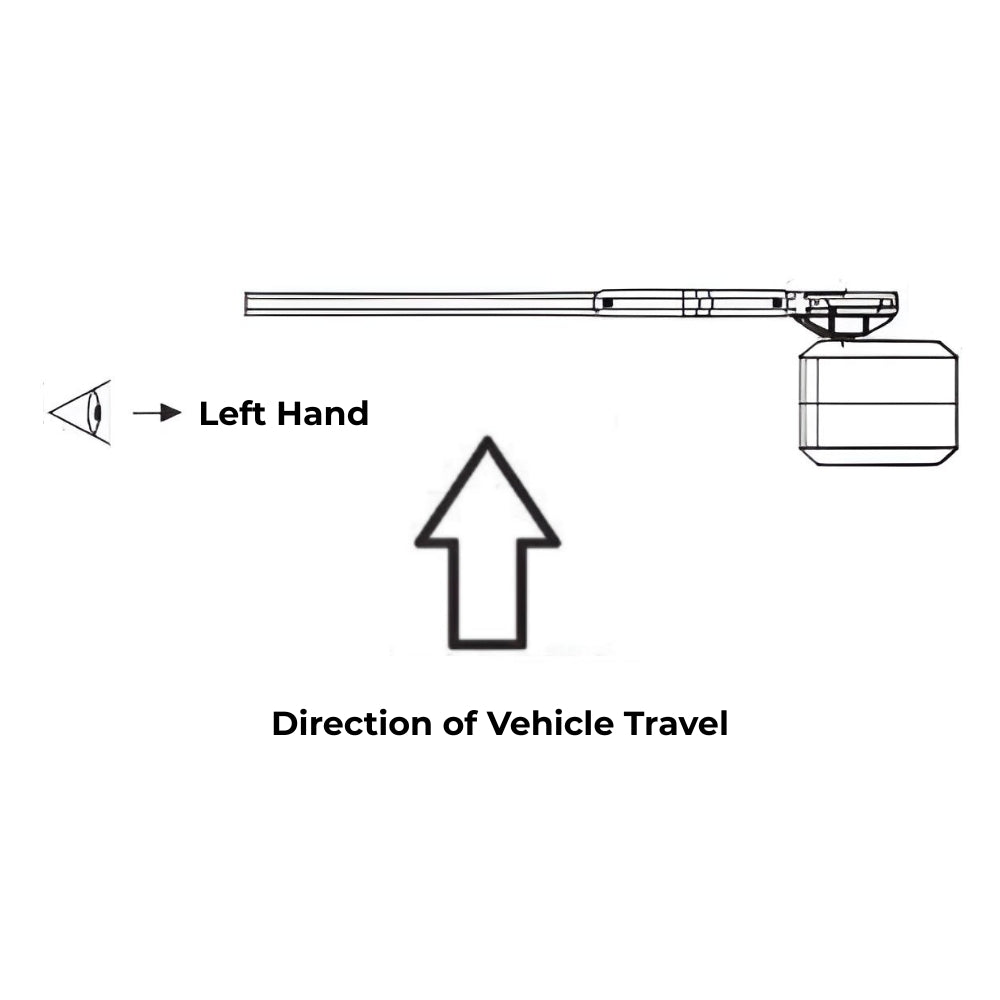

If you need the right-hand version, click here.
**Barrier arms over 19 ft. must be supported with pendulum support or with a support post.
Features
- Large barrier width of up to 33 ft
- Universal platform for a wide variety of equipment
- High security with optional barrier arm skirt
- Very low operating costs thanks to efficient and durable MHTM™ drive
- Shape and colors based on a prize-winning design of Access barriers
- Maximum protection against corrosion
Manufacturer's Warranty Period
- 2 years or 2 million cycles (whichever occurs first)
Technical Specifications
-
Standard colors: Orange (RAL 2000), White (RAL 9010)
- Speed: 8.0s
- Barrier width: Max. 33 ft
- Power consumption: Max. 30 W
- Drive technology: MHTM™
- Voltage: 85-264 VAC, 50/60 Hz

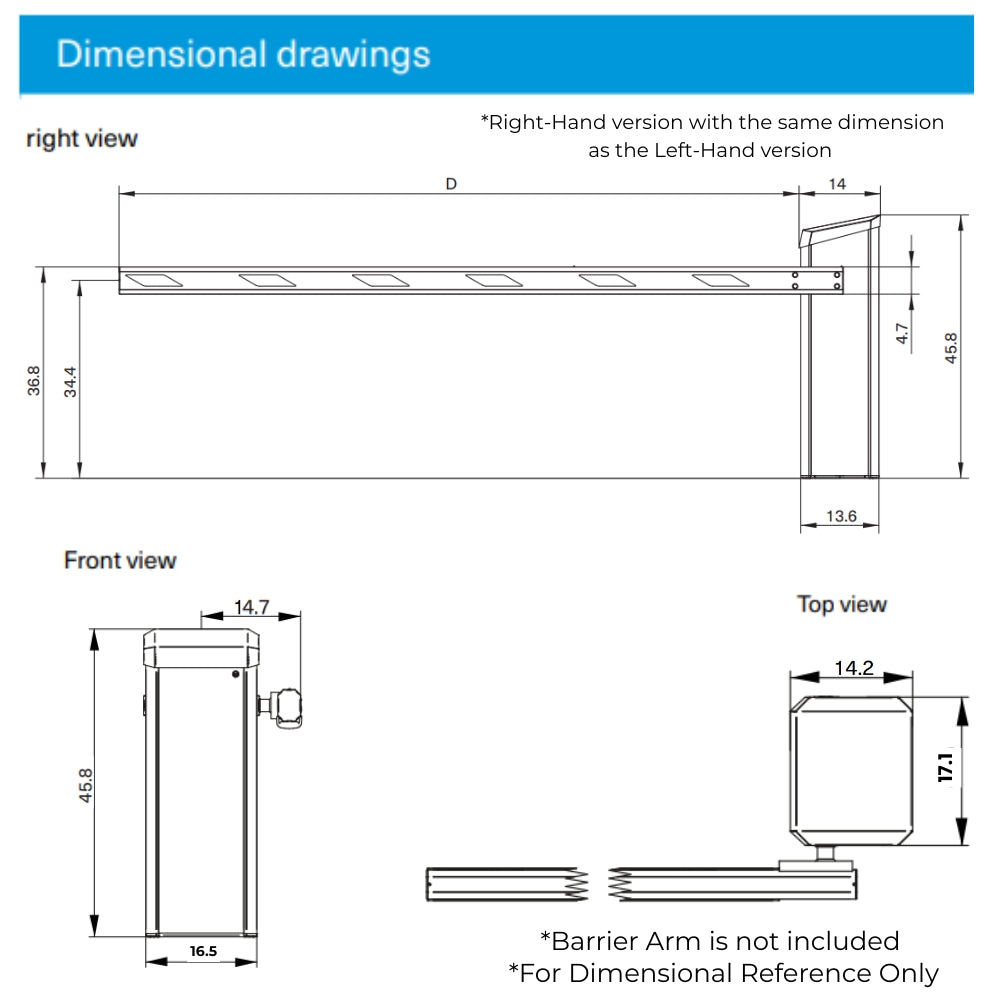

- Housing dimensions (L x W x H): 17.1" x 14.2" x 46"
- Enclosure rating: IP 54
- Temperature range: -22 to +131°F
- Weight: 247 lb
-
Barrier arm type: MicroBoom XL (Excluded)
- Control system: MGC Pro
- Integrated 2-channel detector for induction loops: Standard
- Modular expansion of the control system: Freely expandable
- Variable I/O assignment: Standard
- No. of digital inputs: 8
- No. of relays/digital outputs: 6/4
- Input for safety light barrier with test: Standard
- Selectable closing speed: Standard
- Selectable opening speed: Standard
