Linear SG-D 1/2 HP Barrier Gate Opener

LinearSKU: LIN-SG-D-25-211-YS

Model: 15Ft-25Ft. Yellow 115V 1PH
Price:
Sale price$6,492.50

Estimate shipping

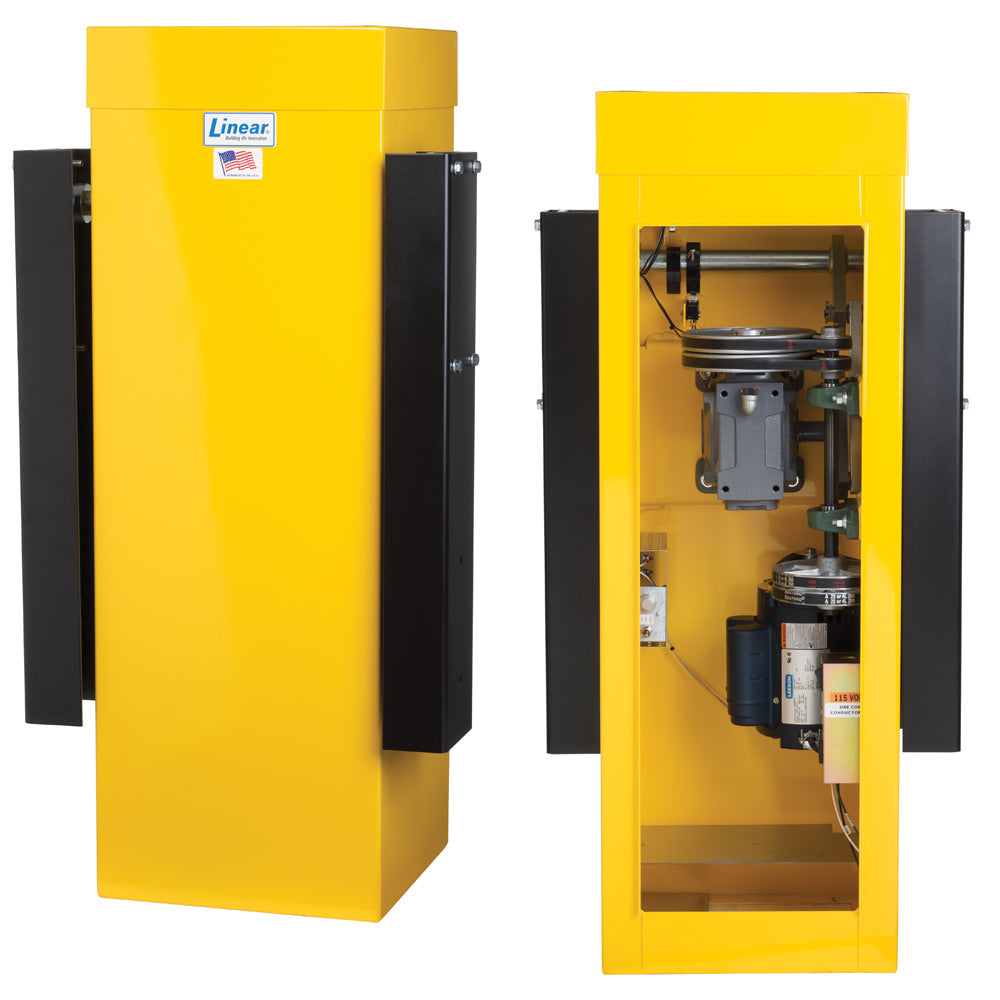

Linear SG-D 1/2 HP Barrier Gate Opener

SG-D Series- Slower operating, counterbalanced wishbone arm. For low-traffic industrial vehicular applications, available in 1/2 horsepower, 115V, or 230V supply voltage, custom arm length.

Features
  • Integral APeX Controller
  • Power on/off switch
  • Duplex receptacle (115 VAC units only)
  • 24 VDC permanent magnet motor (SG-D only)
  • 115 VAC supply converted to 24 VDC for motor and controls (SG-D only)
  • Dual battery backup charged by 115 VAC (SG-D only)
  • On-board APeX Controller three-button control station
  • All accessory connections 24 VDC
  • Easily adjustable cam-operated limit switches
  • Lockable and removable front cover for easy access
  • Built-in maximum run timer and auto close timer
  • Master/second with a simple 3-wire connection
  • Quad V-belt
  • Heavy-duty right-angle gear reducer
  • Heavy-duty harmonic link with oil-impregnated bronze bushings
  • Motor has a manually-resettable overload
  • Full system capable of access control and reversing devices
  • Weather-resistant galvanized steel cabinet with powder coat finish
