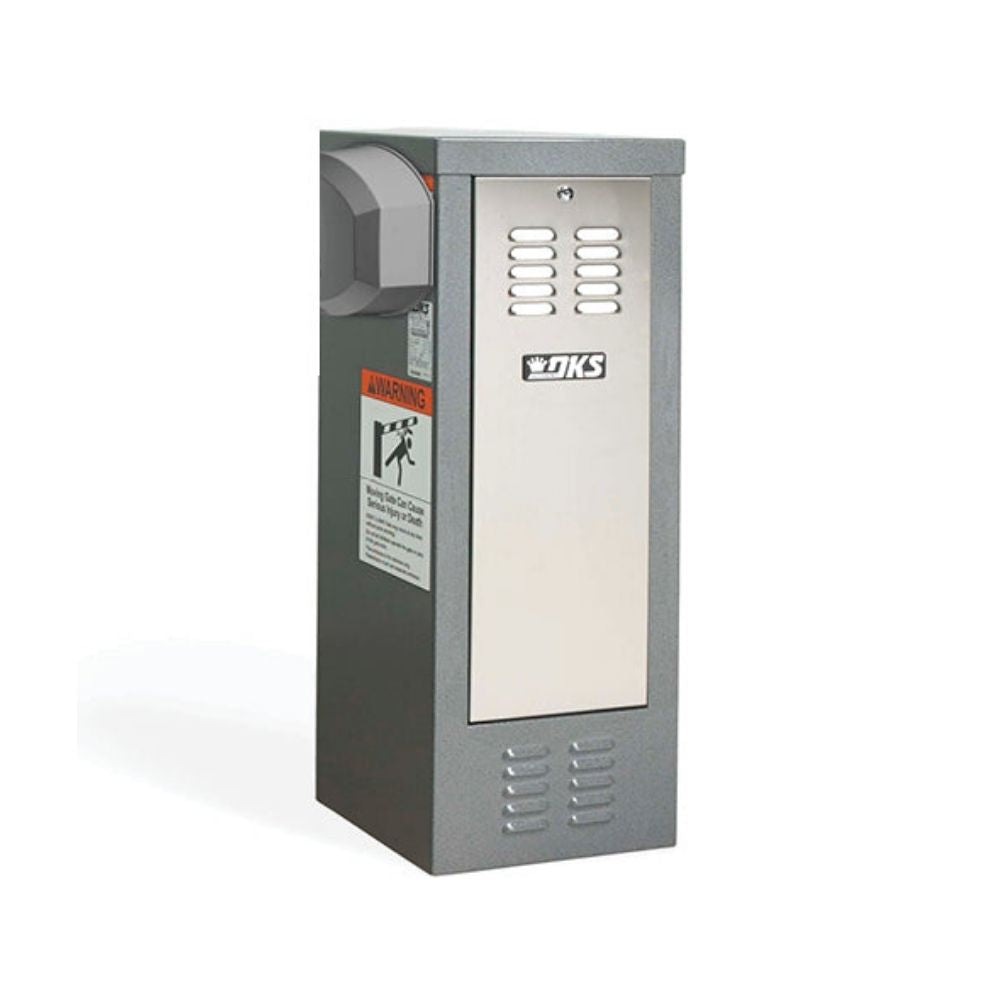

Doorking Barrier Gate Operator with DC Convenience Open Option (1/2HP, 115VAC, 5.4AMP) | DKS-1601-481
The 1601 operator is designed for single-lane (14 ft. max) vehicular traffic control in high-traffic commercial and industrial applications. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
Arm And Hardware Kit Sold Separately
Technical Features
Mechanical
- Primary Reduction is provided by a 60:1 Worm Gear Reduction System running in a continuous oil bath.
- The arm rotates 90° in approximately 2.5 seconds
- G90 Galvanized Steel Housing- Gray
- Fail-Secure Mechanical Release Method
- 360º gearbox rotation before the motor changes direction.
-
Left- or Right-Hand Mount
Gate Tracker
- Reporting output provides operator data to a DKS 1833, 1835, 1837, or 1838 access control system.
Electrical
- Magnetic Electronic Limit Controls
- Auto-Close timer 1-23 seconds
- P.A.M.S. (Perimeter Access Management System) sequence with a Slide or Swing Gate Operator
- Up Input Memory Buffer
- Down Memory Option
- Multiple Up Commands
- Port for plug-in Open (Up) Detector
- Port for plug-in Reverse (Down) Detector
- Built-in Power On/Off Switch
-
Programming Switches
Miscellaneous
- Environmental: 10°F to 140°F (-12°C to 62°C)
- DKS Pedestrian Protection System: The system reverses Barrier Arm if a person is detected, and lowers Barrier Arm if an unauthorized vehicle enters.
- Compliant with UL 325 and 991. ETL Listed.
Technical Specifications
- Class of Operation: II, III, IV
- Arm Type/ Max Length: Plastic / 12 ft (3.6 m) | Wood / 14 ft (4.3 m) | Round Aluminum / 14 ft (4.3 m) | Octagonal Aluminum / 14 ft (4.3 m)
- Dimensions (operator only): 15.25"W x 39.5"H x 14.75"D.
- Motor: 1/2 HP
- Input: 115 VAC, 60 Hz, 5.4A
Manufacturer's Warranty Policy
- 5-Year Limited Warranty
