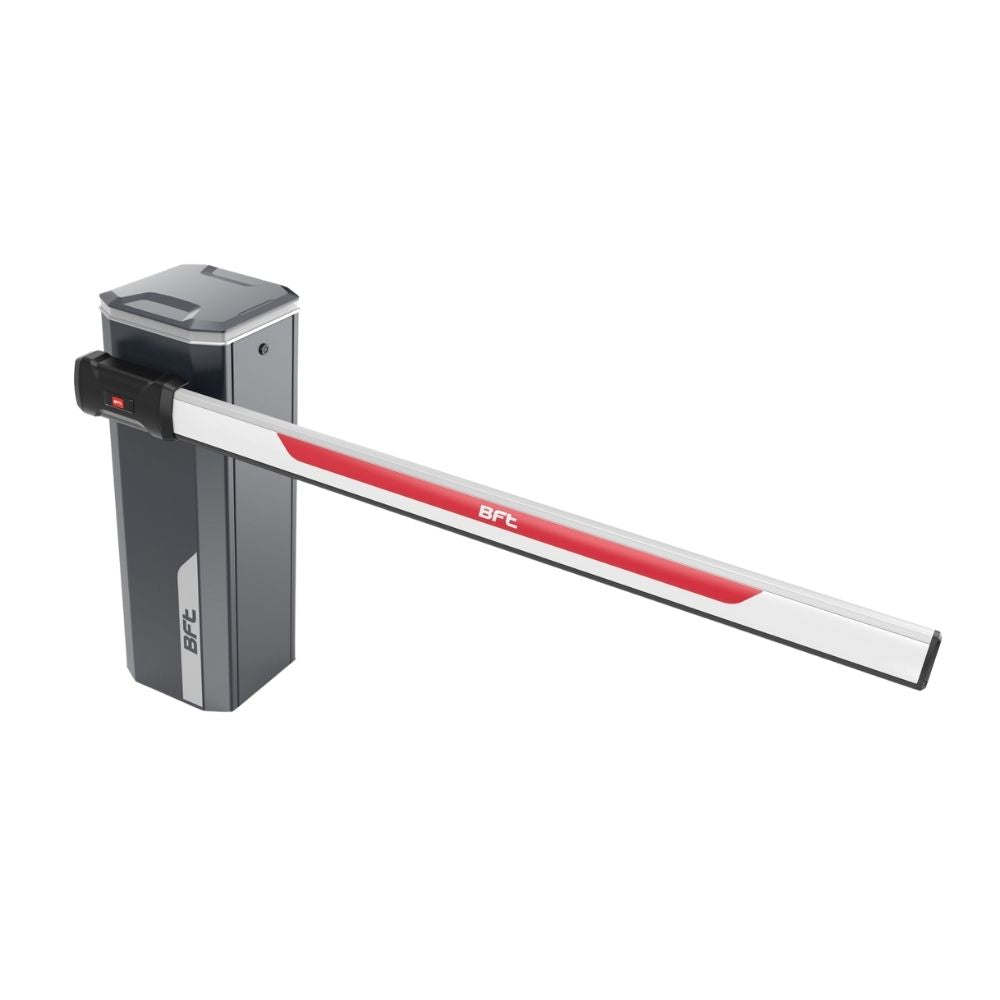

BFT MAXIMA ULTRA 36 XL 230V Barrier Opener (Fits 20' Booms) | BFT-P940094-00002
Boom, Omega, and Support connections are not included. 230V electromechanical barrier with three-phase asynchronous motor and inverter, for controlling gates from 6' to 20' wide. The opening time is between 0.7 and 4 seconds, with a slowdown. Maximum barrier length 20'. Suitable for installation in areas with a high frequency of movement and frequent inversion of barrier movement (e.g., motorway toll booths, car parks with high traffic flows, etc.). Version with a strong spring. Colour RAL 7015.
Note: Boom, Omega, and Support Connection are not included.
Manufacturer's Warranty Period
- 2 Years
Technical Specifications
- Opening or closing time: From 0.7 to 3.9 s
- Control unit: CSB-XT
- Motor type: Three-phase asynchronous
- Gear unit type: In oil bath
- Inverter: Yes
- Slowdown: Yes
- Impact reaction: Encoder
- Locking: Mechanical
- Release: Inside the structure
- Frequency of use: Continuous
- MCBF (Mean Cycles Between Failures): 7000000 Op
- Environmental conditions: -40 ÷ 140 °F (-40 ÷ 60 °C)
- Protection rating: IP55
- Interconnectivity: No
- Clear opening: From 6' to 20' (2m to 6m)
