BFT Giotto BT A Ultra 36 Barrier Gate Operator with 13 ft. Arm | BFT-FASGIOTTO12

Save $394.00
BFTSKU: BFT-FASGIOTTO12

Price:
Sale price$1,805.00 Regular price$2,199.00
Add to cart Add to cart
Add to cart

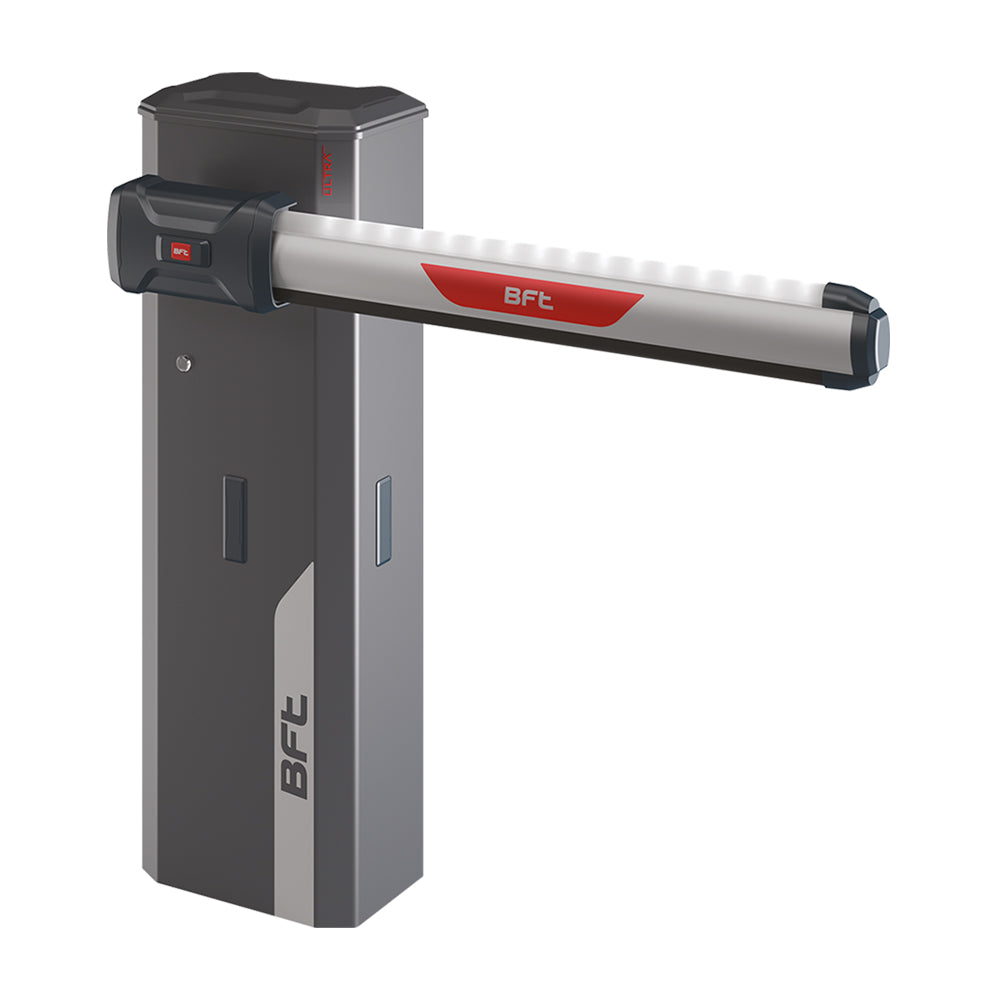

BFT Giotto BT A Ultra 36 Barrier Gate Operator with 13 ft. Arm | BFT-FASGIOTTO12

Range of 24 V electromechanical barriers with opening speeds of between 2.2 and 4 seconds, depending on the length of the bar. Ideal for installation in large car parks, vehicle access points, and industrial gates between 2 and 6 m wide. The high degree of movement control and impact resistance via an encoder. Integrated control unit with U-Link connectivity. Same appearance as Maxima U36 barrier. Wide range of accessories for any type of application.

Includes
  • 1- Giotto BT A Ultra 36 Electromechanical Automatic Barrier 120V 60Hz (BFT-P940100 00006)
  • 1- OMEGA PS Hardware kit for Giotto BT A Ultra (BFT-P120100)
  • 1- Barrier Arm 4m/13ft (BFT-P120087 00002)
  • 1 - Polarized Reflective Photo Eye with Hood (BFT-KIRPOLAPHOT001)
    Features
    • Electro-mechanical barrier 24V for intensive/very intensive use for lane width from 2 up to 6m
    • Opening time from 2,2 up to 4s depending on the boom length
    • Standard version from 2 up to 4m and XL version from 4,5 up to 6 m (by different spring)
    • Ideal to control access at parking areas, industrial sites, company grounds car parks, road accesses
    • Impact reaction via encoder
    • Barrier body design like Maxima U36 (smaller dimension)
    • New GT-BOARD light board to manage red and green light combined with MERAK GIOTTO ULTRA 36 control unit
    • Compatible with PS barrier arm (by dedicated bar holder) and PS/ES LIGHT
    • U-LINK protocol
    Technical Specifications
    • Power supply:110-120V~ 50/60Hz
    • Motor voltage: 24Vdc
    • Internal lubrication: Permanent grease
    • Power absorbed: 300 W
    • Max torque: 280-290 Nm
    • Opening time: 2.2 ÷ 4 s.
    • Useful passage: 2.0...6.0 m
    • Maximum usage cycle:
      • 3-metre bar: 5 000 operations/24h
      • 6-metre bar: 2 000 operations/24h
    • Type of boom (Not supplied): BOOM ES and BOOM PS
    • Limit devices: Electromechanical
    • Dimensions (WxDxH): 220x340x1040mm
    • Weight (without boom): 41 kg
    • Foundation: Concrete: 400x600x500mm
    • Impact reaction: Through the encoder
    • Manual mechanical release: Customised key
    • Environmental conditions: from -20°C to +55°C
    • Barrier degree of protection: IP54
    • Noise level: <70dBA
    • Control unit: MERAK GIOTTO ULTRA 36
    • Loadless consumption: 10.5W
    • Control unit degree of protection: IP54
    • Accessory power supply: 24V~ (max absorption 0.5A)
      • Max. n° of remotes that can be memorized: 63
      Product Literature
