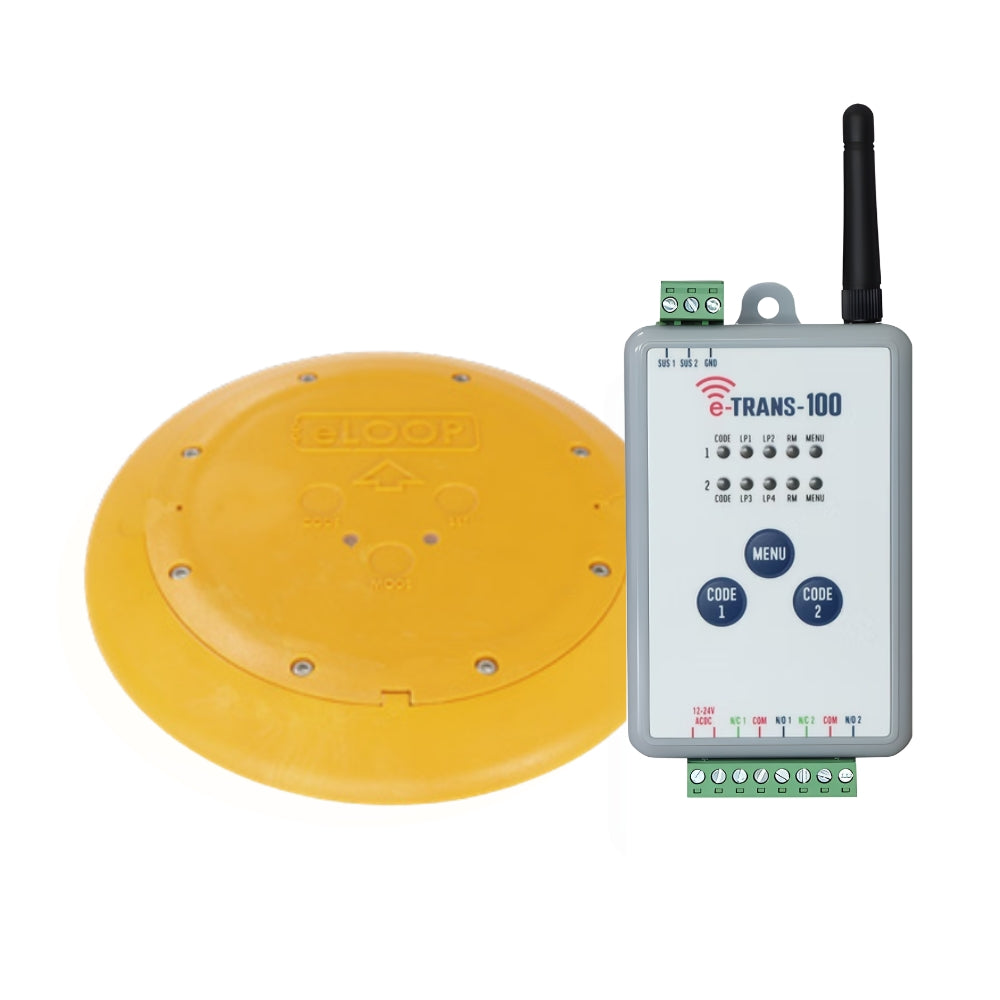

AES EL00C-RAD-KT Commercial Radar e-Loop Kit with eTrans 100 (Presence Mode)
Presence Mode with added radar protection.
The E-loop commercial is the epitome of perfection when it comes to wireless vehicle detection systems designed specifically for commercial settings. With its wireless nature, installation becomes a breeze, eliminating the need for complex wiring systems and minimizing disruption to the existing infrastructure. Moreover, the system's efficient energy consumption and low maintenance needs make it a cost-effective solution that ensures long-term reliability.
Additionally, the E-loop commercial is available with a convenient presence mode, which intelligently keeps gates and barriers open for an extended duration when longer vehicles are in motion over the detection area. This advanced functionality enhances safety and efficiency by minimizing interruptions and reducing the risk of collisions, further solidifying its suitability for commercial environments.
The Commercial Wireless Vehicle Detection System uses magnetometer sensors to detect the presence of oncoming vehicles. These detections are transmitted to a nearby transceiver for gate activation. After the vehicle is detected, the e-loop will switch to radar mode. The sensors are installed on the surface of entry or exit passages using dynabolts, contain four replaceable Lithium batteries, and can withstand almost any vehicle.
The Radar sensors can detect vehicles that are stopped above the e-loop. The added radar utilizes a two-way radio communication protocol for reliable operation. Once the magnetometer sensor detects an oncoming vehicle, the transceiver relay will be latched, and confirmation will be sent back to the e-loop. If the magnetic field drops below the set threshold, the radar will check if a vehicle is present. If no vehicle is detected, an unlatch command is sent to the relay, and the transceiver will send a confirmation to the e-loop. If the confirmation is missed, multiple attempts will be made to ensure A safe operation. Radar settings can be adjusted using the e-diagnostics remote. Settings that can be changed include; Dead zone, sensor distance, sensitivity, magnetic field release level, and confirmation mode.
Note: Gate or door controller must have a dedicated open input and auto-close function enabled.
Includes

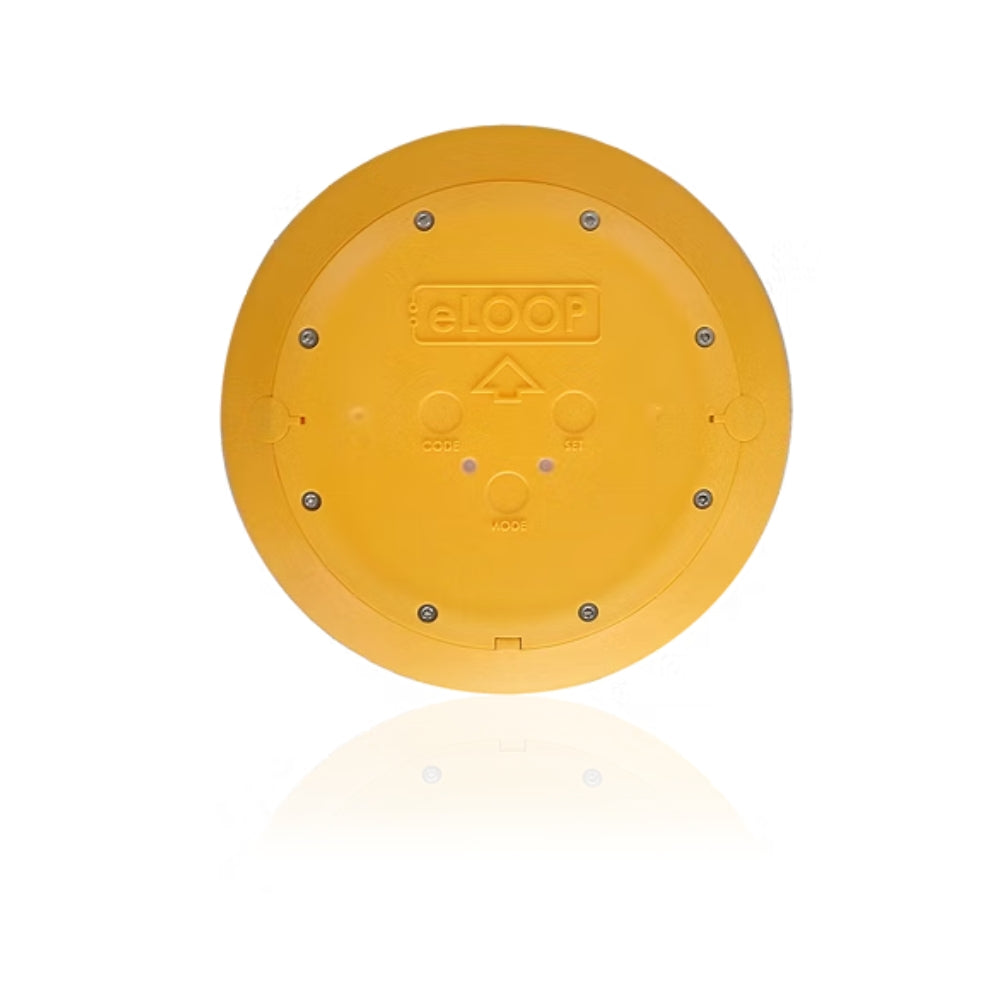

- 1 x e-Loop commercial Presence mode wireless detection module

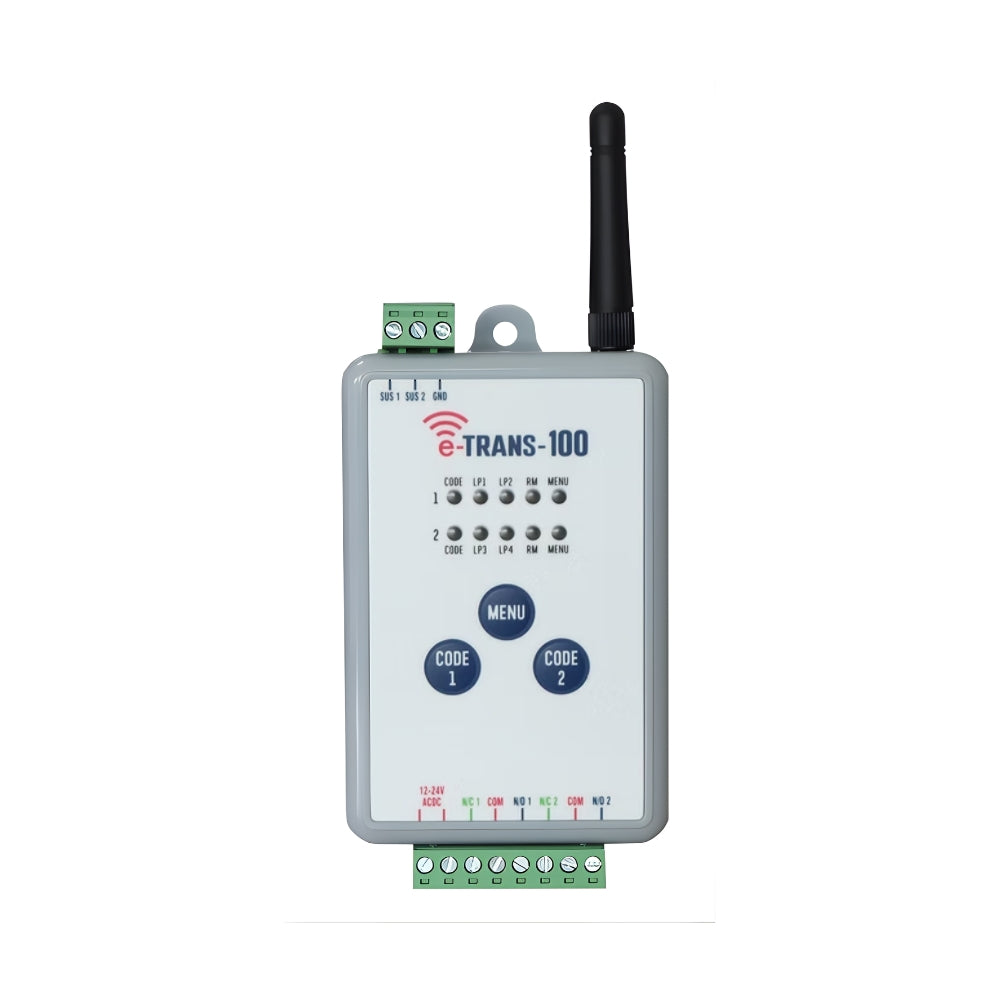

- 1 x 2-channel transceiver (e-Trans 100)
- 2 x Concrete fixing bolts
- 1 x Magnet
Radar Read Distances
Radar detection range. Spanning from a 60° FOV from the e-loop, these are the range zones. The Gray area depicts the dead zone, in which objects cannot be detected. The Minimum read distance is 0.6m. The default read distance is 1.3m, and the Maximum read distance spans up to 2m.
Manufacturer's Warranty
- 2 years
