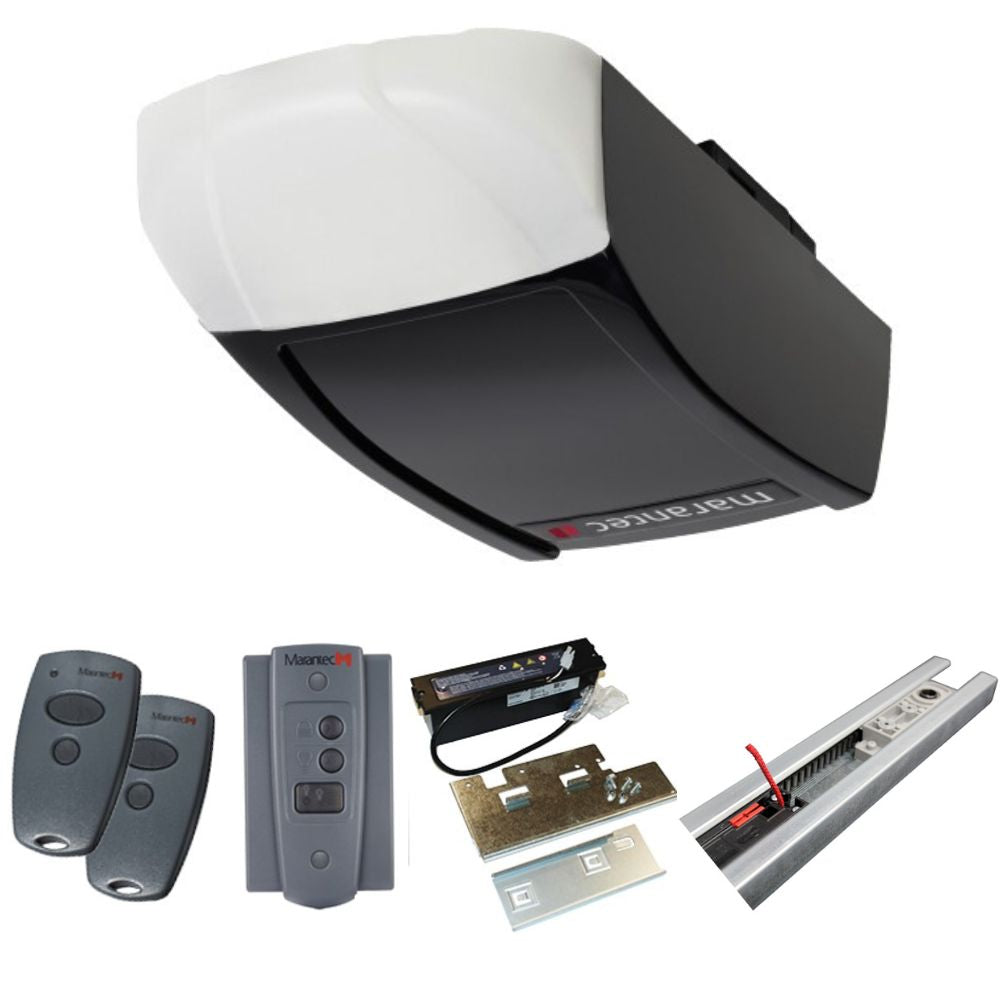

Marantec Synergy 270 Belt Drive Garage Door Opener with 1.2MM 10' Belt Rail | MAR-Synergy-270B-B10
Marantec Synergy 270 Belt Drive Garage Door Opener Only Black Cover.
Includes
- (2) 2-Button Transmitters
- (1) Deluxe Wall Control
- Battery Back-Up System
- 10' Heavy Duty Belt Drive Rail Only (122803)
Features
- Limited Lifetime Warranty on the motor, gears, and rail assembly
- LED lighting emits very little heat and light in the UV spectrum, further reducing its attractiveness to bugs.
- Extremely quiet operation makes a perfect fit for garages adjacent to living spaces.
- The motorhead can be rotated to the right or to the left to accommodate space constraints or desired lighting direction.
- Easy to assemble belt rail for standard doors up to 12 feet high.
- LCD display guides you through the basic programming process.
- Multi-bit code technology ensures interference-free performance.
- Optional wireless keyless entry system equipped with battery saving mode and one button to close function is available.
- Compatible with a variety of alarm systems and home automation providers.
- Soft Start and Soft Stop functionality is reducing wear and tear on the operator system, garage door, and hardware
- HomeLinkTM compatible.
- The photo-eye safety system is equipped with UV filters in order to eliminate interference created by sunlight.
- The multi-function wall control station is designed to fit over a junction box and can be seamlessly combined with additional Marantec wall control stations.
- The operator and rail system are maintenance-free.
- HPcs indicates that Synergy 270 meets Marantec’s specifications for 3/4 HP garage door operators (HPcs = Horse Power comparable in strength)
Technical Specifications
- Operator Series: Residential
- Operator Drive: Belt Drive
- Motor Type: DC
- Motor HP: 3/4 HP
- Battery Back Up: Yes
- WIFI: No
- Radio Frequency: 315MHz
- Radio Channel: 2 Channel
- HPCS* max. push and pull force/ (N=Newtons): 750N
- Travel speed (inch/second max.): 6.3
- Power consumption/standby (max. Watts): 4.0
- Lumens: 756
- Battery backup (optional) Included in all models sold in California: Compatible
- Door Height (max. feet): Up to 12 ft.
