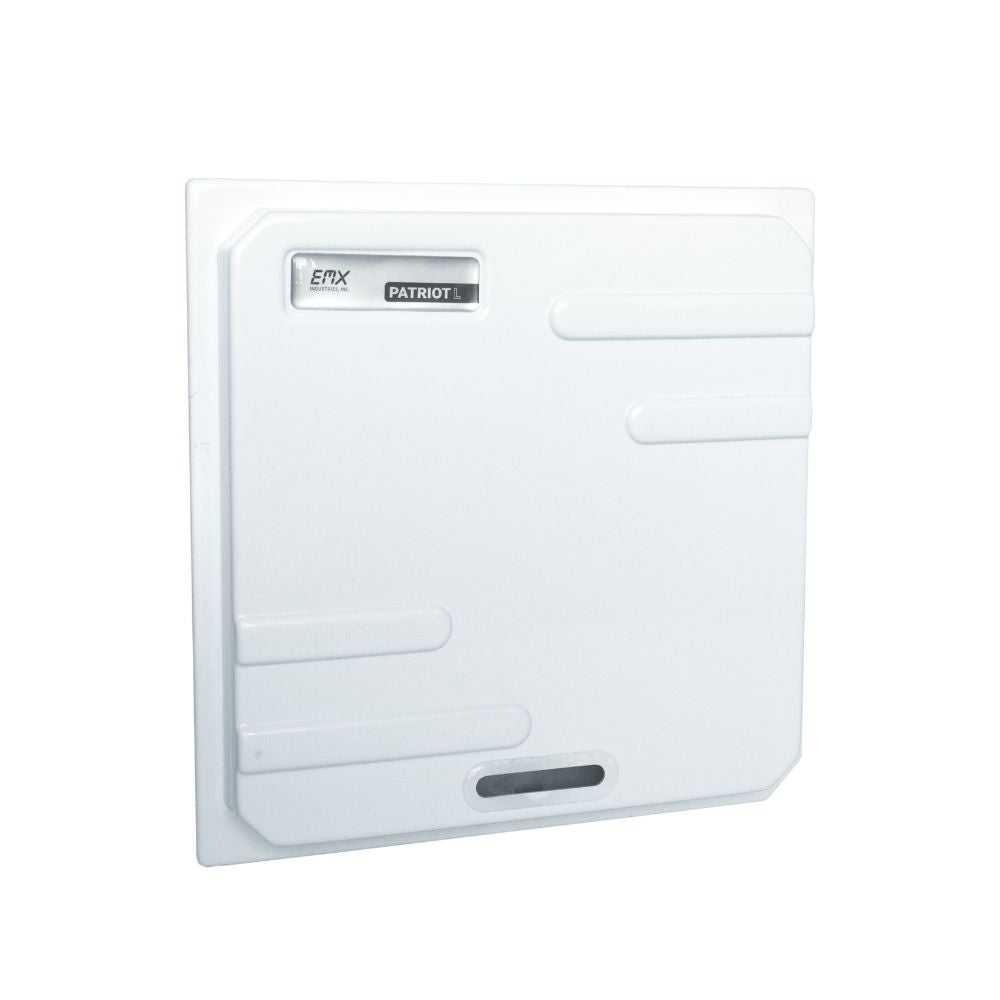

EMX Patriot L RFID Reader with RJ45 Ethernet Connector | EMX-Patriot-L.TCP
Linear polarized RFID reader with Ethernet
Discover superior security and seamless access control with our RFID Patriot Series, whether it’s securing your commercial property, managing gated access, or enhancing operational efficiency.
The Patriot L with RJ45 Ethernet Connector supports a variety of communication protocols that include Wiegand and RS232, RS485, OSDP, and TCP/IP. The compatibility with multiple Wiegand bit formats with enhanced communication support makes this unit versatile for integration with a wide variety of security systems.
This rugged IP65-rated housing is made to withstand even the most demanding weather conditions from -4° to 158° F.
Features
- Value reader with robust Wiegand and RS232 protocols
- Supports Multiple Wiegand Bit Formats
- Extended read range up to 18’ – 25′
- LED Indicator and relay for seamless operation
- Flexible 12 to 48VDC Input Voltage
- Reliable frequency hopping between 902 – 928mHZ
-
The Patriot L comes with additional adjustable features such as:
- dBm levels
- Controllable LED timing (on/off)
- Controllable buzzer (on/off)
- Buffer timing
- Wiegand timing
- Controllable relay (on/off)
- Isolate facility codes
Technical Specifications
- Model Name: Patriot-L.TCP
- TX / RX Frequency: 902-928 MHz
- Max RF: Power 30dBm (1 Watt)
- RF Protocol: ISO1800-6B, EPC Class 1, EPC Class 1 GEN 2
- Operating Method: Frequency Hopping Spread Spectrum
- Average Read Range (site and tag dependent): 18-25 feet
- Antenna: Linear 10dBi (Gain)
- Tag ID Modes: Timed Mode or Trigger Mode
- Wiegand Timing Parameters: Pulse Width 80µS, Pulse Period 1600µS (adjustable)
- Wiegand Formats Supported: 26, 30, 33, 34, 35, and 37-bit, PeachPass, Alabama Pass
- Identify Tag Time <8ms -Identify single tag
- Reading Tag Time: Reads every 8 bytes in less than 5ms
- Reading Tag Distance 18' - 25' (distance varies on location)
- LED Indicator: Yes
- Sounder Indicator: Yes
- Input: One-way trigger input
- Supply Voltage: 9-48VDC
- Included Power Supply: 110/240AC to 12VDC
- Included Mounting Bracket: Yes
- Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
- Adjustable read range: Yes
- Wiegand: Yes
- RS-232: Yes
- Relay Contact: Yes
- RS-485 / OSDP: Yes
- RJ45 Ethernet Connector: Yes
- Standard Credential Tags: Window Tag, Hang Tag
- Extra Feature: Ability to store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in a reader for access control without a door controller
- Arming Input Capable: Yes
- Operating Humidity: 5% to 95% relative humidity, non-condensing
- Certifications: FCC Part 15 Subpart C and Canada RSS-210, FCC ID: Y3D-REDS
- Working Status Indiction: Audible Beeper, Built-in LED
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 9.45″ x 9.45″ x 3.82″
- IP Rated: YES-IP65
