HySecurity SwingSmart CNX 20 | HYS-CNX-20 1300-20

HySecuritySKU: HYS-CNX-20 1300-20

Price:
Sale price$2,679.10
Add to cart

HySecurity SwingSmart CNX 20 | HYS-CNX-20 1300-20

SwingSmart CNX - a connected gate operator with advanced features of Smart DC, BlueBUS, and OXI technology creating a best in class slide gate operator

Features a new SmartCNX programmable controller, compatible with SmartCNX mobile installer app. Cycle gates up to 1,300 lb or up to 20 ft (590 kg / 6 m). Also features HySecurity’s new universal pivot arm with oval telescoping tubes and cast steel joint housing. Uses powerful brushless motor with advanced digital controls for smooth operation and long life. Direct drive gear provides high reliability and quiet operation. Our patented taper clamp protects the operator from gate strikes and high winds. Continues to operate on AC in event of a battery failure. High impact injection molded covers fit tightly to deter rodents and other small pests.

Note: Operator is compatible with Nice OXI receiver and Era One and Inti transmitters.

Includes
  • HySecurity Through-beam Photo Eye with BlueBUS - HYS-EPMAB/A
  • HySecurity Battery Kit 8Ah 2pcs - HYS-MX002008
Features
  • Keep your gate moving after power loss: 300 cycles/standard batteries and 1,200 cycles extended batteries
  • Move up to 1,300 lbs. or 20ft gates
  • Independent, field-adjustable open and close speeds

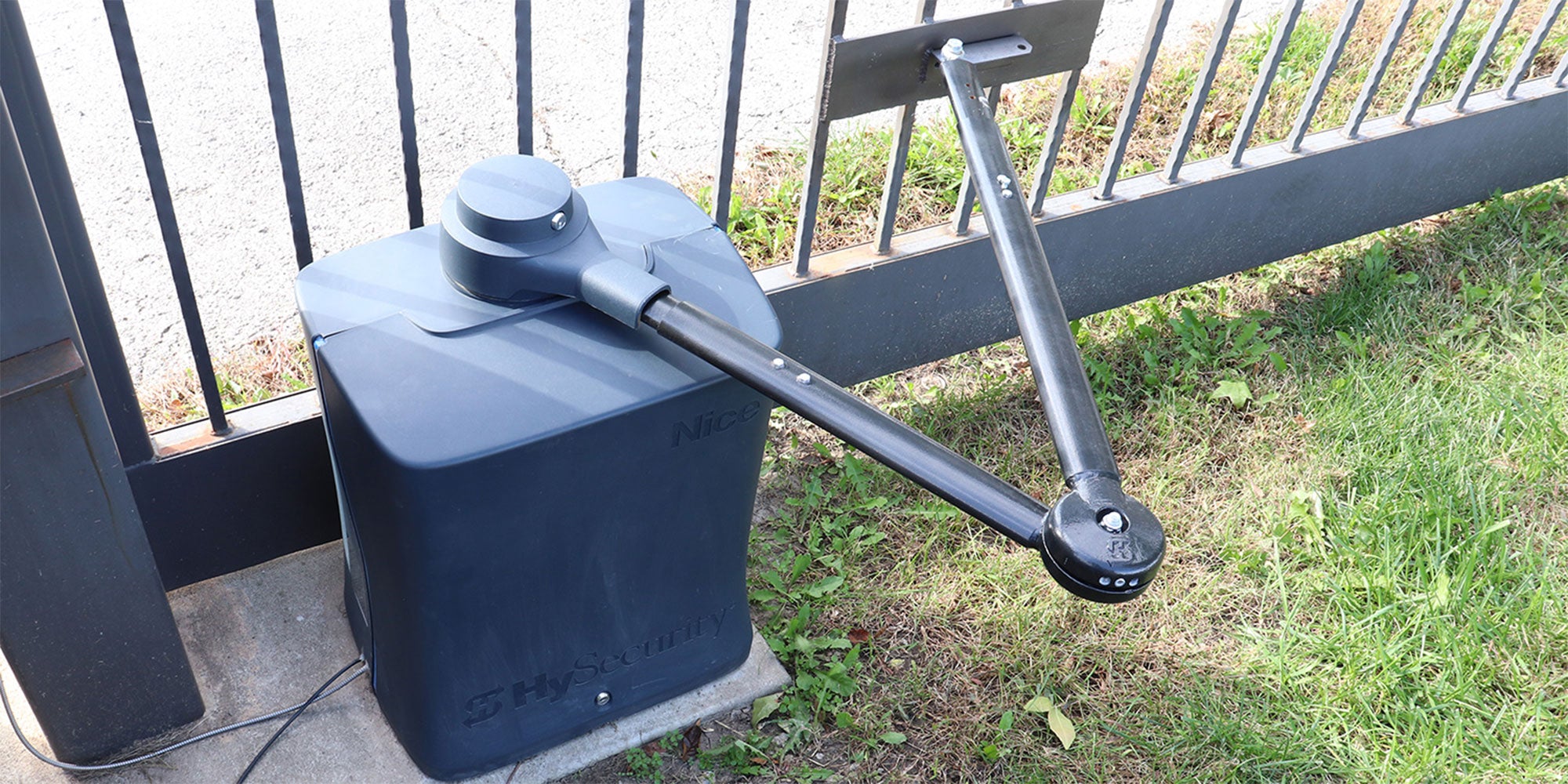

  • Universal Arm design has cast steel elbow housing and oval telescoping arms for safety and easy installation
  • Patented Taper Clamp provides adjustable protection from high winds and gate strikes
  • The intelligent charging system, monitors battery condition to maximize battery life
  • Super quiet, super reliable direct drive gear train
  • Locking, tight-fitting covers seal out rain and deter rodents and small pests
  • Smart CNX Installer app with full control of operator settings
Technical Specifications
  • Gate Specs: 1,300 lb (590 kg) for 12 ft (4 m) leaf, 800 lb (363 kg) for a 16 ft (5 m) leaf, 600 lb (272 kg) for a 20 ft (6 m) leaf
  • Open/Close Time: Open/Close speed set independently.
  • Duty Cycle: Continuous
  • Drive: Electromechanical - 24V Brushless DC motor with direct drive gear train
  • Horsepower: Equivalent to 1/2 hp
  • UPS Battery Backup Cycles*: Field confi gurable to fail open or secure when batteries deplete. Standard battery backup gate cycles: Two 12V 8Ah batteries. Up to 300 cycles after AC power loss.Extended battery backup gate cycles: Two 12V 35Ah batteries. Up to 1,200 cycles after AC power loss.
  • Temperature Rating: -13º to 158º F (-25º to 70º C)
  • Operating Voltage: 24VDC
  • Input Voltage: Switch select 115V or 208-230V, 60/50 Hz; Solar: 24V solar panels **
  • Accessory Power: 24VDC at each input & SS relay (2A accumulative)
  • Communication: BlueBUS, USB, Ethernet, T4, RS-485, Bluetooth, OXI receiver

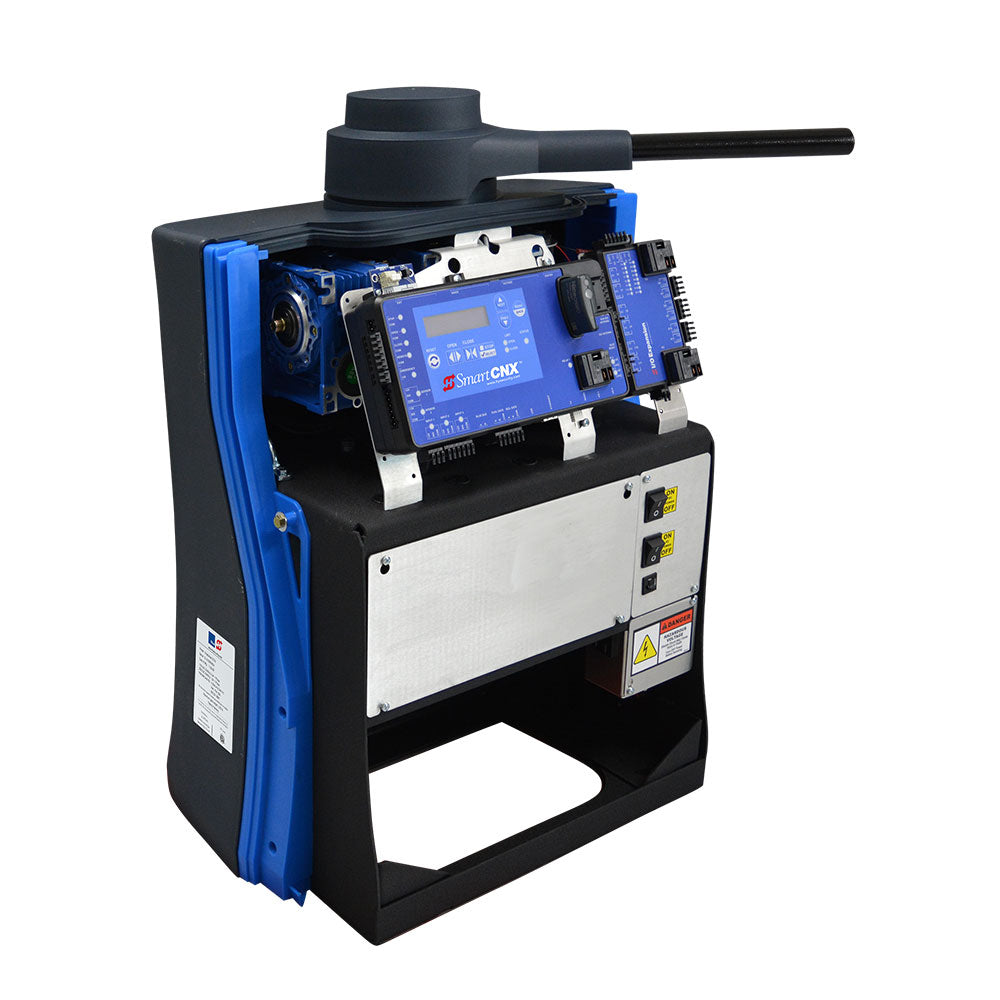

  • User Controls: SmartCNX™ Controller with 70+ configurable settings. 32 character OLED display and 7 tactile buttons or Bluetooth smartphone interface, for programming.
  • Inputs: 15 inputs including 5 control inputs, 2 dedicated entrapment sensor inputs, 3 user-programmable inputs, a BlueBUS port, and 4 Hy5B vehicle detectors sockets. Optional SmartCNX™ I/O Expansion module for 8 additional user-programmable inputs.
  • Relays: 3 configurable user relays: Two 30VDC, 2A solid state. One 240VAC, 20A electromechanical; Optional SmartCNX I/O Expansion module for 8 additional relay outputs.
  • Finish: Zinc-rich primer with black powder-coated chassis. High impact copolymer cover.
  • ETL Listed (UL 325): Usage Class I, II, III, IV
  • Warranty: 5 year (7 year single-family residential) w/product registration*
