EMX Multi-Voltage Vehicle Loop Detector EU Wiring EU Wiring | EMX-ULT-MVP-E

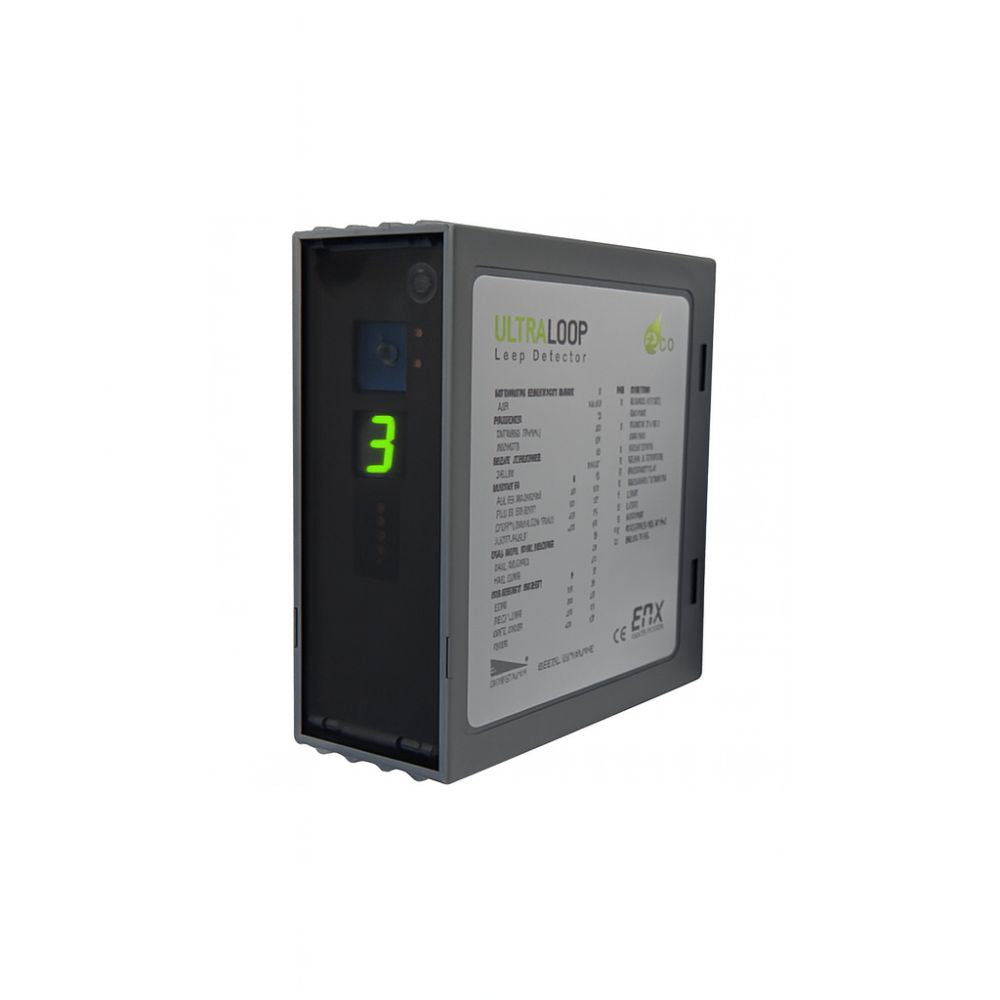

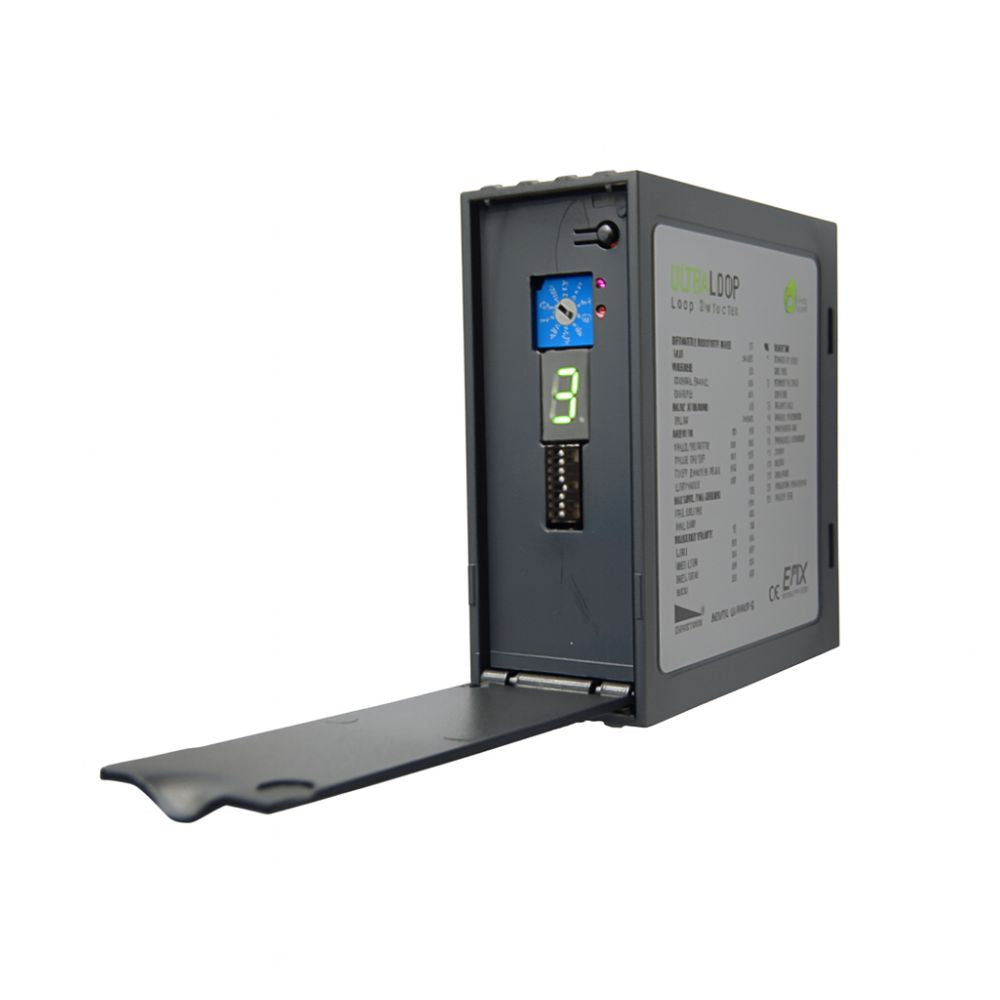

The ULTRALOOP® multi-voltage vehicle loop detector combines small size with a 12VDC to 240VAC input range.

The ULT-MVP provides relay contact outputs indicating vehicle presence, and the second set of contacts that may be used for loop fault, pulse on entry /pulse on exit, or Detect-On-Stop™ (DOS®). The ULT-MVP features automatic sensitivity boost (ASB),

2-second delay, fail-safe/fail-secure, and infinite or normal (5 min.) presence.

The detector is easily installed and has user-friendly features that simplify set-up,
operation, and troubleshooting. Sensitivity selection is simplified by the ULTRAMETER™ display that indicates the appropriate sensitivity setting with the vehicle positioned on the loop. The 10 sensitivity settings allow for finer adjustment of the detection level, while the 4 frequency selections provide greater flexibility in preventing crosstalk in multi-loop applications.

Features
  • Presence output
  • Output B
  • Pulse entry/exit
  • Detect-On-Stop
  • ABS
  • Delay
  • Normal/infinite presence
  • Loop fault output
Manufacturer's Warranty
  • 2 Years
Connections
  • Loop: 7
  • Loop: 8
  • Ground: 9
  • Power: 1
  • Power: 2
  • Presence - Relay 1 NC contact:10
  • Presence - Relay 1 common contact: 6
  • Presence - Relay 1 NO contact: 5
  • Relay 2 NO contact: 3
  • Relay 2 common contact: 4
  • Relay 2 NC contact: 11
Technical Specification
  • Sensitivity: 10 levels, 0-9
  • ULTRAMETER™ Display: Indicates optimum sensitivity level, 0-9 Diagnostic aid
  • Loop Frequency: 4 settings (low, med-low, med-hi, high)
  • Loop Inductance: 20…2000µH (Q factor > 5)
  • Grounded Loop: Isolation transformer allows operation with poor quality loops
  • Automatic Tuning: Detector tunes to loop on power-up and following frequency count function
  • Environmental Tracking: Automatic compensation
  • Surge Protection: Loop circuitry protected by surge suppressors
  • Presence Relay: SPDT relay contacts (form C)
  • Output B Relay: SPDT relay contacts (form C)
  • Contact Rating (Resistive Load): 2A @ 30VDC, 0.5A @ 125VAC
  • Power / Loop Fault Indicator: Green LED
  • Detect / Frequency Count Indicator: Red LED
  • Detect-On-Stop™: Requires vehicle to stop for a minimum of 1 second (1-2s typical)
  • ASB (Automatic Sensitivity Boost): Increases sensitivity after initial detection to prevent dropout due to high-bed vehicles
  • Power: 12...60 VDC (Max. 0.8 VA) 12…240 VAC (48…62Hz) (Max. 1.4 VA)
  • Operating Current: 20mA standby / 50mA detect
  • Operating Temperature: -40˚C…82˚C (-40˚F…180˚F) 0…95% relative humidity
  • Dimensions (L x W x H): 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”)
  • Weight: 0.25 lbs. (113 g)
  • Housing: ABS plastic, IP30
  • Connections: Socket mount - 11 pin male (JEDEC B11-88)
