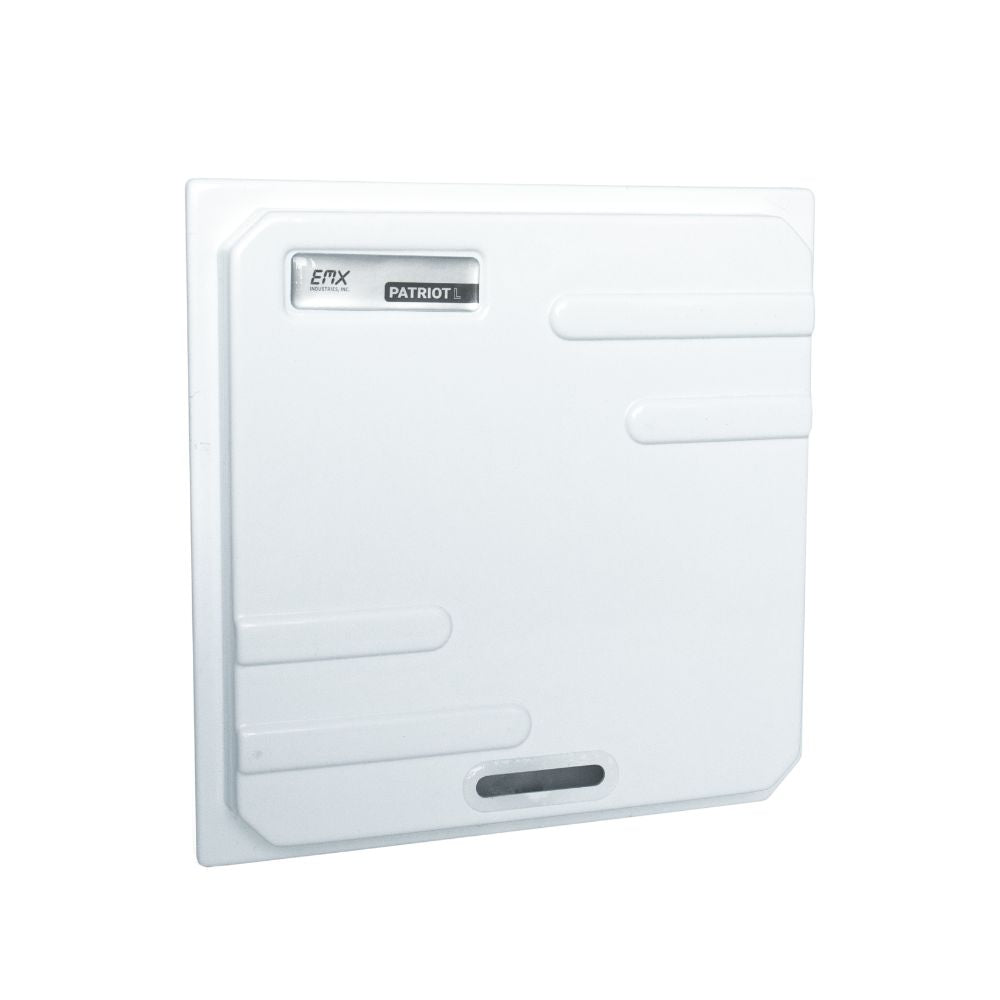

EMX Patriot L RFID Reader | EMX-Patriot-L
Discover superior security and seamless access control with our RFID Patriot Series whether it’s securing your commercial property, managing gated access, or enhancing operational efficiency.
The Patriot L series supports a variety of communication protocols that include Wiegand and RS232 (Optional RS485, OSDP, TCP/IP, and Wi-Fi). The compatibility with multiple Wiegand bit formats along with enhanced communication support makes this unit versatile for integration with a wide variety of security systems.
This rugged IP65-rated housing is made to withstand even the most demanding weather conditions from -4° to 158° F.
NOTE 1: ALL PATRIOT E/M/L READERS COME WITH 5-FOOT SHIELDED CABLE. ALL.TCP MODELS HAVE 5-FOOT CAT5 CABLE
NOTE 2: ALL-PATRIOT E/L MODEL CONFIGURATION SOFTWARE AVAILABLE ONLINE FOR DOWNLOAD
Features
- Value reader with robust Wiegand and RS232 protocols
- Supports Multiple Wiegand Bit Formats
- Extended read range up to 18’ – 25′
- LED Indicator and relay for seamless operation
- Flexible 12 to 48VDC Input Voltage
- Reliable frequency hopping between 902 – 928mHZ
-
The Patriot L comes with additional adjustable features such as:
- dBm levels
- Controllable LED timing (on/off)
- Controllable buzzer (on/off)
- Buffer timing
- Wiegand timing
- Controllable relay (on/off)
- Isolate facility codes
Technical Specifications
- Model Name: Patriot – L
- TX / RX Frequency: 902-928 MHz
- Max RF: Power 30dBm (1 Watt)
- RF Protocol: ISO1800-6B, EPC Class 1, EPC Class 1 GEN 2
- Operating Method: Frequency Hopping Spread Spectrum
- Average Read Range (site and tag dependent): 18-25 feet
- Antenna: Linear 10dBi (Gain)
- Tag ID Modes: Timed Mode or Trigger Mode
- Wiegand Timing Parameters: Pulse Width 80µS, Pulse Period 1600µS (adjustable)
- Wiegand Formats Supported: 26, 30, 33, 34, 35, and 37-bit, PeachPass, Alabama Pass
- Identify Tag Time <8ms -Identify single tag
- Reading Tag Time: Reads every 8 bytes in less than 5ms
- Reading Tag Distance 18' - 25' (distance varies on location)
- LED Indicator: Yes
- Sounder Indicato:r Yes
- Input: One-way trigger input
- Supply Voltage: 9-48VDC
- Included Power Supply: 110/240AC to 12VDC
- Included Mounting Bracket: Yes
- Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
- Adjustable read range: Yes
- Wiegand: Yes
- RS-232: Yes
- Relay Contact: Yes
- RS-485 / OSDP: Yes
- RJ45 Ethernet Connector: No
- WiFi: No
- Standard Credential Tags: Window Tag, Hang Tag
- Bluetooth Credential Capable: Optional
- Extra Feature: Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in a reader for access control without a door controller
- Arming Input Capable: Yes
- Operating Humidity: 5% to 95% relative humidity non-condensing
- Certifications: FCC Part 15 Subpart C and Canada RSS-210, FCC ID: Y3D-REDS
- Working Status Indiction: Audible Beeper, Built-in LED
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 9.45″ x 9.45″ x 3.82″
- IP Rated: YES-IP65
