EMX Logic Controller (A-B Directionality or Increased Zone) | EMX-LRS-LC

EMXSKU: EMX-LRS-LC

Price:
Sale price$126.50

Estimate shipping

EMX Logic Controller (A-B Directionality or Increased Zone) | EMX-LRS-LC

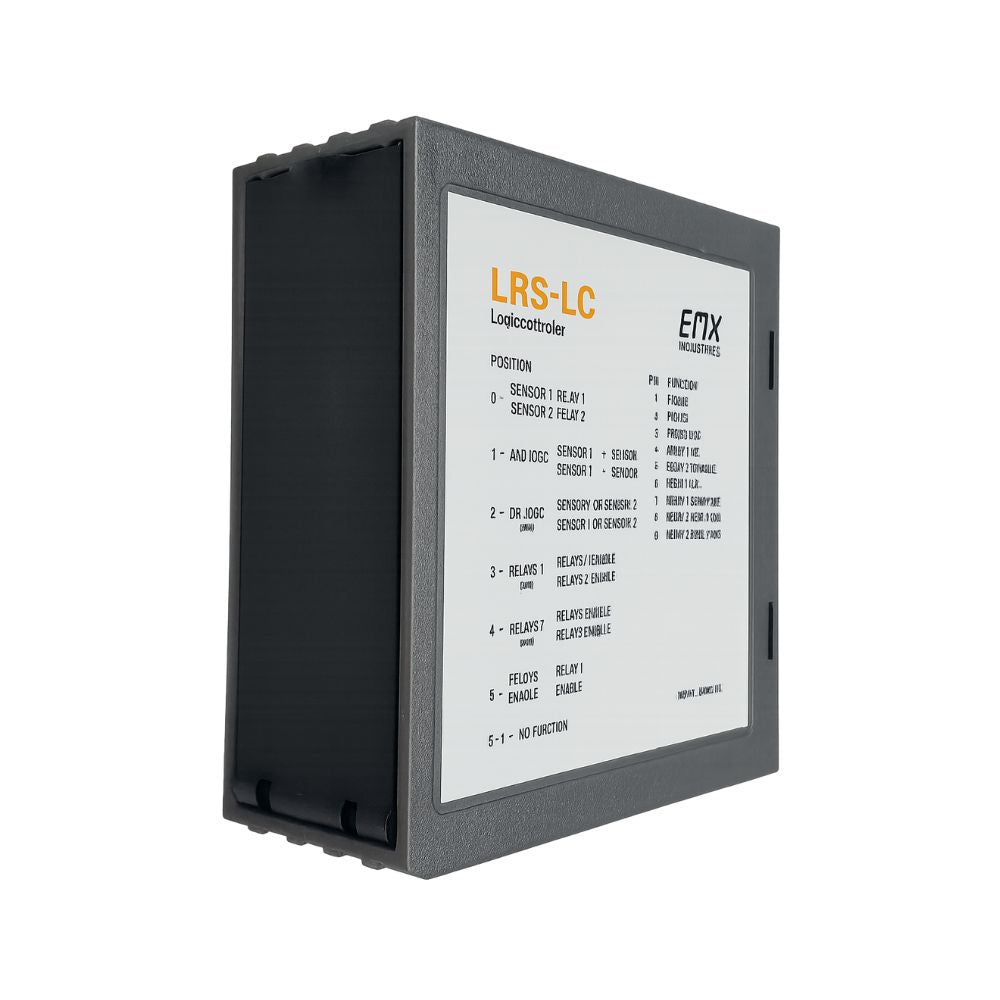

Logic Controller for the LRS System

The LRS-LC Logic Interface works with LRS-DB Direct Burial or LRS-FP Flat Pack
magnetoresistive sensors. The Logic Controller expands the functionality of the
sensors by providing additional features and application-specific logic operations to
meet the needs of more demanding installations.

The Logic Controller allows one or two sensors to be connected and provides 6 logic
functions and 2 separate relay outputs. Once the sensor(s) has been programmed
using the LRS-C1 Control Unit, the sensor(s) store the settings and operate
independently of the Control Unit and can be connected to the Logic Controller.

The LRS sensor provides up to a 5ft. sensing range in all directions. The LRS-LC
Logic Controller allows 2 sensors to be connected with one output to extend the
detection area up to 20ft. Also, A/B directional logic can be selected with an output
for each direction of travel as a vehicle passes over two sensors.

The status LEDs and durable housing with a standard 11-pin plug-in socket makes
installation quick and easy.

Includes
  • Black 11 pin socket base DIN rail mount
Features
  • Two relay operation
  • A/B directional logic
  • Pulse on entry
  • Pulse on exit
  • Double relay
  • Relay 1 only
Manufacturer's Warranty
  • 2 Years
Technical Specifications
  • Power indicator: Green LED
  • Detect indicator: 2x Red LEDs
  • Configuration selector: 10 position rotary switch
  • Outputs: Relay 1: SPDT (form C). Relay 2: SPST (form A)
  • Output ratings: 1A @ 24 VDC/120 VAC
  • Operating environment: -40° C…82° C (-40° F…180° F) 0…95% relative humidity
  • Housing material: ABS
  • Enclosure: IP30
  • Power: 12-30 VDC and 24 VAC
  • Operating current (standby/detect): One sensor connected: 22/35mA. Two sensors connected: 33/60mA
  • Supply protection circuitry: Reverse polarity and fuse protected
  • Dimensions: 73mm (2.9”) x 38mm (1.2”) x 78mm (3.1”)
  • Weight: 0.25 lbs. (113 g)
  • Connector: 11 pins male connector (JEDEC B11-88)
