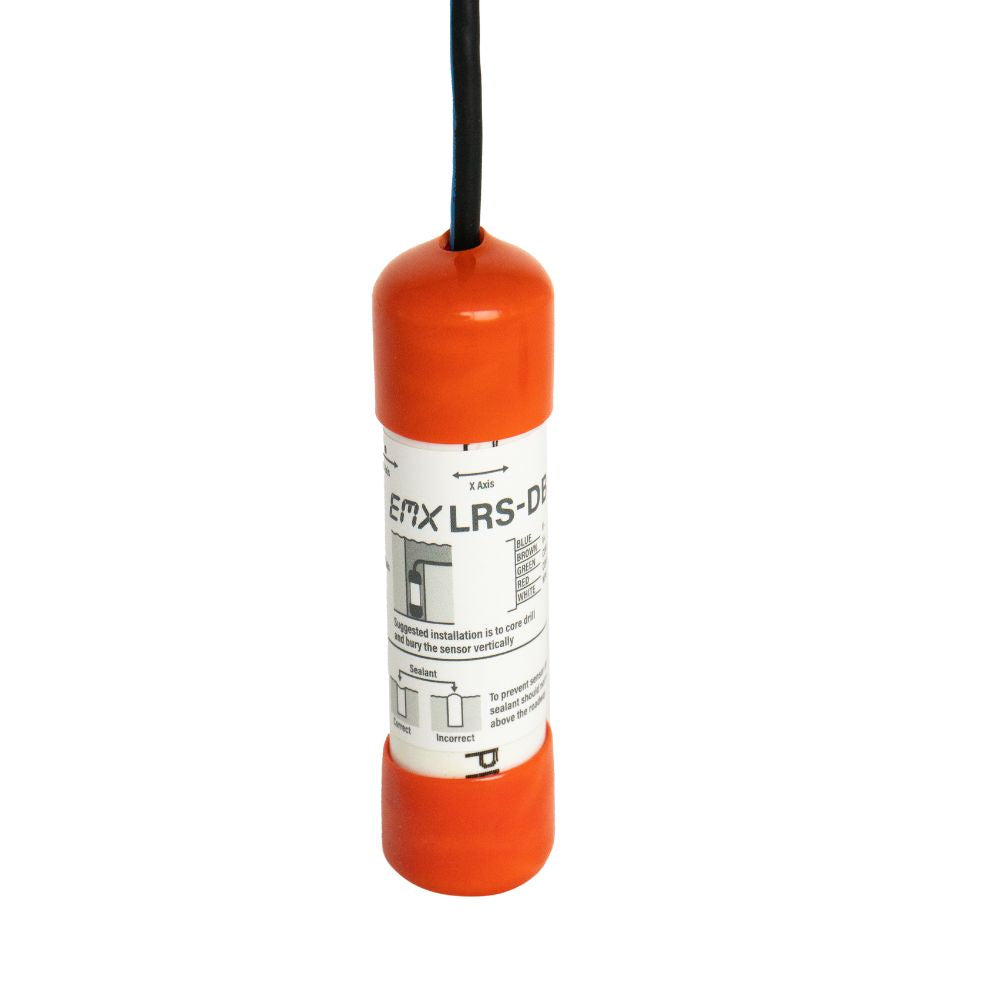

EMX Direct Burial Sensor Only with 100 ft. Lead | EMX-LRS-DB-100

Magnetoresistive Vehicle Sensor- Direct Burial

The Loop Replacement System (LRS) features advanced 3-axis, magnetoresistive sensing technology. The sensor measures Earth’s magnetic field and responds to disturbances caused by ferrous objects. Three sensing elements provide magnetic field measurement in the X, Y, and Z axes, improving detection sensitivity. The LRS’s exciting new technology provides a high-sensitivity, compact, and cost-effective solution for reliable vehicle detection.

The small size of the LRS allows for easy installation in pavement (below grade) with a single saw cut. It provides cost savings on labor and materials when compared to the multiple cuts and corner reliefs required for the installation of inductive loops. The rugged sensor is also suitable for above-grade installations, making it ideal for use in confined areas or hidden in non-ferrous architectural components for security purposes.

Includes
  • 100 ft. lead
Features
  • Three-dimensional presence detection - select X, Y and/or Z axis independently
  • Stand-alone sensor stores background and settings in a non-volatile memory
  • Single cut, low-cost installation
  • Fast response for high-speed detection
  • DETECT-ON-STOP™ (DOS®) feature will allow detection only when a vehicle has come to a complete stop near the sensor. This EMX exclusive technology ignores cross traffic in tight spaces
  • Direct Burial Design – Durable, weather-sealed housing can be buried directly without conduit
  • Long 50' Lead – Provides versatile routing and connection to vehicle detection systems
  • Weatherproof & Corrosion-Resistant – Built to perform in wet, harsh, and outdoor environments
  • Ideal for Gate Automation, Access Control & Drive-Thru Detection – Enhances safety and efficiency in high-traffic systems
Manufacturer's Warranty
  • 2 Years
Applications
  • Automatic gates and doors
  • Drive-thru windows
  • Car washes
  • Parking and traffic monitoring
  • Loading docks
Technical Specifications
  • Outputs: NPN (open collector)
  • Output ratings: 50 mA
  • Connection: 5-conductor direct burial
  • Housing: PVC
  • Environmental rating: IP69K
  • Power supply: 12-30 VDC
  • Current draw: 10 mA max
  • Dimensions: 102mm (4.0”) x 27mm (1.0”)
  • Weight: 43g (0.09 lbs.)
