EMX Carsense 101 Vehicle Motion Detector with Sensing Probe | EMX-CS-101

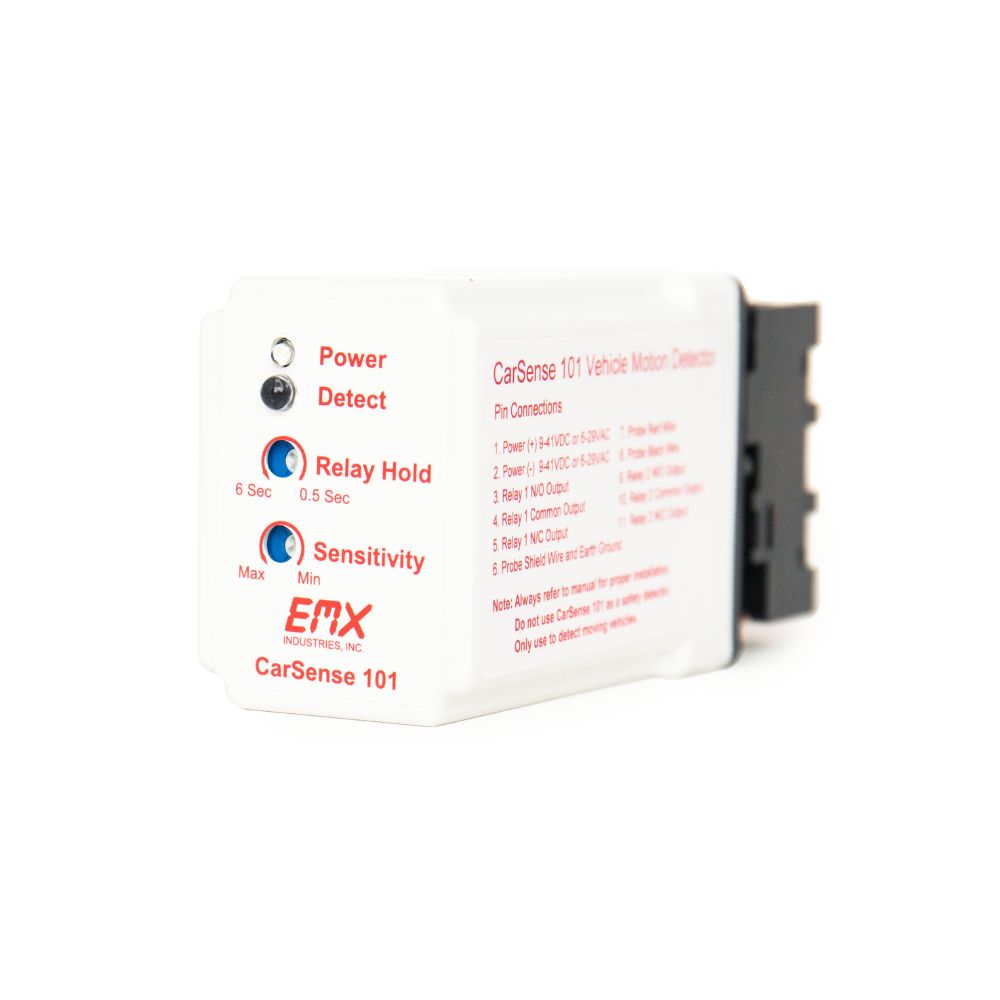

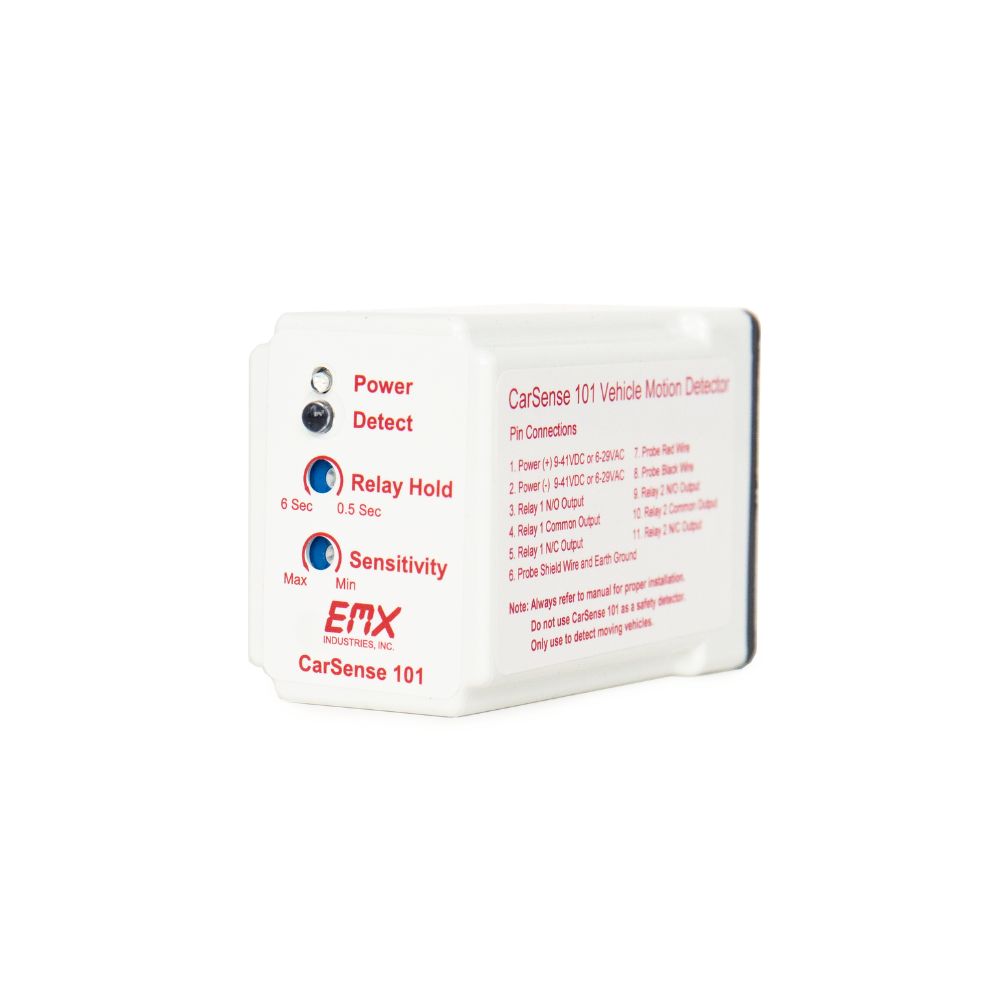

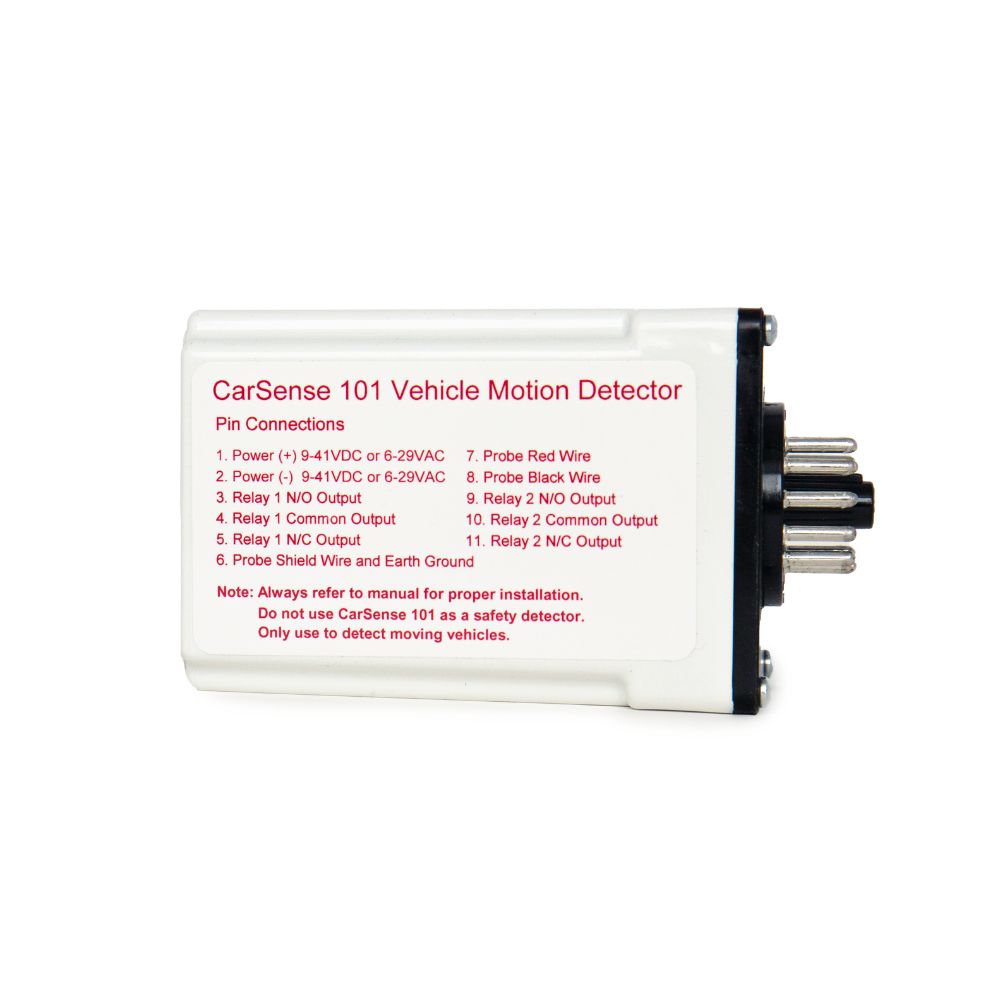

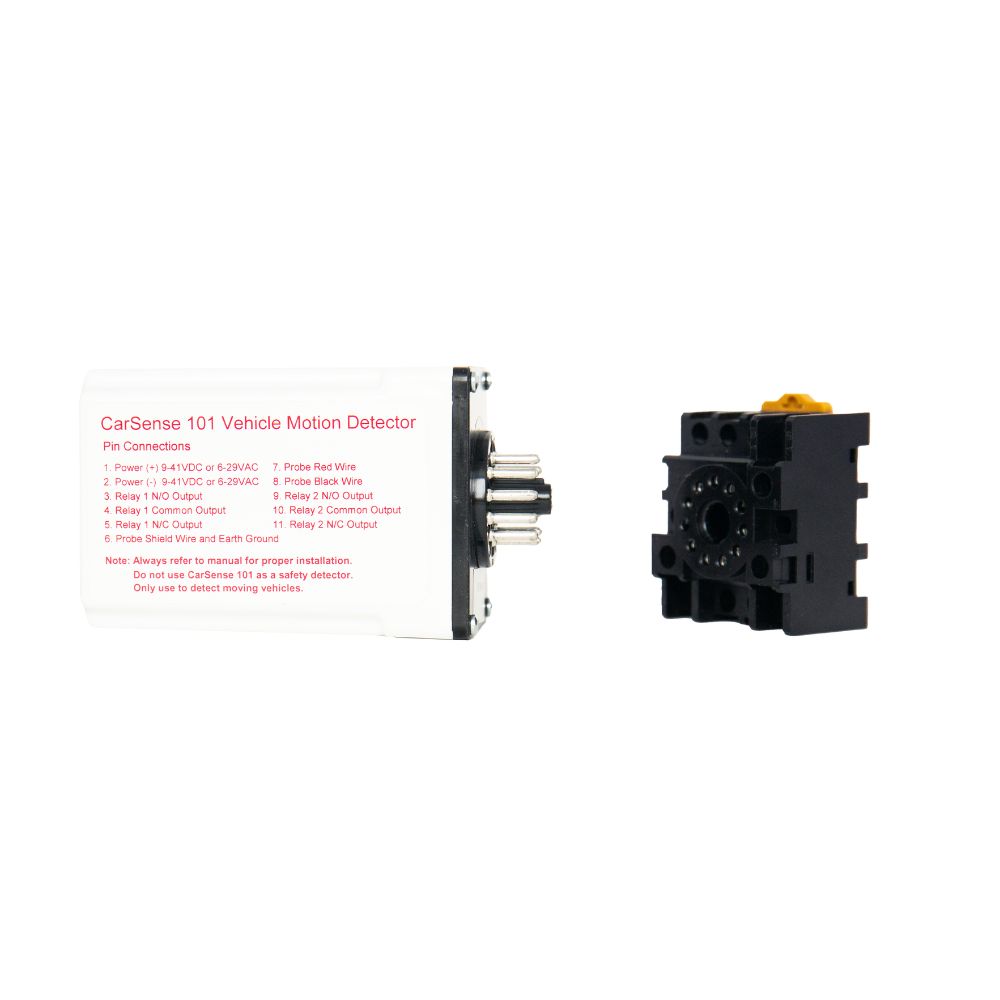

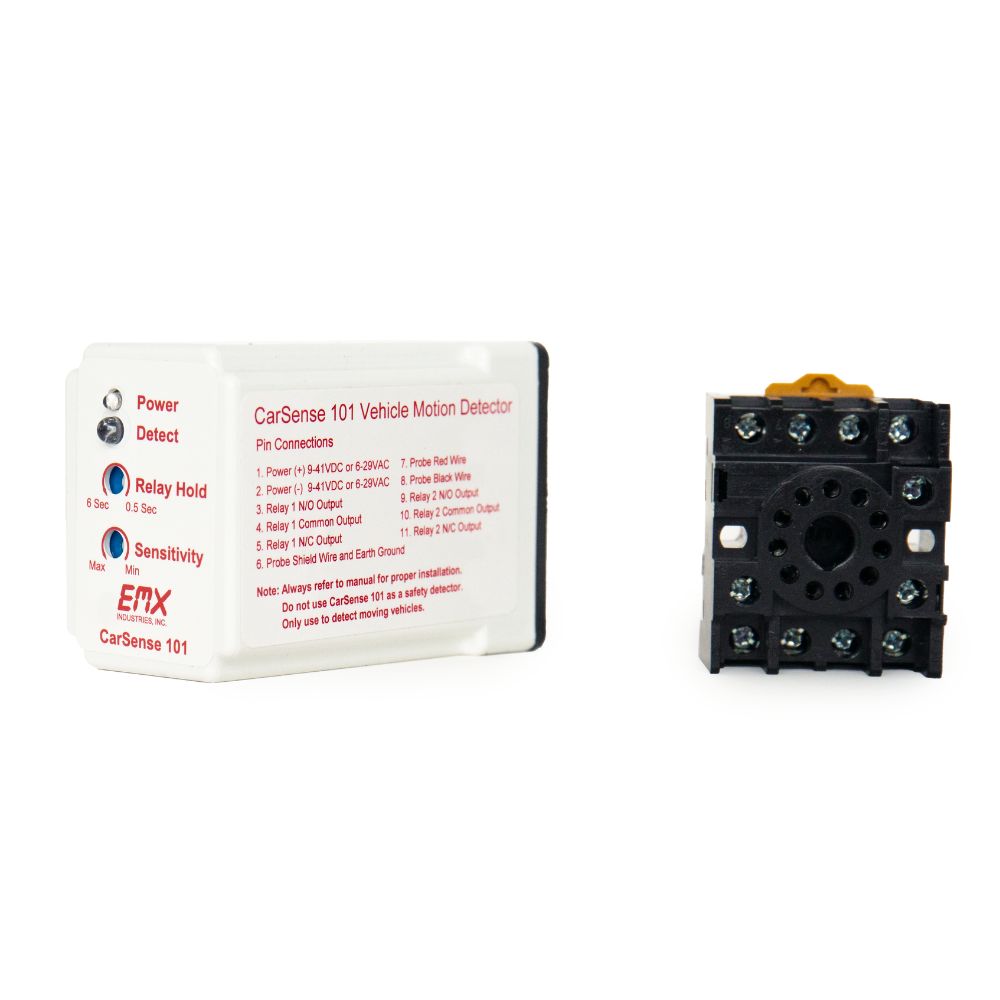

The CarSense 101 vehicle motion detector consists of a control module with a standard 11-pin connector and a sensing probe (sold separately) that is easily installed along a roadway. The CS101 can be seamlessly integrated with security control boards, gate and door operators.
The CS101 provides a solution for many vehicle detection challenges, including:
- Safety – detects moving vehicles in blind areas along a driving path and actuates warning lights
- Security – detects approaching vehicles or unauthorized movement of parked vehicles and actuates alarms, video cameras or other annunciators
- Access control – acts as a free exit vehicle detector for gates, overhead doors and parking barriers
Features

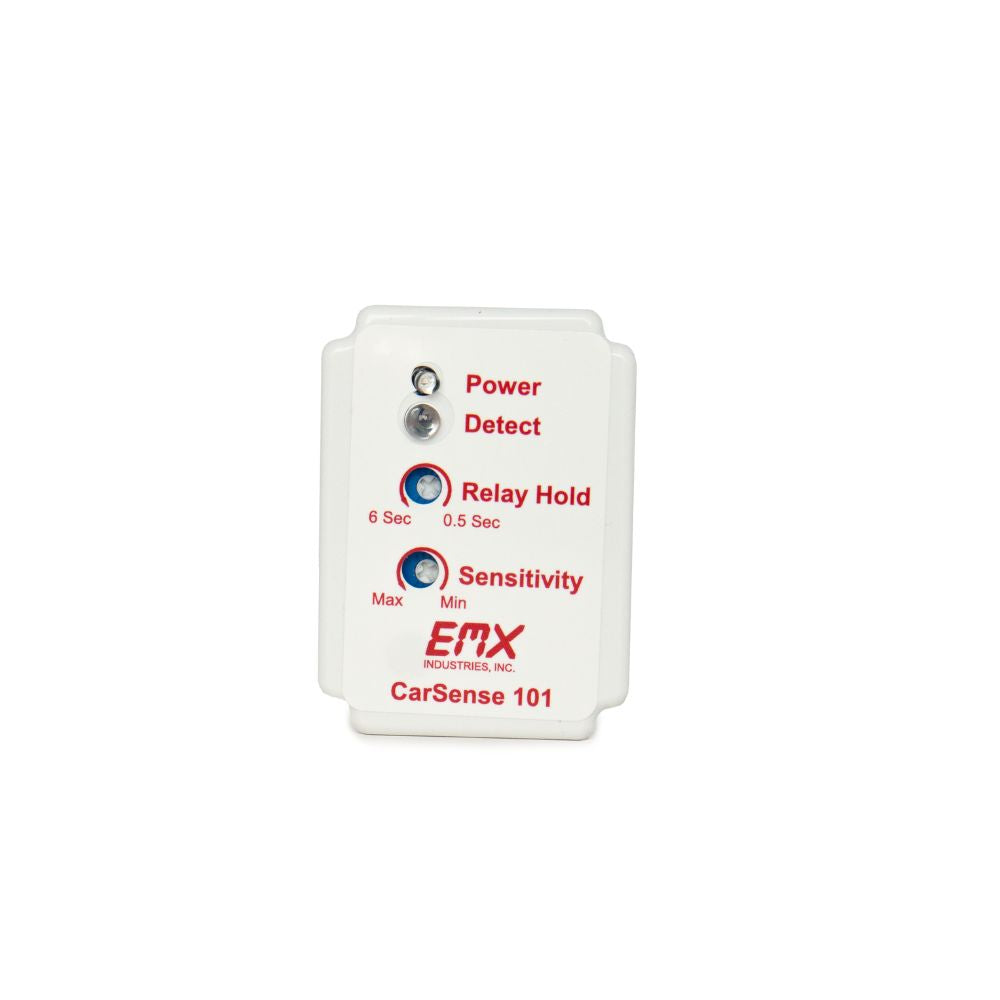

- Controls and indicators are mounted on front panel
- Available in 9 – 41 VDC 6 – 29 VAC
- Low 2.5 mA standby current consumption, makes it an excellent choice for solar power applications.
- Housed in a small, relay-type housing
- Surge protection
Technical Specifications
- Power Supply: 9 - 41 VDC or 6 - 29 VAC
- Power Supply Tolerance: +/– 20% from the power rating
- Standby Current: 2.5mA maximum
- Detect Current: 50mA maximum
- Relay Type: DPDT
- Relay Rating: 1A 24V DC 120V AC
- Sensitivity: High, Low adjustment
- Off Delay: 1 to 5 seconds adjustment
- Control Unit Temperature Range: 40o F to 170o F
- Probe Temperature Range: 40o F to 170o F
- Power-On Indicator: High-intensity Green LED
- Detect Indicator: High-intensity Red LED
- Sensitivity Control: Continuous adjustment
- Off Delay Control: Continuous adjustment
- Surge Protection: MOV, neon, and silicon protection devices
- Control Unit Housing: Break-resistant Polycarbonate H:2.2”(55mm), W:1.6”(41mm), D:3.25”(84mm)

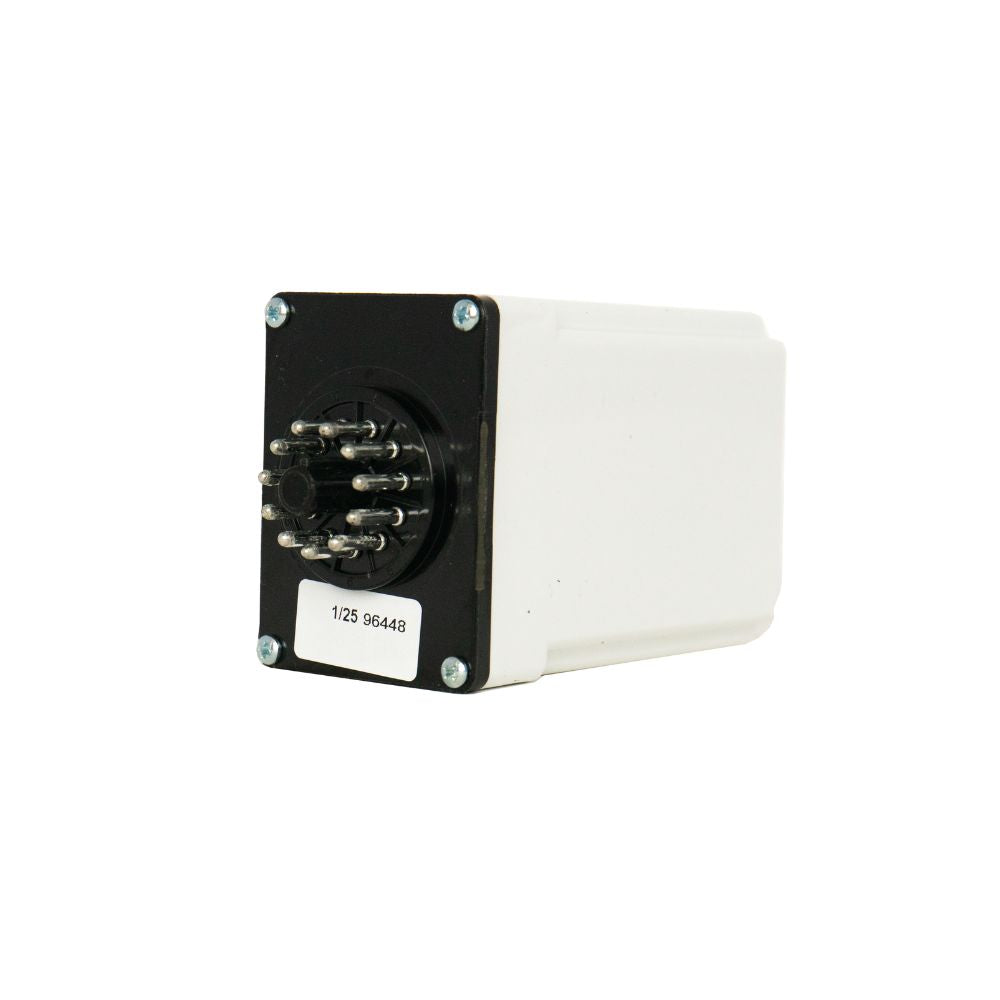

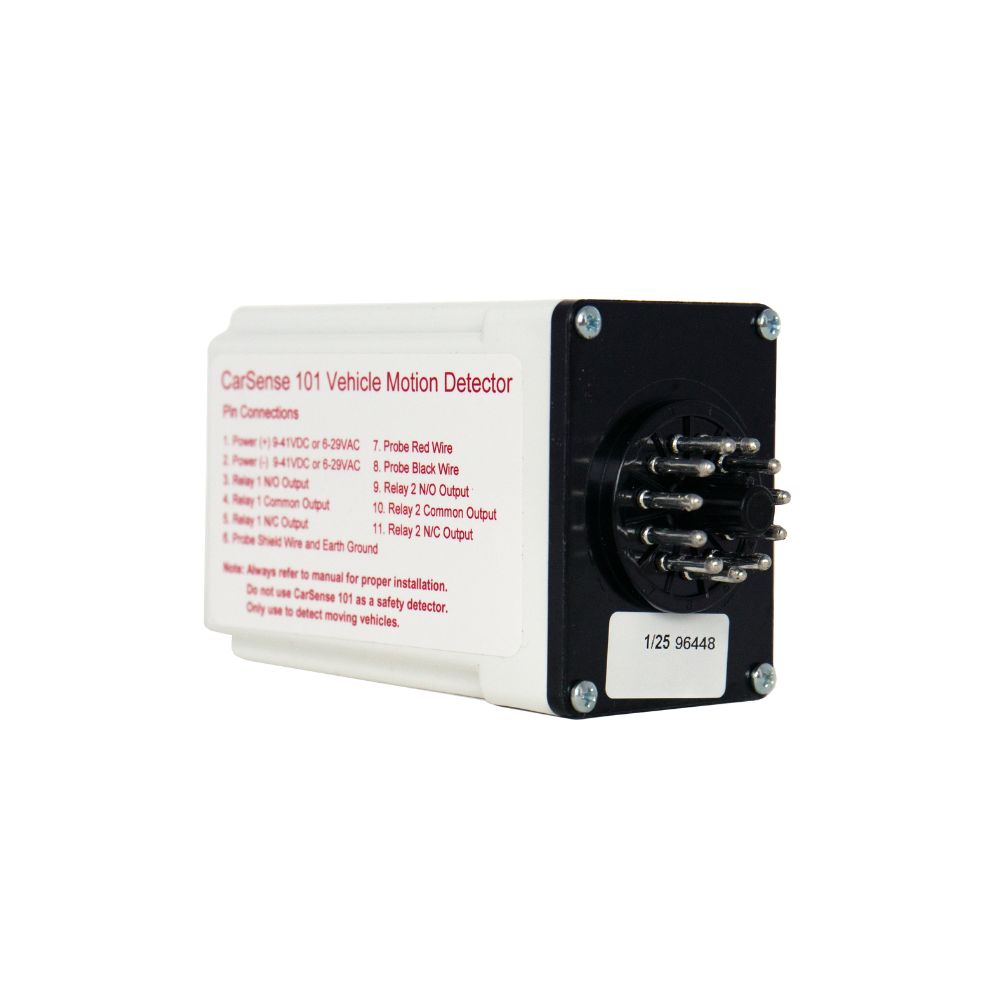

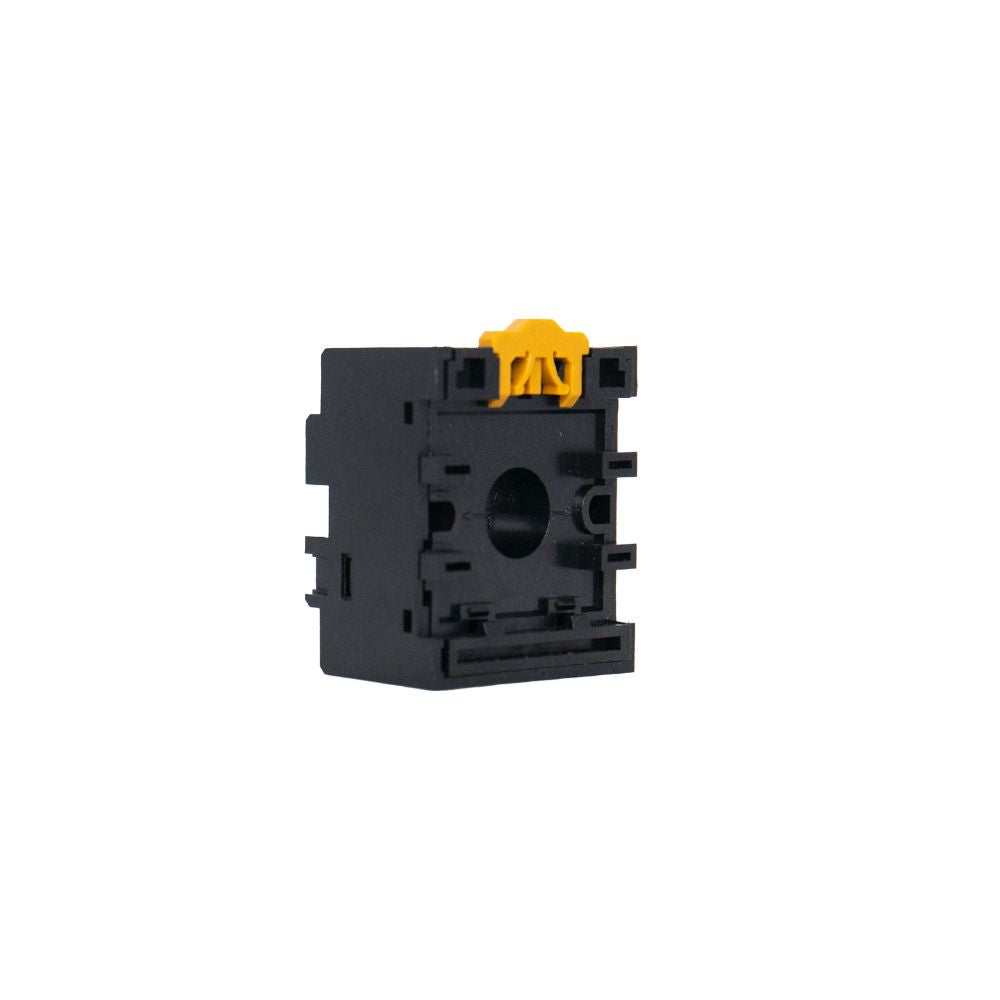

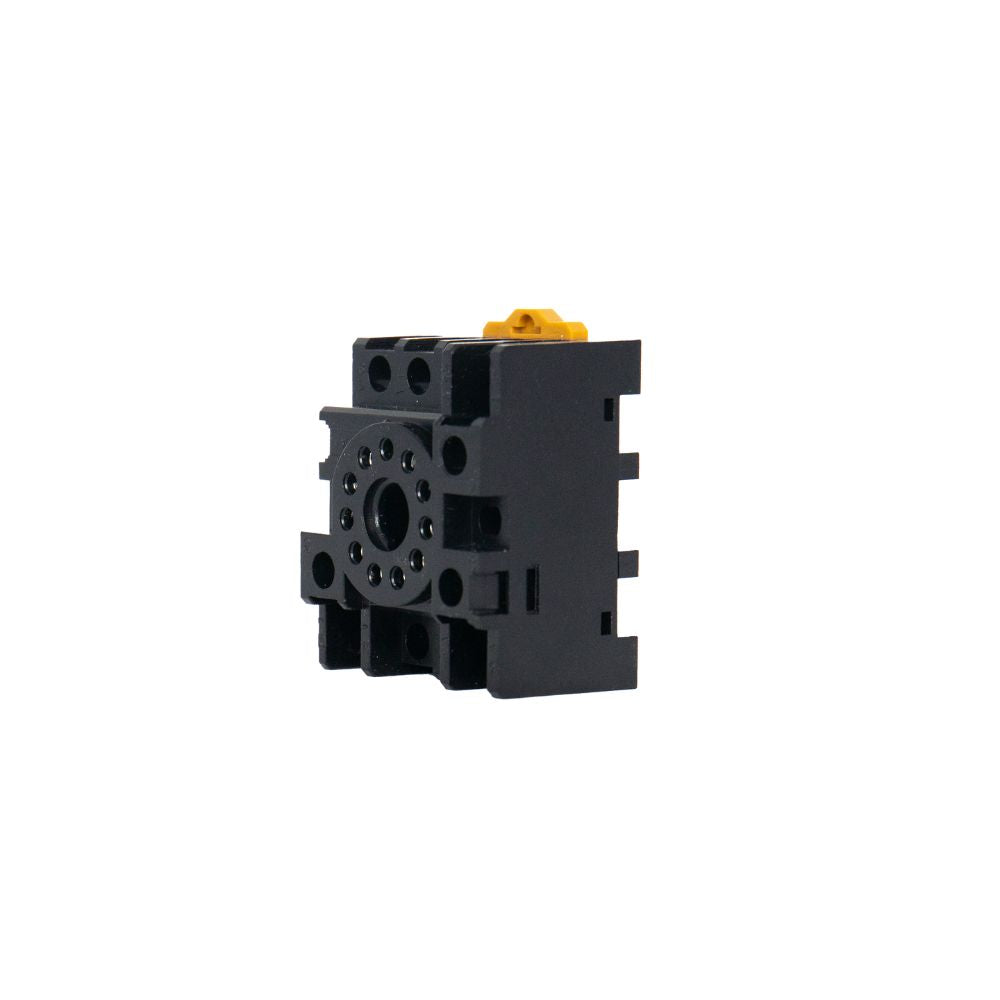

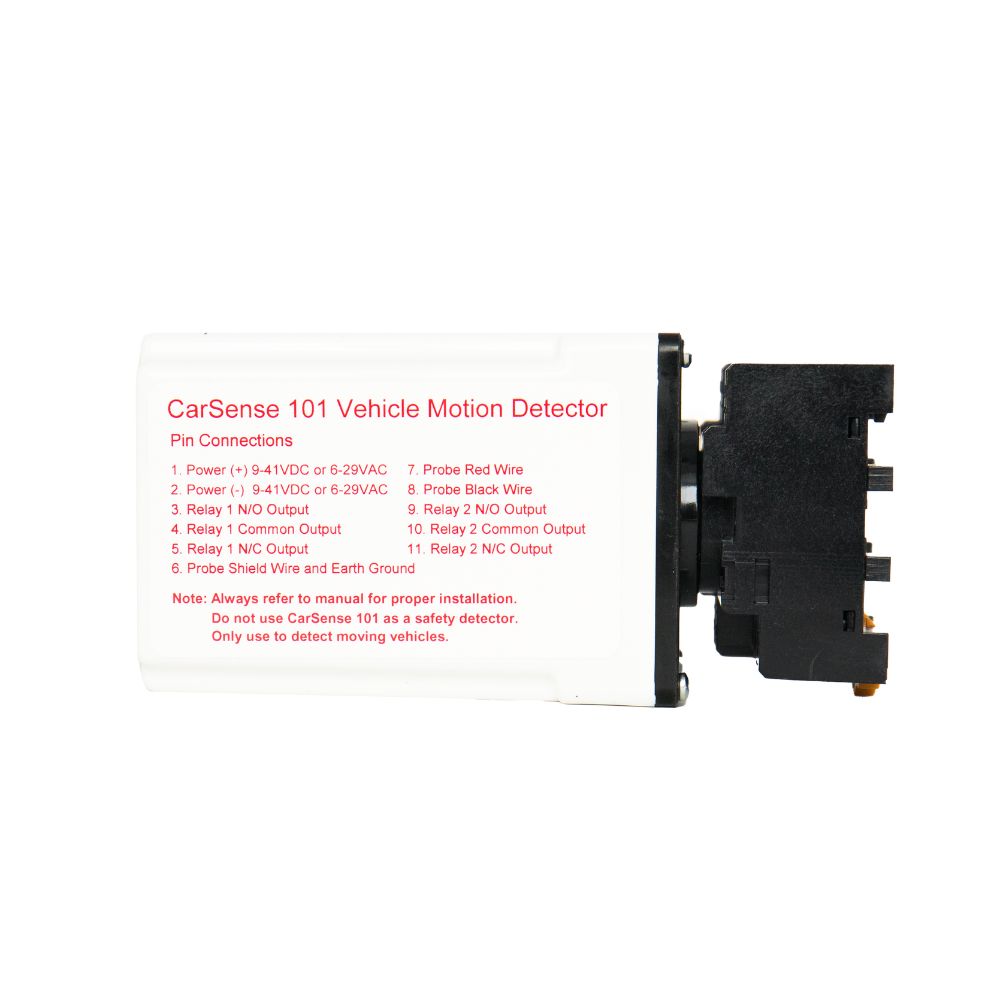

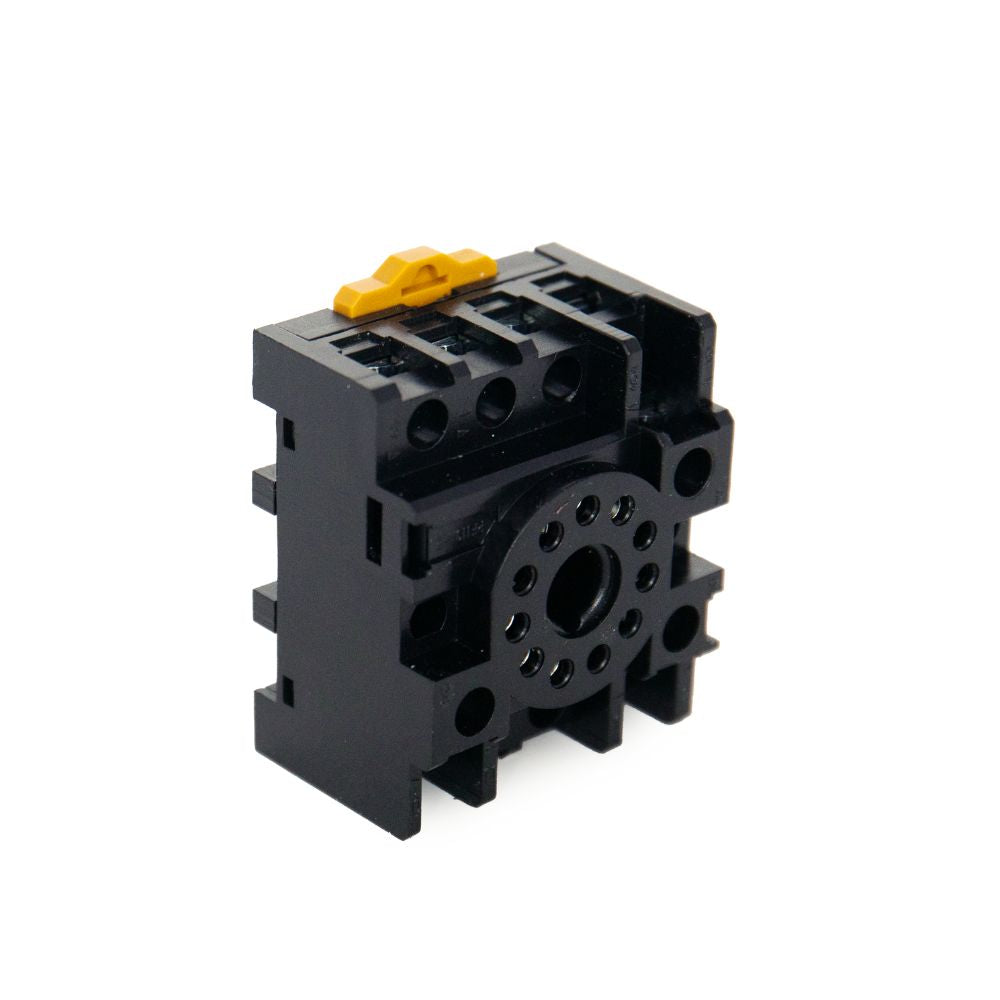

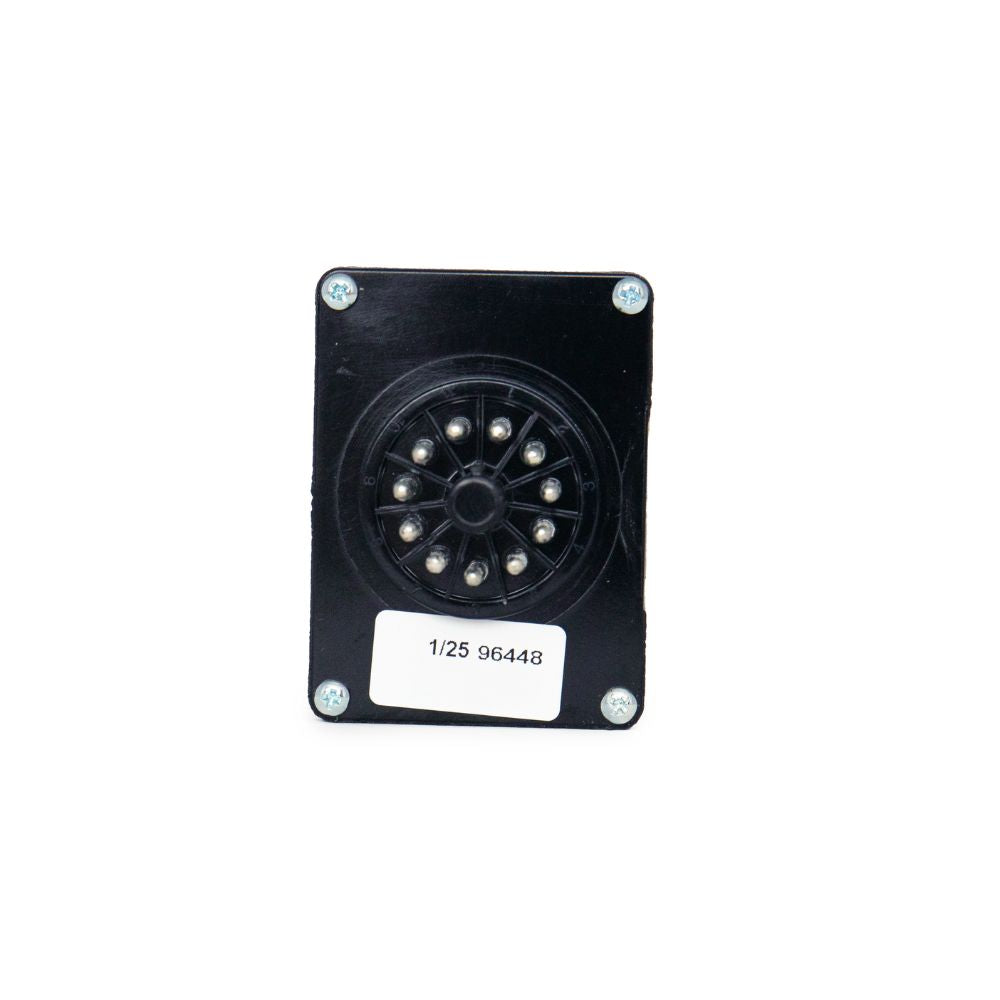

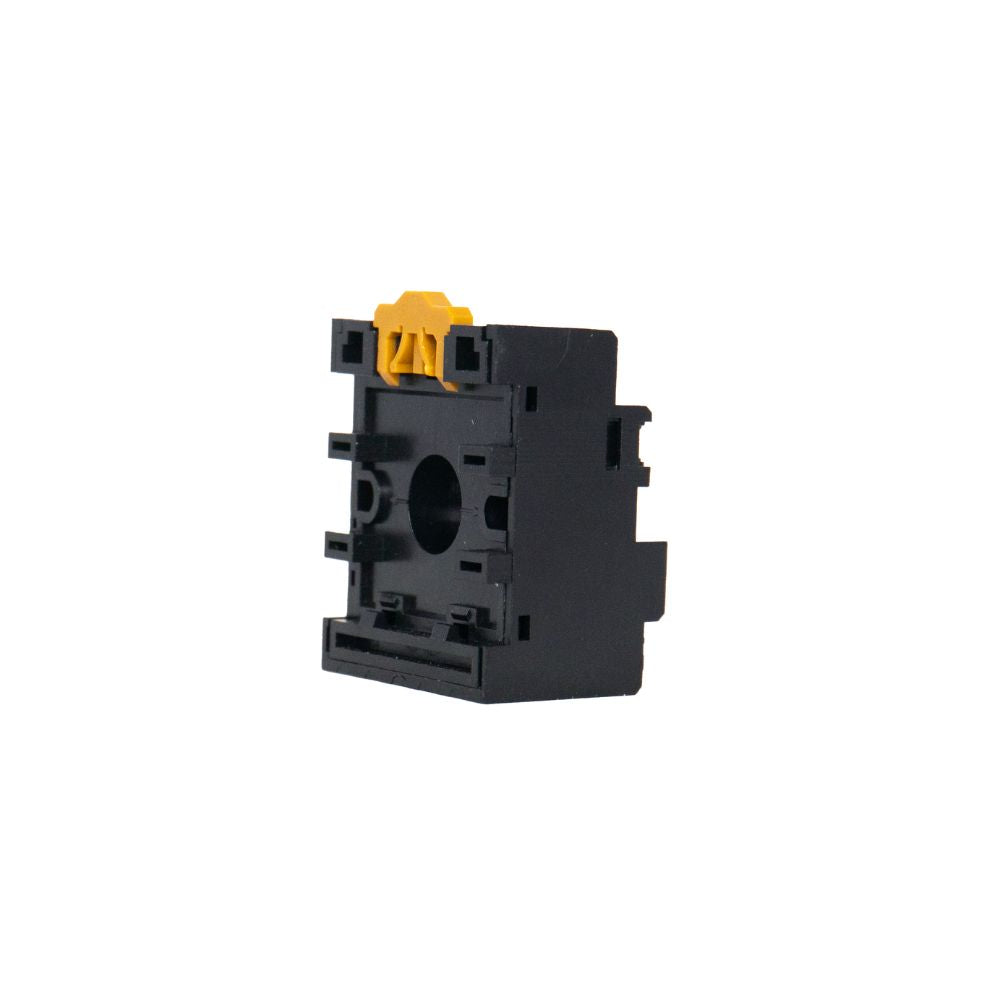

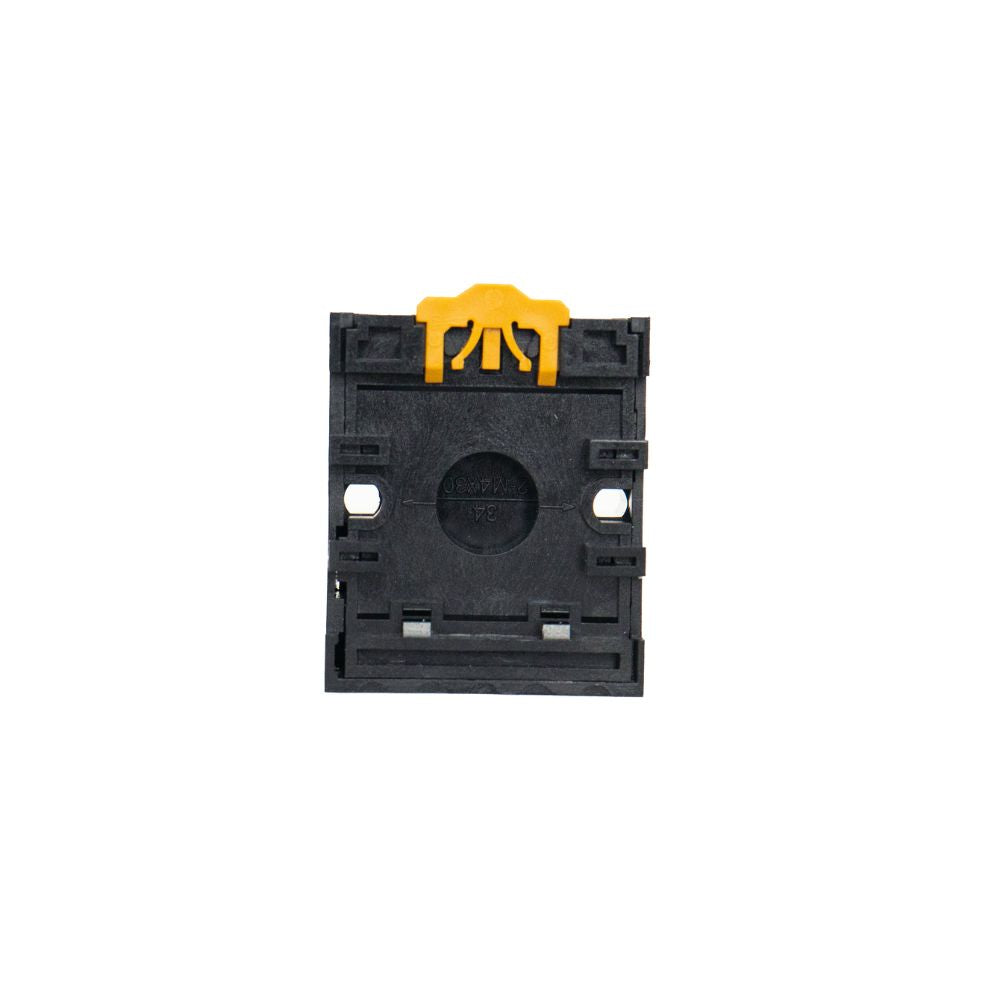

- Connector: 86CP11 11 pin connector
- Probe: PVC watertight housing (Length 17”, Diameter 1”) with shielded direct burial lead-in cable
