EMX Waterproof Wiegand Card Reader/Keypad - 2000 Users | EMX-CR-2000

EMXSKU: EMX-CR-2000

Price:
Sale price$176.50

Estimate shipping

EMX Waterproof Wiegand Card Reader/Keypad - 2000 Users | EMX-CR-2000

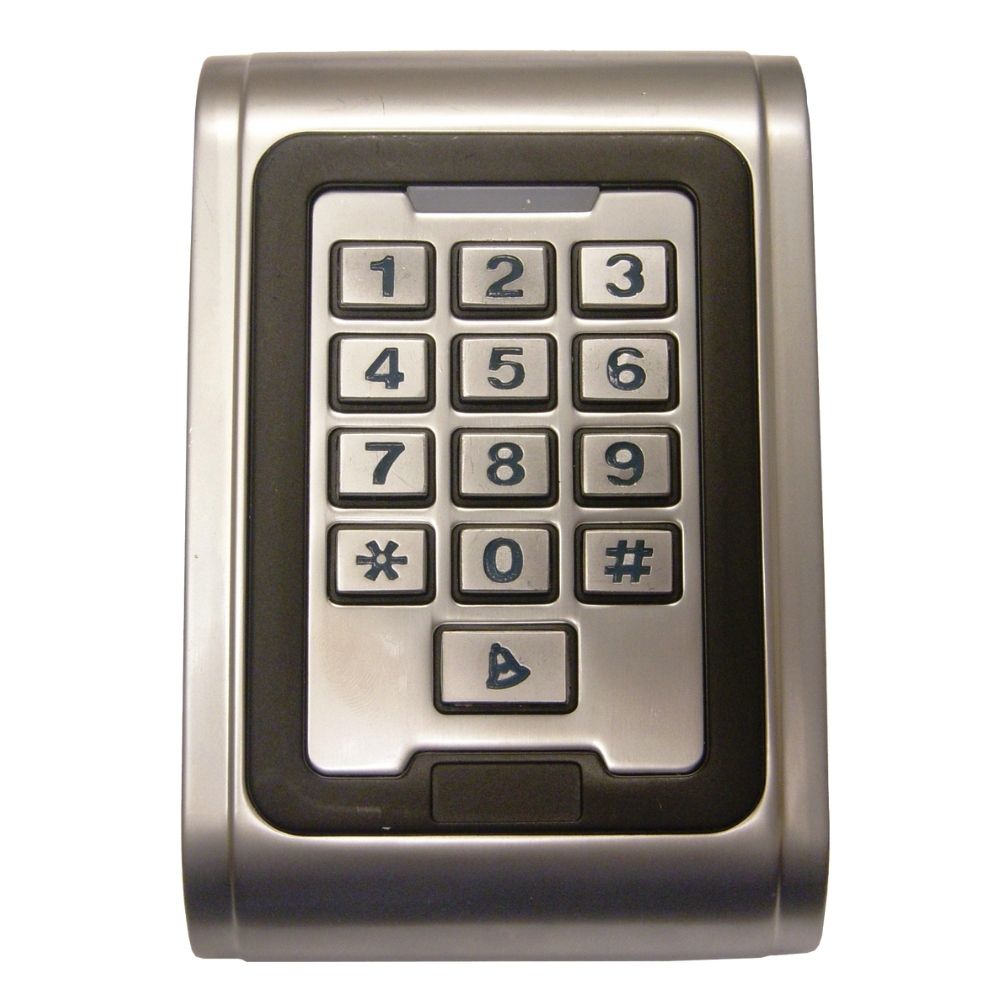

The CR-2000 is an inductive contactless card reader in a metal waterproof housing that also acts as a keypad control. The CR-2000 provides safe secure access control for any combination of 2000 users by the use of the Mifare pass card or individual user passcodes.

The CR-2000 has low power consumption (30mA standby) luminous keypad for nighttime use, short circuit protection, tamper alarm output, and the Wiegand output for monitoring of user access.

The CR-2000 may also be used stand-alone for access control of doors, gate,s and barrier arms.

Features
  • Low 30 mA standby current
  • Luminous keypad for nighttime operation
  • 2000 user support
  • Independent password support (may use code or card for access)
  • Keypad user delete (for lost or stolen cards or codes)
  • Output short circuit protection
  • Wiegand output: Wg26 for cards
  • Tamper alarm output
  • Doorbell button: Independent from circuit works with any doorbell
  • User pass card code change (allows users to use code they can remember in case card is lost or forgotten)
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Operating Voltage: 9-25 VDC
  • Current draw standby: < / = 30 mA
  • Read range: 1.1 in (3cm) – 3.1in (8cm)
  • Capacity (users): 2000 card and or passcodes
  • Operating Temperature: -13oF (-25oC) to 140oF (60oC)
  • Operating Humidity: 10% ~ 90%
  • Electric Lock output: < / = 3A
  • Alarm output: < / = 20A
  • Short circuit protection time: < / = 100 μ S
  • Activation time: 0 ~ 99 seconds (adjustable)
  • Size: 4.74in (120mm) x 2.2in (56mm) x 0.71in (18mm)
  • Weight: 1.62 lbs.
Product Literature
