D&D Technologies CodeLocks KL1000 RFID Kitlock Locker Lock - Silver Gray | DND-DDKL1000RFIDSG

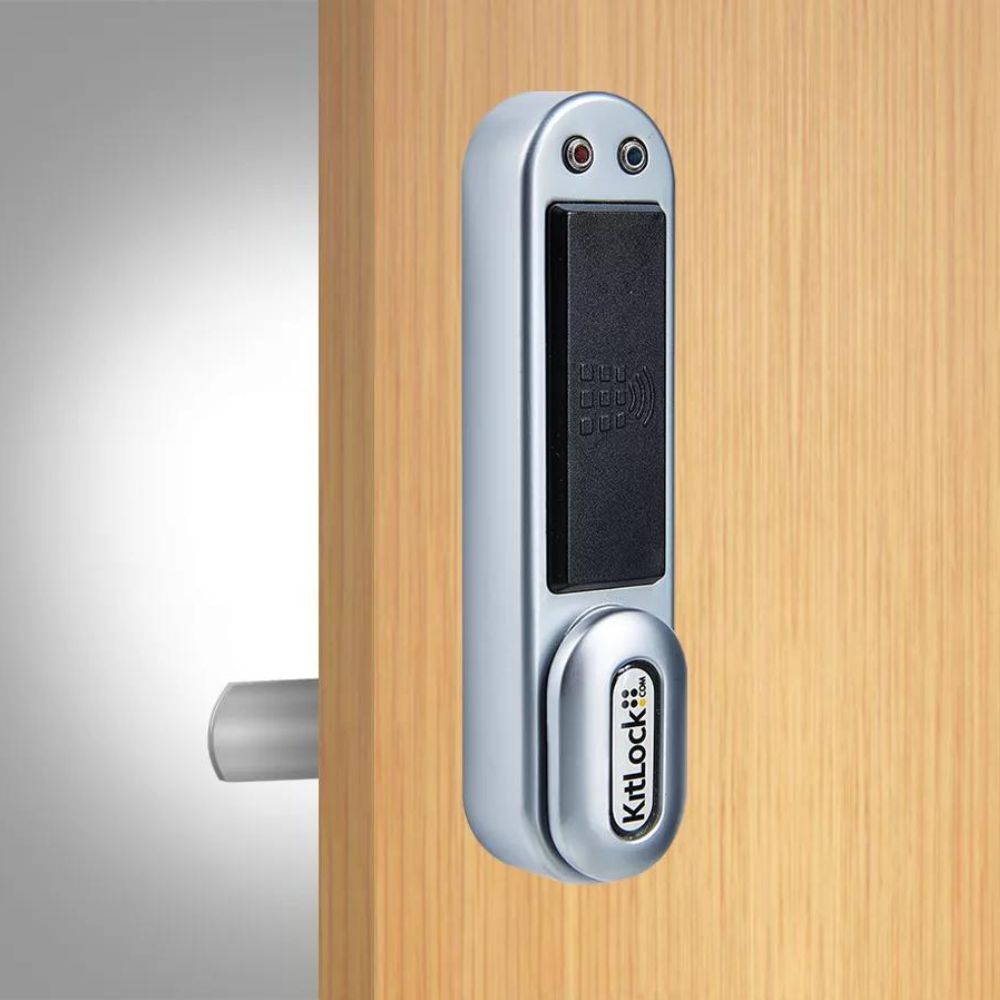

The KL1000 RFID is a simple, smart card KitLock providing codeless and keyless access to lockers, cabinets, cupboards, and enclosures
The KL1000 RFID KitLock offers functions for single users (Private Function) and short term use by multiple users (Public Function). The KL1000 RFID can be easily fitted to replace an existing cam lock, or to fit to a new locker or cabinet that does not have an existing locking device. The lock will perform up to 15,000 openings on just two AAA batteries.
Private Function
This is intended for use where there is a single user. Up to 50 individual MIFARE® cards can be registered on the lock and only those registered cards can continue to unlock that lock. The Master Card is used to open a lock, register a new User Card and remove a User Card. The Technician Card is not available in this function. Dedicated and existing MIFARE® cards can be used, no need to purchase new smart cards.
Public Function
Suitable for short-term use by different users. Touch a MIFARE® smart card to lock the lock and then use the same card to unlock the lock, leaving the lock in that unlocked state for any other compatible card to be used. Pre-registration of the card is not required and any new or existing MIFARE® card, fob, or wristband can be used. Suitable for use in short-term multi-occupancy applications such as leisure centers, spas, and hotels.
Features
- Previously known as the KL1050
- Supports MIFARE® Classic
- Master User Card
- Technician Card
- Public Pairing Feature
- Any orientation
- Up to 15,000 operations from 2 x AAA batteries (supplied)
- Battery override
- Slam latch accessory available
- All parts / fixings / templates included
Specifications
- Battery Override: A 9-volt PP3 battery can be placed against external contacts
- Brand: KitLock by Codelocks
- Door Thickness: Ready to fit doors up to 1" (25mm)
- Finish: Silver Grey
- Handed: Non-handed
- Latch Type: Cam
- Lock Dimensions: 5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Memory: Non-volatile memory will be retained
- Operations: Up to 15,000 openings per 2 x 1.5 AAA batteries
- Orientation: Vertical, Left Handed, Right Handed
- Power: 2x AAA
- Suitable For: Internal
- User Levels: Master, Technician
- User Types: Card
Product Literature
- D&D Technologies CodeLocks KL1000 RFID Brochure
- D&D Technologies CodeLocks KL1000 RFID Installation Instructions
- D&D Technologies CodeLocks KL1000 RFID Programming and Operating Instructions
- D&D Technologies CodeLocks KL1000 RFID Installation Template
- CodeLocks KitLock Slam Latch for KL1000 Installation Instruction
