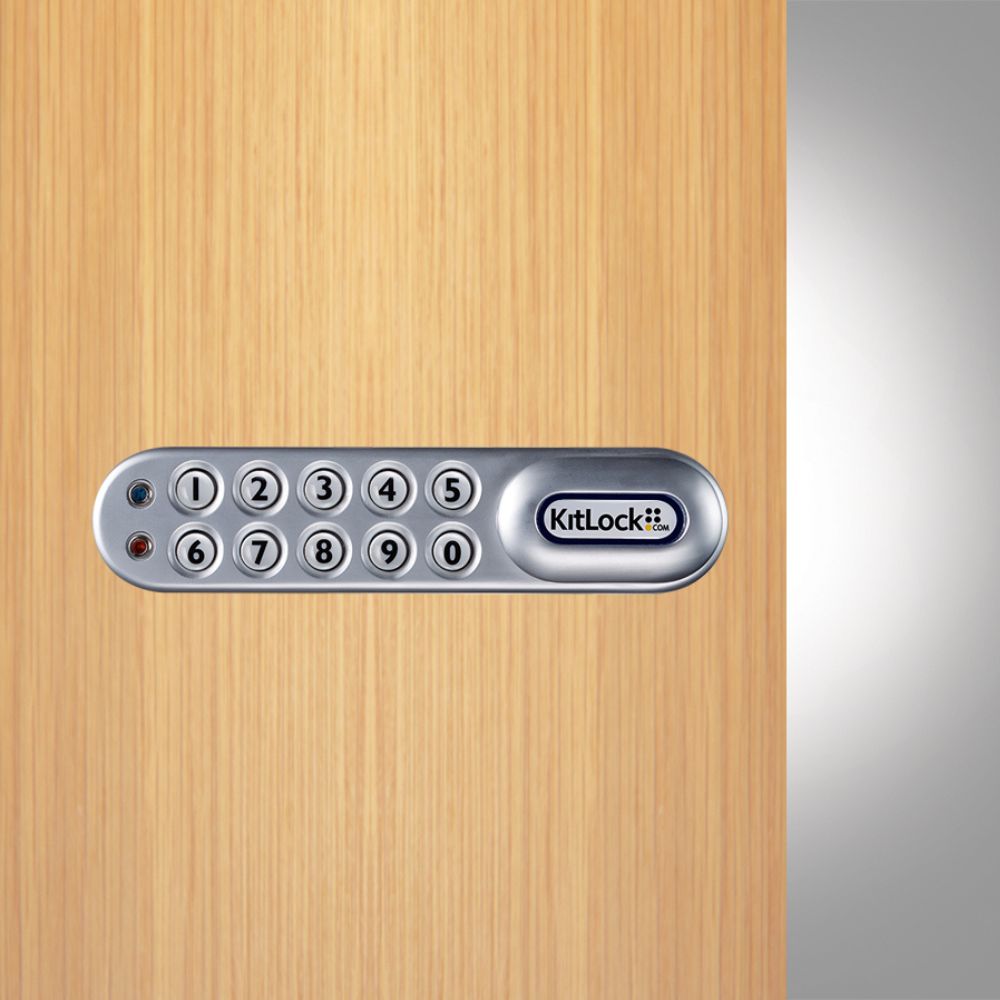

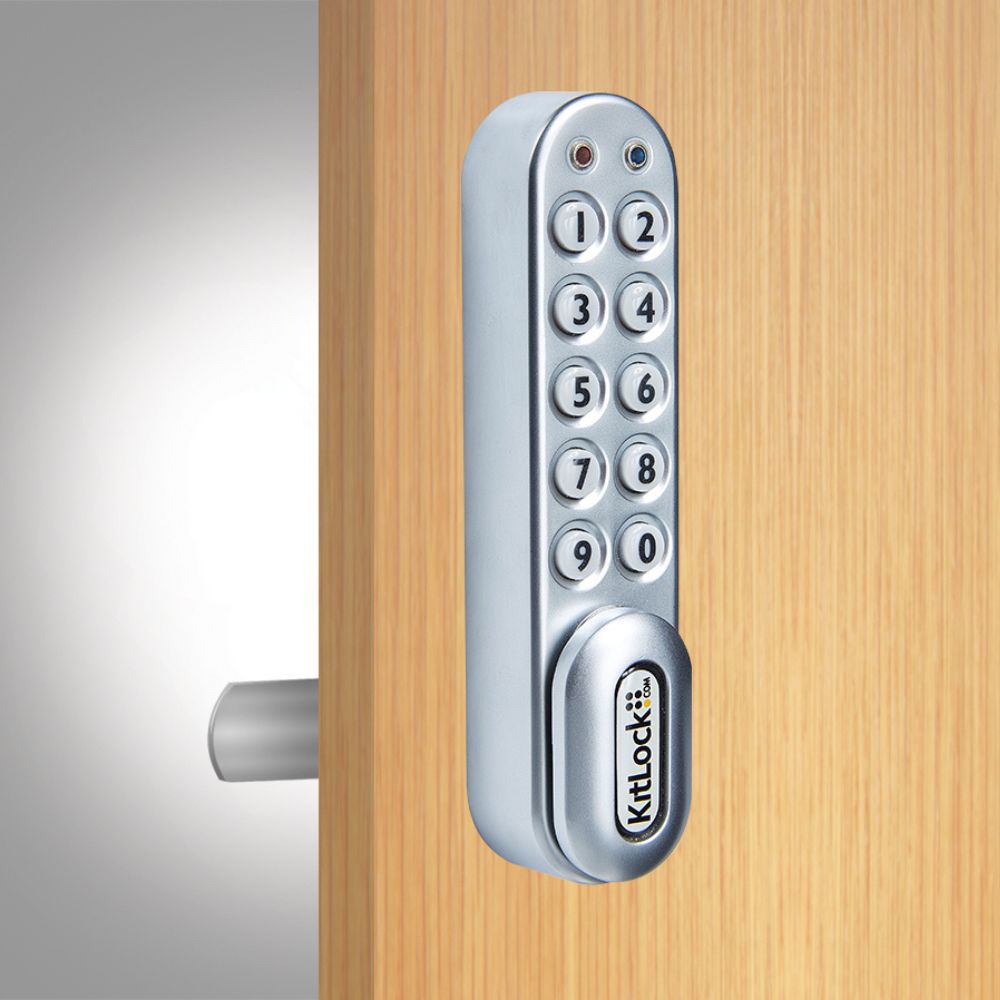

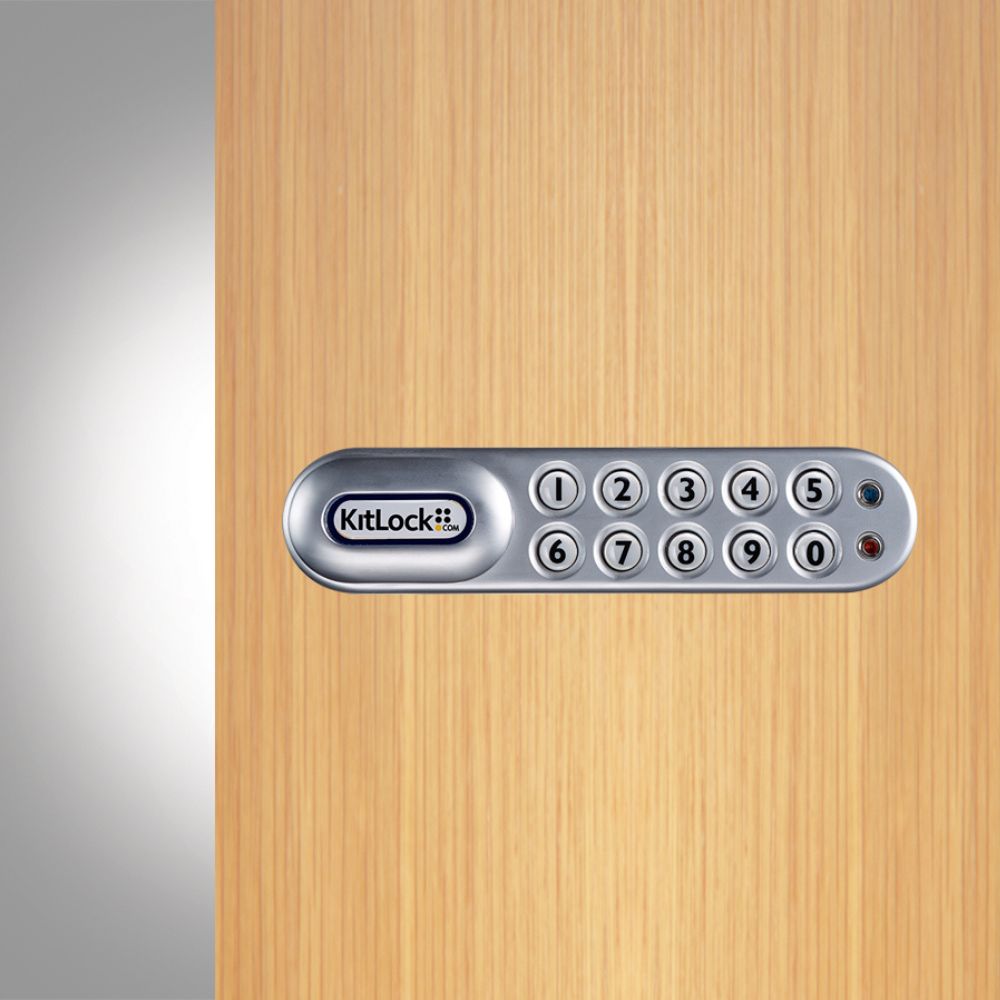

D&D Technologies CodeLocks KL1000 Classic KitLock Locker Lock - Silver Gray
The KL1000 Classic is a compact digital lock ideal for replacing keyed cam locks commonly supplied on a wide range of lockers, cabinets, and cupboards.
This neat lock is easy to fit, taking just a few minutes to remove the existing cam lock and make an additional top fixing. KL1000 Classic can also be fitted to a locker or cabinet that does not have an existing locking device - just drill another hole. Once in place, the lock will perform up to 15,000 openings on just two AAA batteries. Access control without the need for keys.
Supplied as standard with two cams, but will accept the majority of other cam variations that will fit onto the KL1000 Classic’s 8mm square spindle. The lock is supplied with all the necessary fixings, templates, and operating instructions to fit the lock to the cabinet, locker, or cupboard.
The KL1000 Classic has 4 code levels available:
- 8-digit Master Code
- 8-digit Sub-Master Code
- 4-digit User Code
- 6-digit Technician Code
How does a KL1000 Classic operate?
Private Function
This is the most common function and is used where the same code will be repeatedly used, e.g. a pupil in a school or an employee with the same locker in the workplace.
Public Function
In this function, the KitLock operates with a single User Code. The user enters their own personal four-digit code. This locks the lock. The same code is entered once only to open the lock before being erased and ready for the next new user. This function is used for short-term, multi-occupancy applications, e.g. a locker in a leisure center.
Features
- Easy fit
- 11 individual round buttons
- 15,000 openings from 2 x AAA cells (supplied)
- Battery override
- Ideal for cabinets, lockers, cupboards, medical carts, data racks, safes
- Left, right, and vertical versions
- IP55 rated when used with the rubber door gasket - a separate part
- Not suitable for a Chlorine environment
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Specifications
- Battery Override: A 9-volt PP3 battery can be placed against external contacts
- Brand: KitLock by Codelocks
- Buttons: 2 x 5 + Programming
- Code Change Method: Keypad (On Door)
- Door Thickness: Ready to fit doors up to 1" (25mm)
- Finish: Silver Gray
- Function: Private, Public
- HandedNon Handed
- Keypad: 11 individual round buttons
- Latch Type: Cam
- Lock Dimensions: 5 3⁄8" (136mm) x 11⁄16" (28mm) x 15⁄16" (33mm)
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Memory: Non-volatile memory will be retained
- Operations: Up to 15,000 opening per 2 x 1.5 AAA batteries
- Orientation: Vertical, Left Handed, Right Handed
- Power: 2x AAA
- Suitable For: Internal, External
- User Levels: Master, Sub Master, Technician, Standard User
- User Types: Code
ProdDuct Literature
- D&D Technologies CodeLocks KL1000 Classic Brochure
- D&D Technologies CodeLocks KL1000 Classic Installation Template
- D&D Technologies CodeLocks KL1000 Classic Getting Started Guide and Installation Instructions
- D&D Technologies CodeLocks KL1000 Classic Firmware/Time/Date Update
- D&D Technologies CodeLocks KL1000 Classic Programming and Operating Instructions
- KL1000 Model Identification
- KL1000 Classic Locker Sticker Single Entry
- KL1000 Classic Locker Sticker Double Entry
