D&D Technologies CodeLocks CL5210 Back to Back Gate Box Kit | DND-DD96155
Gate Solutions by Codelocks provides simple and effective access control solutions for fenced perimeters / outdoor spaces. Gate Box Kits contain all components required for a straightforward installation. Suitable for indoor and outdoor applications. An ideal choice for pool areas, schools and colleges, hospitals, hotels, backyards - any restricted area that will benefit from controlling access, commercial or residential.

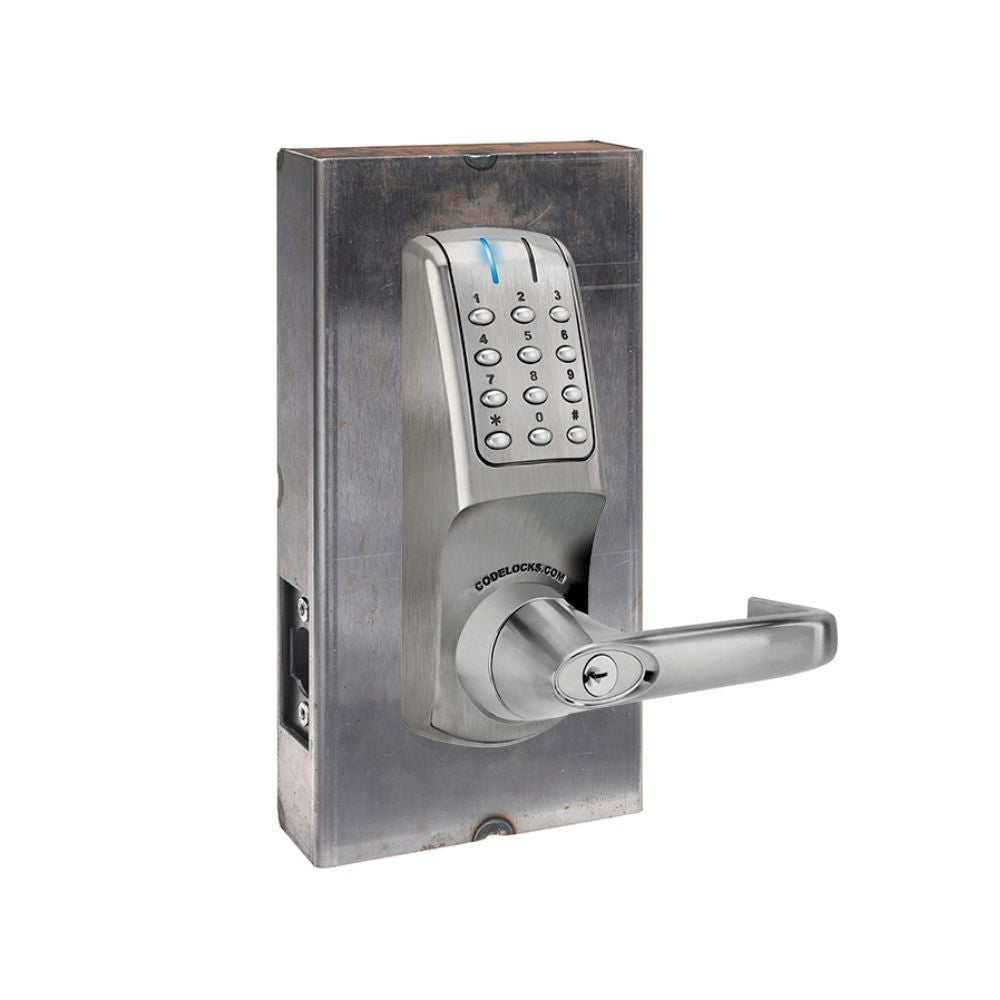

Gate Box Kit Includes
- CL5210 Back to Back Tubular Latchbolt
- Codelocks installation, operating/programming instructions, fastening bolts and latch
- 14-gauge steel weldable Gate Box, pre-drilled for the specified Codelock
- Adjustable stop bracket
Features
- Easy, effective gate and fence installation
- Complete kits with all required components
- 14-gauge weldable steel boxes with pre-drilled fixing holes
- Supplied as raw steel, ready to paint
- Adjustable stop bracket
- Brushed steel finish

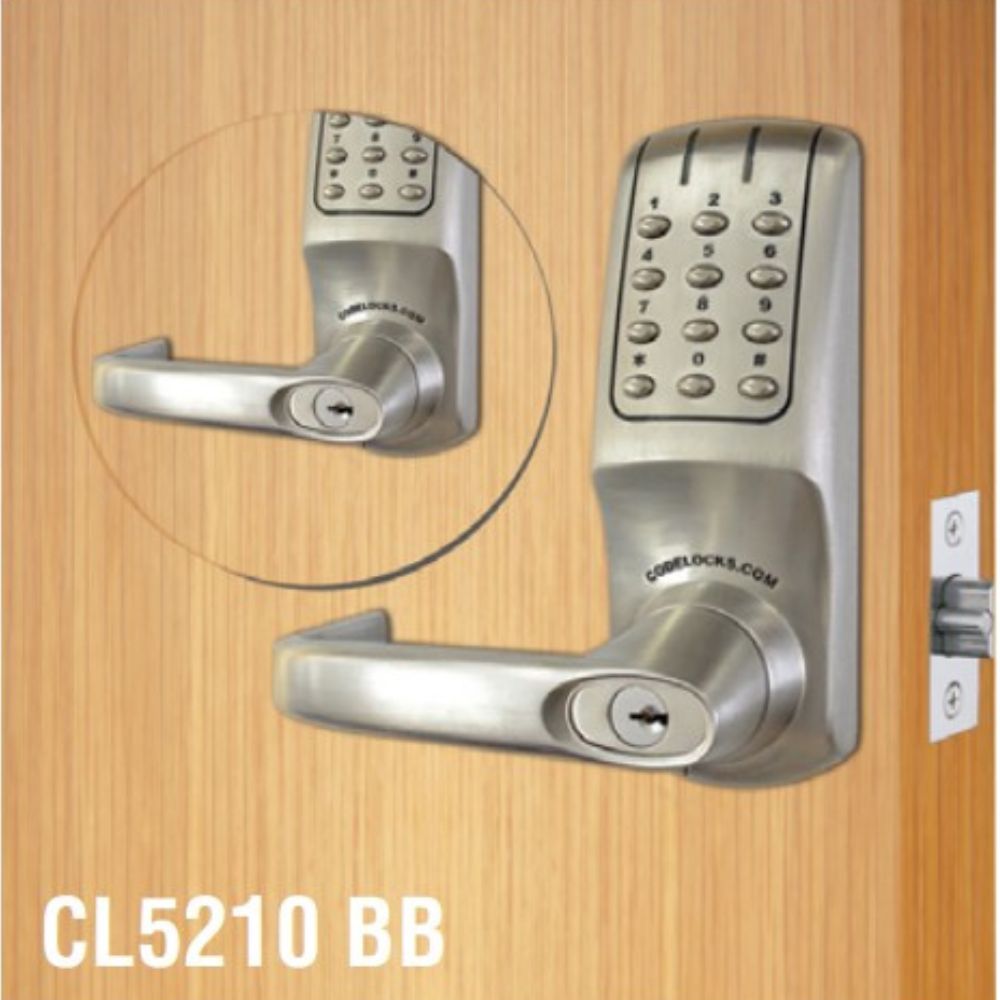

About the CL5210 Back to Back Tubular Latchbolt Electronic Lock
Heavy-duty lock with tubular latch and full-size lever handles, suitable for high-traffic use. Code free passage function and back-to-back options available.
- Mortise Latch
- Allows up to 80 User Codes
- Allows up to 10 one-time User Codes to be entered
- PVD low-maintenance finish
- Over 200,000 operations from 4 x AA cells (provided)
- Tamper time out and low battery warning
- Connections for remote release by reception desk button
- Alarm release included
- Code Free entry
- Lever handle lock for doors hung on the left or right
- Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
Specifications
- Brand: Gate Solutions by Codelocks
- Buttons: 3 x 4
- Code Change Method: Keypad (On Door)
- Codes: User Codes 4, 5 or 6 digits long
- Finish: Brushed Steel
- Gate Box Dimensions: 10.25” (H) x 5.5” (W) x 1.75” (D)
- Gate Box Material: 14-gauge steel
- Gate Kits By Codelocks: Gate Solutions by Codelocks
- Handed: Non-Handed - Locks will fit doors hung on the left or right
- Keyed Alike: Available
- Keypad: Individual stainless steel buttons
- Lock Material: Zinc Alloy
- Low Battery Warning: Red LED will flash on opening to indicate low battery
- Operations: Up to 200,000 per set of 8 x AA batteries
- Orientation: Vertical
- Power: 8x AA
- Spindle: Two-part 5⁄16" (8mm) spring-loaded spindle
- Suitable For: Internal, External
- User Types: Code
