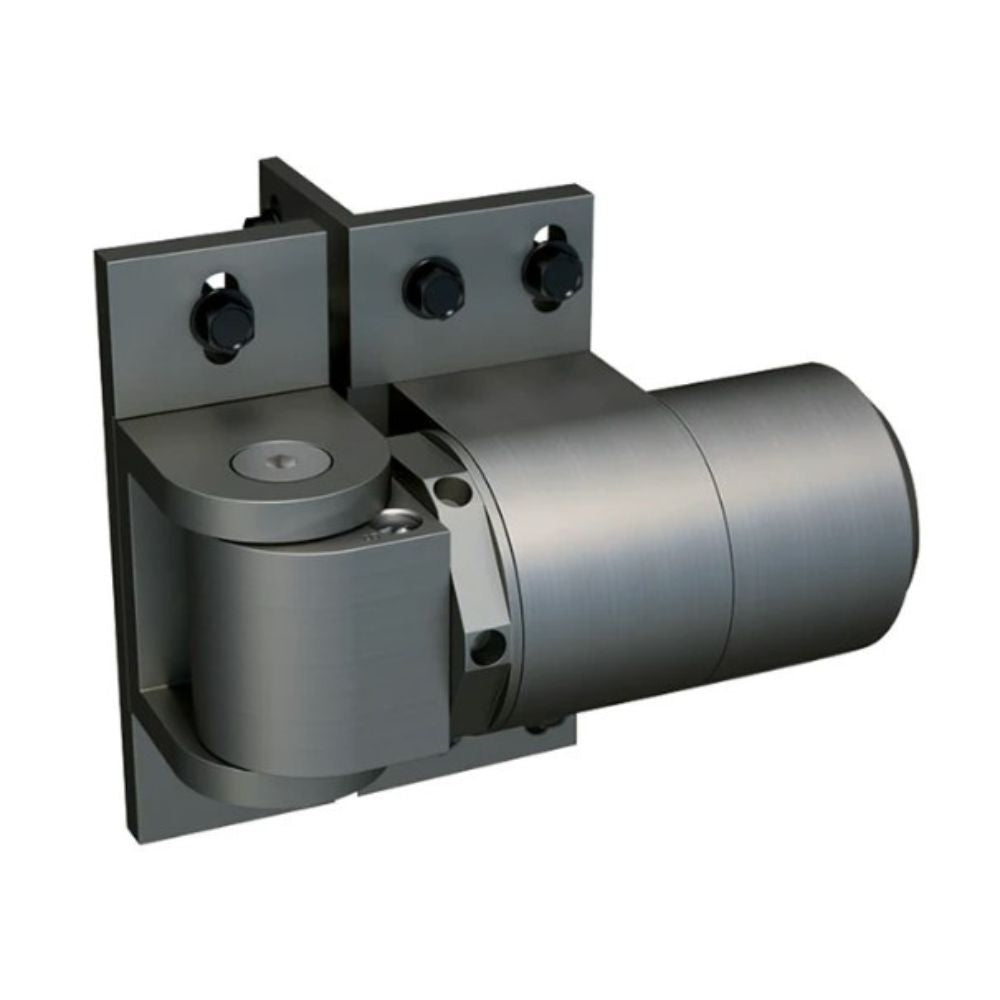

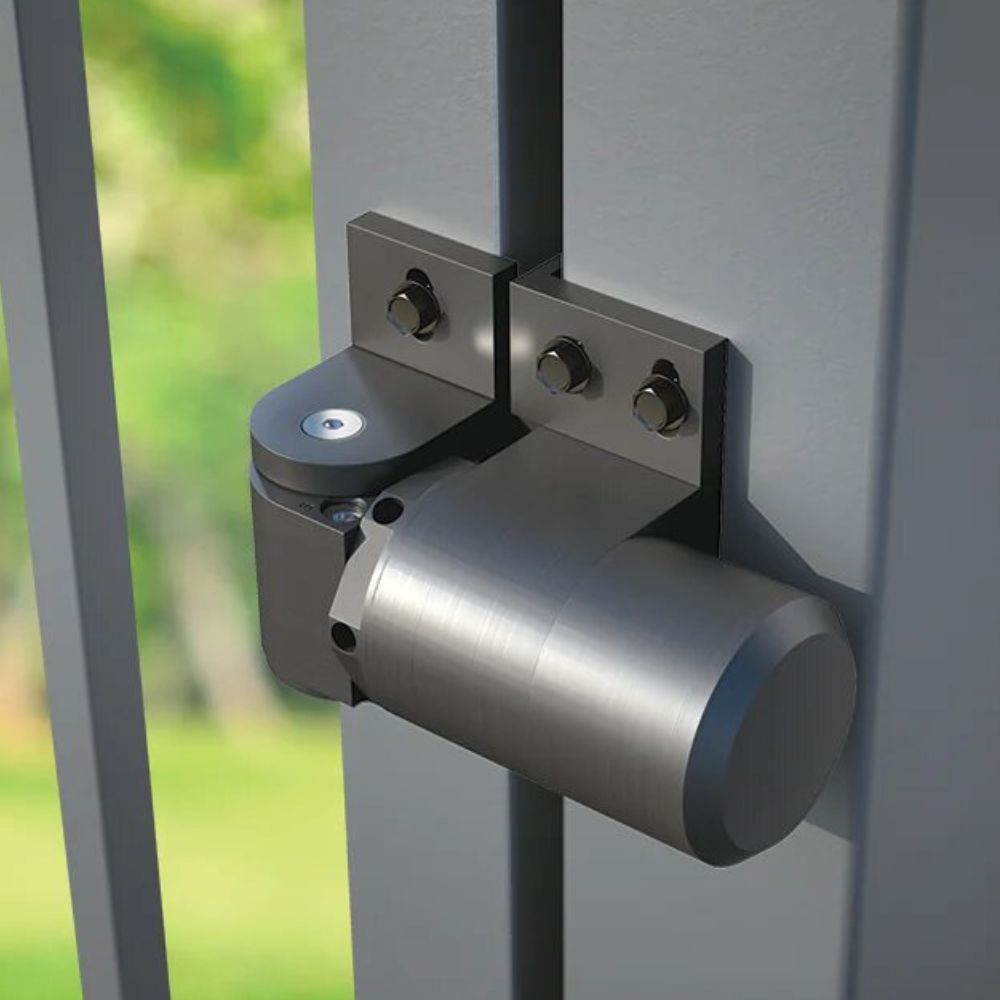

D&D Technologies SureClose ReadyFit RF 108SF W Steel Hinge/Closer with Safety Feature | DND-74108325T
Externally Mounted, Hydraulic Self-Closing Hinge-Closer
Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.
Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminum.
CAUTION: When used on a swimming pool gate, always consult local authorities for swimming pool Codes. A gate stop must be installed when using SF models. Gate must not be allowed to open past 90˚. Doing so voids warranty.
Features
- Controlled quiet close
- Gap variance of 12-35mm (½” to 1 ⅜”)
- Multiple mounting options, includes fasteners
- Final Snap Close Action
- Maximum opening angle 88º
- Alignment legs give double face-fixing strength
- Emergency Override feature for safety and longevity
- Minimum fence post size 50mm (2")
- Must install a gate-stop to prevent the gate opening more than 90º
Manufacturer's Warranty
- 5-Year Limited Warranty
Specifications
- Brand: SureClose®
- Product Code: 74108323-74108325
- Gate Application:
- Pool Gate
- Child Safety Gate
- Front Gate
- Side Gate
- Pedestrian Gate
- Driveway Gate - Double
- Driveway Gate - Single
- Pet Gate
- Playground Gate
- Public/Commercial Gate
- Security Gate
- Privacy Gate
- Safety Gate
- Gate Type: Self-Closing
- Gate Material: Aluminium
- Self-Closing Gate Weight: Up to 120kg (260lbs)
- Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
- Gate Frame/Post Shape: Square-to-Square, Square-to-Round, Round-to-Round
- Min Post Size: 50mm+ (2")
- Ideal Gate Gap: 12-35mm (½-1½")
- Max Opening Angle: 88⁰
- Self Closing: From 88⁰
- Fixing Method: Screw-On, Bolt-On, Weld-On
- Colour/Finish: Black Anodised
