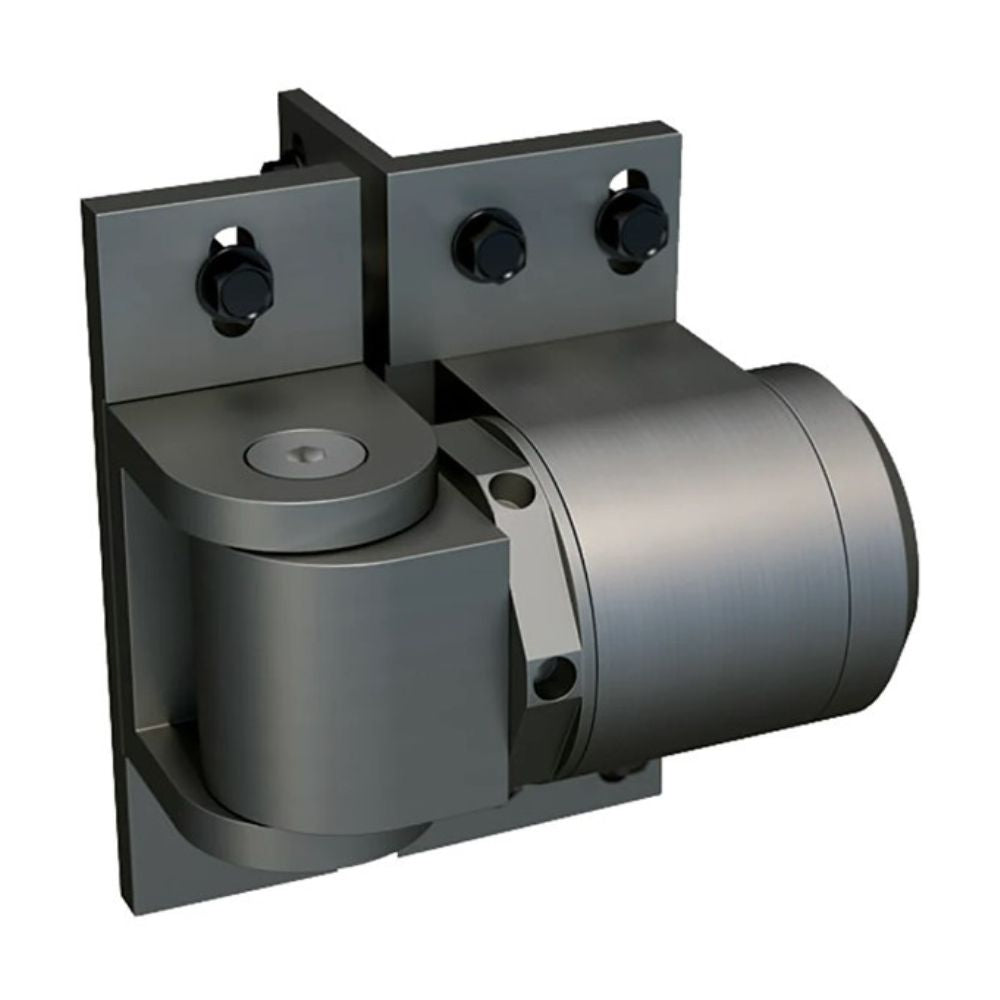

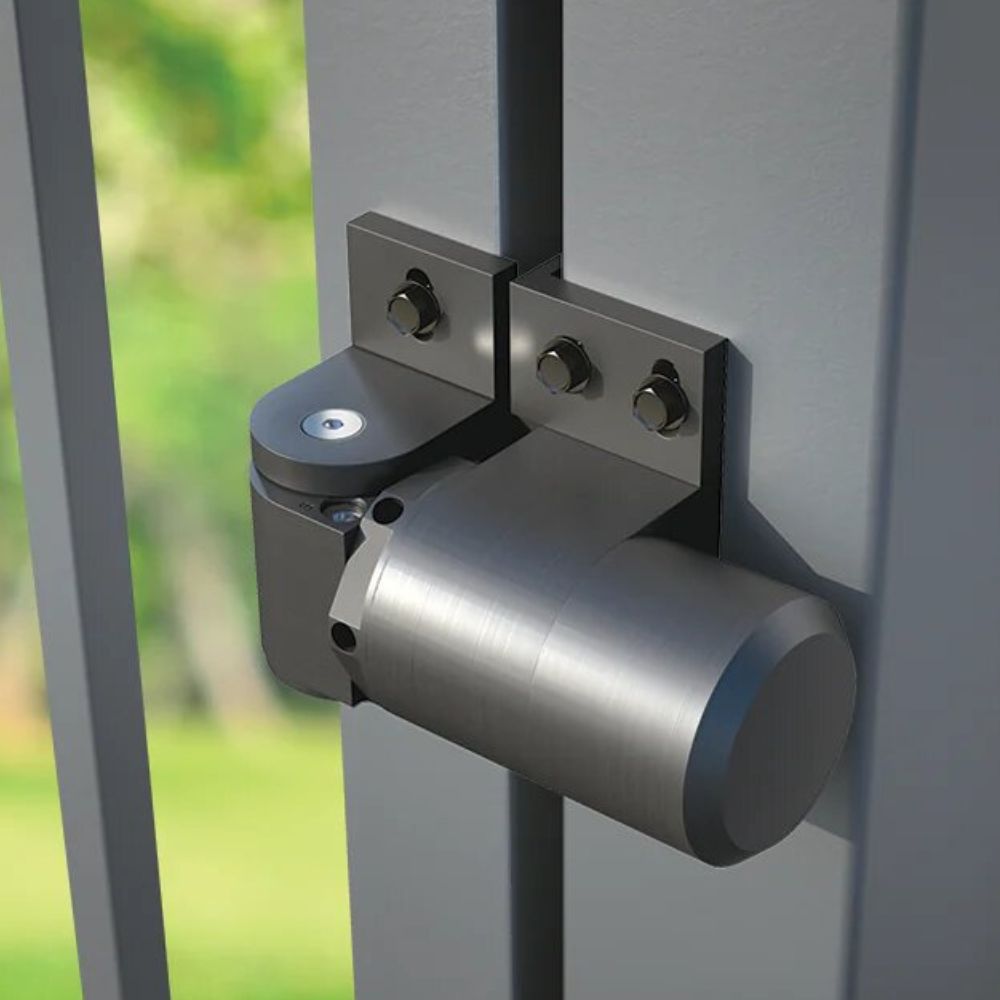

D&D Technologies SureClose ReadyFit RF SM S Aluminum Hinge | DND-74001313T

D&D TechnologiesSKU: DND-74001313T

Price:
Sale price$175.38

Estimate shipping

D&D Technologies SureClose ReadyFit RF SM S Aluminum Hinge | DND-74001313T

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges.

Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminum.

Features
  • Non Self-Closing
  • Controlled quiet close
  • Flush Mount
  • Final Snap Close Action
  • The face of the gate and posts are aligned.
  • Include fasteners, gate and post mounting brackets.
Manufacturer's Warranty
  • 5-Year Limited Warranty
Specifications
  • Brand:  SureClose
  • Gate Application
    • Front Gate
    • Side Gate
    • Pedestrian Gate
    • Pet Gate
    • Playground Gate
    • Public/Commercial Gate
    • Security Gate
    • Privacy Gate
  • Material and Mounting: Aluminum/ Weld or Screw
  • Approx Gate Size: 1.2m W x 1.8m H (4ft x 6ft)
  • Gate Frame/Post Shape: Square-to-Square
  • Min Post Size: (2") 50mm+
  • Ideal Gate Gap:  (½-1½") 12-35mm
  • Hinge Gap: 1/2" - 1-3/8"
  • Max Opening Angle: 178⁰
  • Fixing Method: Screw-On
  • Color/Finish: Black Anodised
