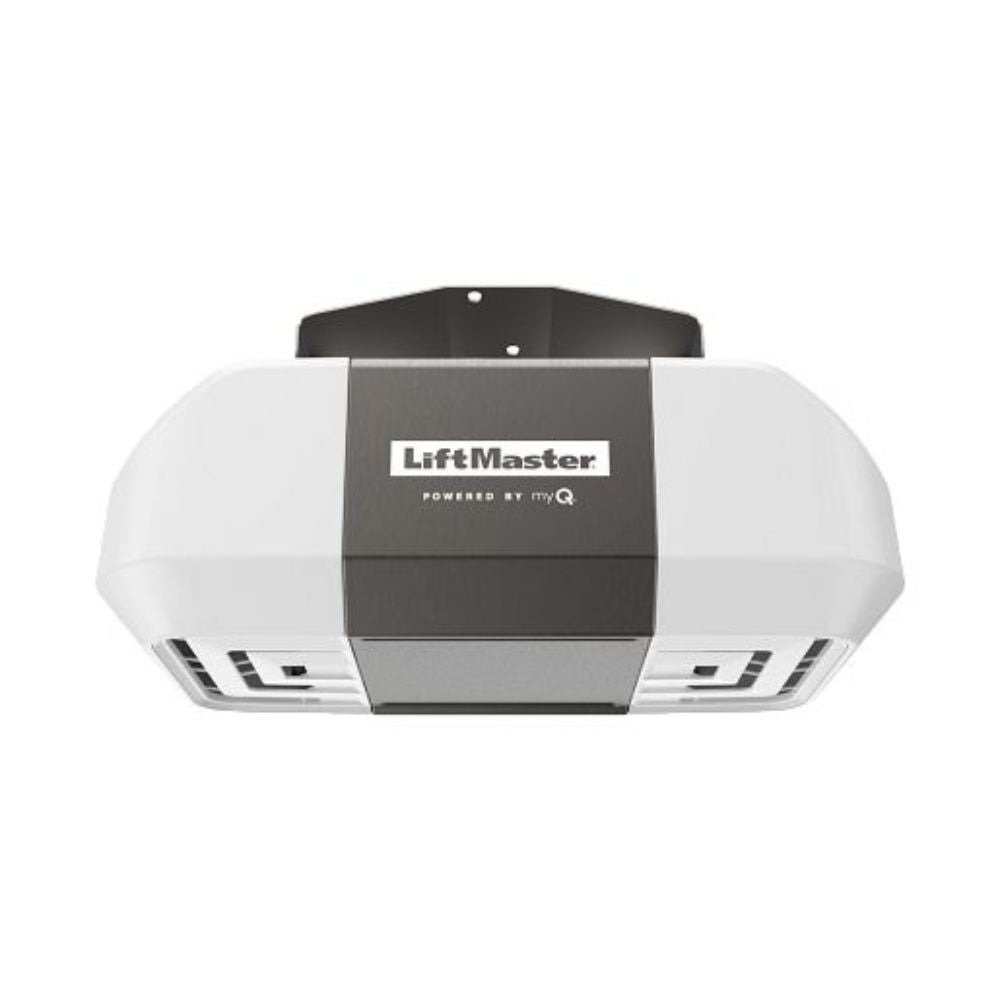

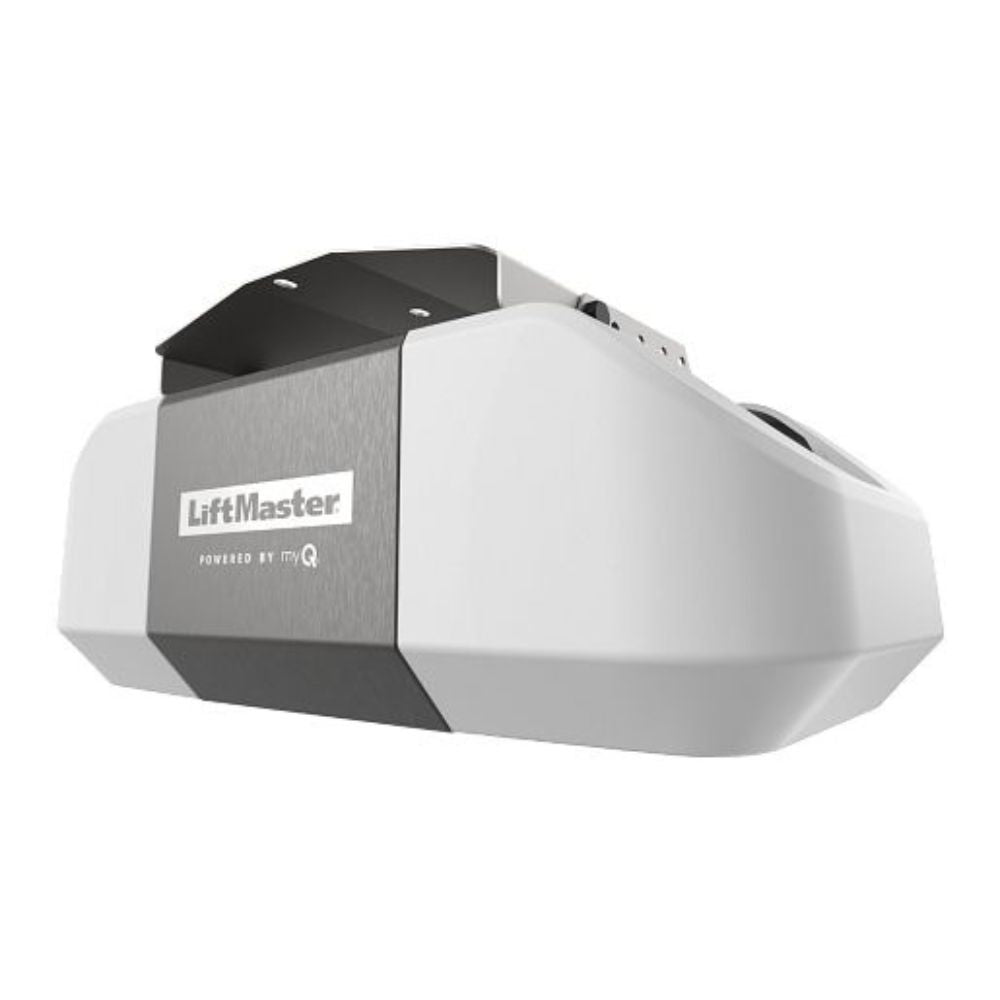

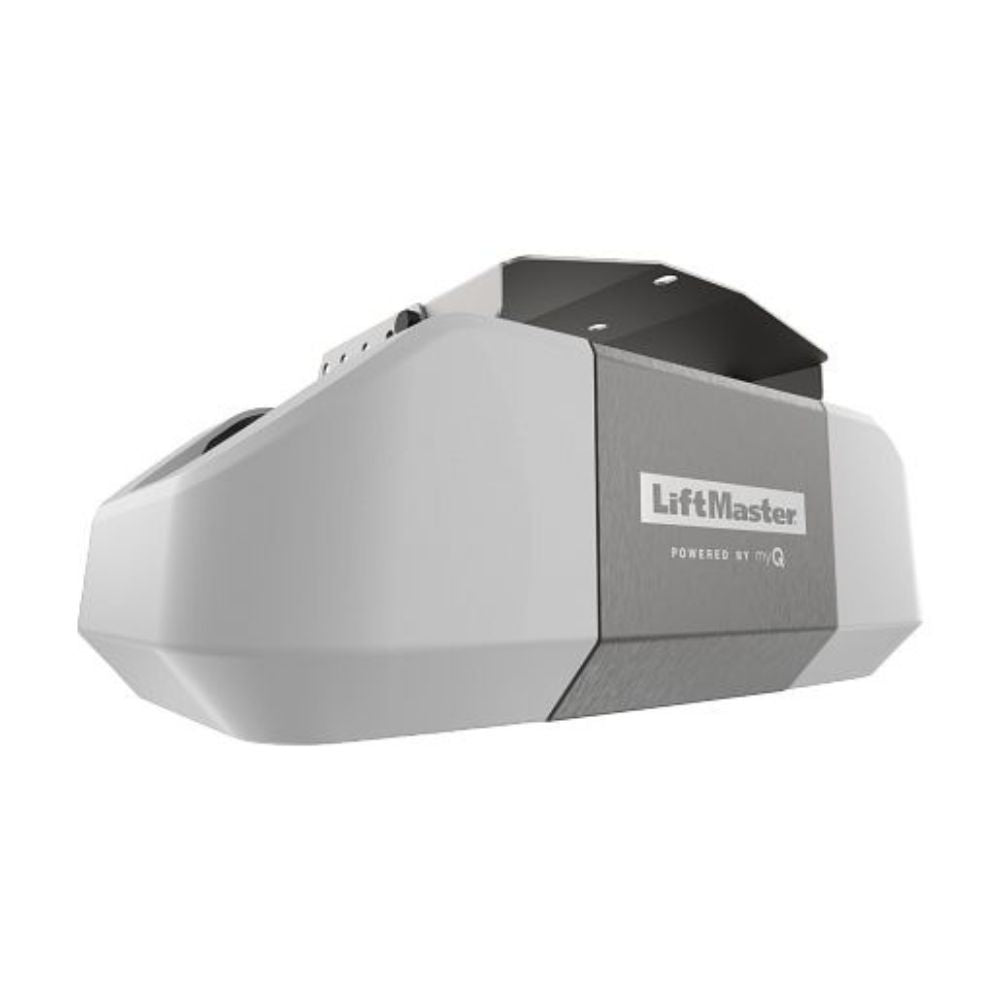

LiftMaster Light-Duty Commercial or Residential Door Operator | LIF-ATSWTMC
This is an MC Product. Commercial products will now use a single frequency and alternative frequency mode instead of TriBand frequencies.
Features
Light Duty Applications
- Dual-Rated for Residential and commercial doors with light-duty cycle requirements
- Ideal for use in pole barns and similar structures for storage and manufacturing
Smart
- myQ® Technology enables monitoring and control of the property operators through a mobile app or the myQ Facility website.
- Built-In Bluetooth for simple operator internet connection.
- Built-In Wi-Fi for an easier connection to the building's Wi-Fi network.
- Real-Time Alerts indicate the status of doors via email or push notifications.
Quiet and Secure
- Motor Vibration Isolation System (MVIS) for smoother and quieter operation.
- Security+ 2.0® safeguards access to property with an encrypted signal to offer extended range.
- The Protector System® auto-reverses the door if an entrapment protection device detects an obstruction.
Reliable
- High-Starting Torque Motor with overload protection.
- Rated Load 600 inch-pounds per second to satisfy a wide range of light-duty cycle applications.
- Warranty 1 year
HomeLink® Compatible
Compatibility Bridge™ (not included) necessary for certain vehicles. Visit bridge.liftmaster.com to find out if a Bridge is needed. HomeLink® is a registered trademark of Gentex Corporation.
Powerful Add-Ons:
- LiftMaster’s® LC36M Monitored Light Curtains provide up to 33 ft. of protection range and a minimum of 36 in. of height coverage to keep your customers, employees and equipment safe.
- 827LM myQ Remote Led Light Operates automatically with the operator and works with the myQ App.
- 50111 Center Support Bracket for 14 ft. rail provides additional rail support. Standard with 14’ rail, optional for all other door sizes.
- 893MAX Remote Controls Program up to three LiftMaster operators with Security+ 2.0 Rolling Code Technology users are assured of a new code with every use.
- KPW5/ KPW250 Wireless Keypads NEMA 4X (water protection requirements) sealed electronics for reliable outdoor use.
- 878MAX Wireless Keypads Programmable to Security+® Technology, this keypad provides convenient, secure access with a 4-digit PIN.
- 880LMW Smart Control Panel® LCD display with motion sensing and Timer-To-Close (TTC) capability.
Technical Specifications
- Radio Receiver: Security+ 2.0® technology standard on-board; accepts up to (40) single-button remote controls plus up to (4) wireless keypads plus up to (16) myQ devices
- Voltage Connections: Single-phase: 120VAC, 60Hz
- Drive Reduction: Helical and worm gears (operating 10-tooth sprocket)
- Brake: NO
- Trolley Roller Chain: #48 standard
- Maximum Door Height: 14 feet
- Maximum Door Width: 18 feet
- Maximum Allowable Square Footage: 252 square feet
- Internet Connectivity: myQ® Technology enables remote monitoring and control of the commercial door via a smartphone, tablet, or computer (Operator directly connects via built-in wi-fi, myQ app required)
Note: This commercial/residential door operator must be equipped with the external monitored entrapment protection photo eyes that are provided standard. Use only LiftMaster monitored entrapment protection devices to meet UL 325 requirements.
