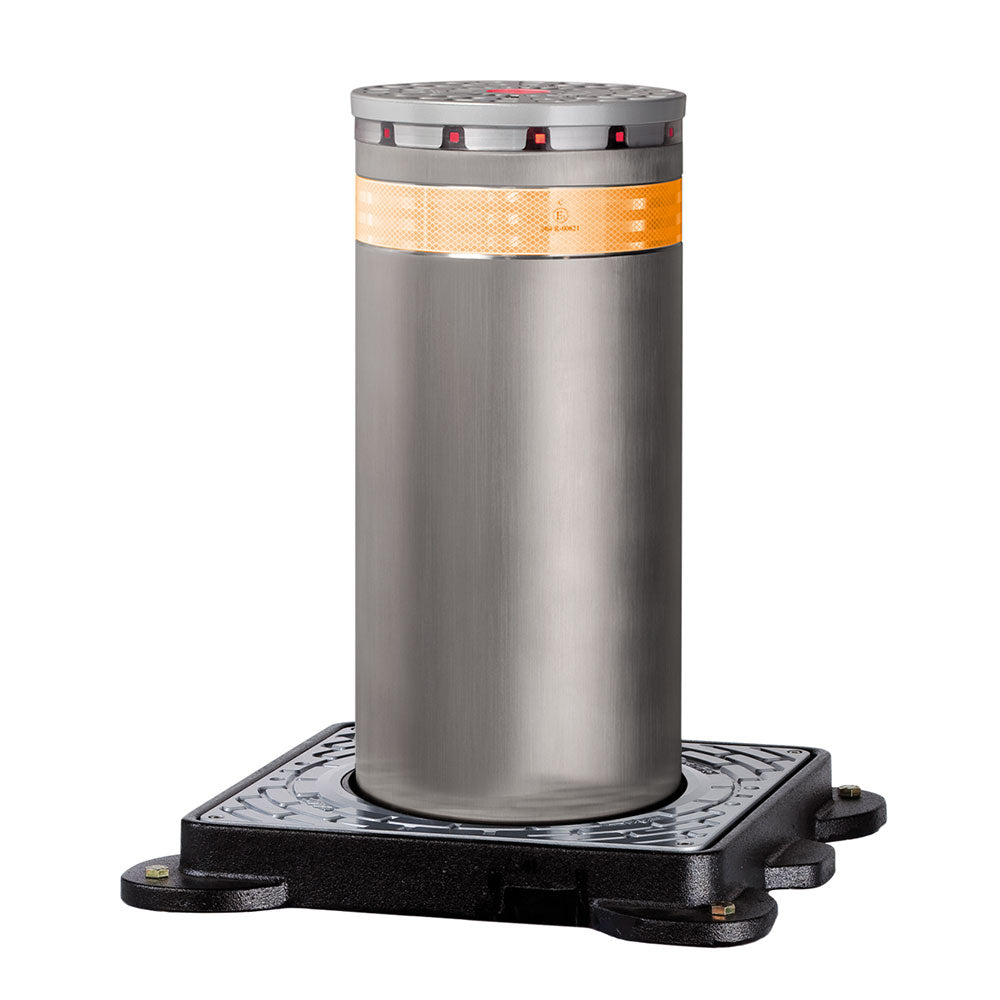

FAAC J275 HA V2 600 & 800 Retractable Traffic Bollard in Satin Finish Stainless Steel

FAACSKU: FAA-116037

Model: J275 HA V2 800
Price:
Sale price$8,842.64

Estimate shipping

FAAC J275 HA V2 600 & 800 Retractable Traffic Bollard in Satin Finish Stainless Steel

FAAC solutions represent an elegant and functional alternative to fixed bollards, gates, barriers, chains, and similar. The bollard defines pedestrian areas during peak times or permanently, it enables only authorized people (business owners, residents, hotel guests, garage customers, taxi, owners of parking spaces) to enter and/or exit from certain areas, it defines parking places, squares or sidewalks and protects sensitive areas, such as embassies, coastlines, military installations, etc.

Features
  • Guaranteed for high-frequency use
  • Supplied with the main accessories already included
  • Extreme care in the selection of materials
  • Simple maintenance (just one person is needed)
  • Fast and silent movements
  • Built-in hydraulic slow down for softer landing in opening
  • Cylinder in stainless steel thickness 0.24 in (6 mm) satin-finished
  • Flashing light ring with central LED
  • Audible buzzer (active during movement)
  • Emergency lowering in the event of a power outage (can be excluded)
Technical Specifications
  • Drive: Hydraulic operator
  • Cylinder height:
    • J275 HA V2 600: 23.6 in (600 mm)
    • J275 HA V2 800: 31.5 in (800 mm)
  • Cylinder diameter: 10.8 in (275 mm)
  • Cylinder material: AISI 316 satin finished 0.24 in (6mm) thickness
  • Cylinder head: Aluminium RAL 9006
  • Rise time:
    • J275 HA V2 600: Approx. 5 sec(*)
    • J275 HA V2 800: Approx. 7 sec(*)
  • Descent time (standard):
    • J275 HA V2 600: Approx. 3.5 sec(*)
    • J275 HA V2 800: Approx. 4.5 sec(*)
  • Descent time (rapid):
    • J275 HA V2 600: Approx. 1.2 sec(*)
    • J275 HA V2 800: Approx. 1.5 sec(*)
  • Input voltage 220-240 VAC; 50 / 60 Hz
  • Power: 220 W(*)
  • Protection class: IP 67
  • Recommended use: Intensive (Traffic)
  • Standard reflecting strip: Height 2.2 in (55 mm)
  • Manual lowering operation: With hydraulic circuit mechanical release
  • Impact resistance: 67 KJoules/stainless steel
  • Crash resistance: 207 KJoules/stainless steel
  • Total weight (Bollard + Pit):
    • J275 HA V2 600: 247 + 121 lb. (112+55kg)
    • J275 HA V2 800: 287 + 143 lb. (130k+ 65kg)
  • Operating ambient temperature 5°F - 131°F (-15 °C / +55 °C)
  • Operating ambient temperature with heater (optional) -13°F - 131°F (-25 °C / +55 °C)
  • Foundation size (LxWxH):
    • J275 HA V2 600: 39 x 39 x 49 in (1000x1000x1250 mm)
    • J275 HA V2 800: 39 x 39 x 61 in (1000x1000x1540 mm)

Note: (*) measured at 230V

Manufacturer's Warranty Period
  • 2 years
