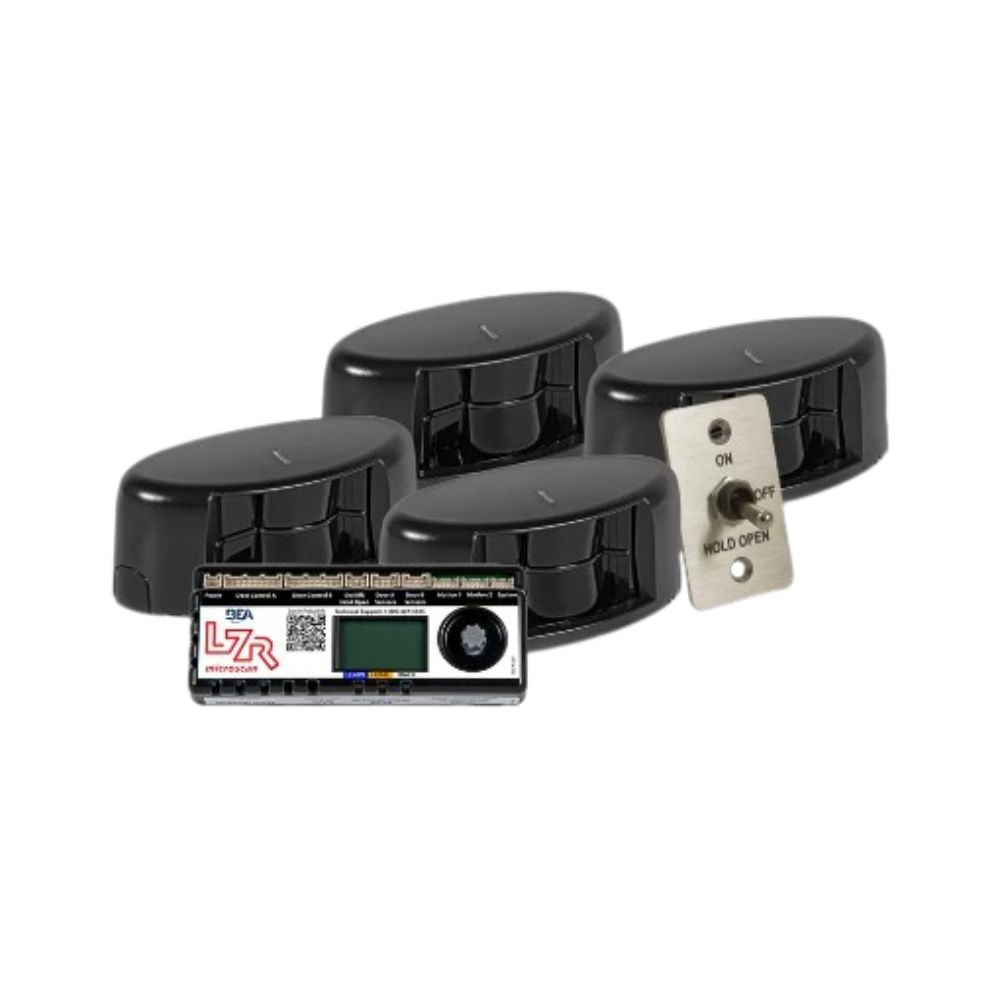

BEA LZR-MICROSCAN T Custom Pair/Dual Universal Sensor Kit | BEA-10LZRMICROSCAN2UT
Stand-Alone, Door-Mounted, Swing Door Safety System
BEA’s LZR®-MICROSCAN T is a LASER-based sensor system designed for automatic swing doors.
Utilizing Time-of-Flight technology, the LZR-MICROSCAN T eliminates the limitations of infrared-based devices. Its background independence eliminates nuisance detections caused by changing weather and floor conditions, while gyroscopes sense the movement of the door for accurate positioning.
The LZR-MICROSCAN T provides adjustable pattern depths that exceed the ANSI 156.10 8.2.2.3 standard and offer 100 percent coverage in all door states (fully open, fully closed, opening, and closing).
Includes
- Universal Kit with Power Supply & DS
Features
- Easy to install - Plug & play technology utilizing a centralized hub and intuitive LCD interface greatly reduces installation and setup time.
- Highly accurate detection - High-resolution, self-adapting detection zones, coupled with reduced uncovered zones create the most accurate and reliable safety sensor.
- Standards compliant - Fully monitored internally, capable of external monitoring.
- UL 10B/C Listed - Fire rated for up to three hours.
Specifications
- Technology: LASER scanner, Time-of-Flight measurement
- Detection Mode: Presence
- Min. / Max. Door Width: 20 – 48” (measured from leading edge to sensor LED)
- Mounting Height: 75 – 98” (measured from finished floor to sensor LED)
- Remission Factor: > 2%
- Angular Resolution: 2.56°
- Testbody: 28" (H) × 12" (W) × 8" (D)
- Emission Characteristics: IR LASER - Wavelength 905 nm; Maximum Output Pulse Power 35 W (Class I)
- Supply Voltage: 12 – 30 VDC (15 W Class II)
- Power Consumption: < 15 W
- Response Time: Typ. 40 ms; Max. 80 ms
- Output Rating: 4 electro-mechanic relays (galvanic isolated - polarity free), All outputs Class 2 supply, 12 – 24 VAC, 12 – 30 VDC, Max. 15 W
- Input Rating: 2 optocouplers (galvanic isolated - polarity free) 12 – 24 VAC, 50 / 60 HZ, 12 – 30 VDC, Max. 15 W
- Test Input*: 8 – 15 VDC
- Temperature Range: -13 – 121 °F (-25 – 55 °C)
- Degree of Protection
- Hub: IP20 / NEMA 1
- Sensor: IP53 / NEMA 3
- Humidity: 0 – 95% Non-condensing
- Vibrations: < 2 G
- Material: PC / ASA
- Norm Conformity: EN 60825-1-Eye-safety class 1 IR LASER (905 nm), UL 10B/C Fire Rated 3 hrs (file #R39071)
- Mounting Angle: (rotational) 35° fixed
- Tilt Angle: 0 – 5° (for angles less than 5°, contact Technical Support)
- Pollution on Front Screens: Maximum 30%; Homogenous
