EMX Retro-Reflective Photo Eye | EMX-IRB-RET2

The IRB-RET2 retroreflective, infrared photo-eye is an external entrapment protection device type B1, a non-contact sensor for use with automatic gates and doors. The reflector directs the beam back to the photoeye, therefore, wiring to the other side of the roadway is not needed. The IRB-RET2 is compatible with most operators that accommodate monitored external entrapment devices per UL325. (Six monitoring methods are available). The IRB-RET2 operates up to 60 feet over a wide range of voltages (6- 40 VDC and 12-24 VAC). A red alignment indicator on the receiver provides easy setup and alignment.

The IRB-RET2 universal UL325 retroreflective photoeye has 6 monitoring interfaces:

  • Normally closed
  • Two-wire pulse (2 freq)
  • Two-wire pulse (3 freq)
  • Four-wire pulse (2 freq)
  • Four-wire pulse (3 freq)
  • 10k resistive termination
Includes
  • Photo-eye

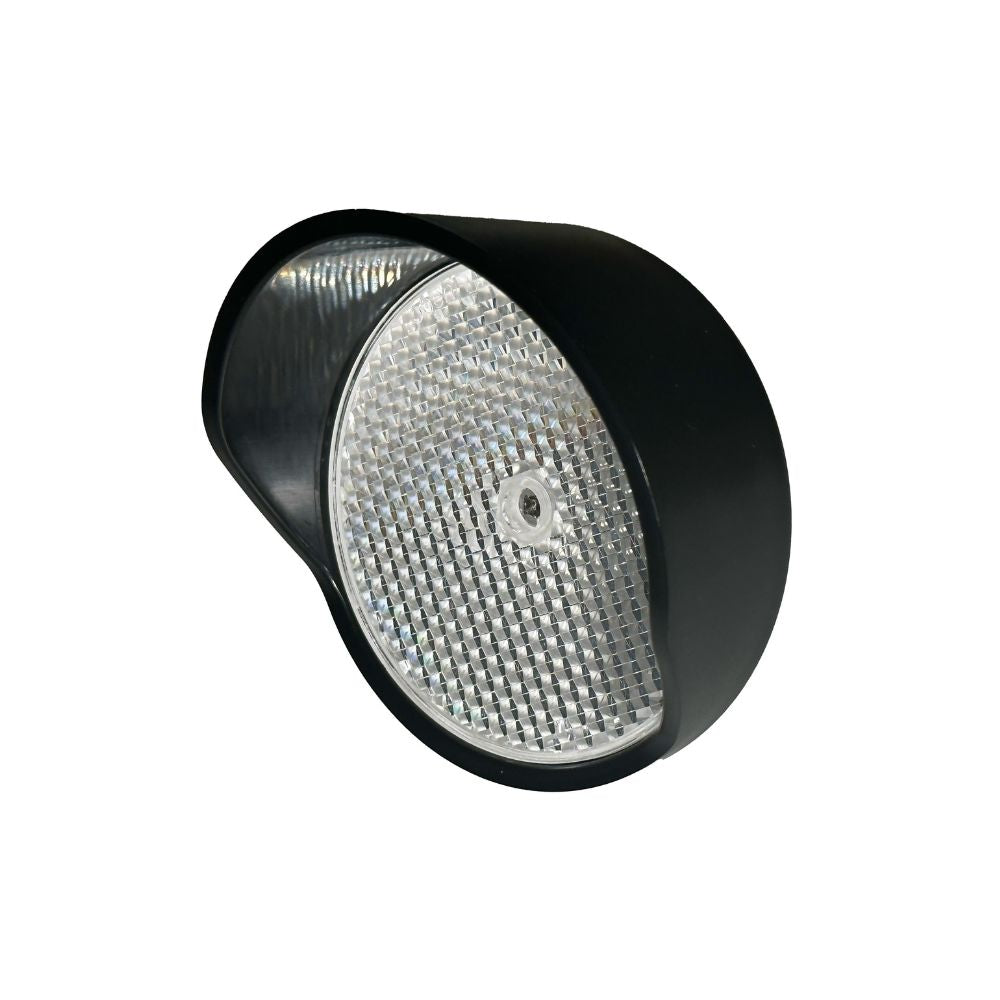

  • Reflector with hood
  • Mounting bracket
Features
  • Type B1, Non-Contact Sensor
  • Sensitivity Adjustment: Potentiometer
  • Universal Mounting Bracket
  • All Install Components Included
  • Easy Alignment LED
  • Selectable STEALTH MODE (LED OFF)
Technical Features
  • Operating Range: 5 ft. (1.5 m) to 60 ft. (18.3 m)
  • Power: 6-40 VDC, 12-24 VAC
  • Current (NC and 10K Monitoring Methods): 50 mA DC (relay activated)
  • Current (Pulse Monitoring Methods): 15 mA DC
  • Resistive Termination: 10K ohm across NO contact (switch selectable)
  • Surge Protection: Thermal fuse, MOV
  • Relay Output Operation: Light ON/Dark ON
  • Response Time: 250ms
  • Operating Temperature: -30° to 140°F (-34° to 60°C)
  • Dimensions: (L x W x H) 5.1” (130 mm) x 3.15” (80 mm) x 5.5” (140 mm)
  • Ball Joint Mount Conduit Thread: 1⁄2 Inch NPT
Cautions and Warnings
  • This product is an accessory or part of a system. Install the IRB-RET2 according to the instructions from the gate or door operator manufacturer. Comply with all applicable codes and safety regulations.
