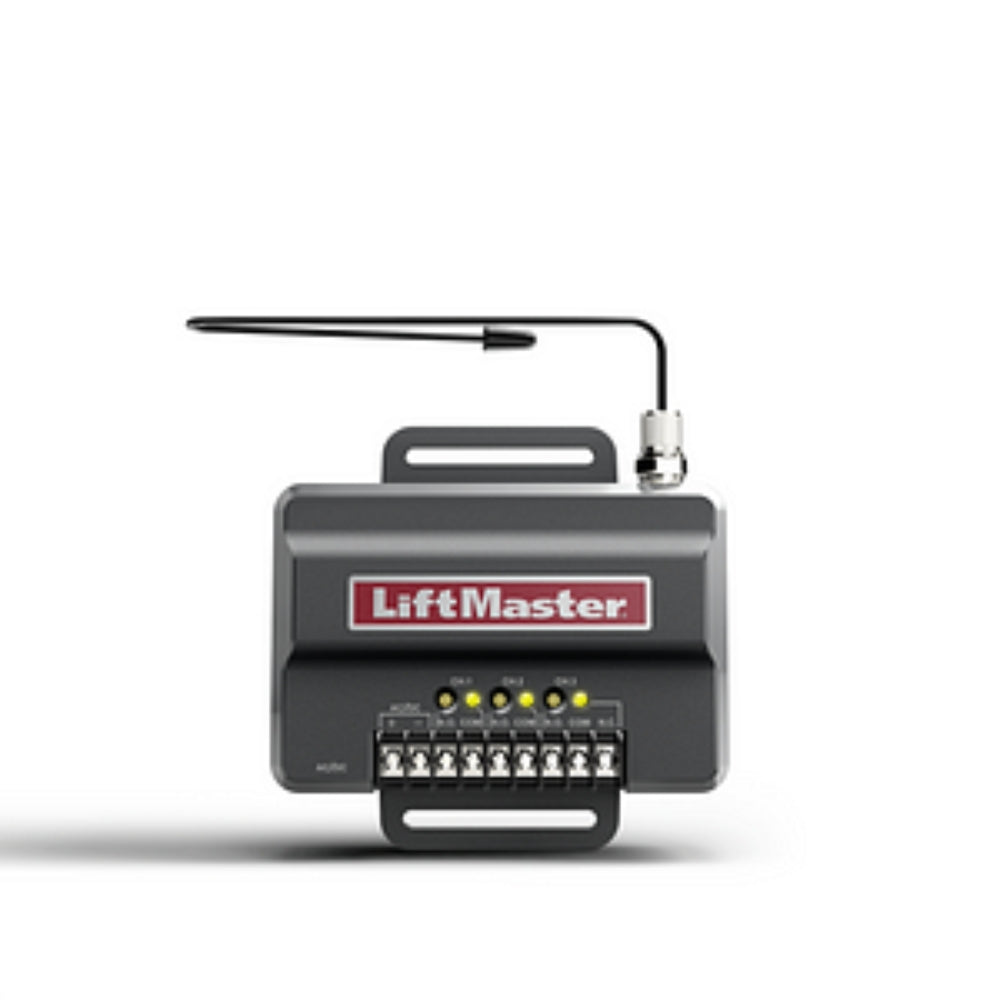

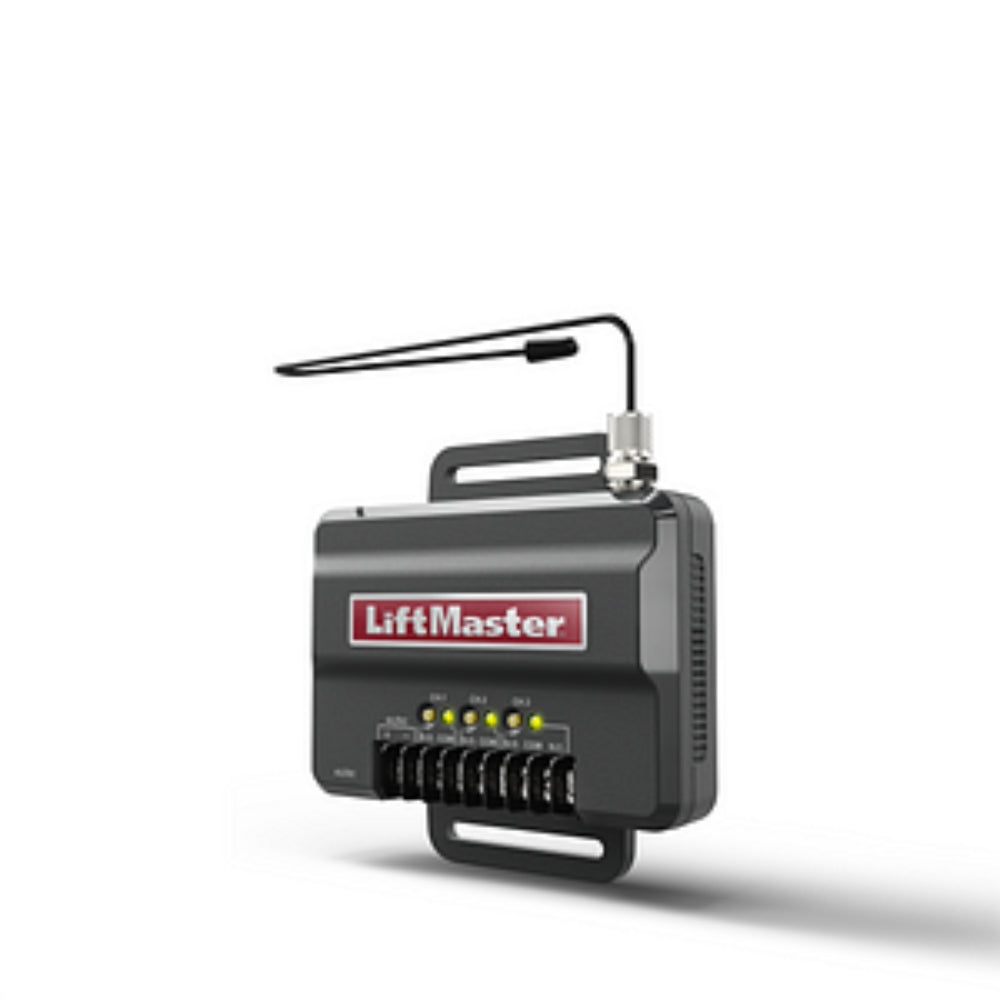

LiftMaster Universal Receiver | LIF-850LM

LiftMasterSKU: LIF-850LM

Price:
Sale price$52.00

LiftMaster Universal Receiver | LIF-850LM

Designed for both gated communities and commercial buildings, the Universal Receiver and accompanying remote controls feature Security+ 2.0™ technology. It utilizes a new, innovative, and exclusive narrow band multi-frequency radio, which virtually eliminates radio interference, and eliminates customer callbacks due to poor range performance. Property managers can support and manage multiple access points, such as the main gate, tenant and visitor doors, commercial doors, and even parking entrances, all with a single remote control solution that offers a superior range and security.

Features
  • Provides convenient access to gated communities, industrial facilities, and commercial sites all with a single transmitter solution.
  • Three channels provide expanded remote control capacity: Channel 1 - 50 remotes, Channel 2 - 20 remotes, Channel 3 - 20 remotes.
  • Multiple remote control options are available to provide secure access from the safety and convenience of a vehicle.
  • Compact design fits most gate and commercial door operators.
  • The receiver is available in a convenient weather-resistant version (model 860LM).
  • Compatible with 811LM, 813LM, and all MAX remote controls.
  • Power: 12-24VDC or 12-24VAC.
  • Relay Outputs: Output channels - 1 FORM C and 2 FORM A relays.
  • Narrow-band on 310 MHz, 315 MHz, and 390 MHz Security+ 2.0™ Rolling Code and Encrypted DIP.
  • Operational temperature from -35 to 65 degrees Celsius; Storage temperature from -40 to 85 °C.
  • Compliant with FCC Part 15.
  • 1-year warranty.
Technical Specifications
  • Relay Output: 3 (N/O and COM)
  • Operating Temperature: 31°F to 149°F (-35°C to 65°C)
  • Wiegand Output Data Format N/A
  • System Capacity: 3 Channels - Channel 1 (50 Remotes) - Channel 2 (20 Remotes) - Channel 3 (20 Remotes)"
  • FrequencySecurity+ 2.0 (Tri-band - 310, 315 & 390 MHz)
Warranty
  • 1 year
Product Literature
