EMX Retroreflective Photoeye Kit | EMX-NIR-KIT

EMXSKU: EMX-NIR-KIT

Price:
Sale price$89.97

Estimate shipping

EMX Retroreflective Photoeye Kit | EMX-NIR-KIT

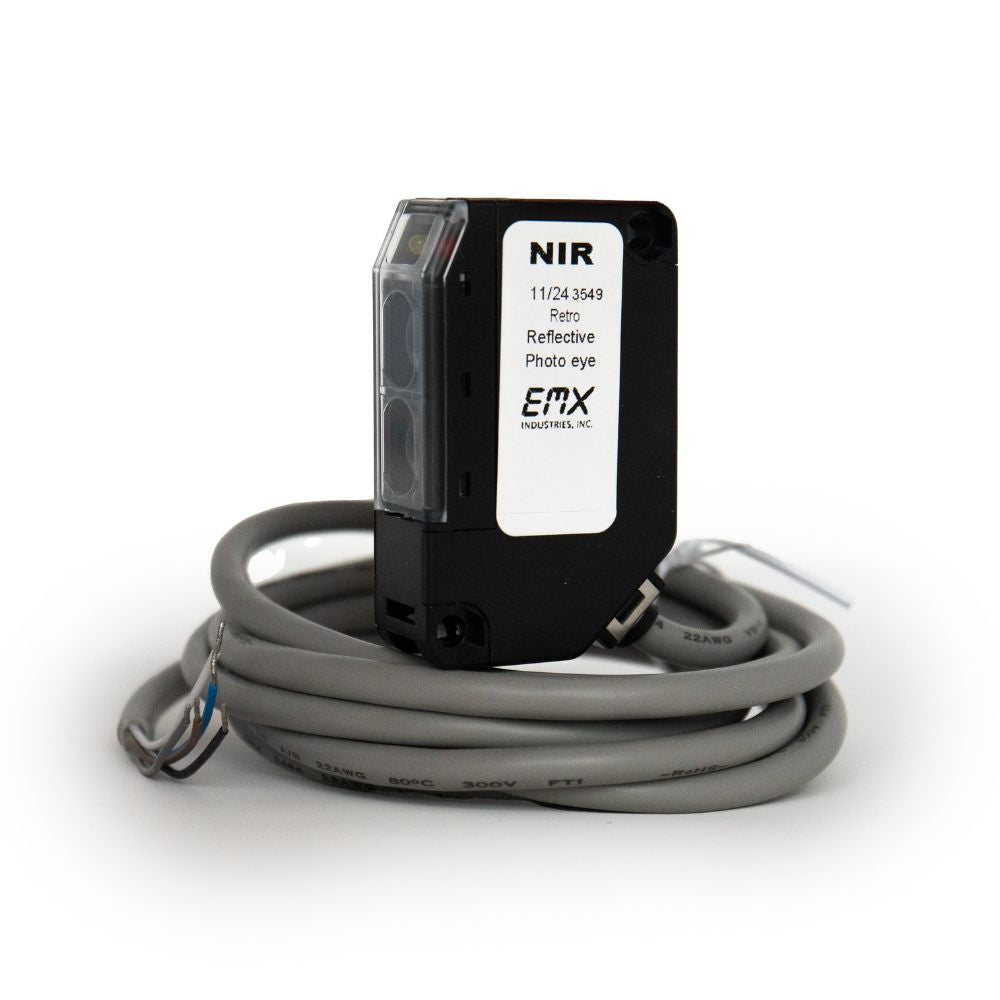

The NIR-50 retroreflective photo eye kit, also known as EMX-5200-K may be used as a reversing sensor for:

  • Commercial overhead doors
  • Gates
  • Parking barriers
Includes
  • Photoeye with hood
  • Reflector with hood
  • Mounting bracket
Features
  • 30 ft. operating range
  • Compatible with many operators
  • IP66 rated
  • Retroreflective configuration
  • Wide range operating voltage
  • IP66 rated
  • Sensitivity adjustment
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Operating Range: Up to 30 feet
  • Operating Temperature: -20o C to +55oC (-4oF to +131oF)
  • Operating Voltage: 12 – 240 Volts DC, 24 – 240 Volts AC
  • Dimensions: H = 2.5”, D = 1.5”, W = 0.75”

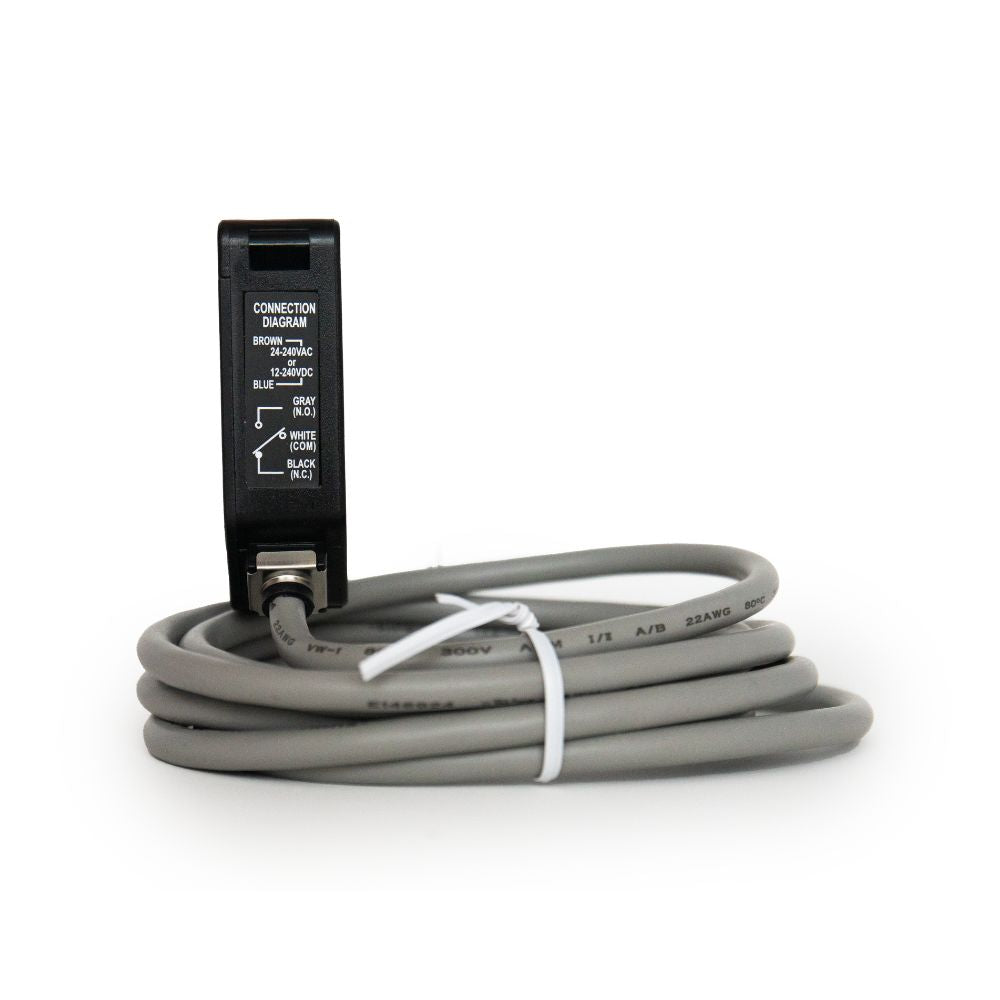

  • Lead Wire: 6 feet
  • Response Time: 10 ms maximum
  • Fail-Safe Relay Output: 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A.
  • Environmental Protection: IP66 (IEC)
  • Certifications: CE
