EMX NIR-50 Retroreflective Photoeye Kit | EMX-NIR-50-KIT

EMXSKU: EMX-NIR-50-KIT

Price:
Sale price$97.99

Estimate shipping

EMX Retroreflective Photoeye Kit | EMX-NIR-50-KIT

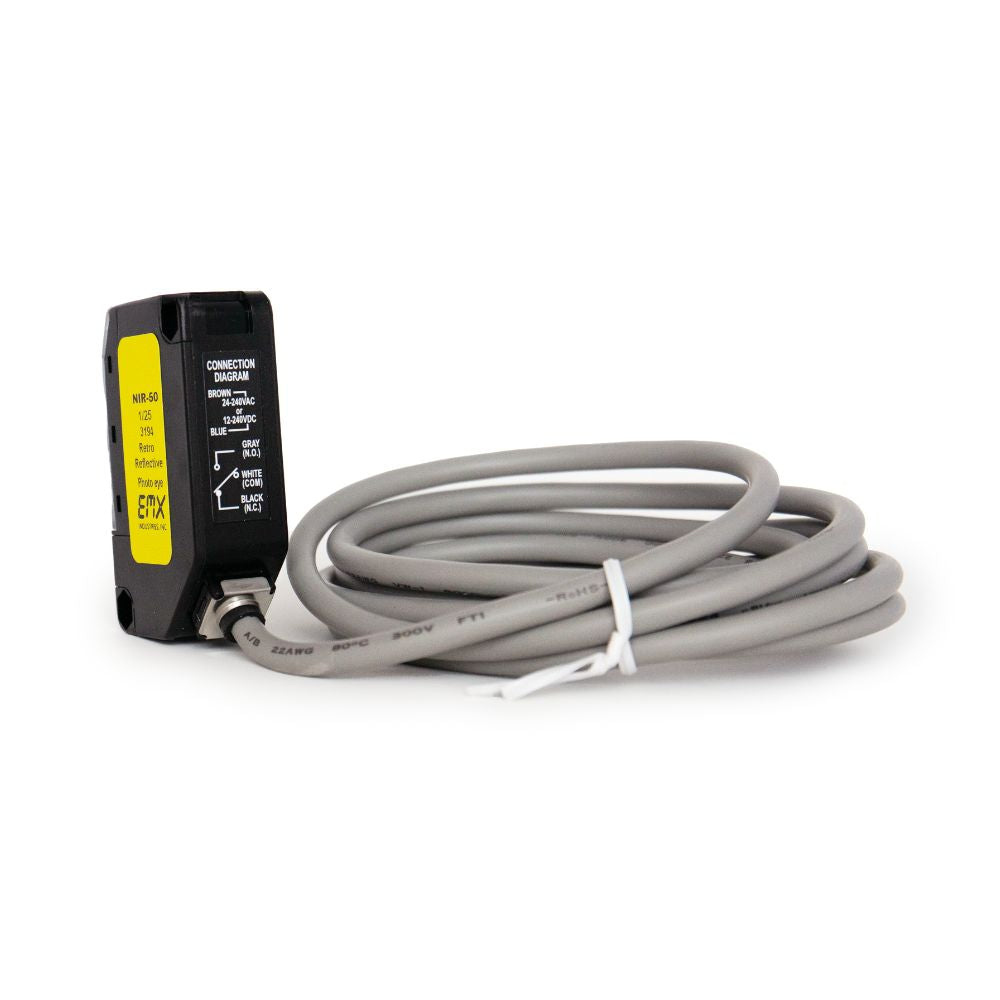

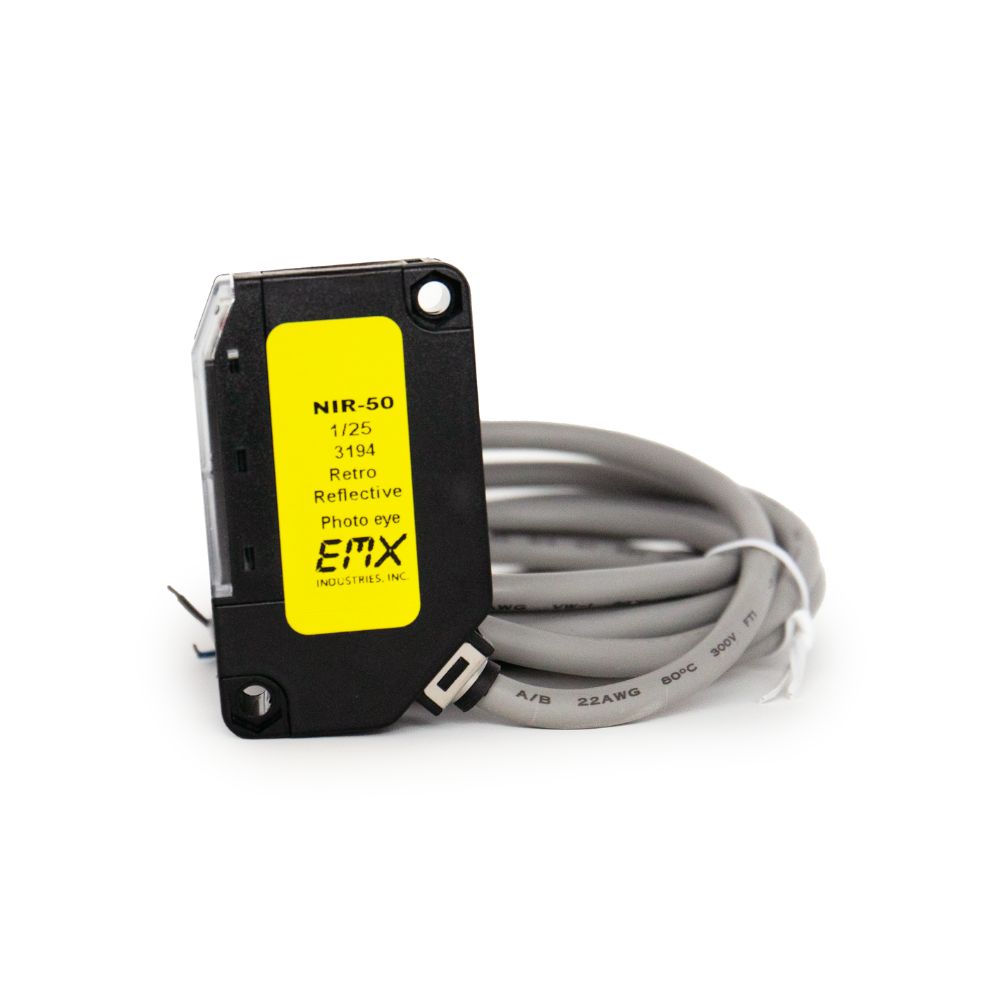

The NIR-50 retroreflective infrared photoeye is an external entrapment protection device Type B1, non-contact sensor for use with automatic gates and doors. Since the reflector directs the beam back to the photoeye, wiring to the other side of the roadway is not needed. The NIR-50 operates up to 50 feet over a voltage range of 12-240 VDC and 24 240 VAC. Two LED indicators provide status information at a glance making set-up and alignment easy.

Note: For gate or door operators that require a monitored safety device, see our UL325 photoeyes. The NIR-50 is not UL-compliant.

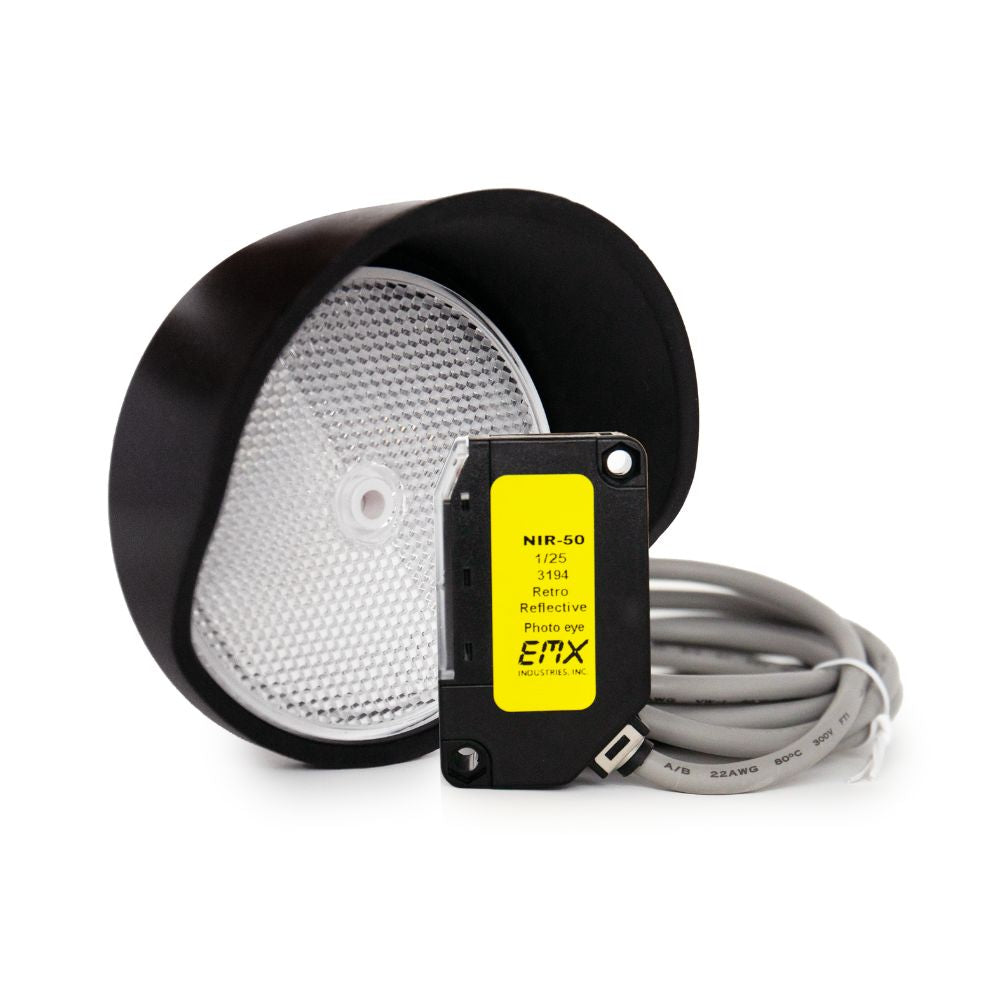

Includes
  • Photoeye with hood
  • Reflector with hood
Applications
  • Commercial overhead doors
  • Gates
  • Parking barriers
Features
  • 50 ft. operating range
  • Retroreflective configuration
  • Compatible with many operators
  • Wide range operating voltage
  • IP66 rated
  • Sensitivity adjustment
Manufacturer's Warranty
  • 2 Years
Technical Specification
  • Operating Temperature: -20° C to +55°C (-4°F to +131°F)
  • Operating Voltage: 12 – 240 Volts DC, 24 – 240 Volts AC
  • Dimensions: H = 2.5”, D = 1.5”, W = 0.75”
  • Lead Wire: 6 feet
  • Response Time: 10 ms maximum
  • Fail Safe Relay Output: 125V AC 0.6A, 110V DC 0.6A, 30V DC 2A.
  • Environmental Protection: IP66 (IEC)
  • Certifications; CE
  • Sensing Range: 50 feet
Cautions and Warnings
  • This product is an accessory or part of a system. Install the NIR-50 according to the instructions from the gate or door operator manufacturer.
  • Comply with all applicable codes and safety regulations. Retroreflective photoeyes rely on a reflective surface (a reflector) for proper operation. In some cases, a vehicle with a reflective surface at a given distance can act as a reflector and allow the gate to close on a vehicle.
