EMX UL325 Infrared Photoeye Kit (Grey Hoods) | EMX-IRB-325-KIT

The IRB-325-KIT - also known as EMX-1112-K is an external entrapment protection device type B1, non-contact sensor for use with automatic gates and doors. The device is UL325-2018 compliant with operators that require NC monitoring.

The long-range and thru-beam features of the IRB-325 offer a reliable solution to all external entrapment protection needs. A robust, NEMA 4X enclosure provides the durability required for any safety application. The lens-less design minimizes fogging and false triggering caused by small objects and provides for easy alignment.

Includes
  • Transmitter
  • Receiver

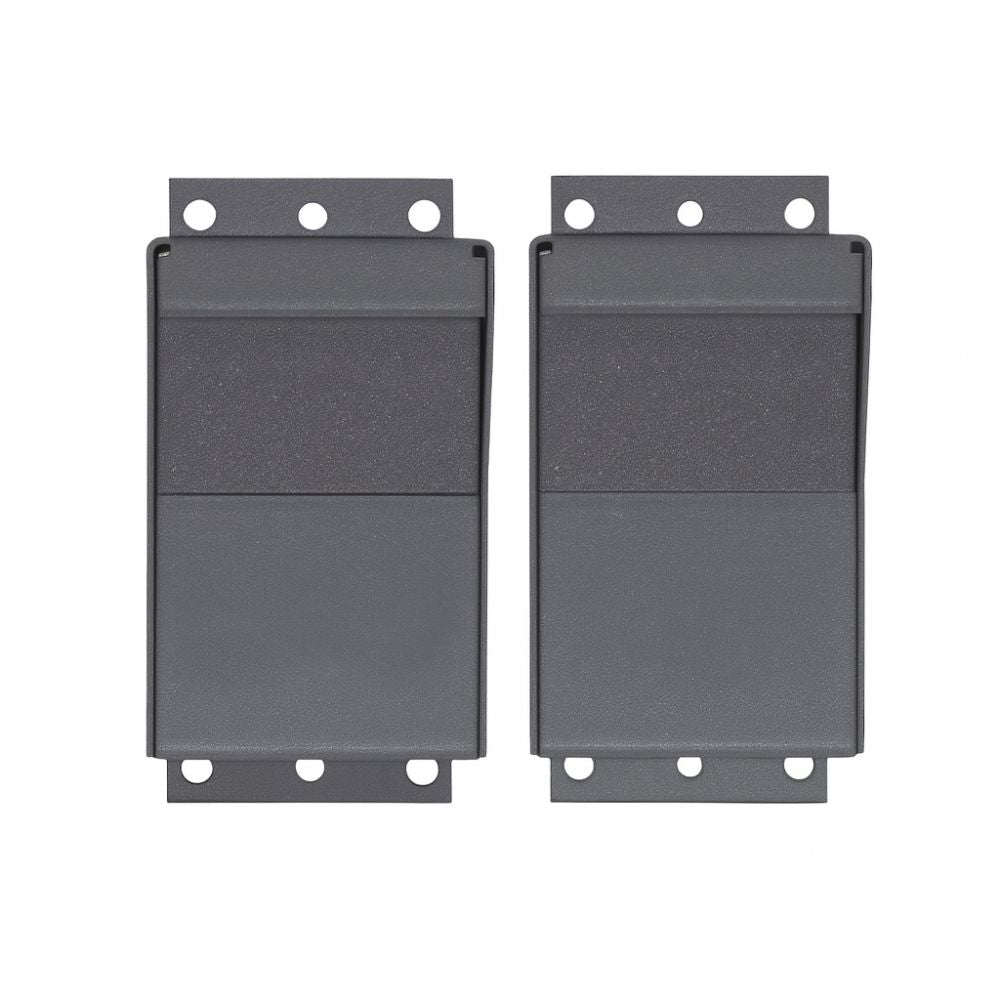

  • Set of 2 - Grey protective hoods (IRB-325-HD)
Features
  • UL325-2018 compliant
  • Monitored NC operation
  • 65ft. operating range
  • Compatible with many operators
Manufacturer's Warranty
  • 2 Years
Technical Specifications
  • Operating range: 6 to 65 feet
  • Power supply: 12 VDC to 24VAC/DC
  • Current consumption: 12 VDC standby/detect, 24VAC/DC standby/detect
  • Receiver: 33mA/25mA, 56mA/38mA
  • Transmitter: 47mA
  • Relay contact rating: 1A @ 30VDC
  • Operating temperature: -40°F...+170°F
  • Housing material: UL and CSA Type 4, NEMA 4X, 3, 3R, 12, 13
  • Housing dimensions: 5.03” (128mm) x 3.06” (78mm) x 3.02” (77mm
  • Hood dimensions: 6.7” (170mm) x 3.3” (84mm) x 4.4” (112mm)
