LobiBox Door Controller Kit | LOB-LB‐DC1‐KIT

The LobiBox Door Controller provides access control and door control between your LobiBox Visitor Unit and your door.

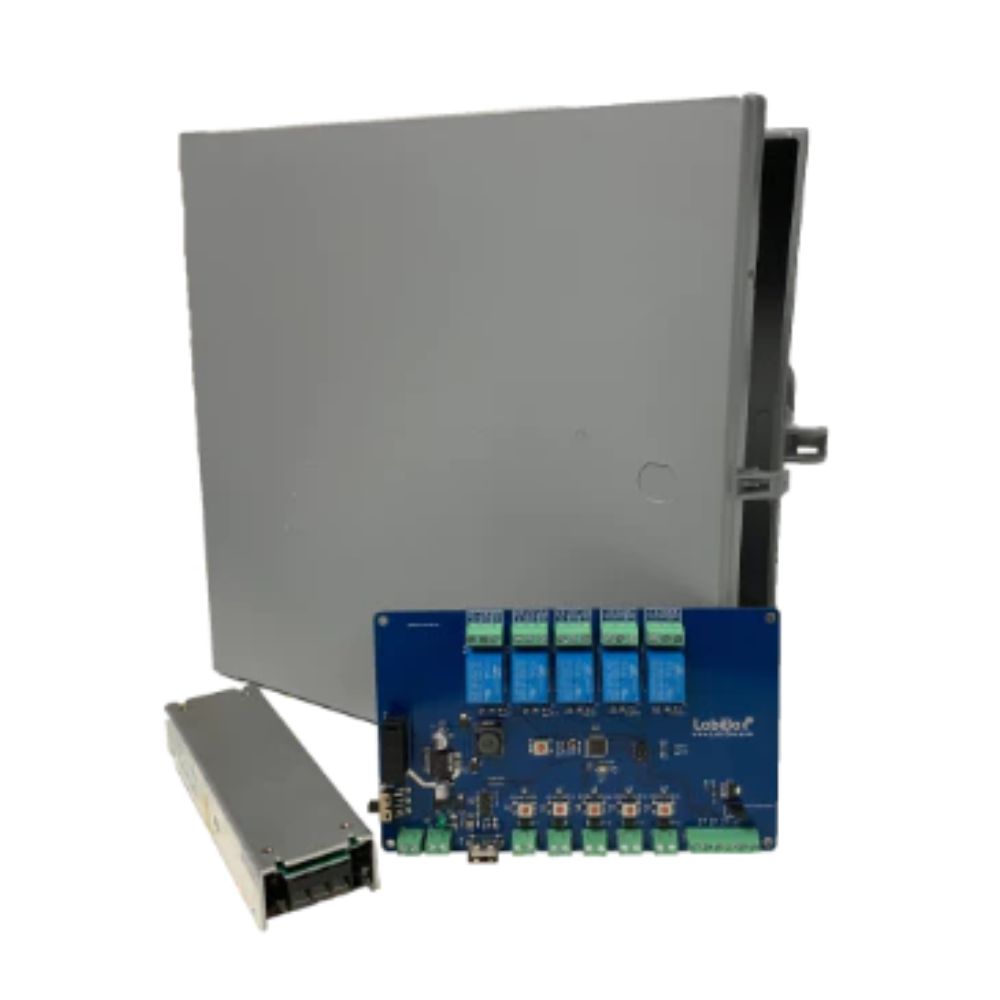

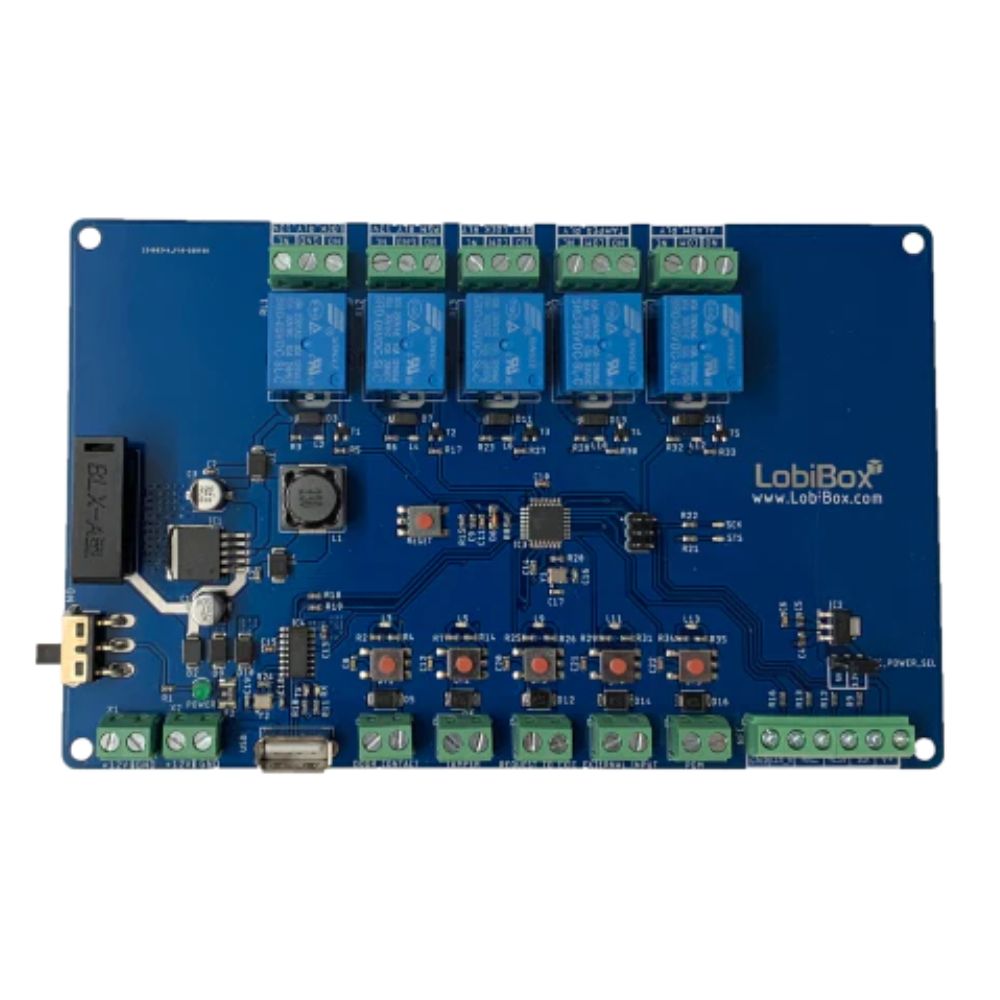

  • LobiBox Door Controller PCB
  • Door Controller Enclosure
  • 12V Power Supply
  • Power Adapter
  • 25' USB cable to connect to LobiBox unit
  • (2) LobiBox Keys and (5) Key Fobs
Ideal applications
  • Mounted above ceiling tiles
  • Located in IT room or secured closet
  • Integrated with existing access control system
Technical Specifications
  • Dimensions: 6.75"W x 4"H x 0.5"D
  • NEMA / IP Ratings: NEMA1 / IP66
  • Weight: 0.35 lbs
  • Mounting: Surface Mount
  • Mounting Depth: 4"
  • Temperature Rating: -20F~125F
  • Power In: 120VAC / 1.5A - Circuit
  • Power Out: 12VDC / 6A
  • Connections
    • USB for connection to visitor unit
    • (2) Relay Outputs, 12VDC
      • Rating: 12VDC 2A
    • (3) Relay Outputs, Dry Contact
      • Rating: 250VAC 10A, 28VDC
    • (1) Door Contact Input, Dry
    • (1) Tamper Contact Input, Dry
    • (1) Request to Exit, Dry
    • (1) Alarm Input, Dry
    • (1) Pgm Output, Dry
  • Enclosure Dimensions: 13"W x 12"H x 4.25"D

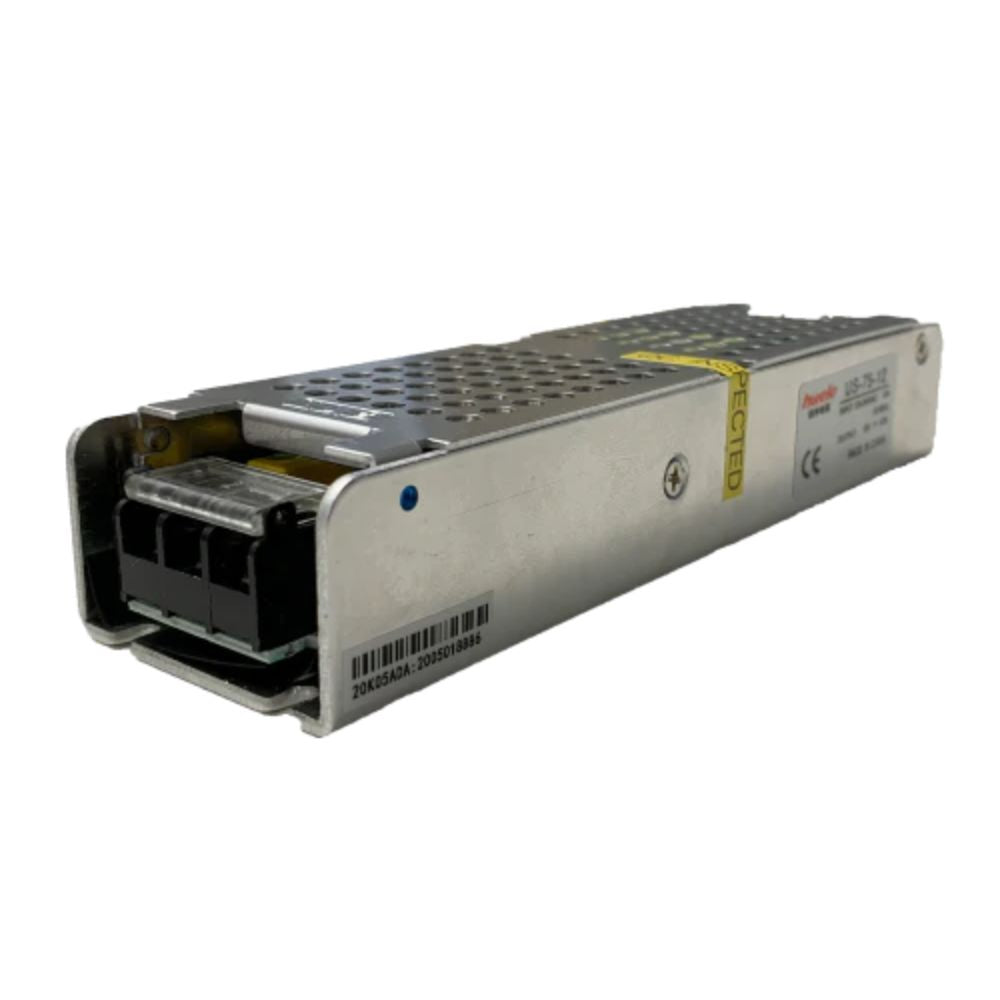

  • Power Supply
    • Input: 100-240VAC 1.5A
    • Output: 12V
    • Size: 6 3/4"W x 2"W x 1 1/4"D
