DoorBird IP Video Door Station D21DKV for Multi-Tenant Buildings

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a standalone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

All DoorBird products are designed, developed, and produced by Bird Home Automation GmbH in Berlin, Germany. We manufacture all products with the greatest care and precision and deliver them to our customers all over the world.

Note: Surface/ flush-mounting housing is sold separately. Bronze-finish includes flush-mounting housing (vertical).

Advantages

• Open API
• Video and audio call
• Smart Transmission Mode (STM)
• Smart Home & NVR compatible
• Night vision

Features

• Automatic door buzzer
• Free visitor history
• Individual action schedules,
• Geofencing
• Motion sensor with 4D technology
• HDTV Video
• Light sensor
• Two freely configurable bi-stable switching relays
• RFID reader
• Microphone
• Display Module
• Noise reduction and echo cancellation (AEC, ANR)
• Keypad Module

• Easy connection to the network

Technical Specifications

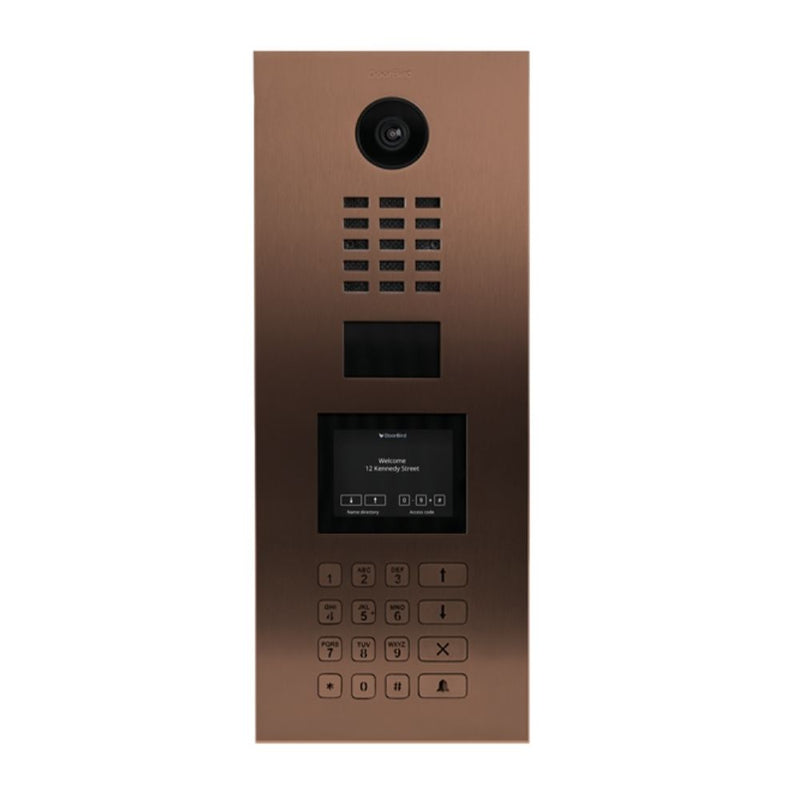

• Front panel: 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and with a bronze finish, V2A
• Mounting type: Flush- or surface-mounted, mounting housing sold separately
• Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Display Module: 3.5“ LCD (no touch function), illuminated, for the display of a 2-line free text and the name directory (max. 200 entries)
• Keypad Module: 16 keys, illuminated, configurable via App, e.g.
• Individual PIN codes
• Individual events (e.g. switch a relay, push notification, SIP call [audio/ video], HTTP(s) request)
• Individual schedules
• Up to 200 PIN codes are manageable
• Connectors
• RJ45, for LAN/PoE
• Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for the electric door opener
• Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for the electric door opener
• External input for external door opener button
• 15 V DC input (+, -), max. 15 W
• Relays can be expanded/detached with DoorBird I/O Door Controller
• Weatherproof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471

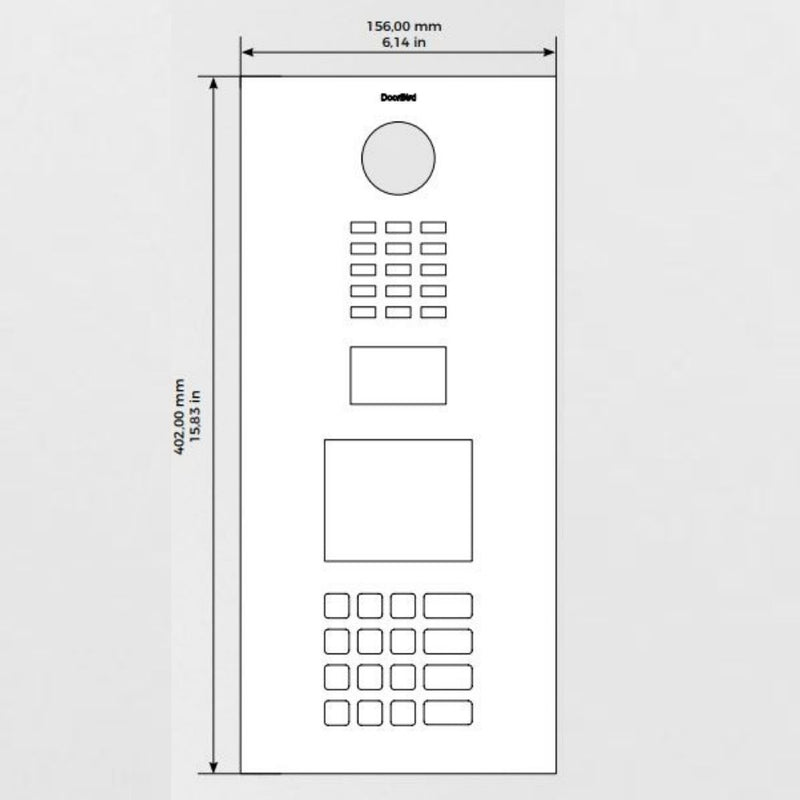

• Dimension: 15.83 x 6.14 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
• Scope of Delivery
• 1 x Main Electrical Unit
• 1 x Front panel
• 1 x RFID key fob
• 1x Screwdriver
• 1x Quick start guide with Digital Passport
• 1x Installation manual
• 1x Small parts
• System Requirements
• Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
• Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
• Network: Ethernet Network, with DHCP
• Recommended installation height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.
• Video
• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra-wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)
• Audio
• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full-duplex
• Network
• Ethernet: RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
• Motion Sensor
• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: Since a “Display Module“ is connected to the main electrical unit, the range is limited to 1 m (3.3 ft).
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• RFID
• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 kHz
• Range: 0 - 3 cm, depending on the environment
• Antenna: Internal
• Compatible Transponder: RFID key fobs, sold separately, Up to 200 tags manageable
• Configuration
• Tag (add, delete)
• Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
• Individual schedules
• RFID history available for 60 minutes in the app
• Integrated Wireless Modules
• RFID: 125 kHz

• Sensor: 24 GHz, can be disabled
• Simultaneous video streams: One, for event-based and continuous recording

Product Literature

• DoorBird IP Video Door Station D21DKV for Multi-Tenant Buildings Datasheet
