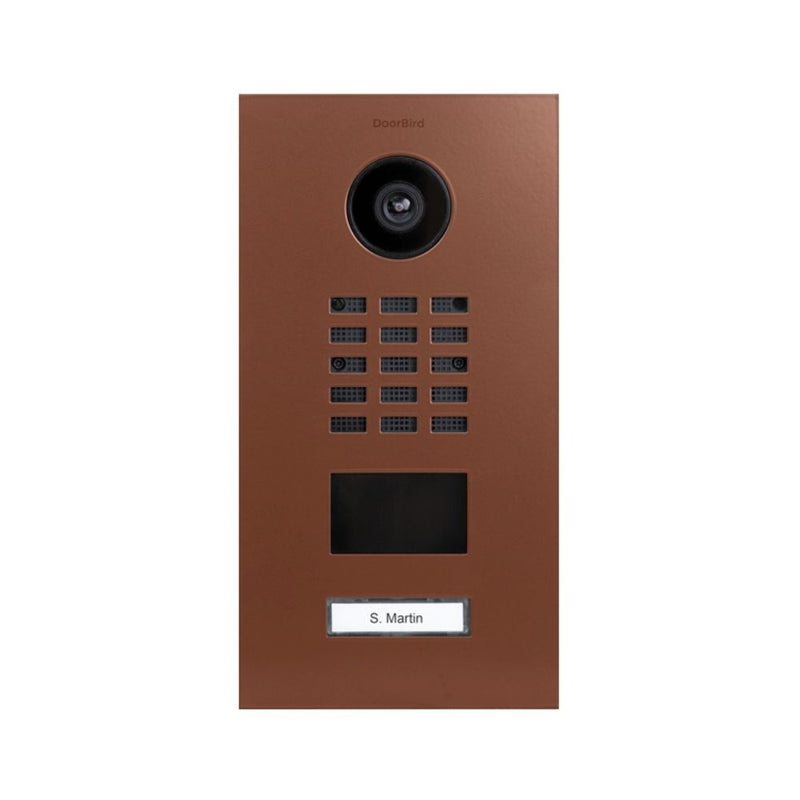

DoorBird IP Video Door Station D2101V with 1 Call Button (Brown Hues)

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

All DoorBird products are designed, developed, and produced by Bird Home Automation GmbH in Berlin, Germany. We manufacture all products with the greatest care and precision and deliver them to our customers all over the world.

Note: Surface-mounting housing is sold separately.

Advantages

• Open API
• Video and audio call
• Smart Transmission Mode (STM)
• Smart Home & NVR compatible

Includes

• Flush-mounting housing

Features

• Automatic door buzzer
• Free visitor history
• Individual action schedules
• Geofencing
• Night vision
• HDTV Video
• Light sensor
• Microphone
• Noise reduction and echo cancellation (AEC, ANR)
• RFID Reader
• Motion sensor with 4D technology
• Call button
• Easy connection to the network
• Two freely configurable bistable switching relay

Technical Specifications

• Front panel: 3 mm (0.12 in) Available in over 50 RAL colors and surfaces including stainless steel V2A / V4A (see material guide)
• Mounting type: Flush- or surface-mounted, mounting housing sold separately
• Call button: Illuminated
• Nameplate: Plastic. Engravable metal nameplate sold
• Power supply: 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Connectors
• RJ45, for LAN/PoE
• Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for the electric door opener
• Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for the electric door opener
• External input for external door opener button
• 15 V DC input (+, -), max. 15 W
• Relays can be expanded/detached with DoorBird I/O Door Controller
• Weatherproof: Yes, IP65
• Approvals: IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions: 9.96 x 5.16 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)
• Scope of Delivery
• 1x Main Electrical Unit
• 1x Front panel
• 1x RFID key fob
• 1x Screwdriver
• 1x Quick start guide with Digital Passport
• 1x Installation manual
• 1x Small parts
• System Requirements
• Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
• Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
• Network: Ethernet Network, with DHCP
• Recommended installation height: The camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.
• Video
• Camera: HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra-wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)
• Audio
• Audio components: Speaker and microphone, noise reduction, and echo cancellation (ANR, AEC)
• Audio streaming: Two-way, full-duplex
• Network
• Ethernet: RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
• Supported protocols: HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM
• Motion Sensor
• Type: Active
• Detection angle: 54° (H), 70° (V)
• Range: 1 - 10 m (3.3 - 32.9 ft), depends on the environment, configurable in 1 m (3.3 ft) steps
• Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration: Via App, e.g.
• Range (1 - 10 m / 3.3 - 32.9 ft)
• Movement direction (coming, leaving, both)
• Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) notification)
• Individual schedules
• RFID
• Type: Active Reader Passive Tag (ARPT) system
• Standard: ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency: 125 KHz
• Range: 0 - 3 cm, depending on the environment
• Antenna: Internal
• Compatible Transponder: RFID key fobs, sold separately, Up to 200 tags manageable
• Configuration: Via App, e.g
• Tag (add, delete)
• Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
• Individual schedules
• RFID history available for 60 minutes in the app
• Integrated Wireless Modules
• RFID: 125 kHz
• Sensor: 24 GHz, can be disabled
• Integrated Wireless Modules
• Bluetooth: Bluetooth Low Energy (BLE), enabled with future firmware and App update
• Sensor: 24 GHz, can be disabled
• Simultaneous video streams: One, for event-based recording

Product Literature

• DoorBird IP Video Door Station D2101V with 1 Call Button Datasheet
