Linear Omni-directional Remote Antenna | LIN-EXA-1000

Designed to enhance the radio range of Linear’s receivers. This antenna can be connected to the F connector on many Linear receivers to improve their range when they must be located in poor signal reception locations. Usually, an increase of 20-30% range can be expected. The versatile EXA-1000 can be mounted in a variety of ways. A 2-inch U-bolt is supplied for post or pipe mounting, or the U-bolt holes in the Base Plate can be used to screw the antenna to a wall or vertical wood brace or beam.

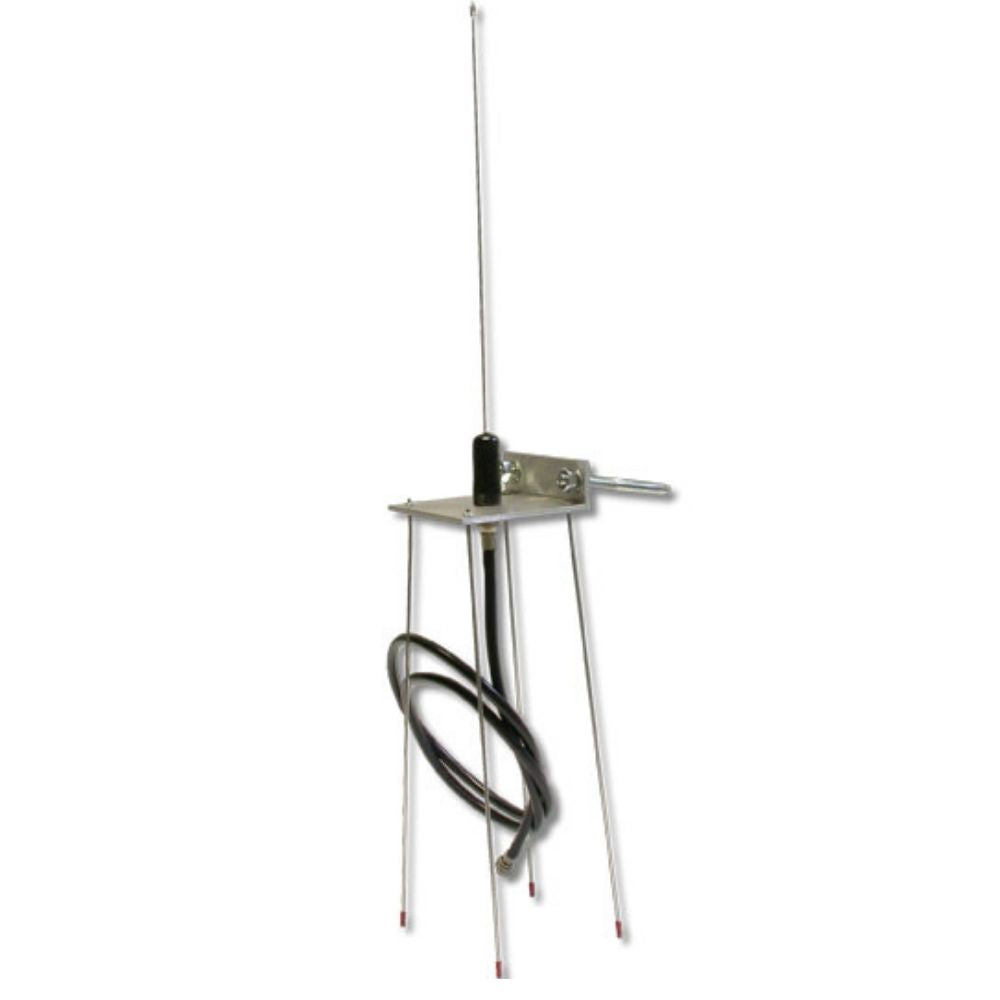

The EXA-1000 is a 1/2 wave, center-fed, vertical antenna composed of three parts: an Antenna assembly with an F connector attachment; a Base Plate assembly with radial mounting provisions; and a five-foot, 75-ohm coaxial cable. The cable connects to the antenna base on one end and the receiver F connector on the other. If the antenna must be mounted further than five feet from the receiver, an extension cable of up to a maximum of 25 feet may be used instead of the five-foot cable supplied. Because of the cable resistance, the performance of the EXA-1000 may be degraded by using longer than a 25-foot cable.

Includes
  • 5 feet of coax
  • U-bolt for post mounting
Features
  • Receives signals in 288 to 320 MHz range
  • Omni-directional remote antenna
Technical Specifications
  • Dimensions: 3″ W x 19.5″ H x 6″ D
Compatibility
  • This product is compatible with all Linear receivers with a Type F antenna connector
Note
  • Generally, the higher the antenna is mounted above ground level, the better the radio range will be.
